Yodalight YL40 – Sounder Beacon 108dB

Functionnality: 32 Tones - 2 Stages - Flashing

Type of fixing: Conduit Box, Wall and Bulkhead Mounting

Ingress protection: IP65

Colour
Voltage
Enclosure colour
Light source

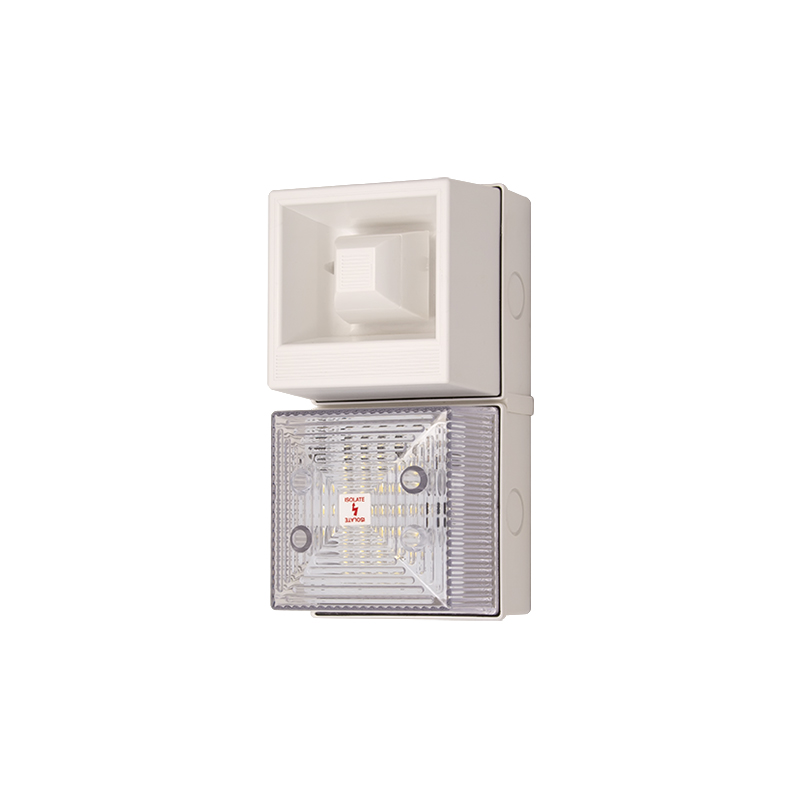

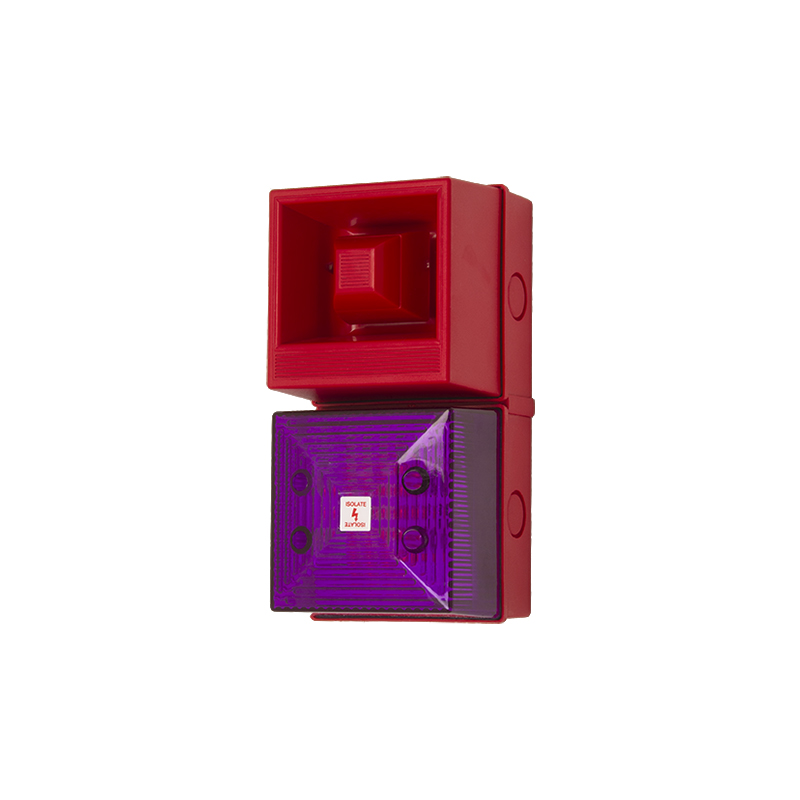

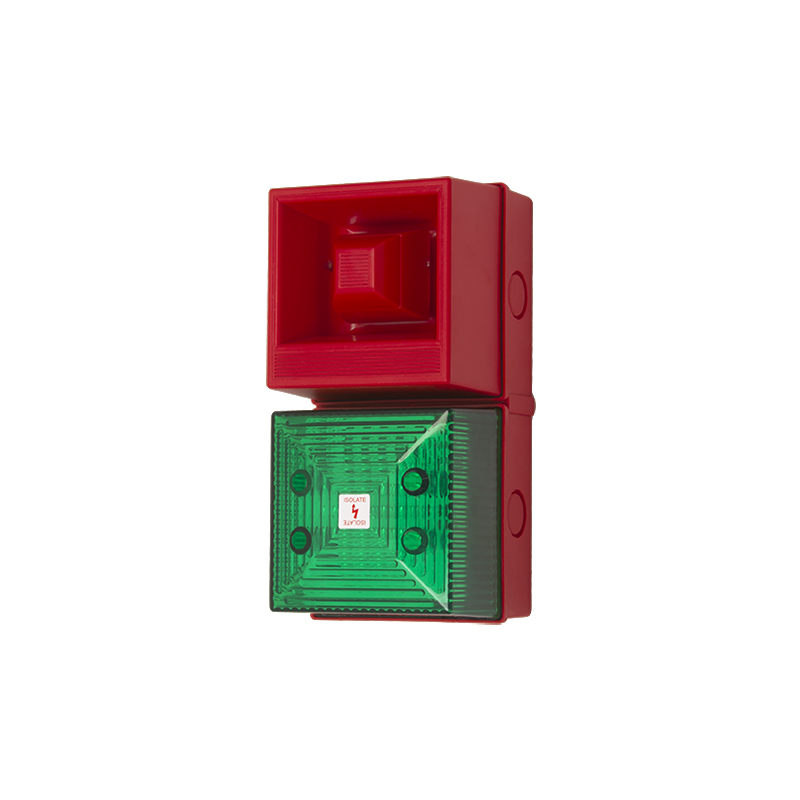

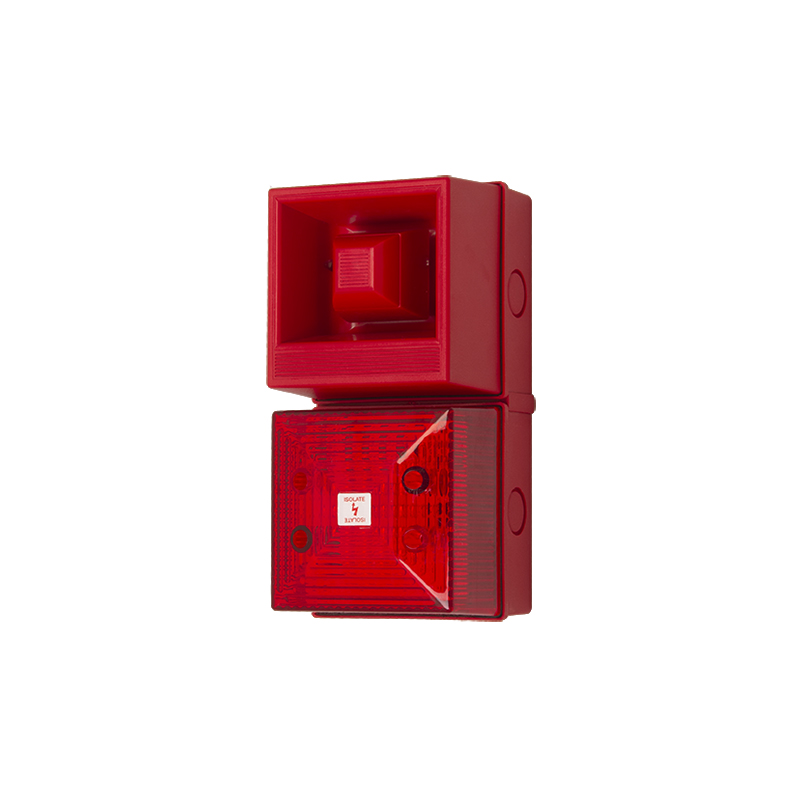

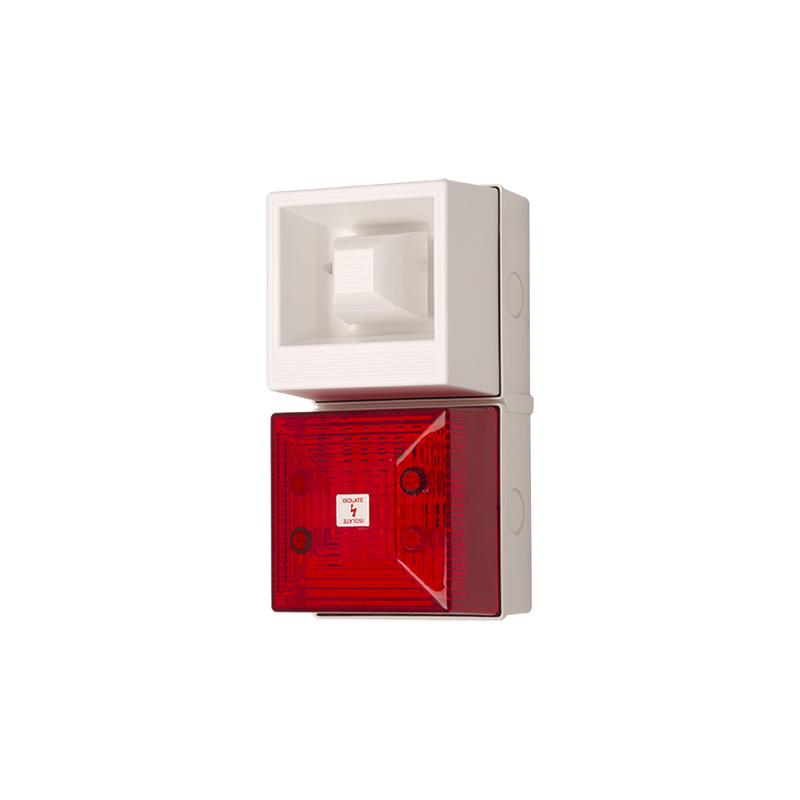

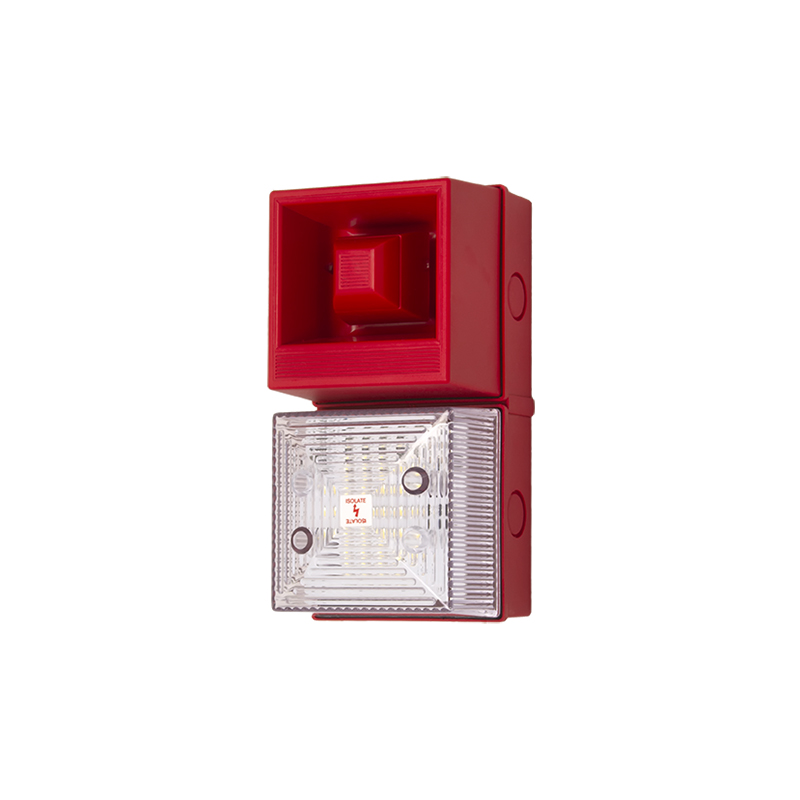

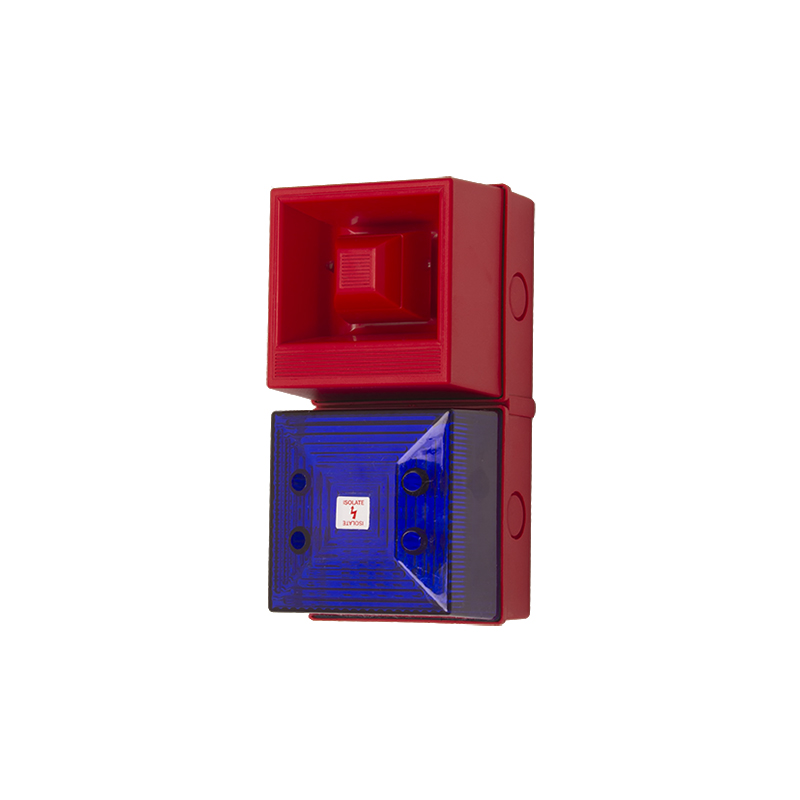

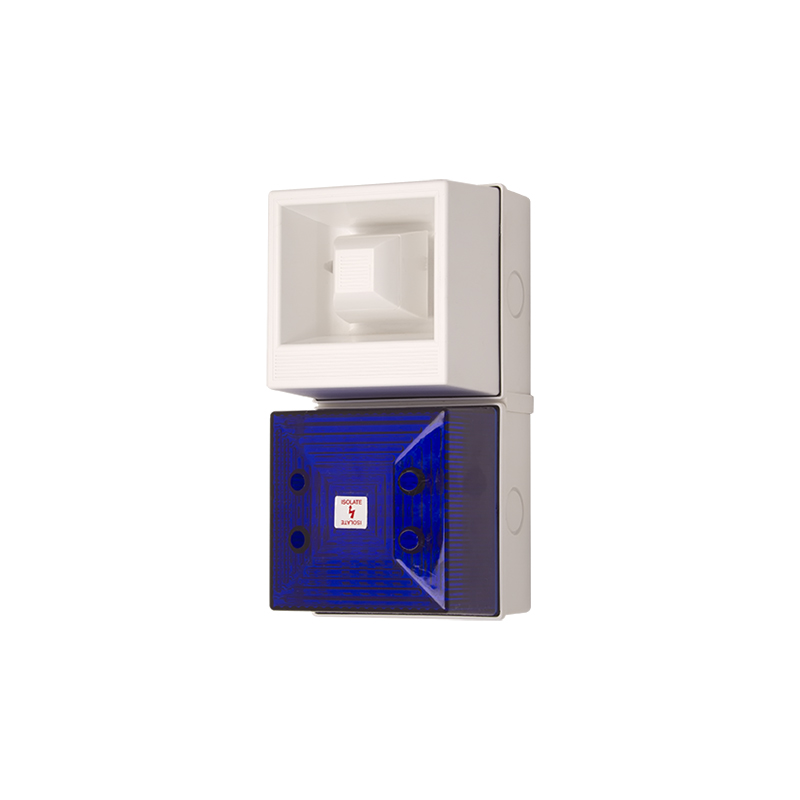

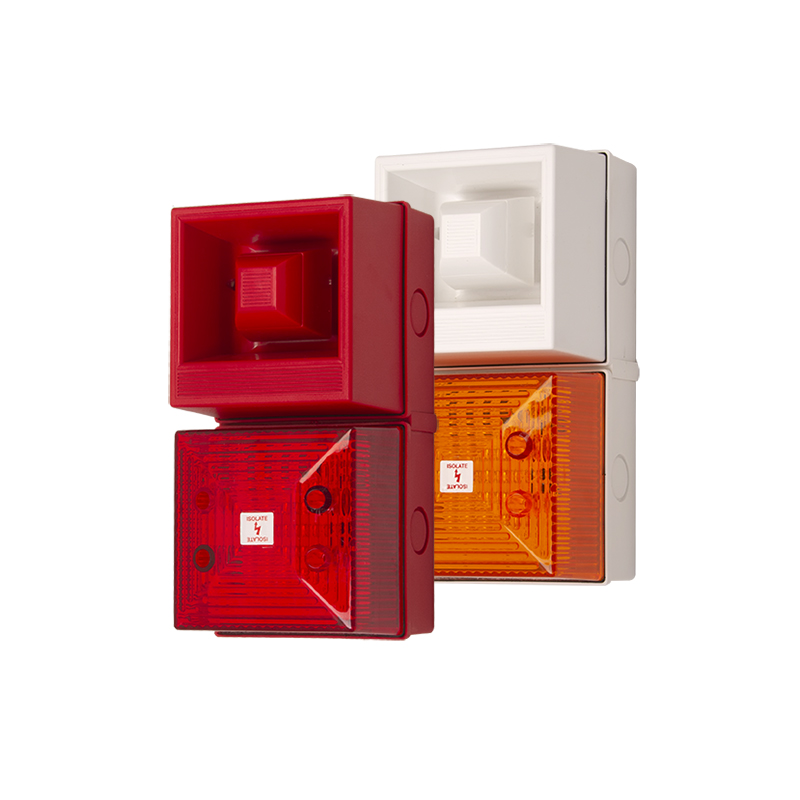

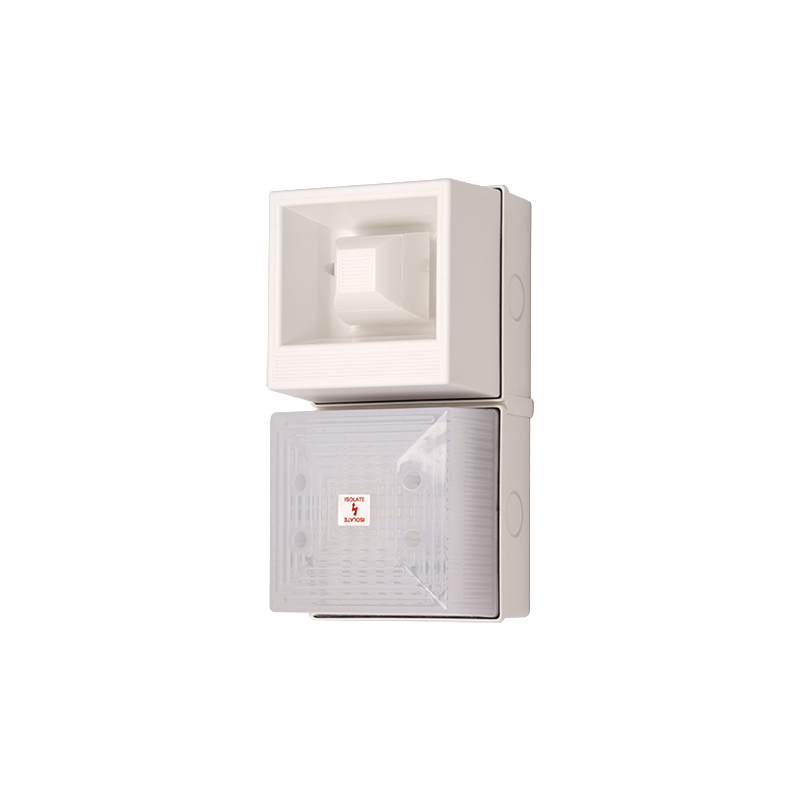

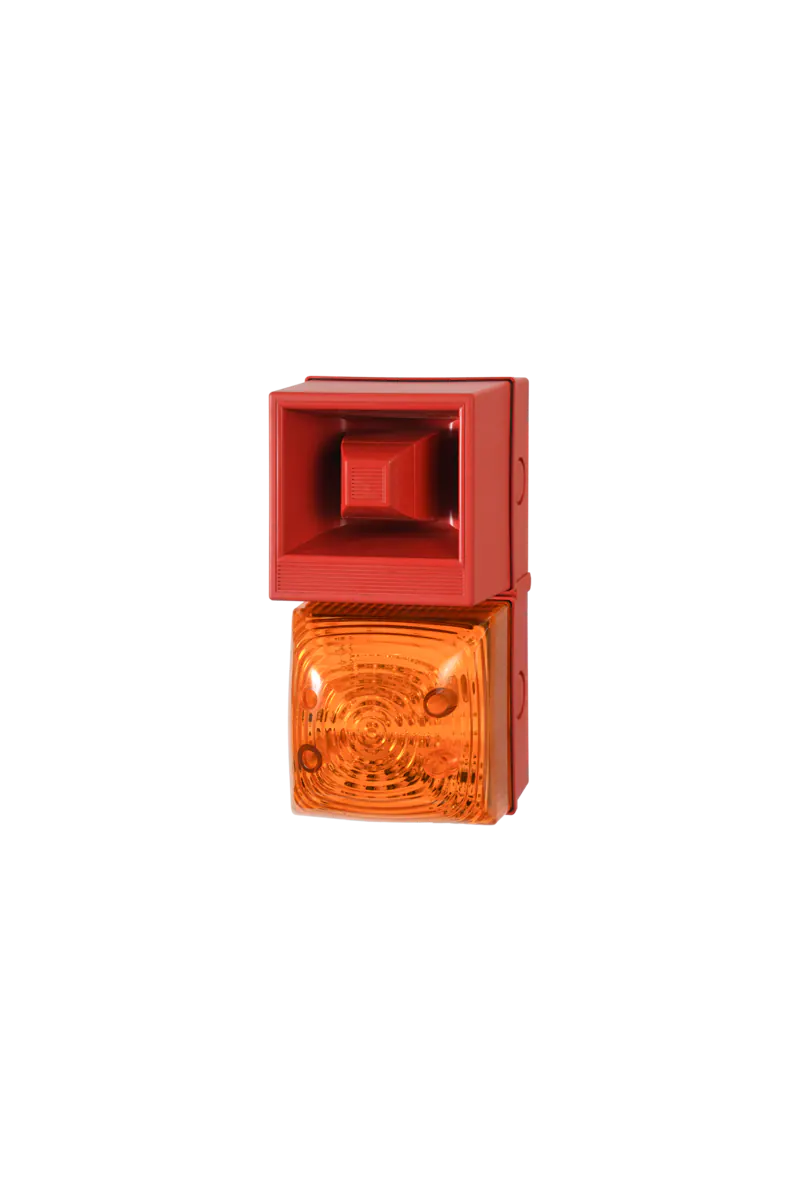

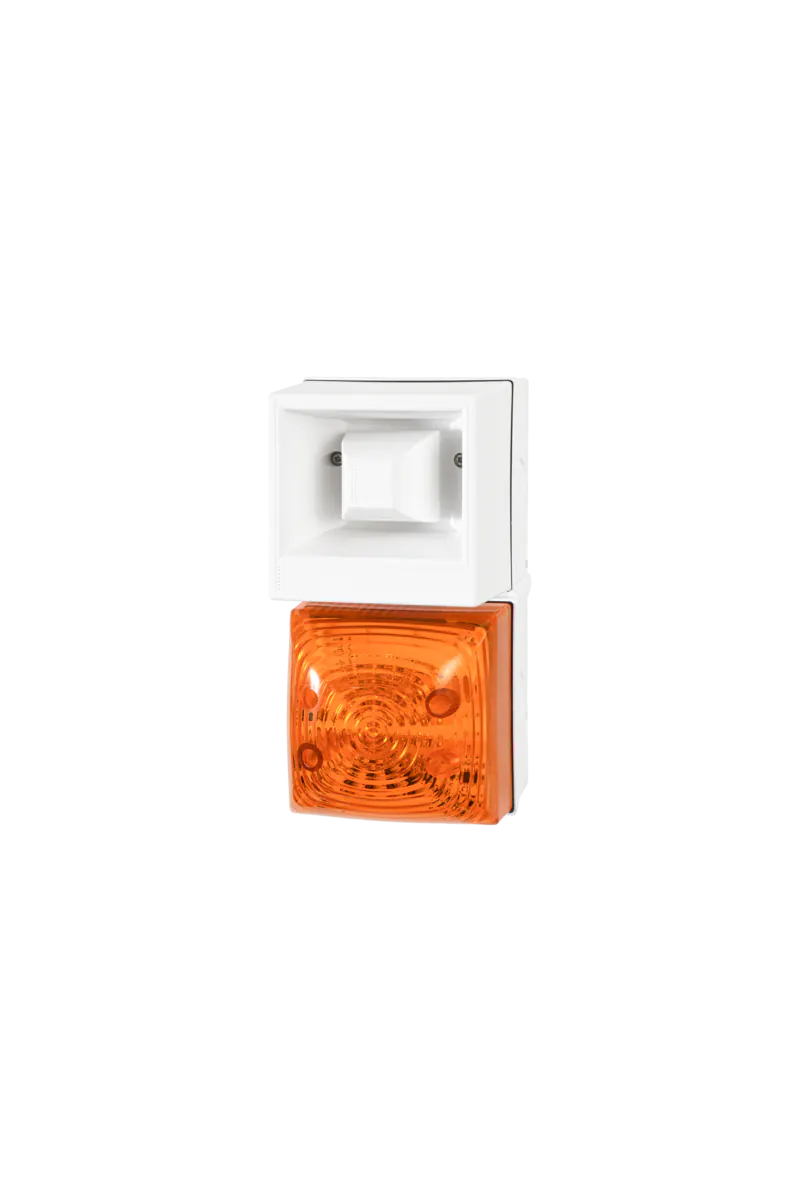

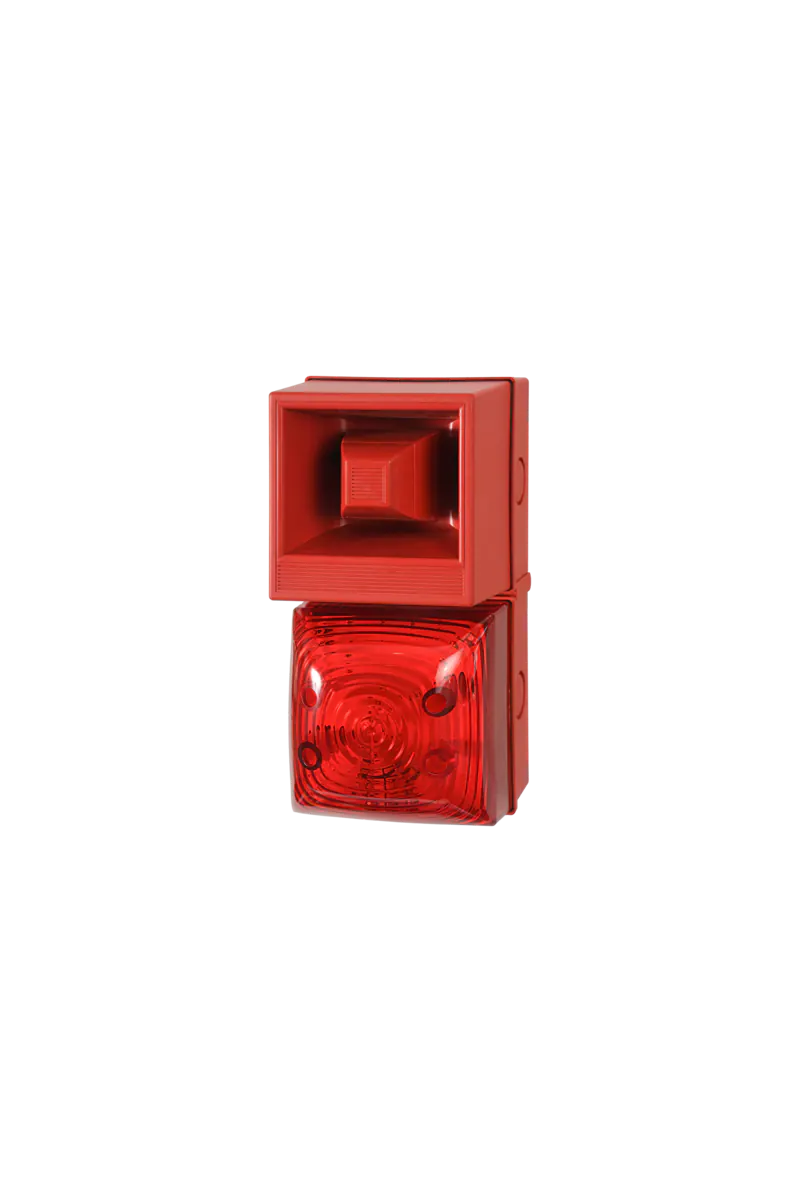

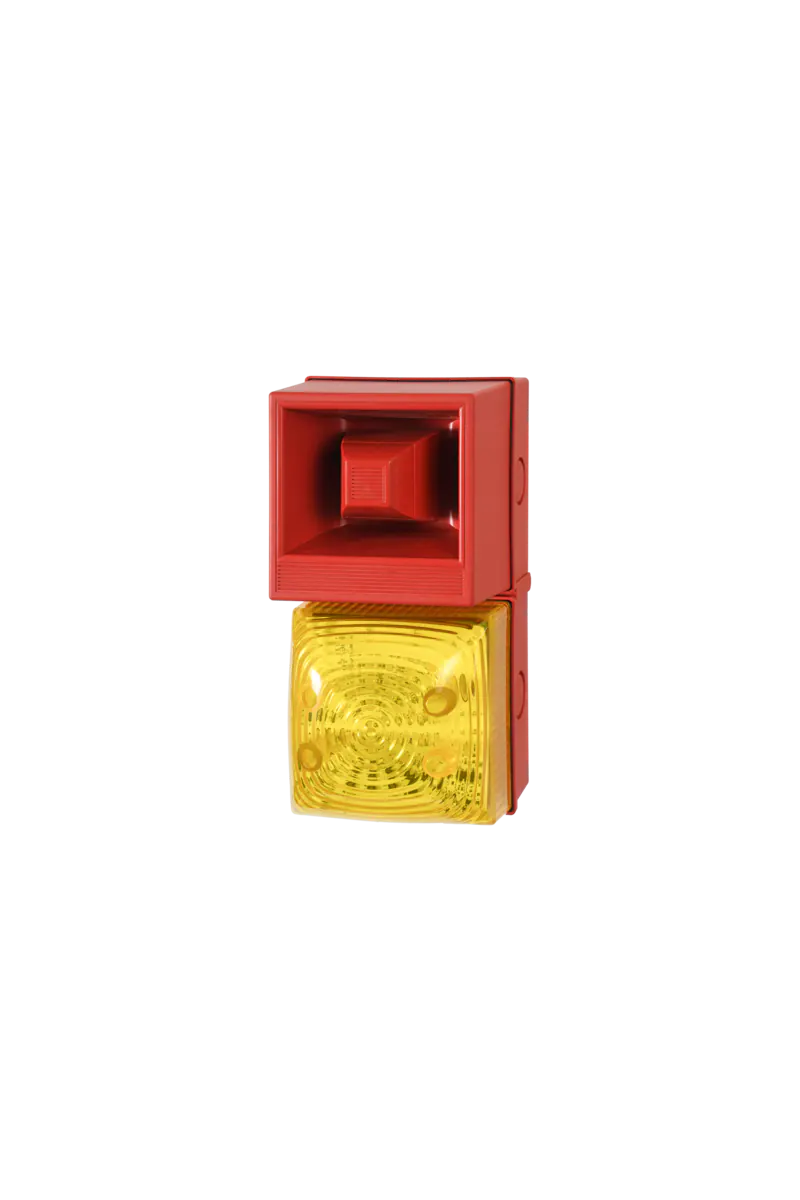

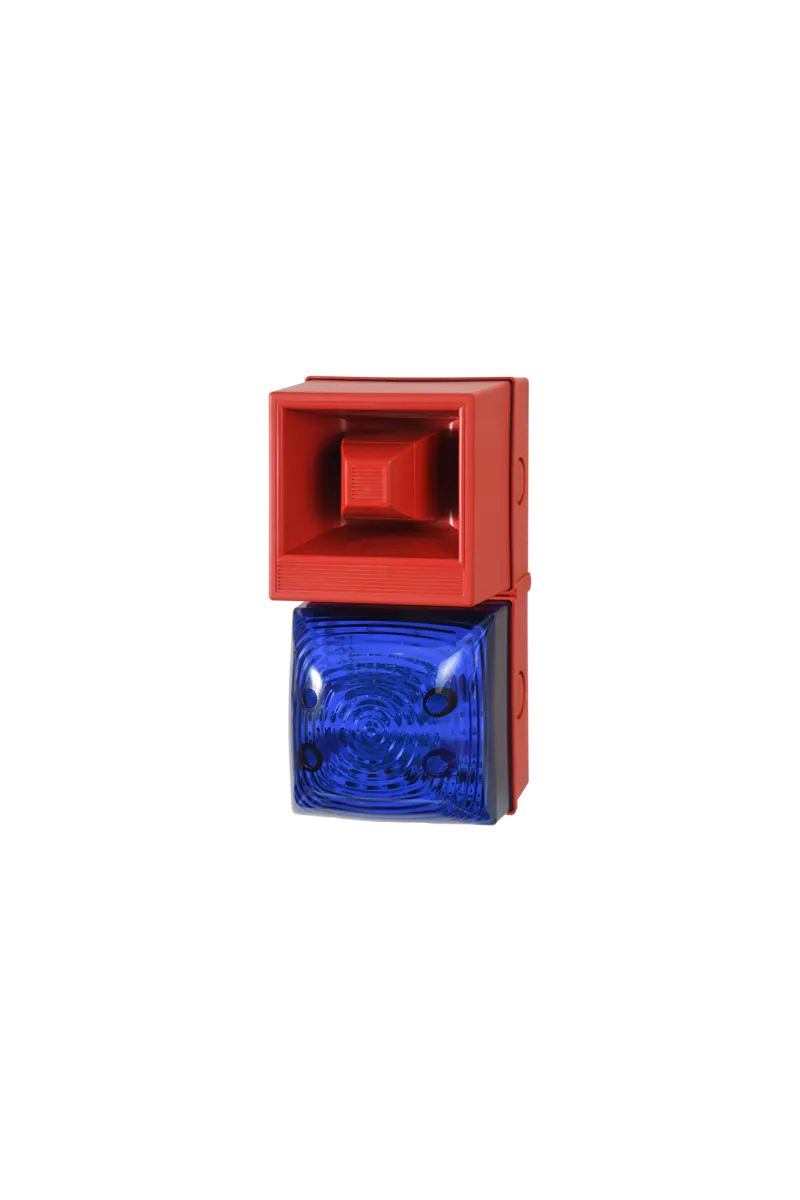

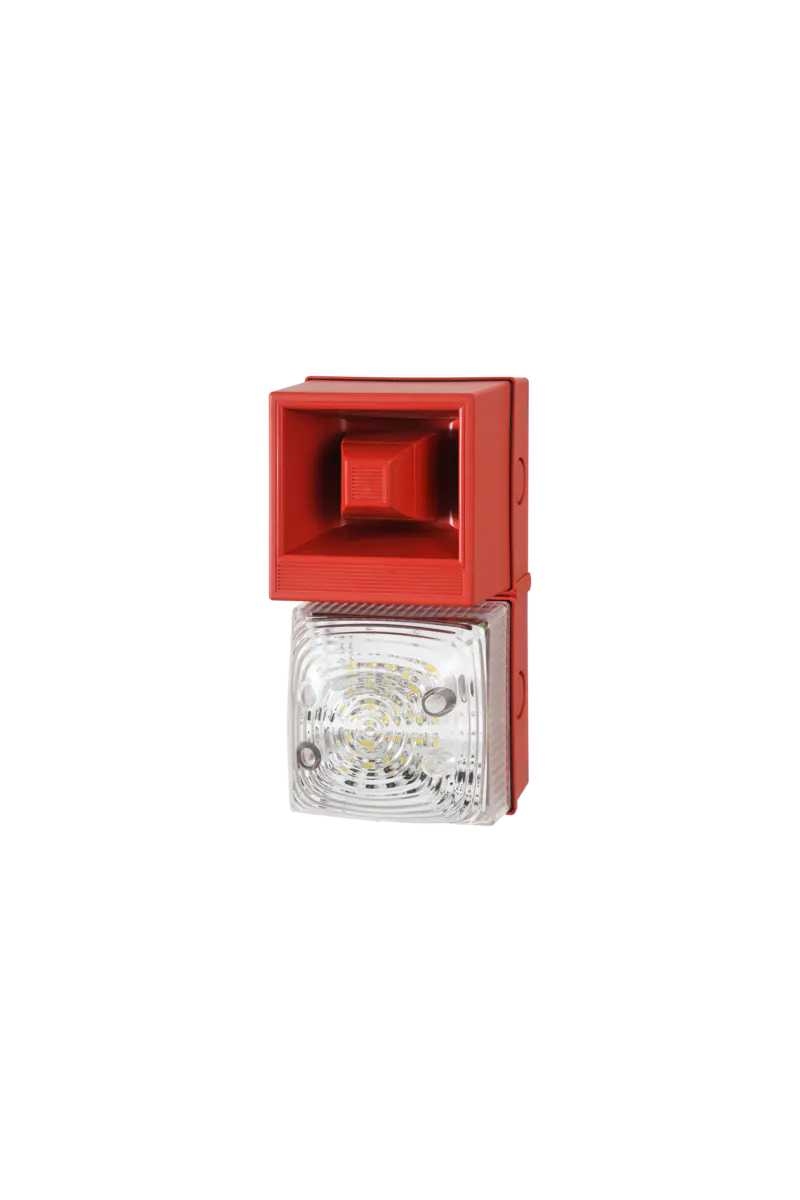

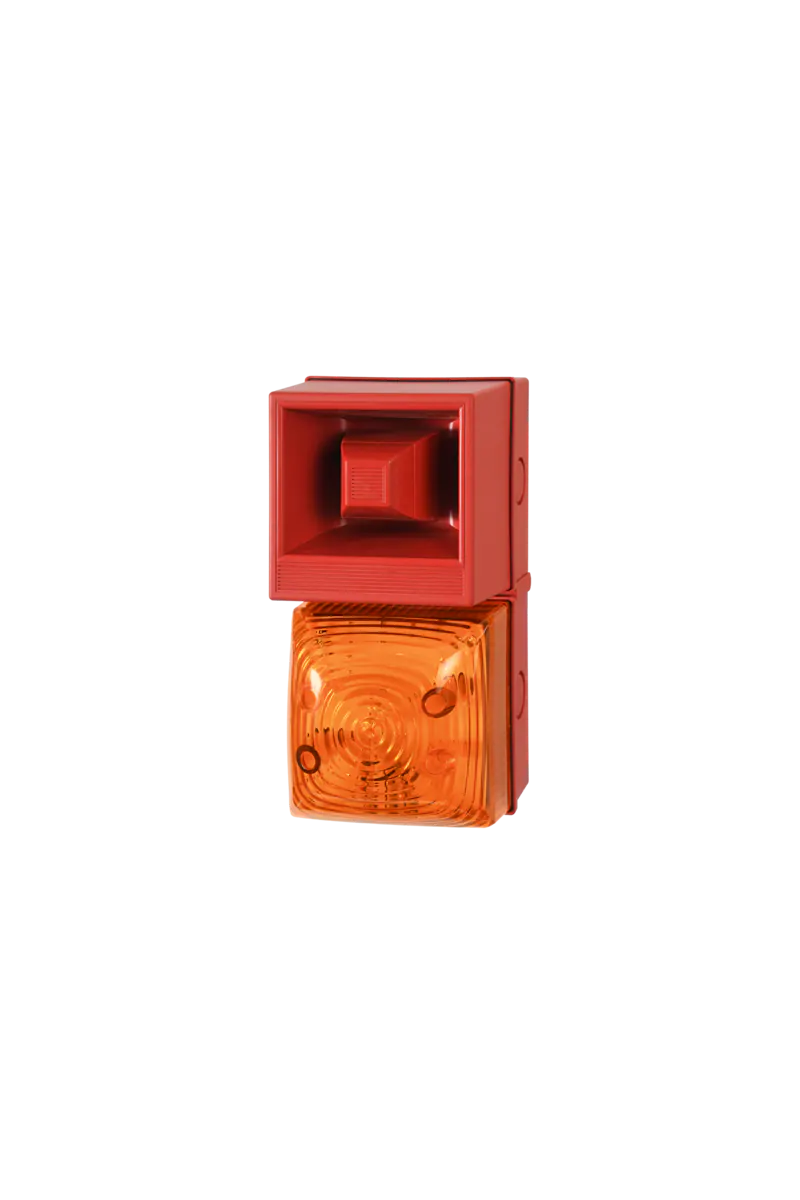

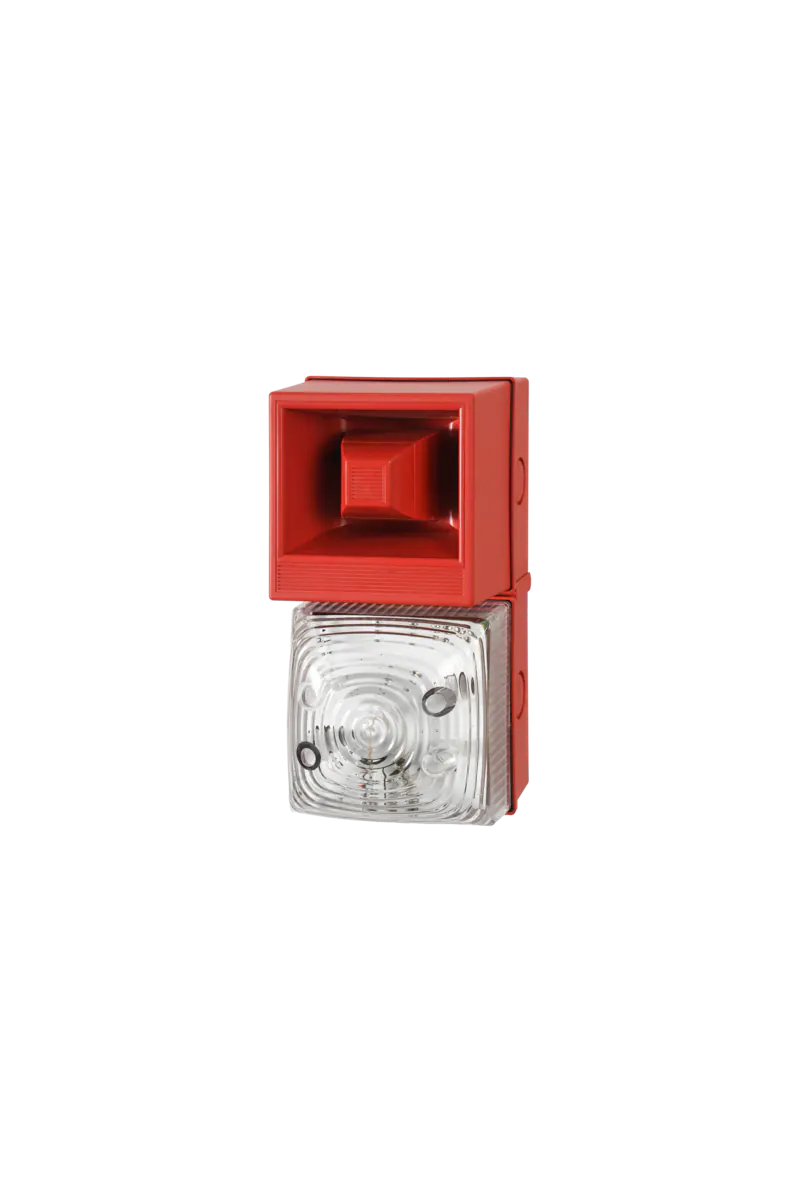

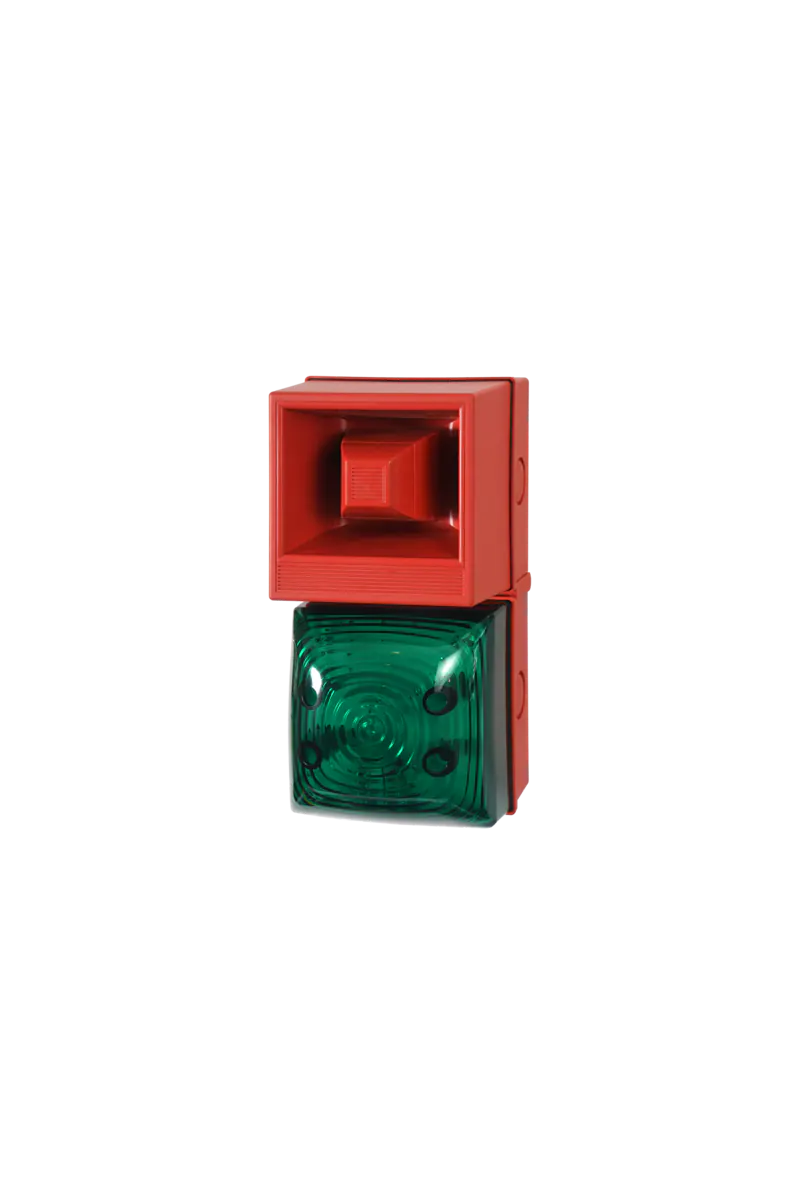

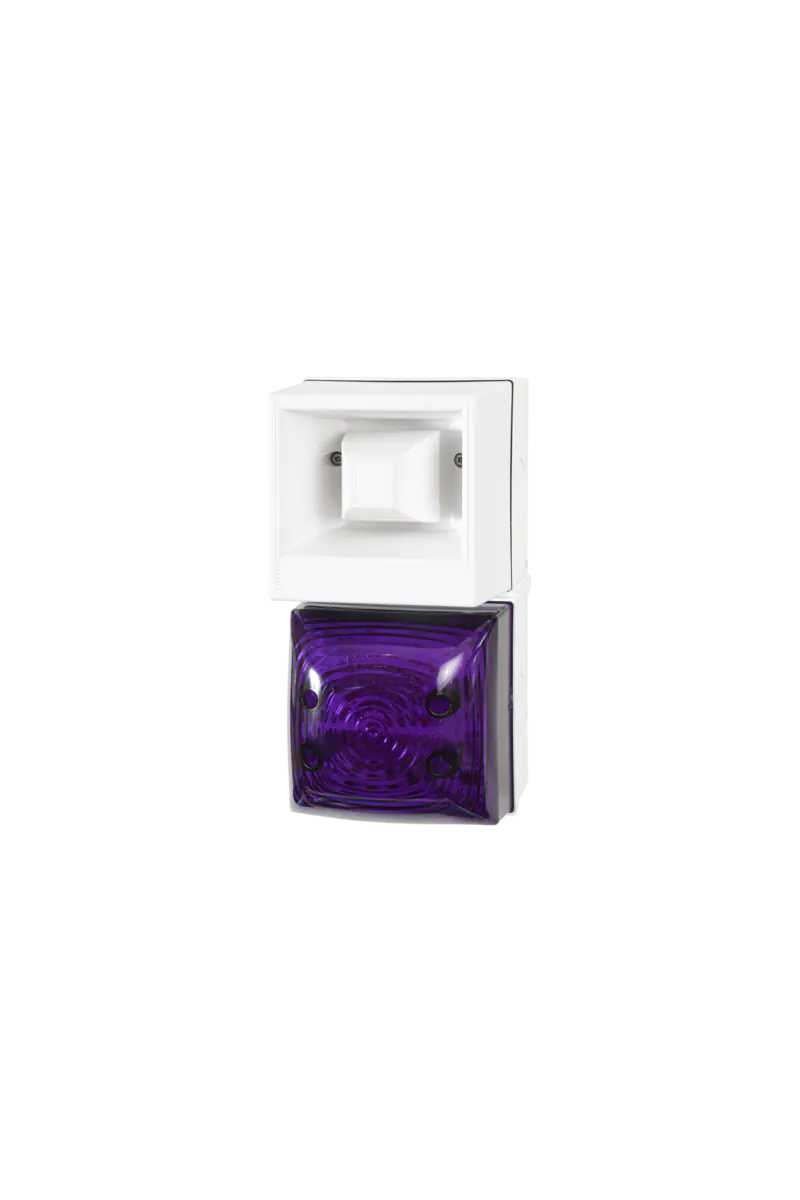

Yodalight YL40 — Sounder Beacon

The Yodalight YL40 is a compact combined sounder beacon designed for industrial and fire signalling, pairing a 32-tone audible warning at up to 108dB at 1 metre with a choice of high-brightness LED or 5J Xenon beacon. It offers a two-stage alarm with independently controllable sounder and beacon sections for flexible room or zone coverage from one unit.

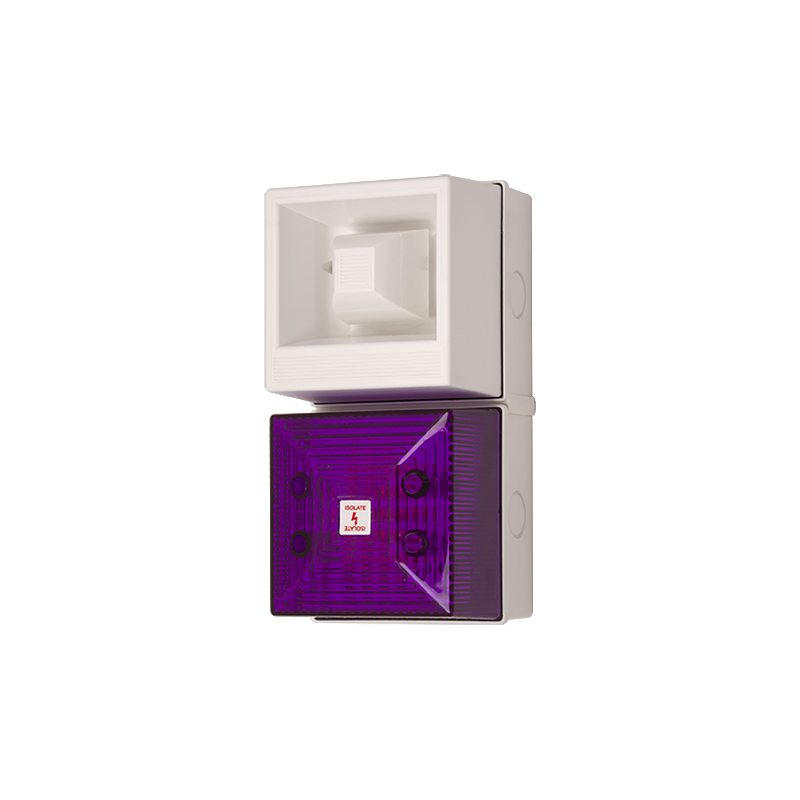

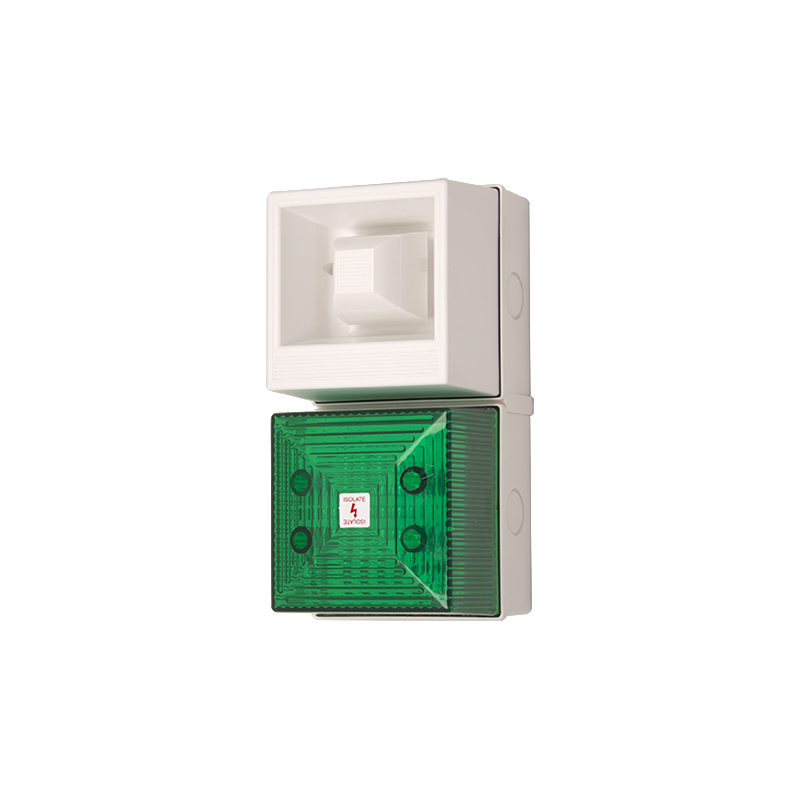

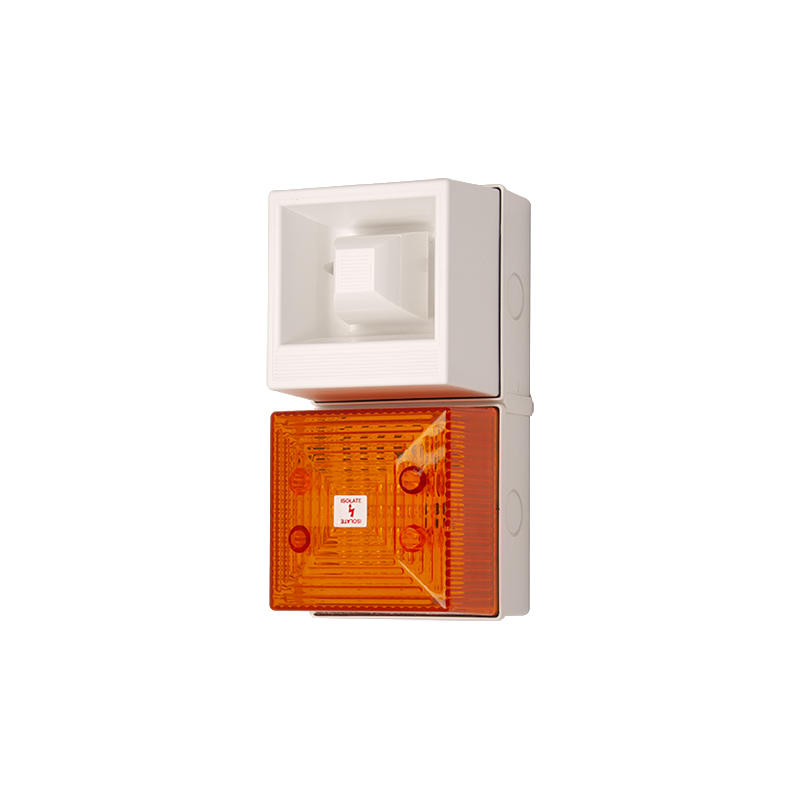

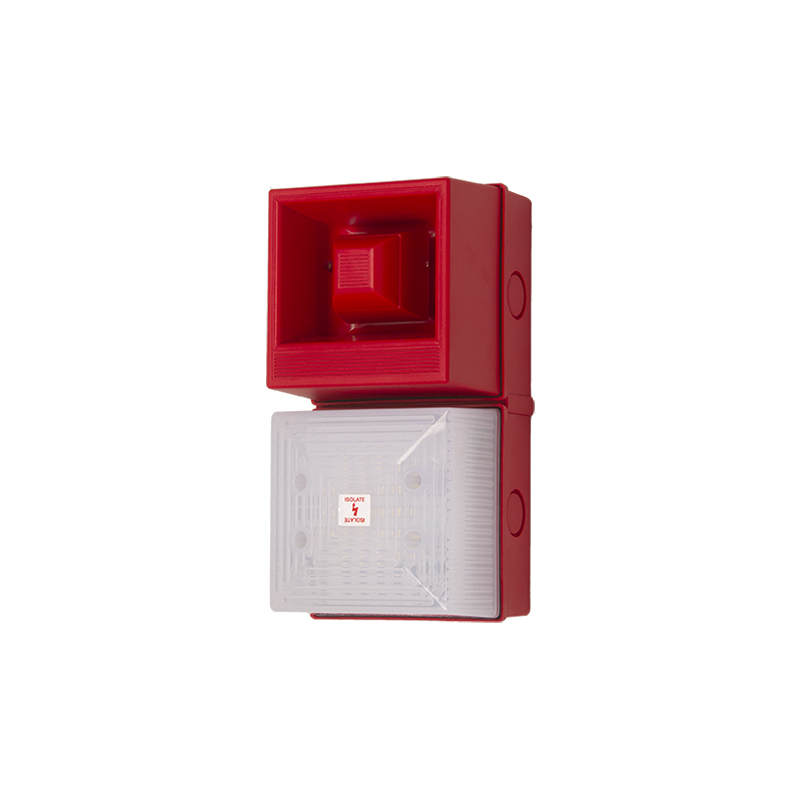

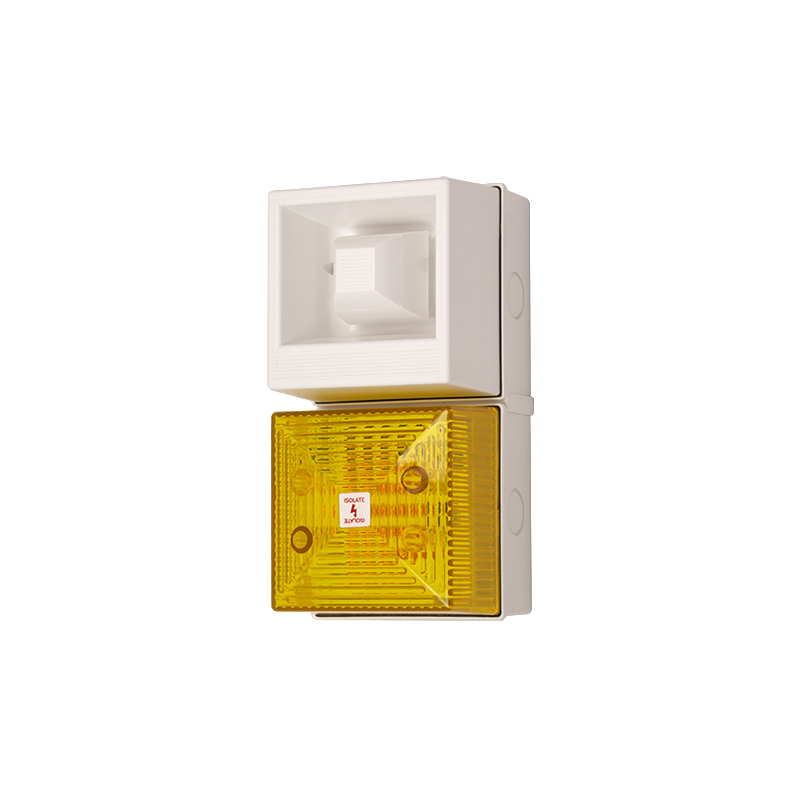

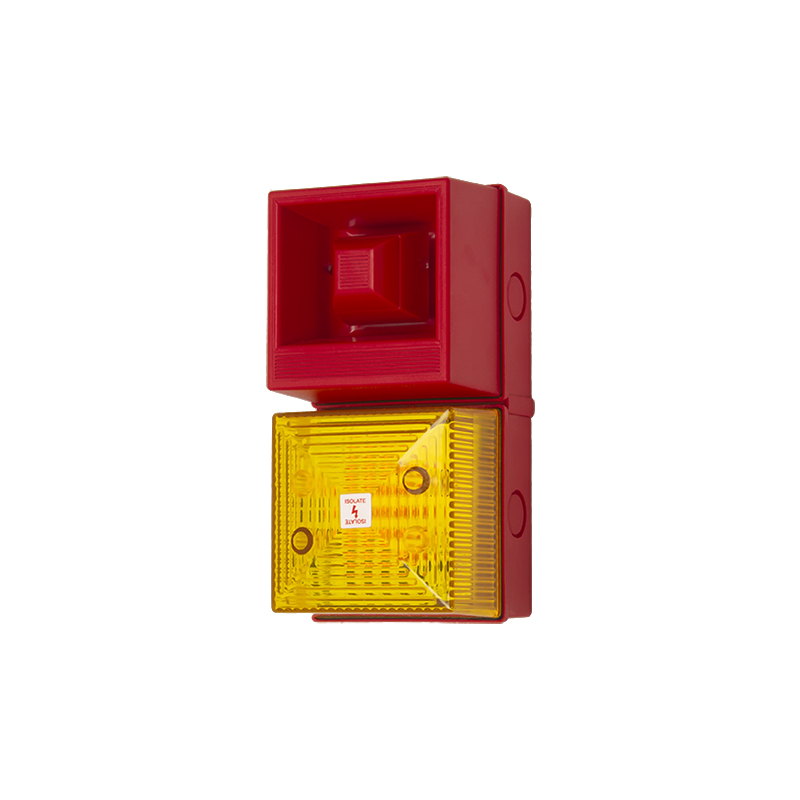

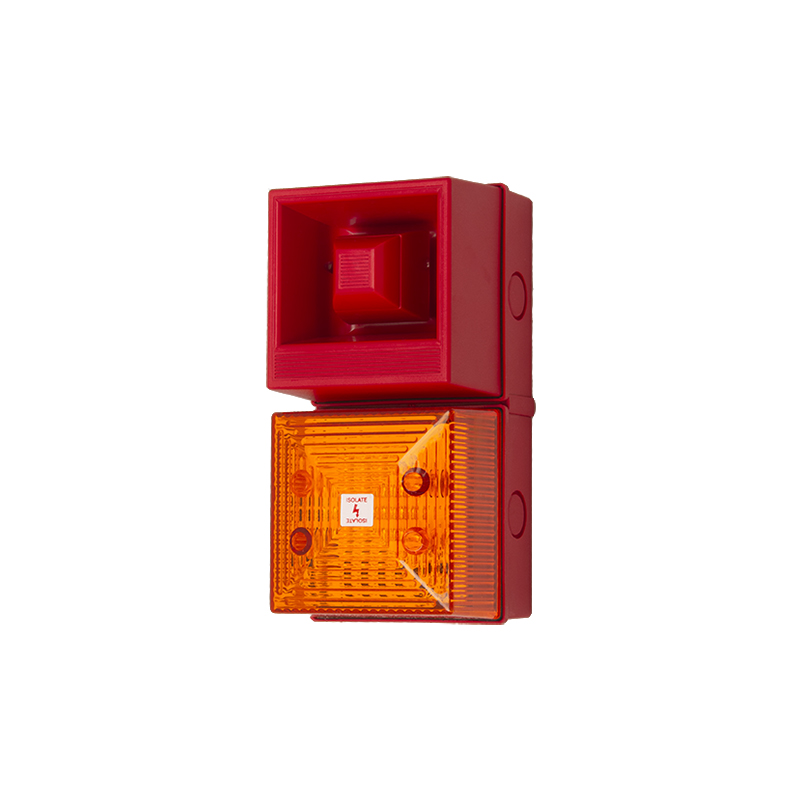

Housed in flame-retardant ABS with stainless-steel fixings and rated to IP65, it wall-mounts easily and is available in lens colours: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta.

Audible and visual alarm in one compact, fire-approved unit.

KEY FEATURES
  12 LEDs or 25 LEDs
  5J Xenon
  Up to 108dB at 1 metre
  Flashing
  32 selectable tones
  Tones meeting international regulations
  Two-stage alarm
  Independent 2nd stage option
  IP65 rated
  Conduit box, wall or bulkhead mounting
  MED, MER & EN54-3 approved
  Available colours: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta
  24vDC, 48vDC, 115vAC or 230vAC
MATERIALS
  Polycarbonate lens
  Flame-retardant ABS body
  Stainless-steel fixings

Typical applications: fire alarm systems, factories, process control, commercial buildings, warehousing.

Technical Information

Weight: N/A
Dimensions: N/A
Functionnality:

32 Tones – 2 Stages – Flashing

Type of fixing:

Conduit Box, Wall and Bulkhead Mounting

Ingress Protection:

IP65

Colour:

Amber, Red, Blue, Green, Clear, Opal, Yellow, Magenta

Voltage:

24vDC, 115vAC, 230vAC, 48vDC

Enclosure Colour:

Red, White

Light Source:

12 LED, 25 LED, Xenon 5J

Approvals & Conformities

  • C-Tick
  • CE Marking
  • MED
  • MER
  • RoHS Directive
  • UKCA Importer

Tones

Description
Tone Number
Frequency
Applications
Alternating
1
800-1000 Hz
Fire Alarms · EN54-3
Alternating
2
2500-3100 Hz
Security Alarms
Alternating (fast)
3
800-1000 Hz
Increased urgency
Alternating (fast)
4
2500-3100 Hz
Security deterrent
Alternating
5
440-554 Hz
AFNOR, France (NFS 32001) · EN54-3
Alternating
6
430-470 Hz
Alternating (very fast)
7
800-1000 Hz
Alternating (very fast)
8
2500-3200 Hz
Alternating
9
440-554 Hz
Turn-out, Sweden
Continuous note
10
700 Hz
All-clear, Sweden
Continuous note
11
1000 Hz
EN54-3
Continuous note
12
1000 Hz
Continuous note
13
2300 Hz
Continuous note
14
440 Hz
Interrupted tone
15
1000 Hz
EN54-3
Interrupted tone
16
420 Hz
AS2220, Australia · EN54-3
Interrupted tone
17
1000 Hz
Interrupted tone
18
2500 Hz
Interrupted tone
19
2500 Hz
Interrupted tone
20
700 Hz
Pre-vital message, Sweden
Interrupted tone
21
1000 Hz
Interrupted tone
22
700 Hz
Air-raid, Sweden
Interrupted tone
23
700 Hz
Local warning, Sweden
Interrupted tone
24
720 Hz
Industrial alarm, Germany
Interrupted, fast, rising volume
25
1400 Hz
Fast siren
26
250-1200 Hz
Rising constant, falling
27
1000 Hz
Industrial alarm, Germany
ISO 8201 Evacuation
28
800-1000 Hz
Int'l evacuation alarm · EN54-3
Fast whoop
29
500-1000 Hz
Slow whoop
30
500-1200 Hz
Evacuation, The Netherlands · EN54-3
Reverse sweep
31
1200-500 Hz
Evacuation, Germany · EN54-3
Siren
32
500-1200 Hz
