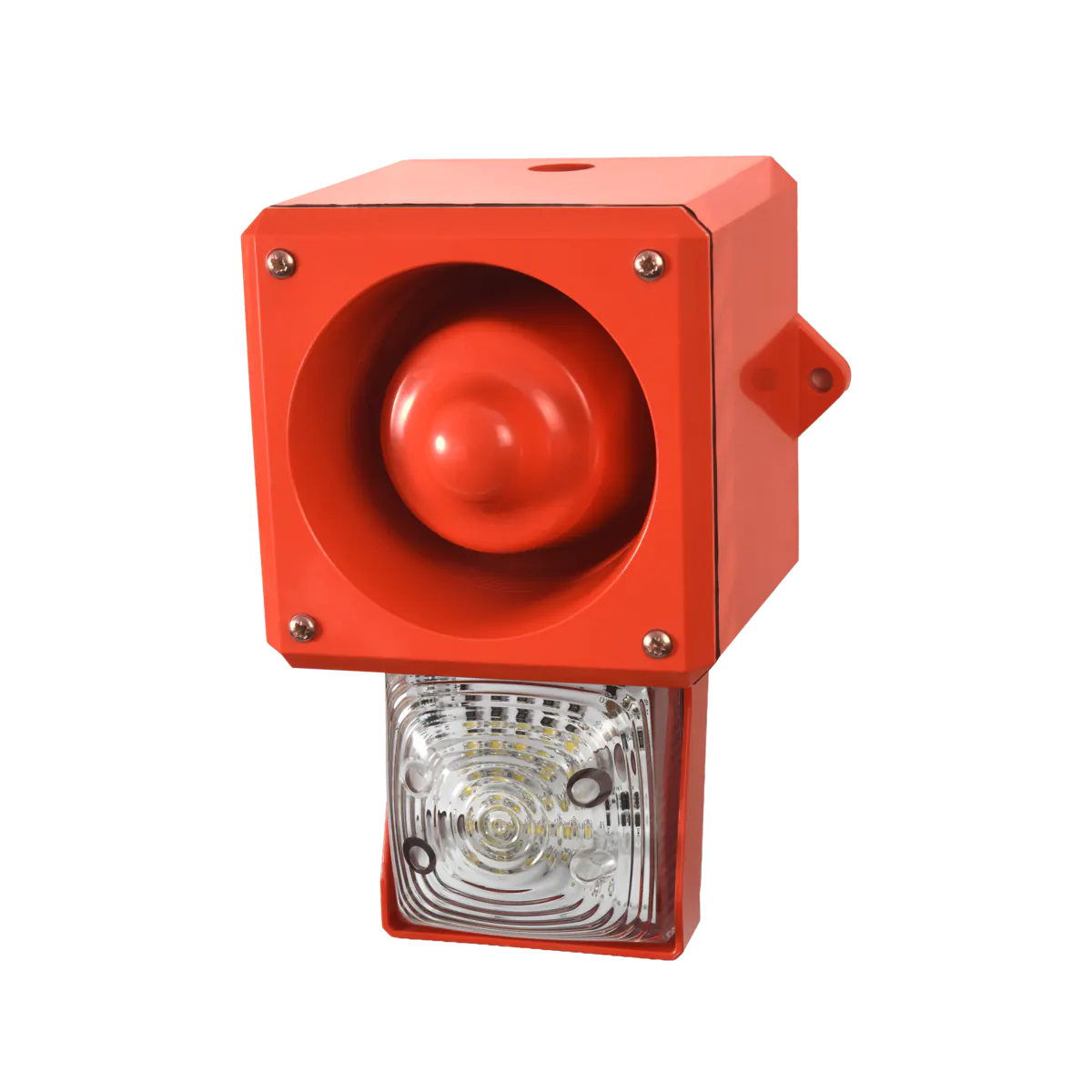

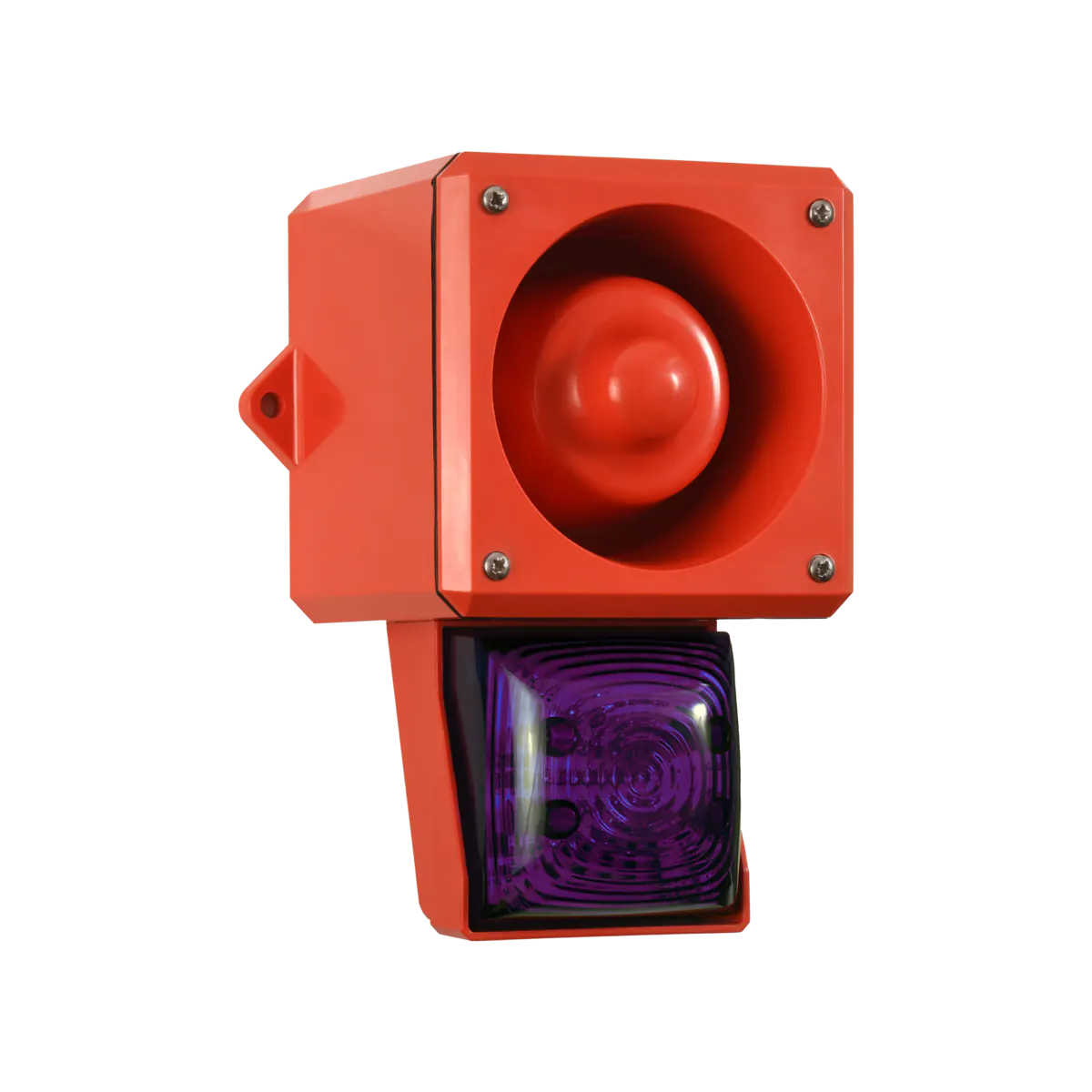

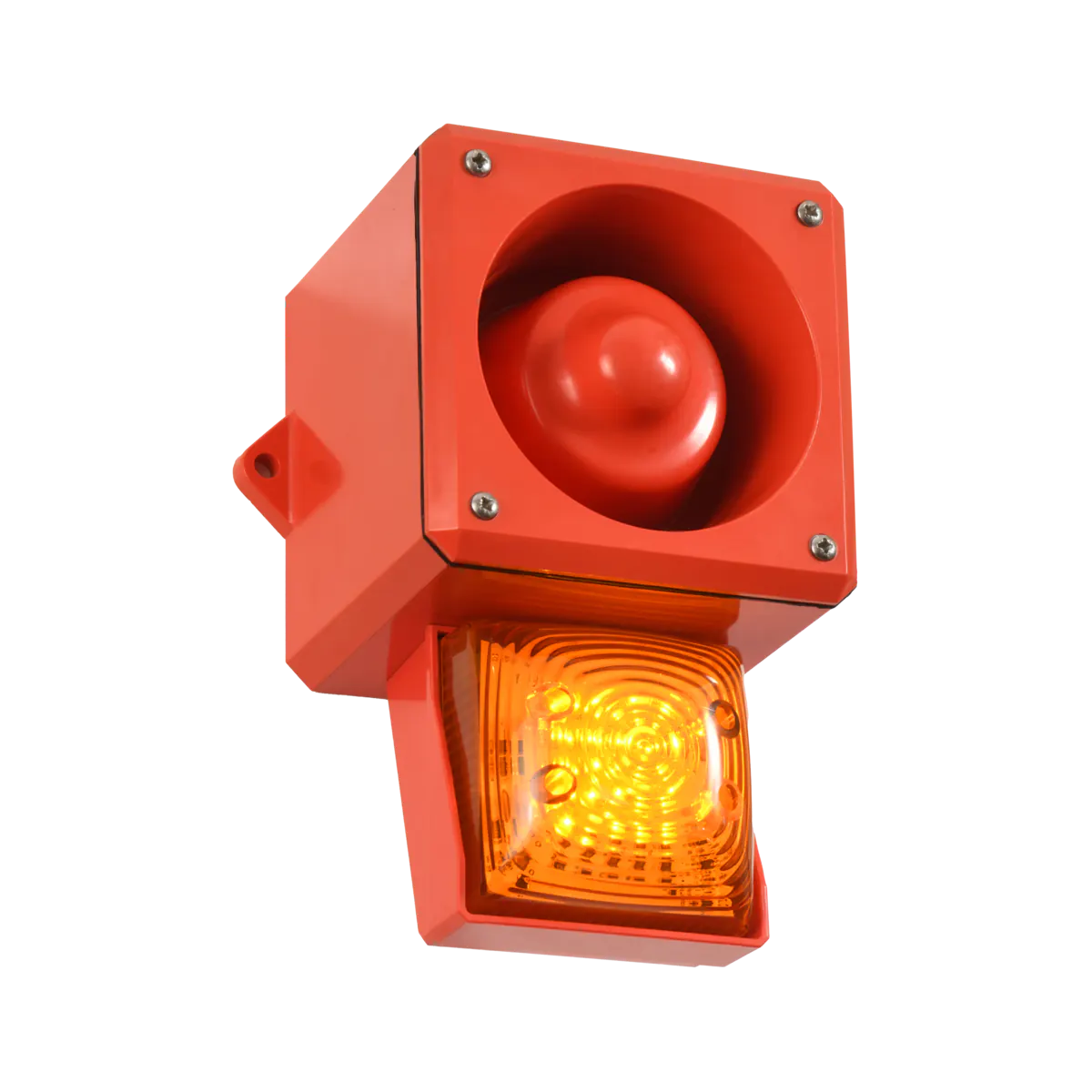

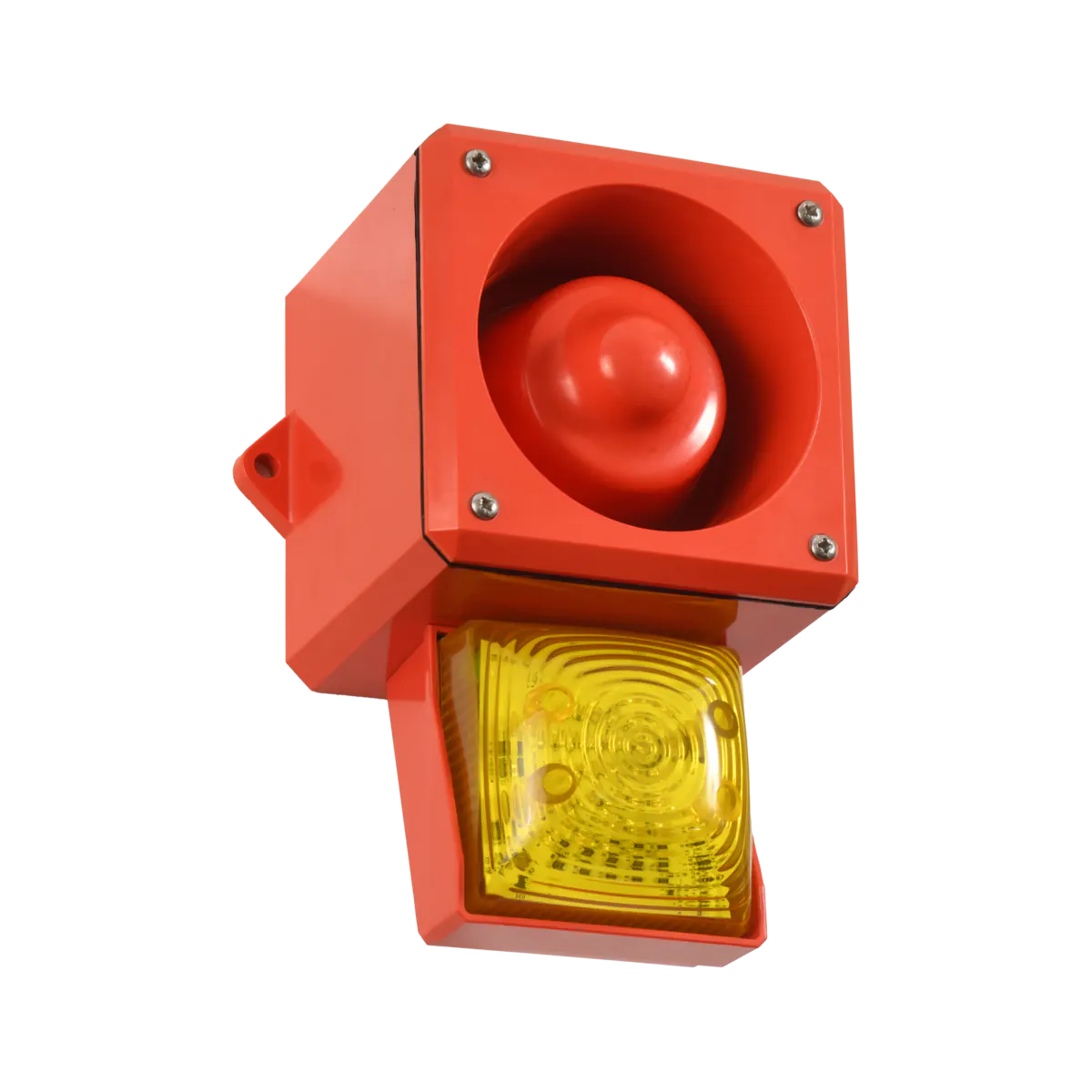

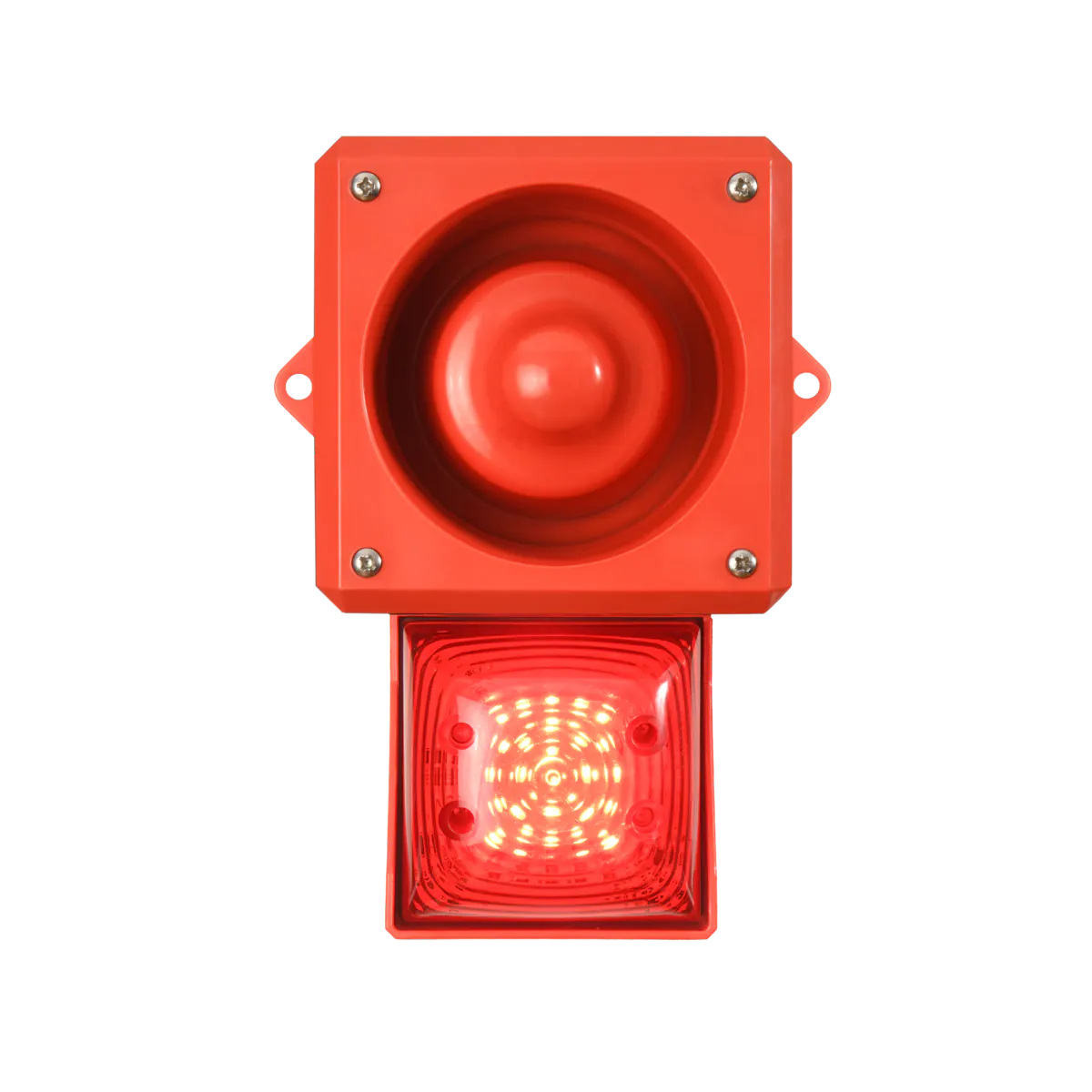

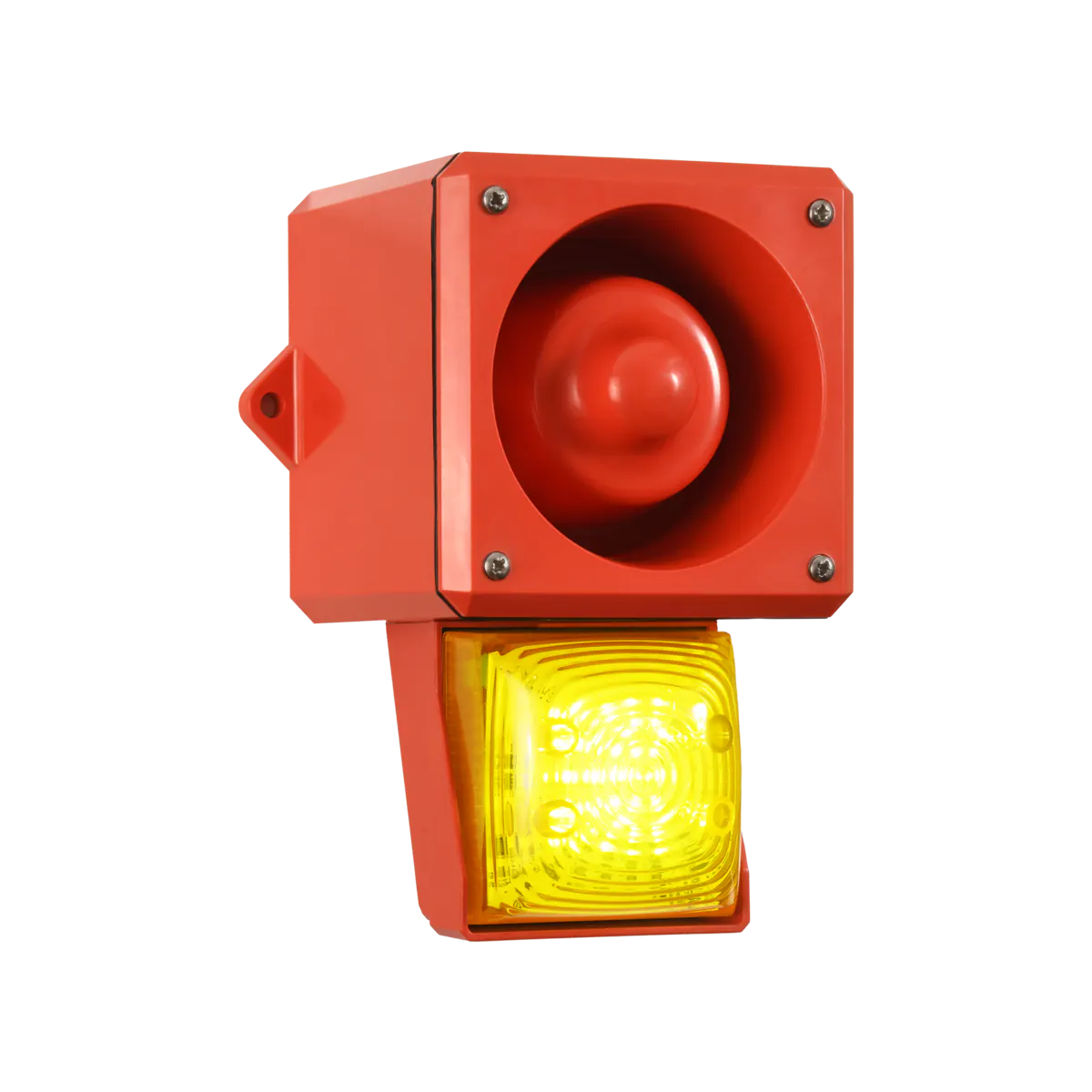

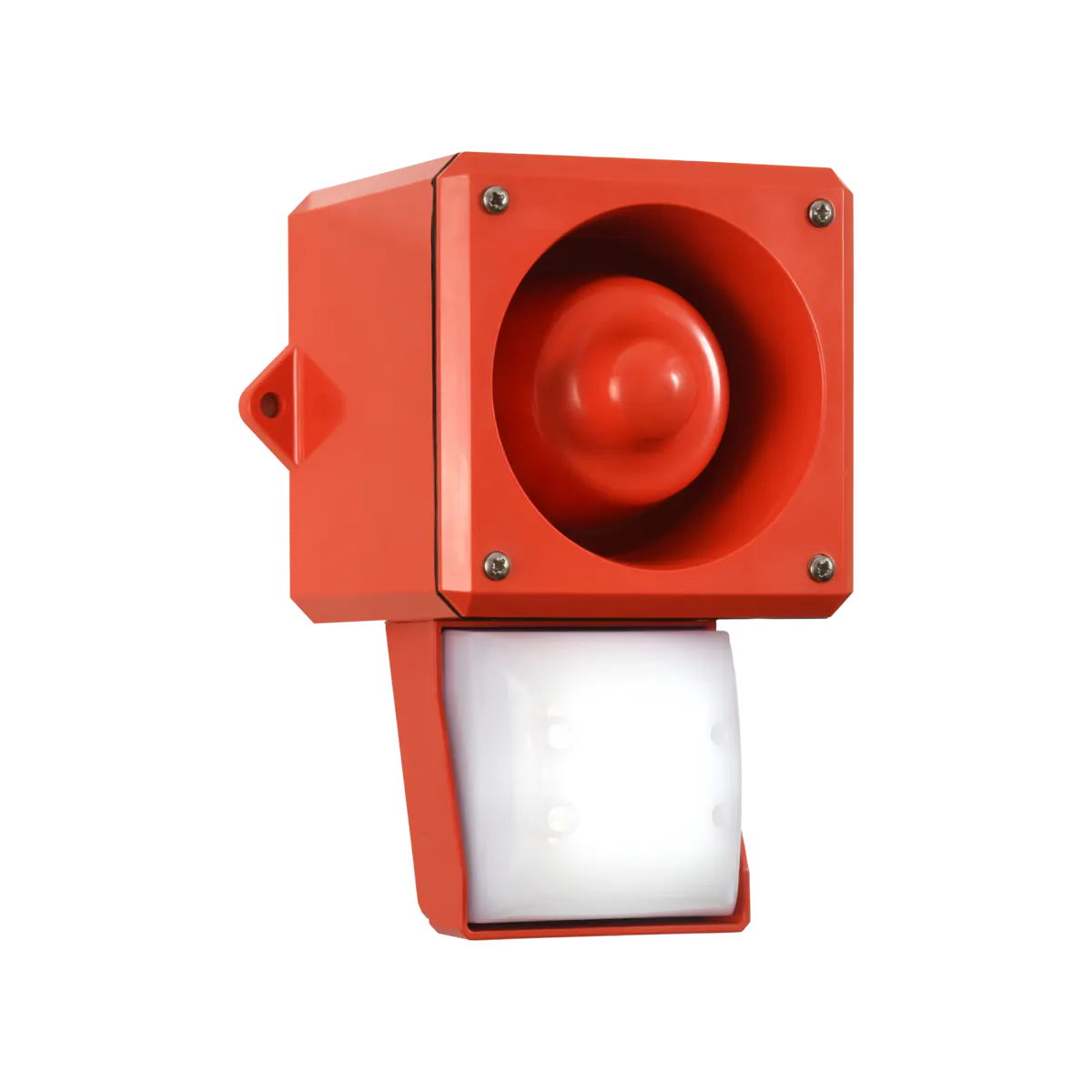

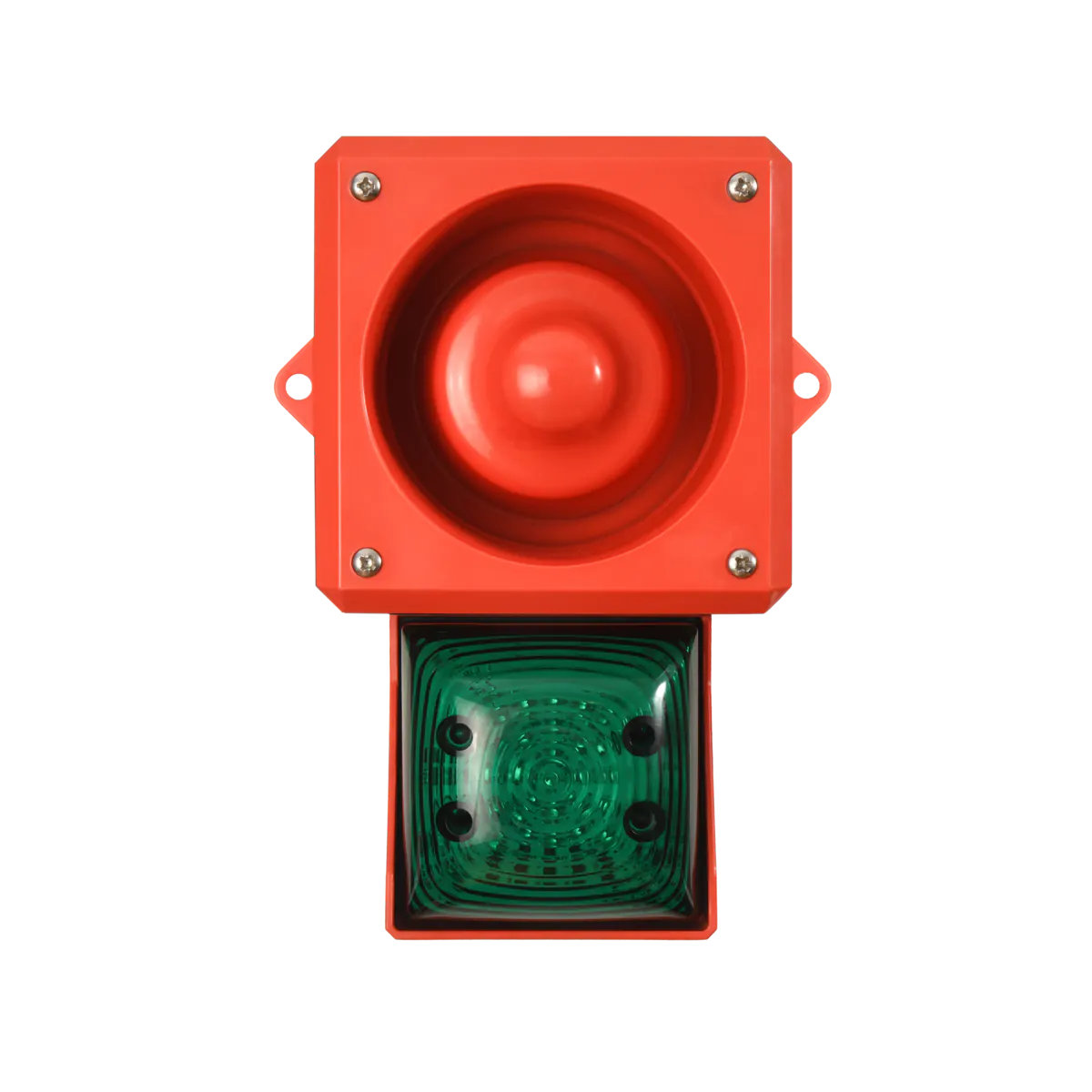

Name: Yodalight YL50 Hi-Vis MSA - Sounder Beacon 112dB
Brand: Clifford &amp; Snell
SKU: YL50 HI-VIS MSA
Availability: InStock

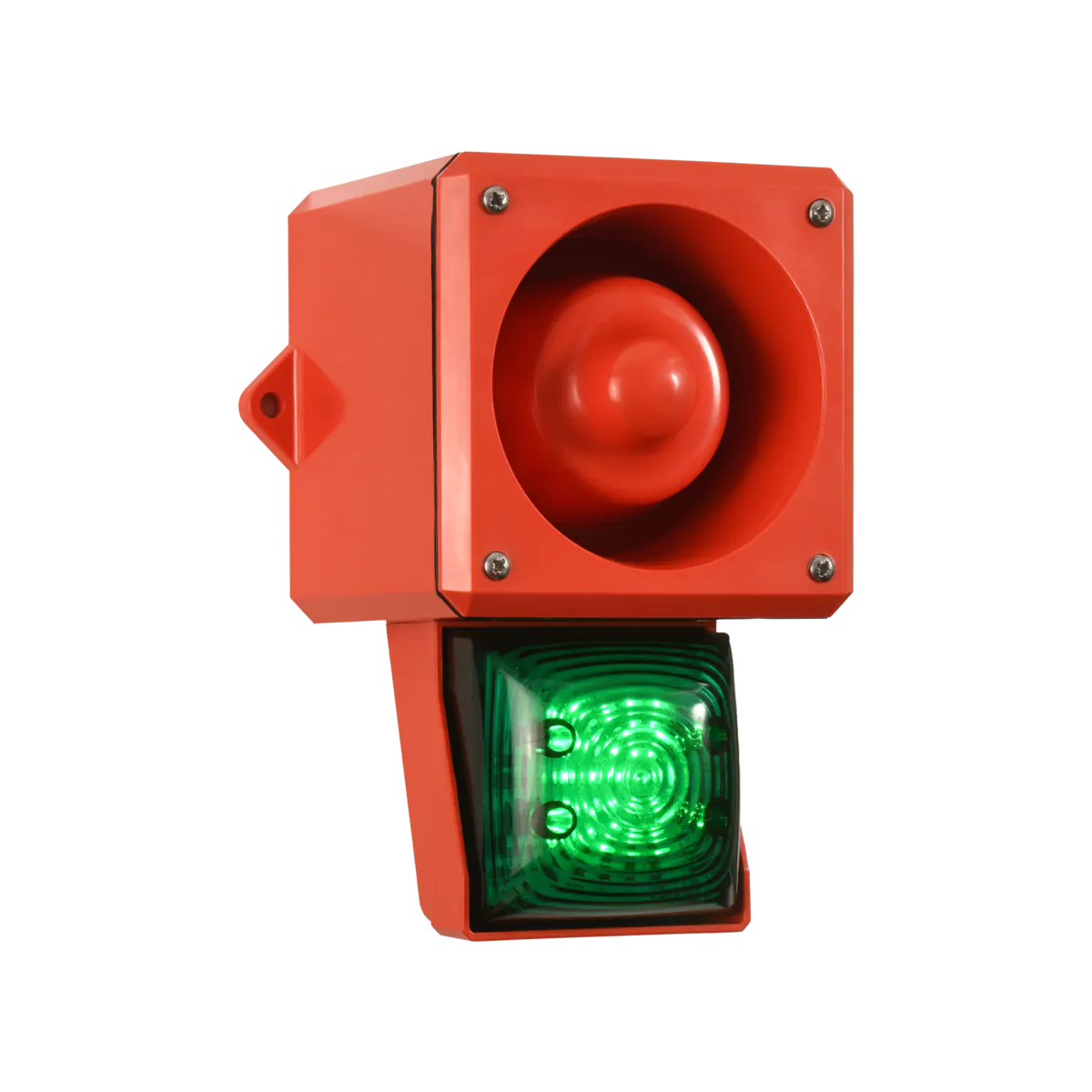

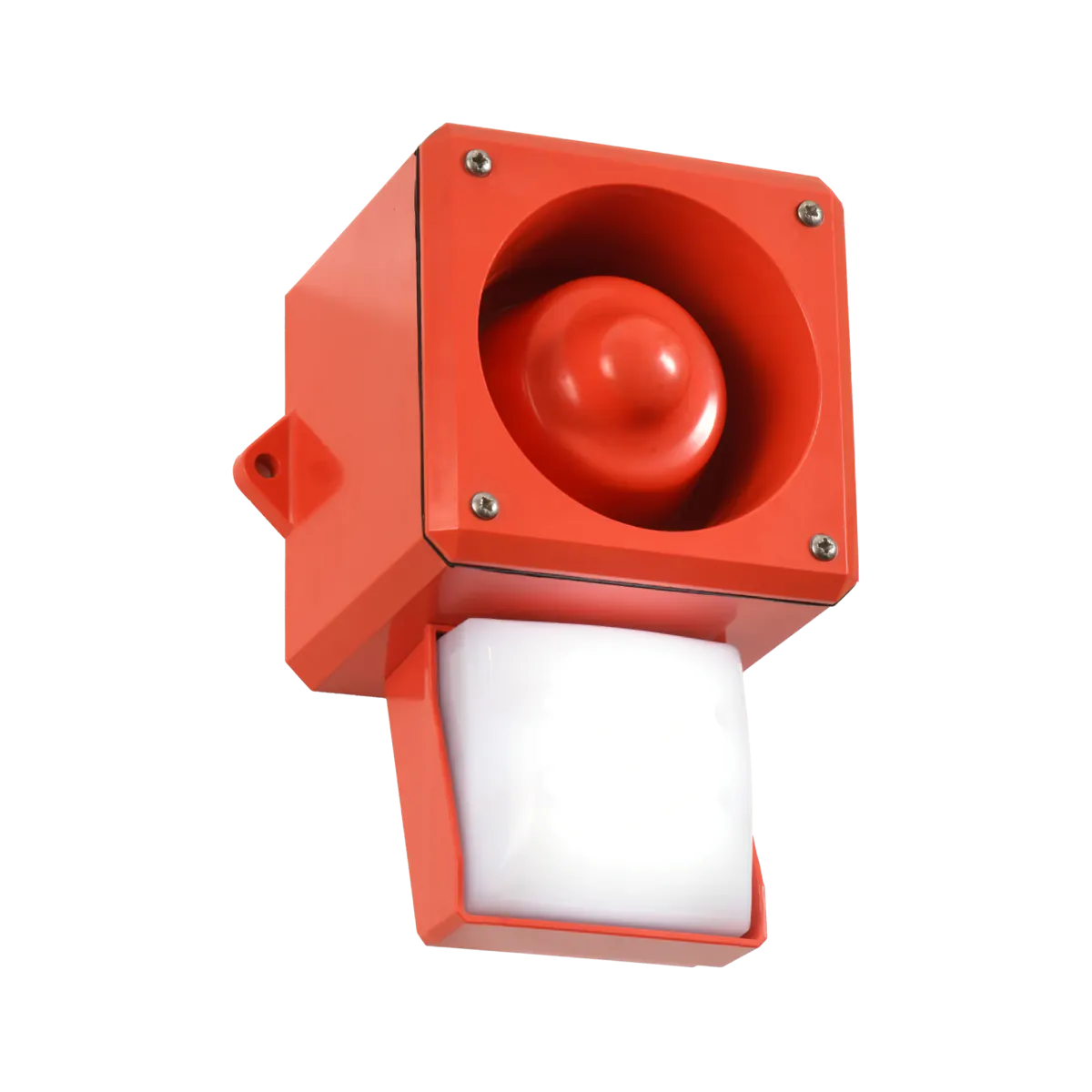

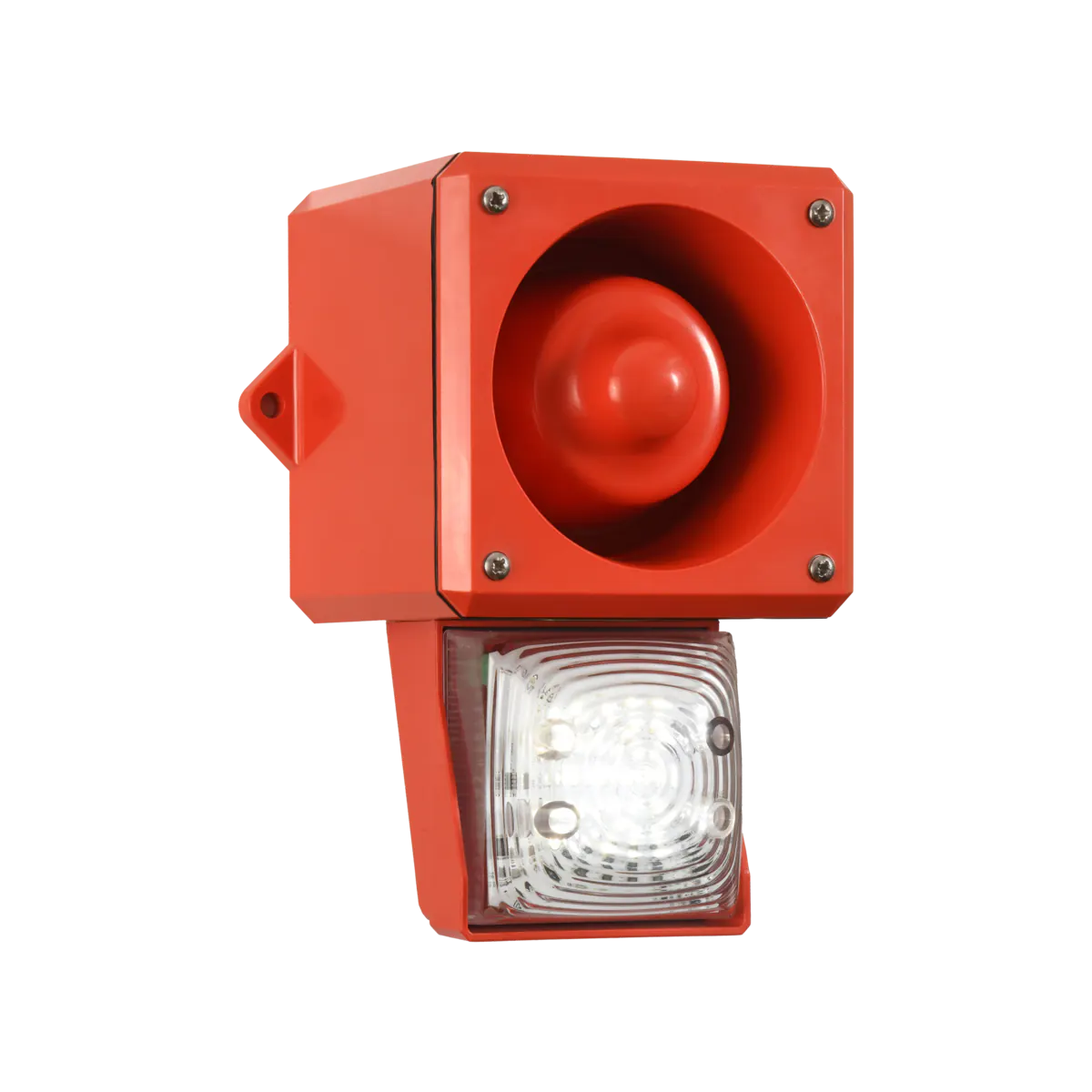

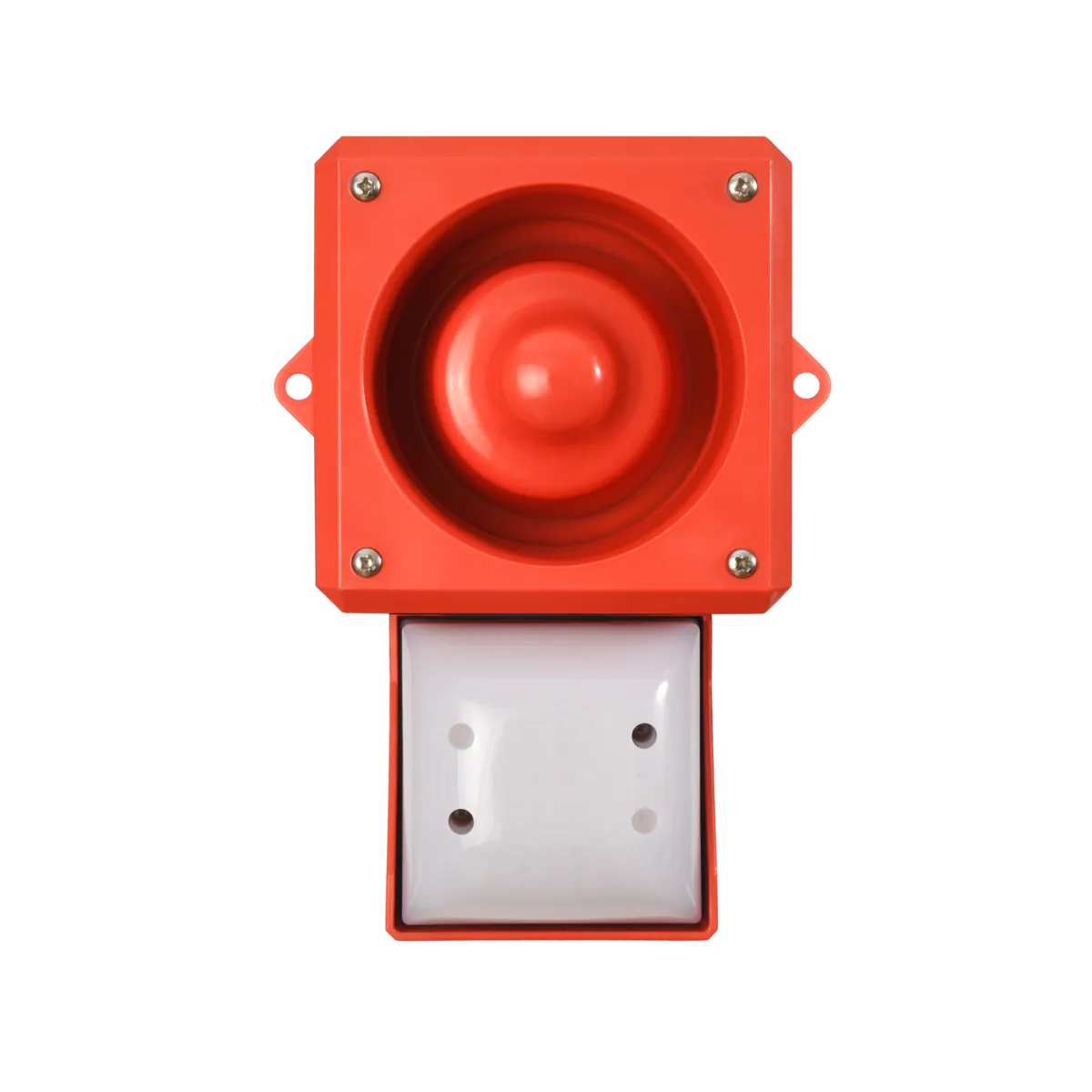

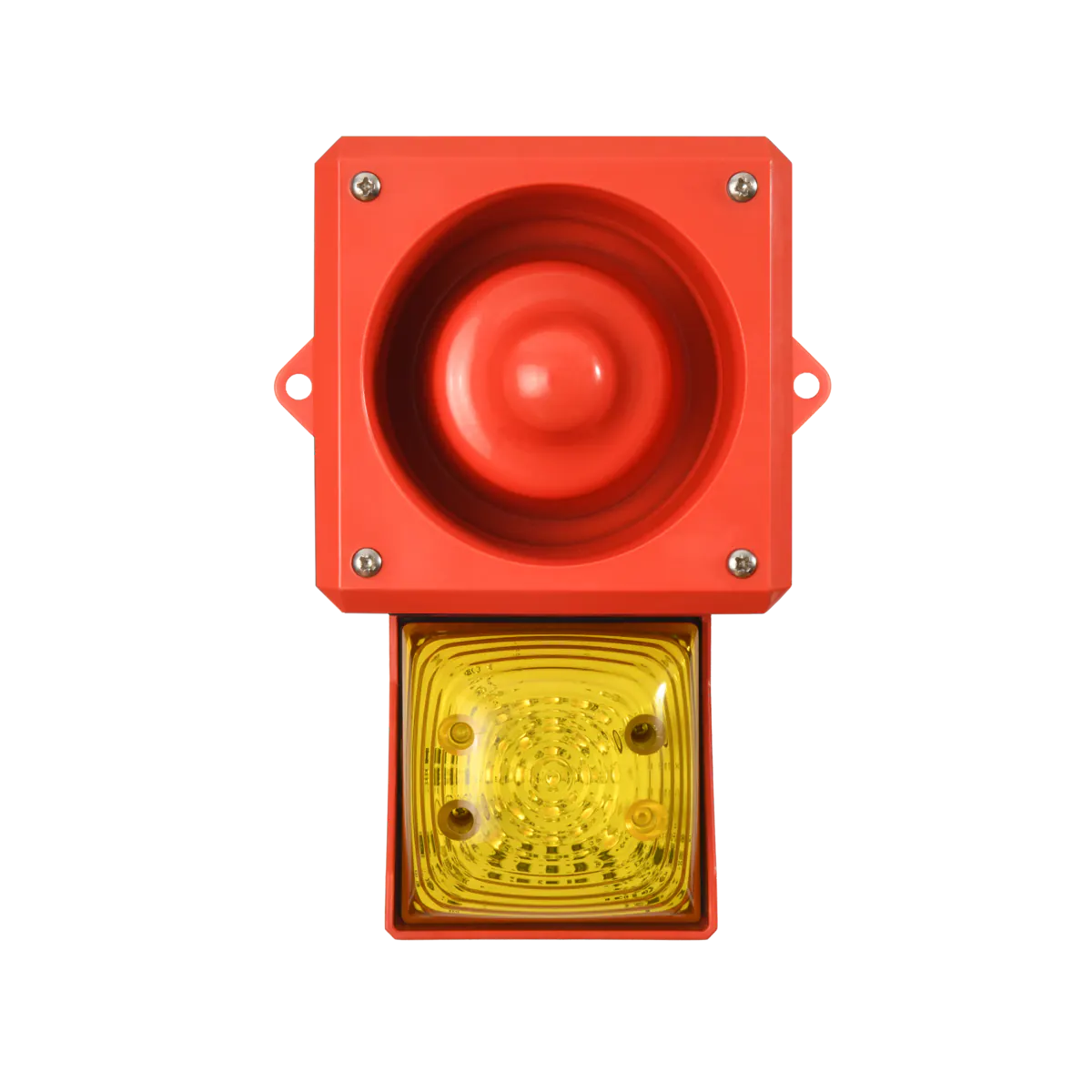

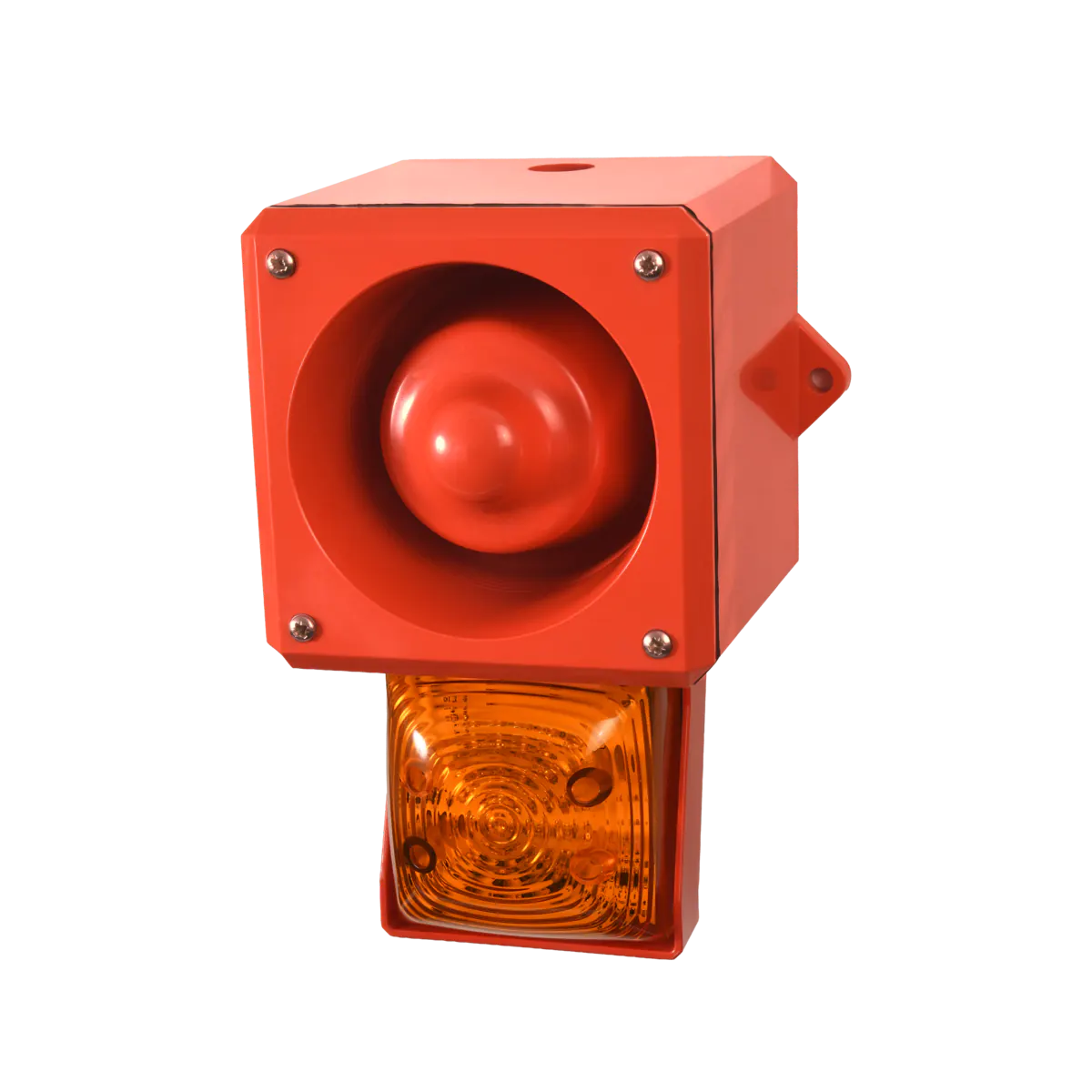

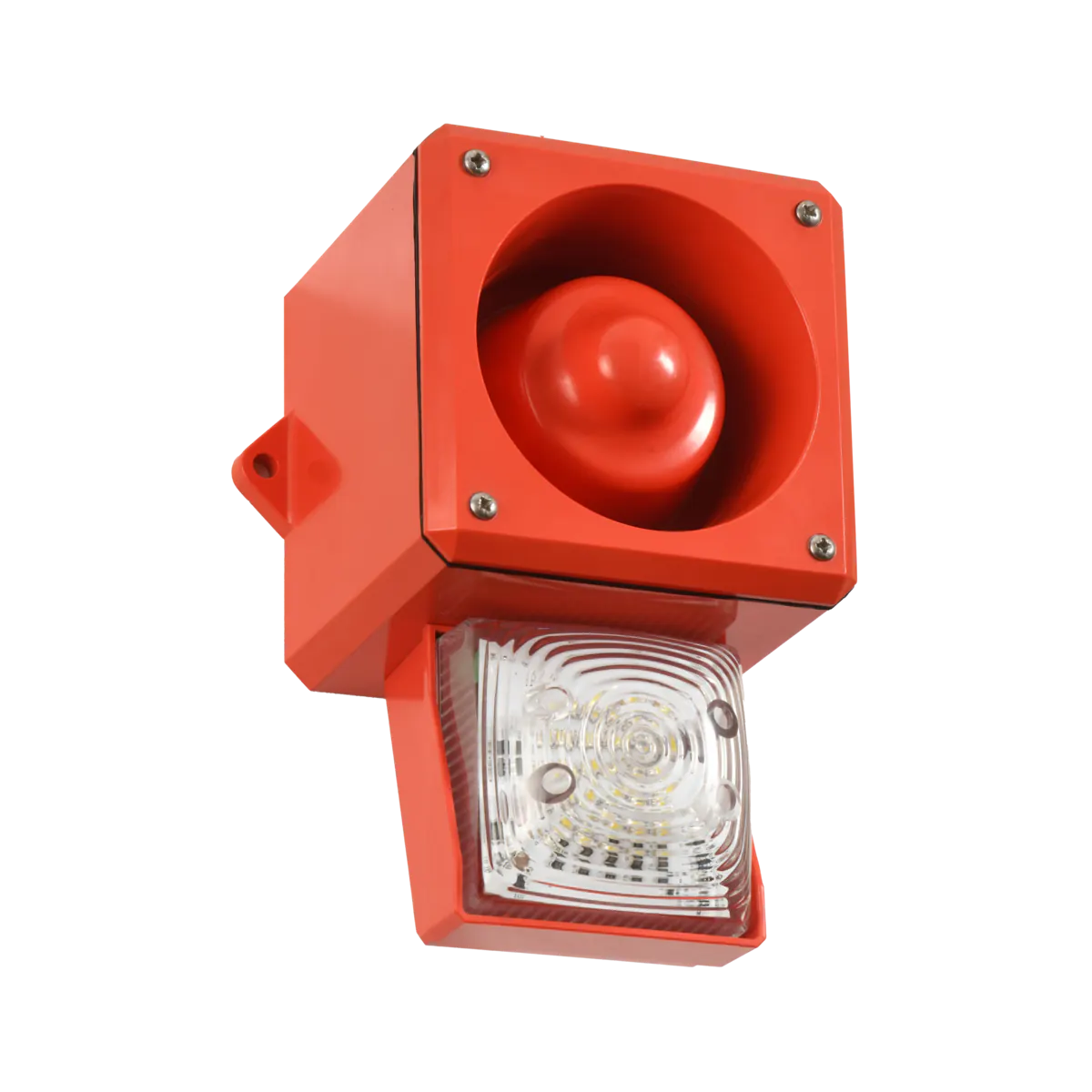

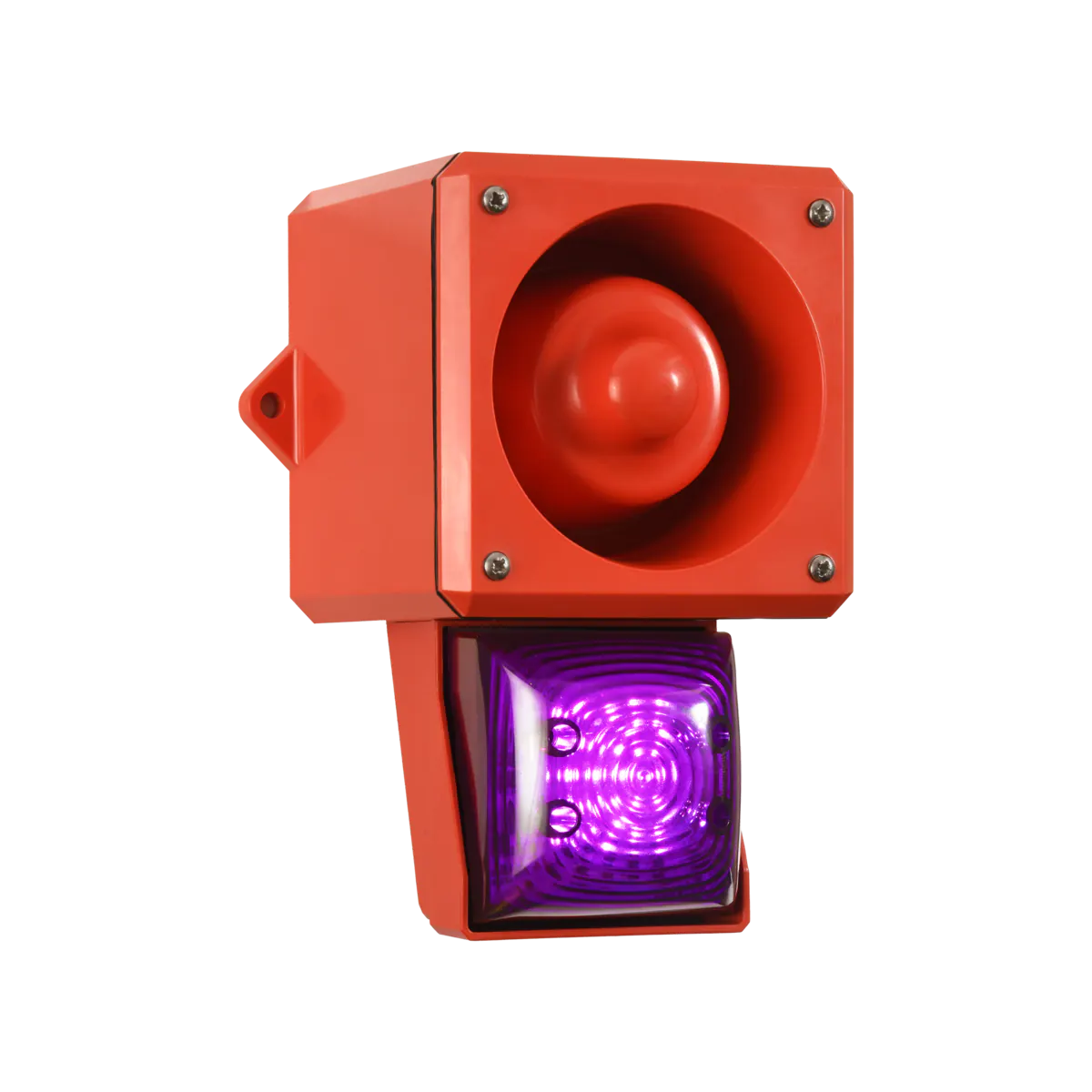

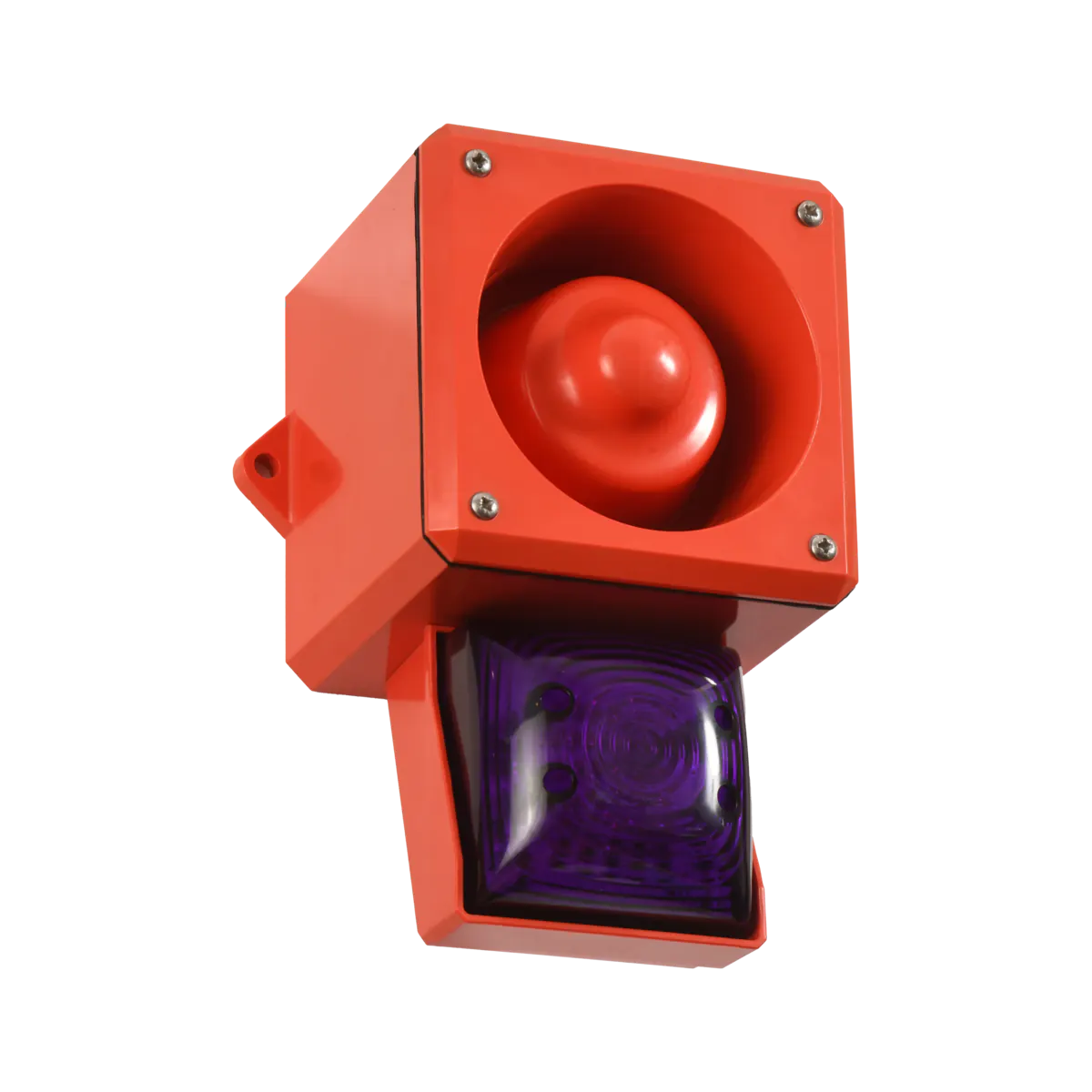

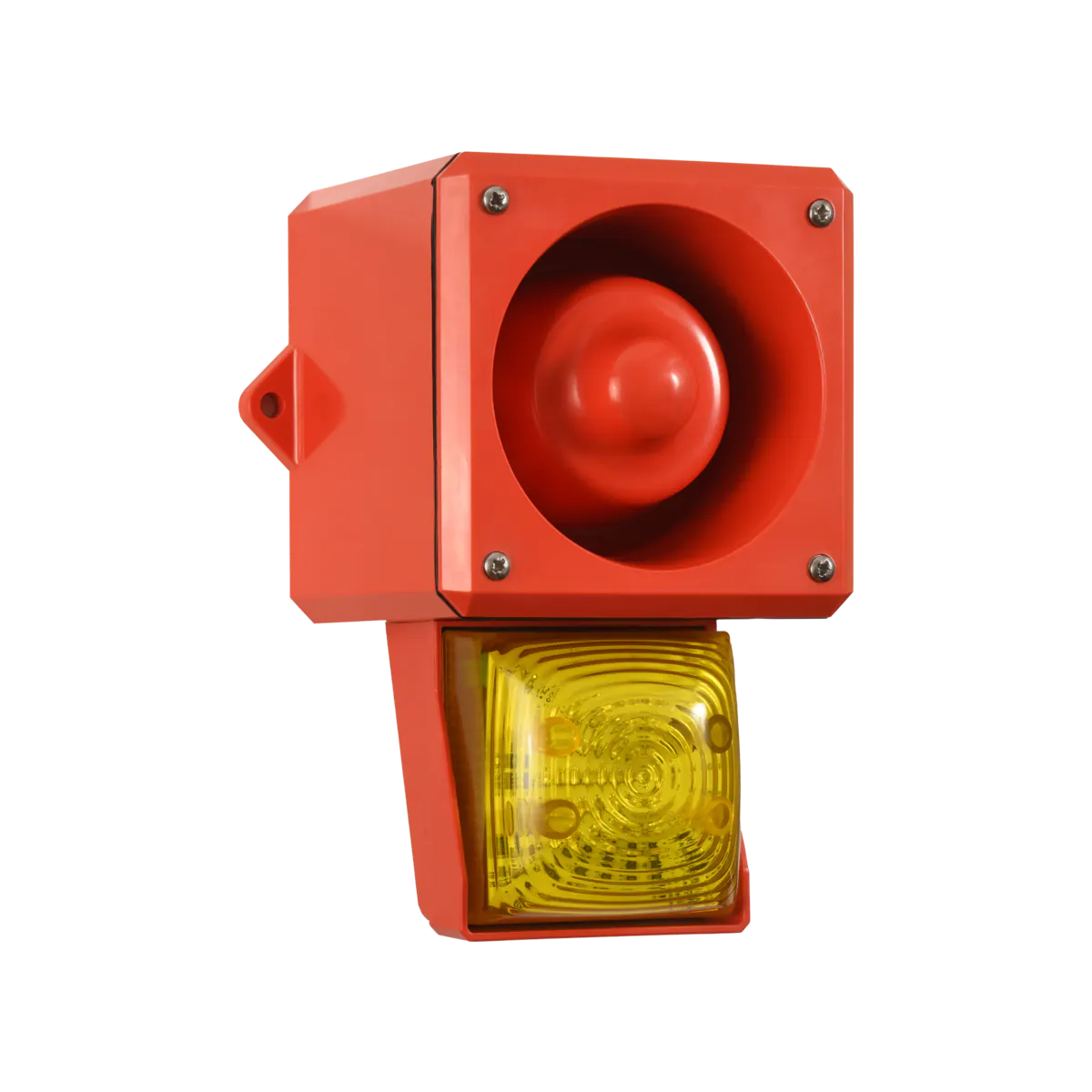

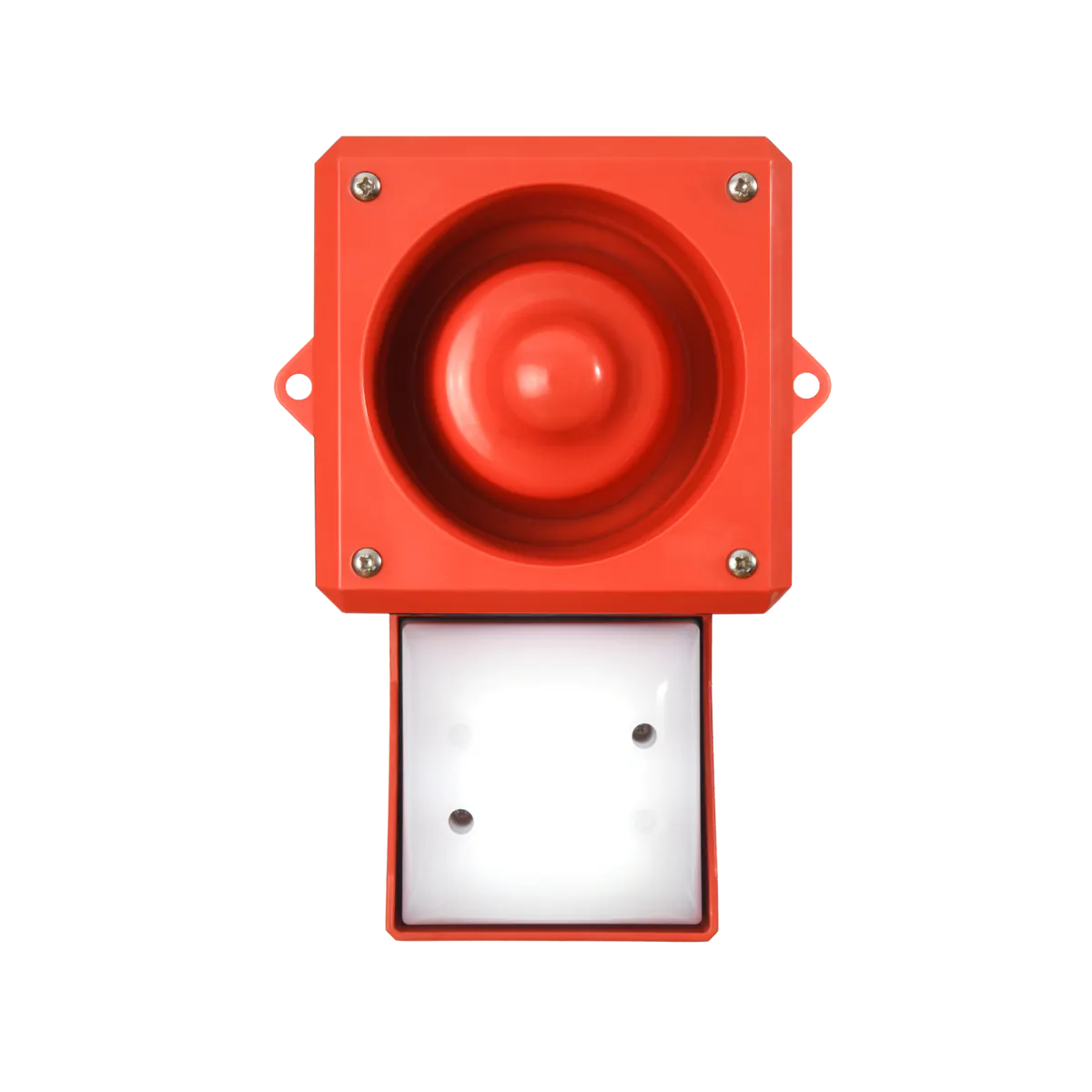

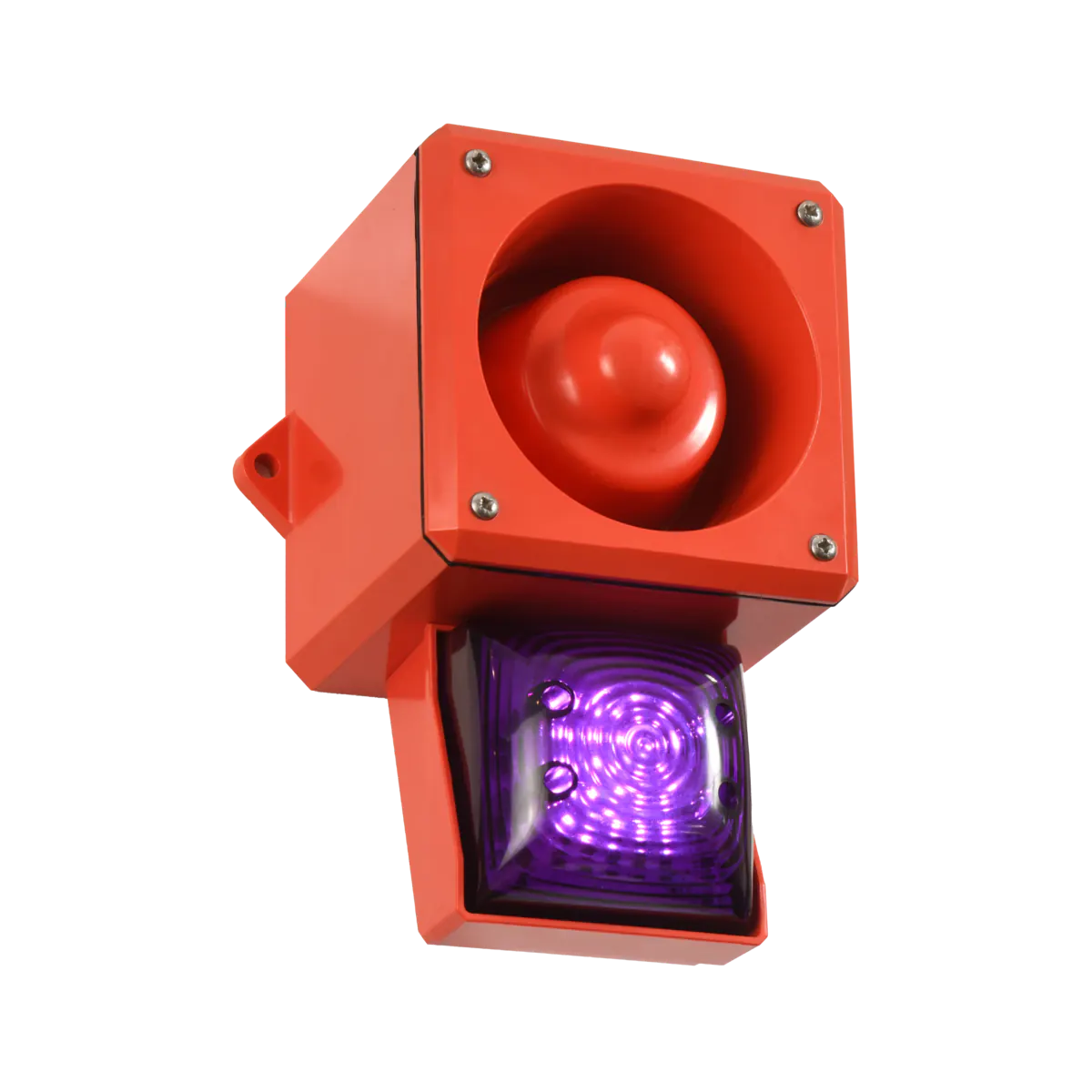

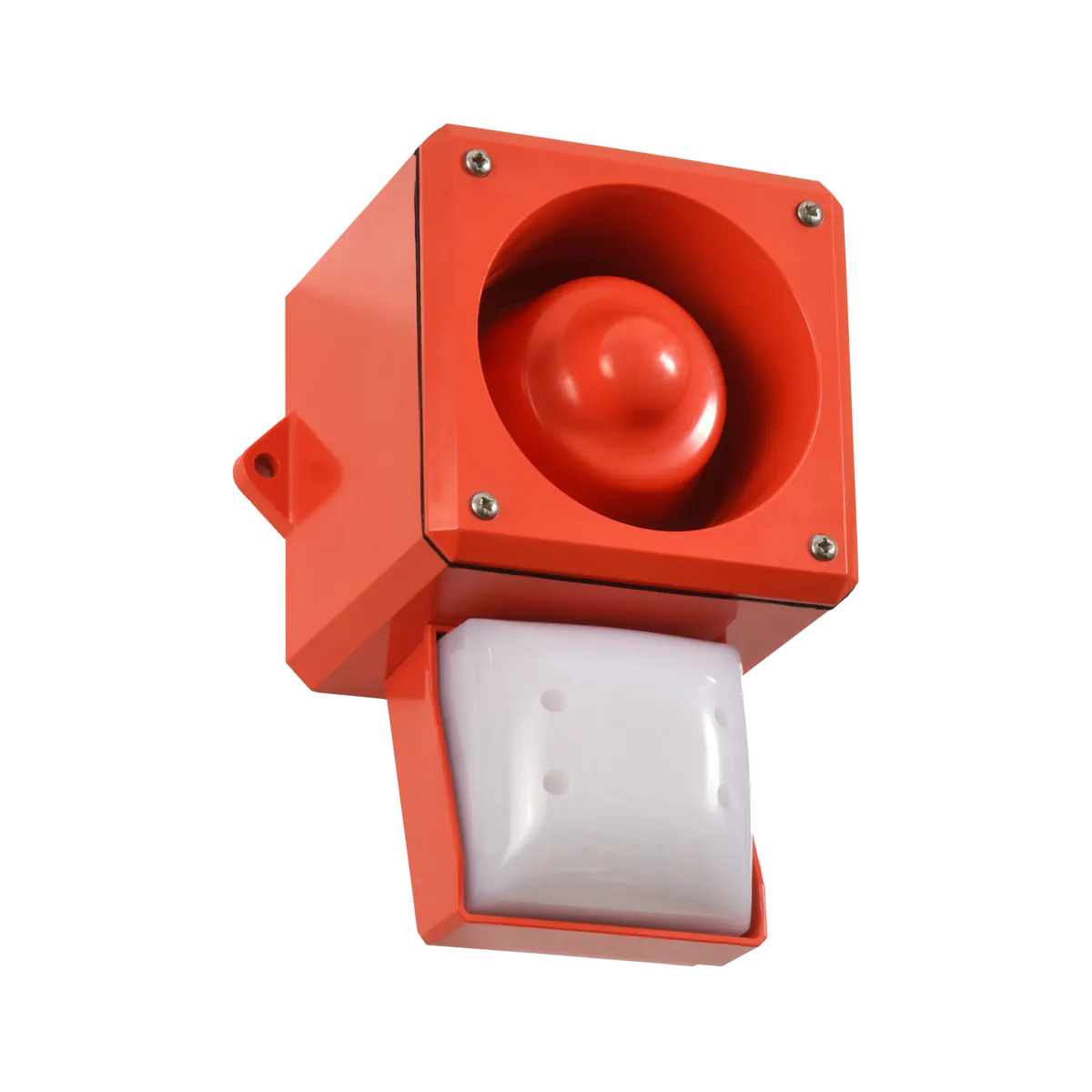

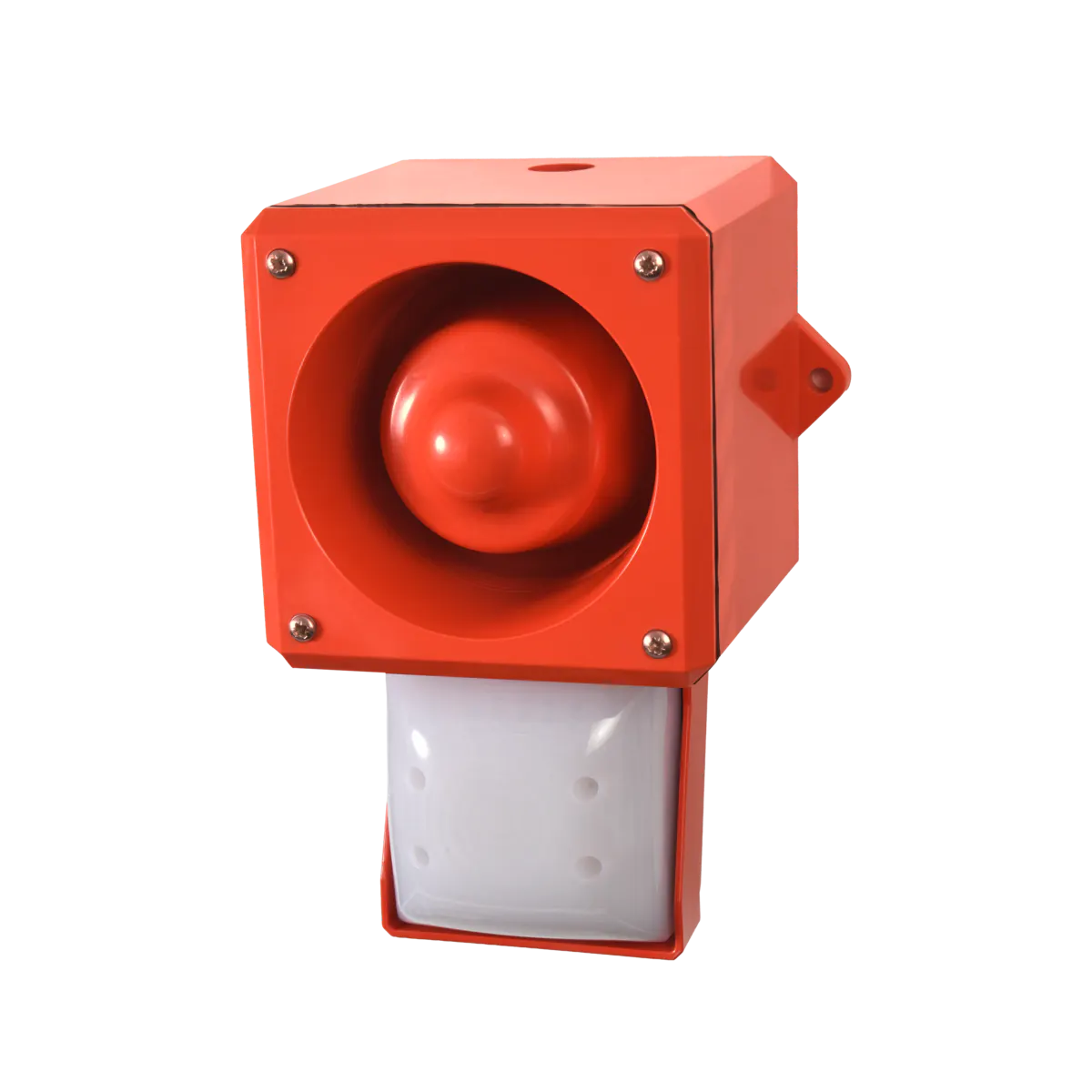

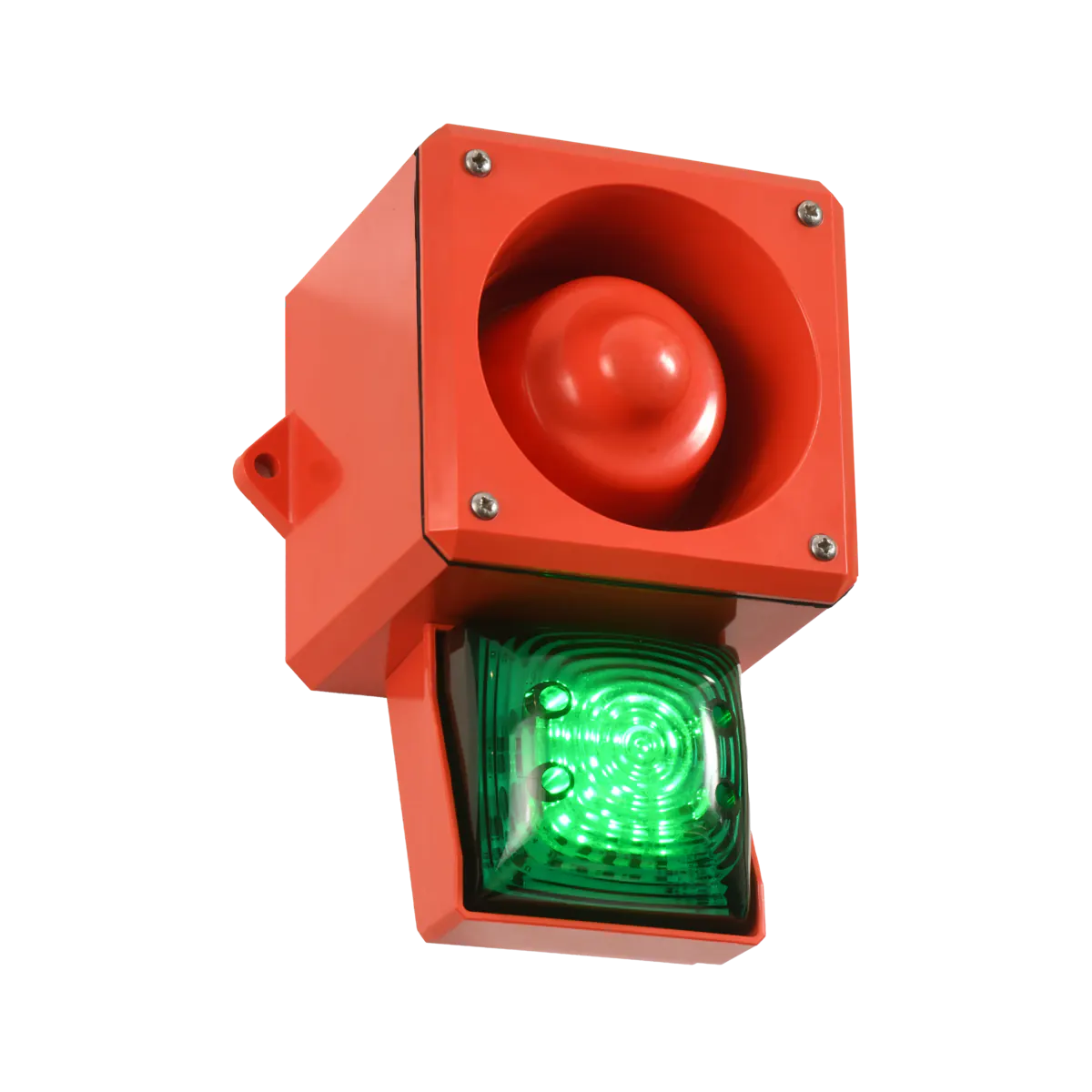

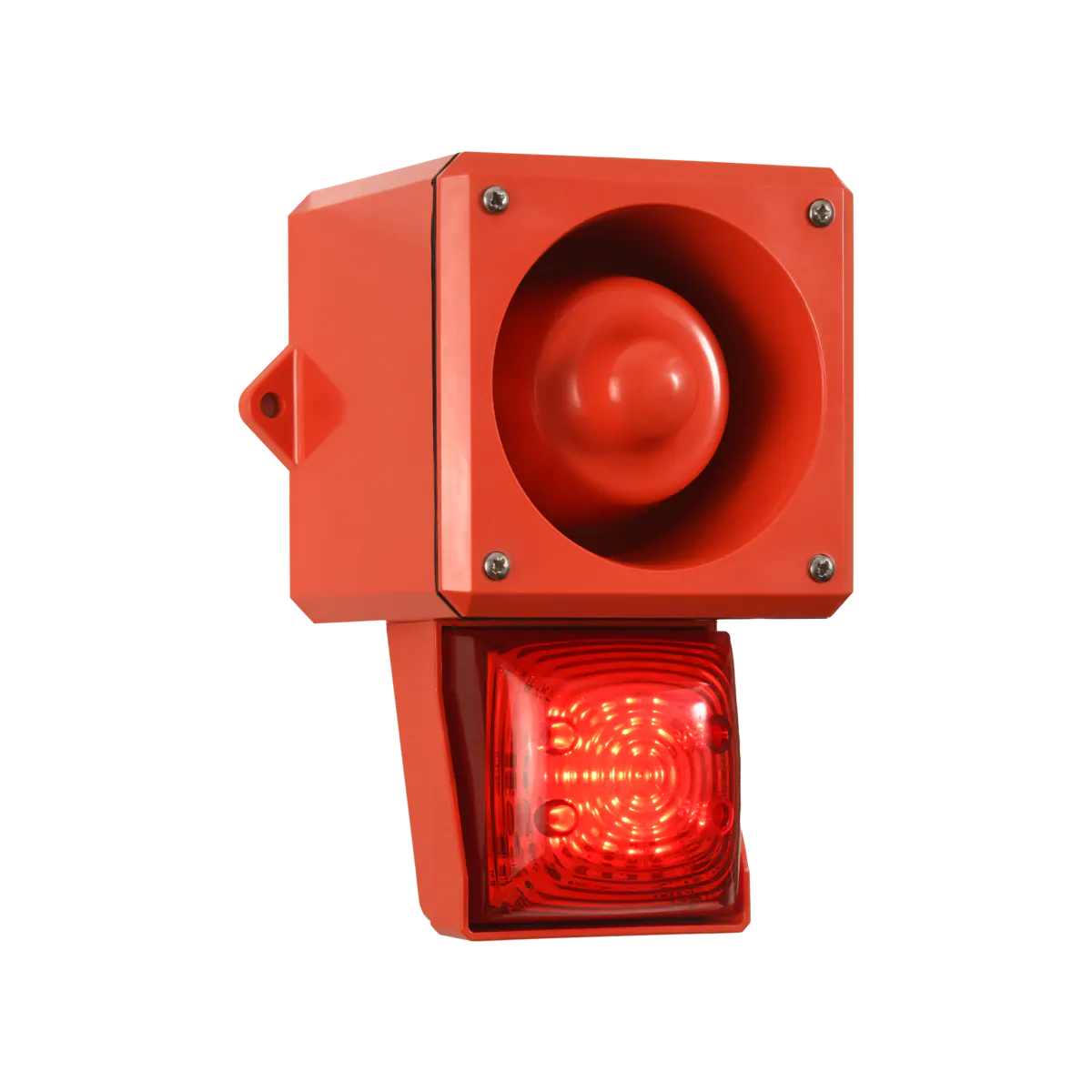

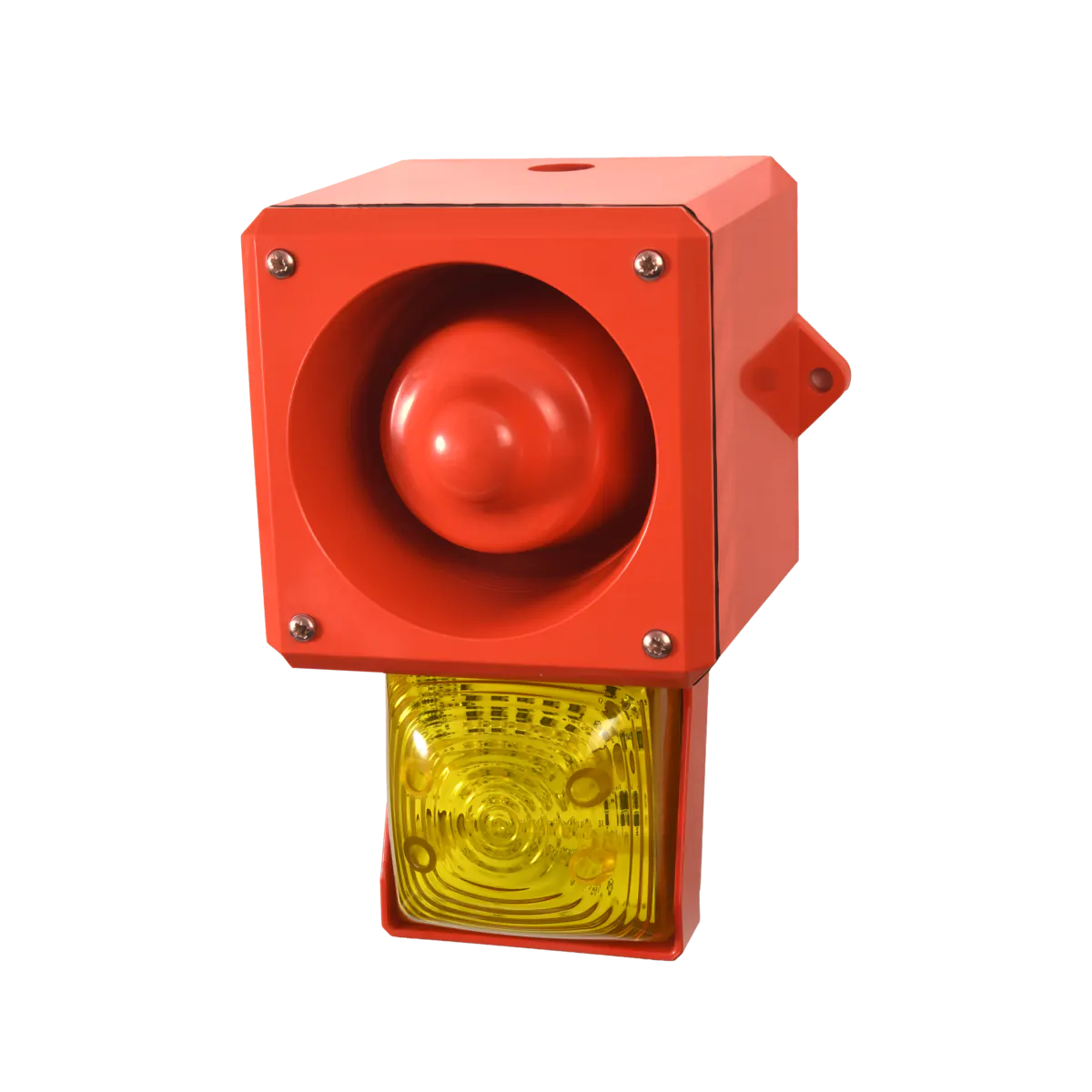

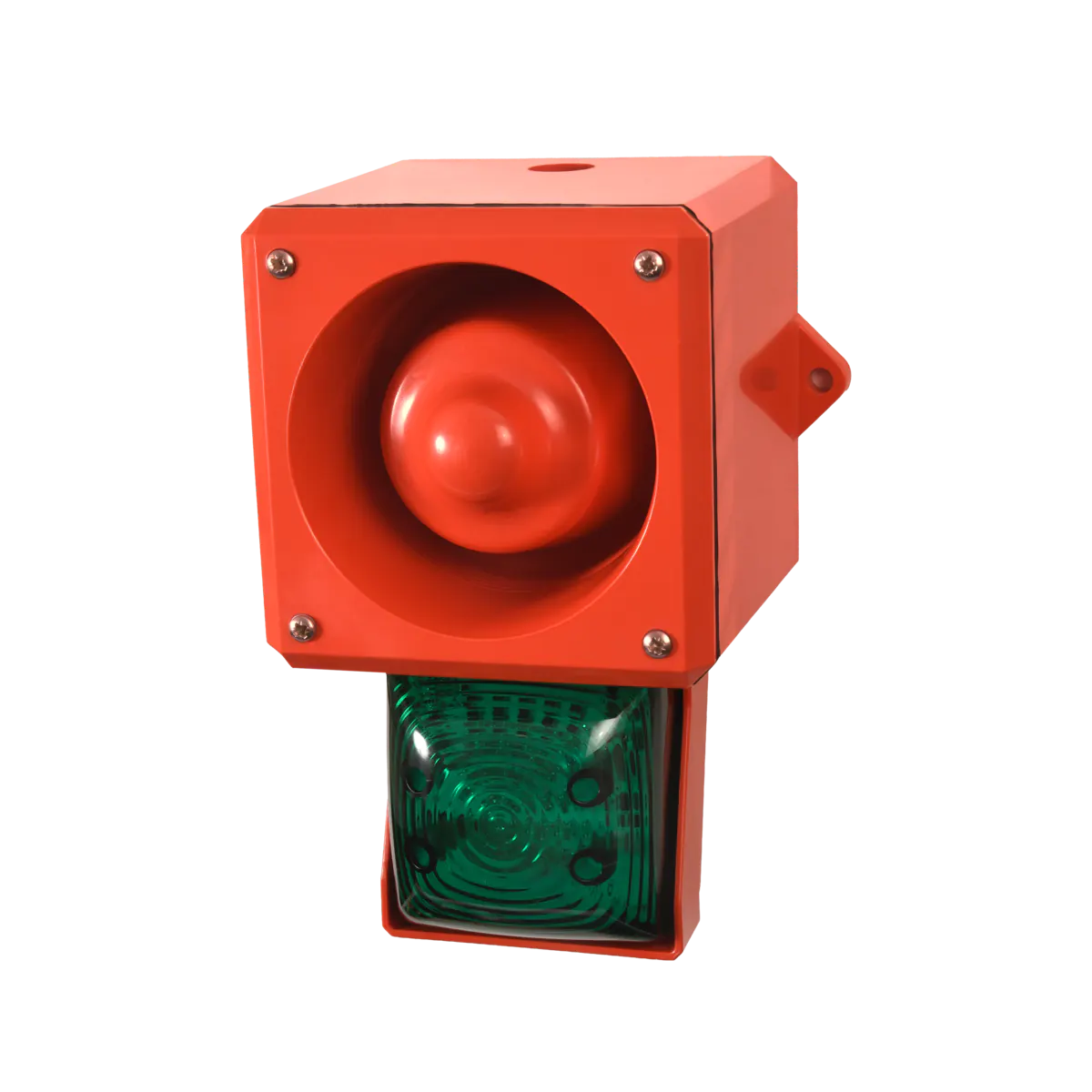

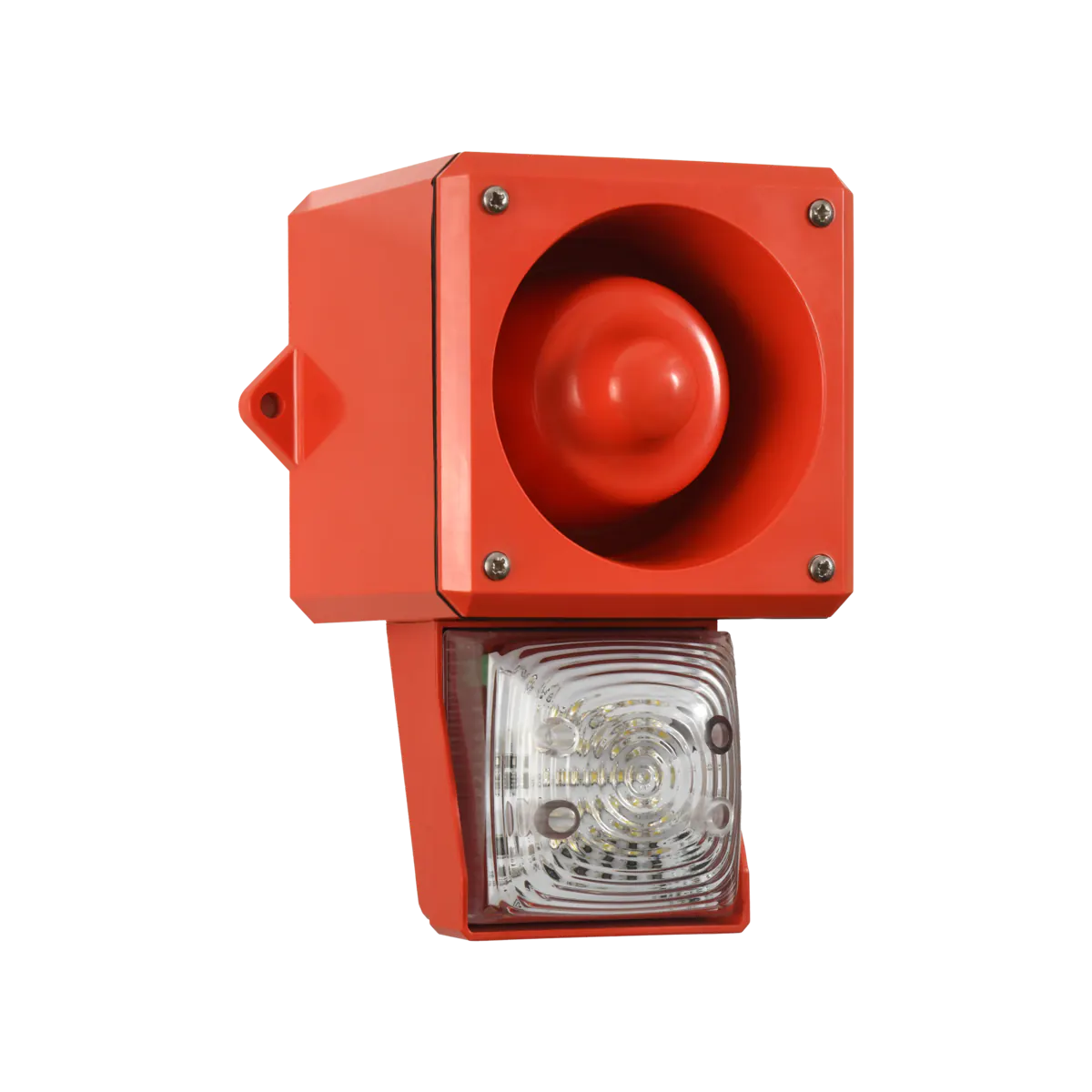

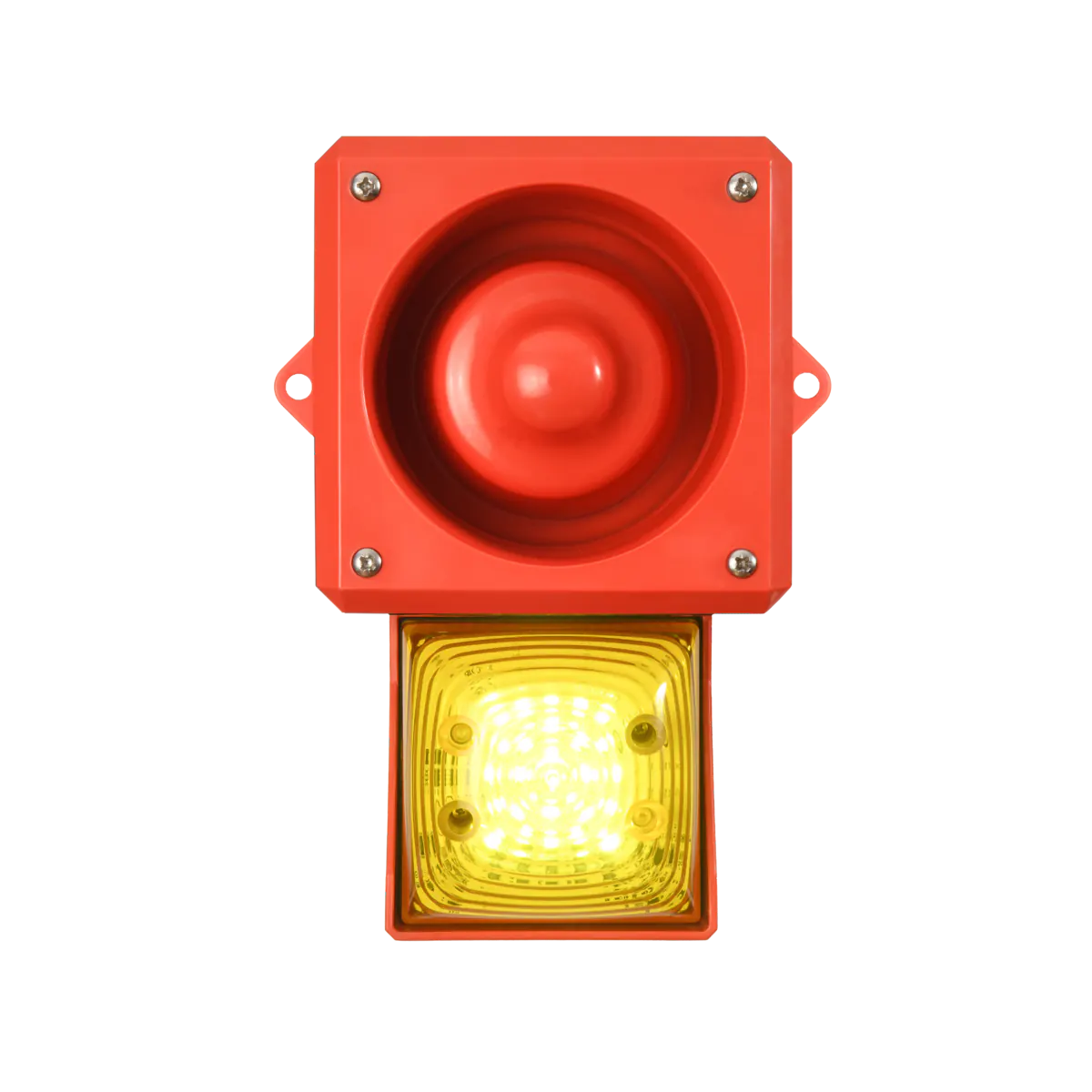

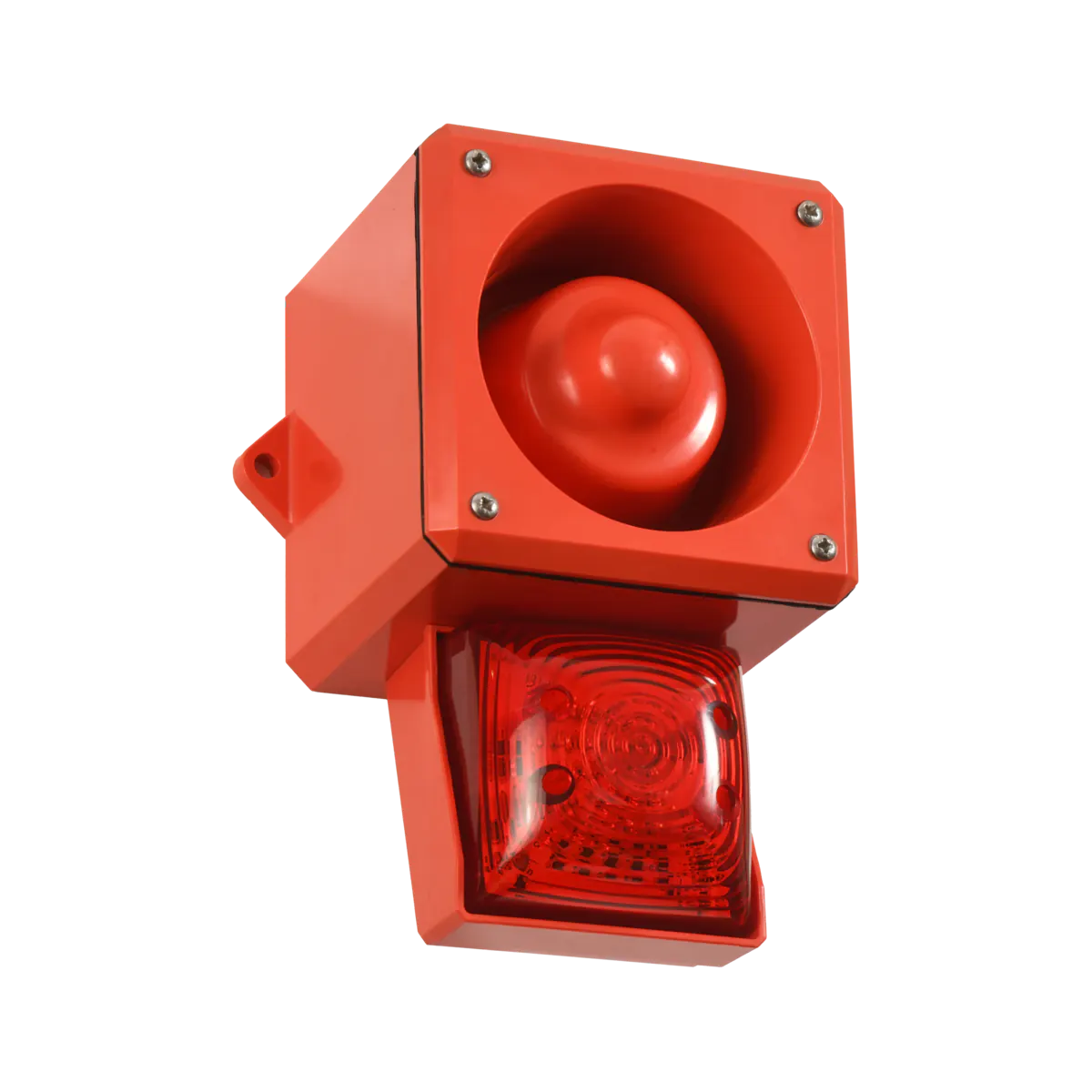

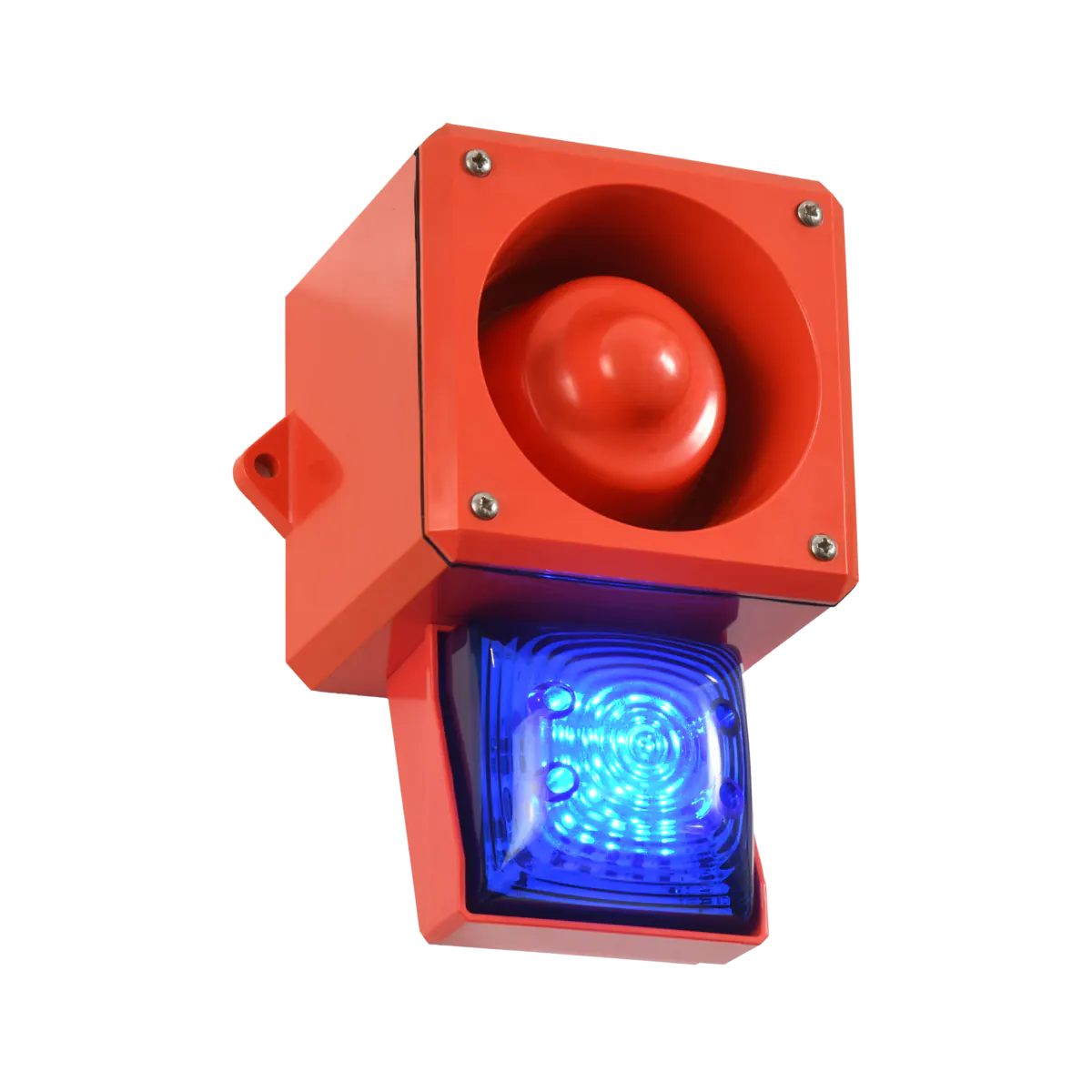

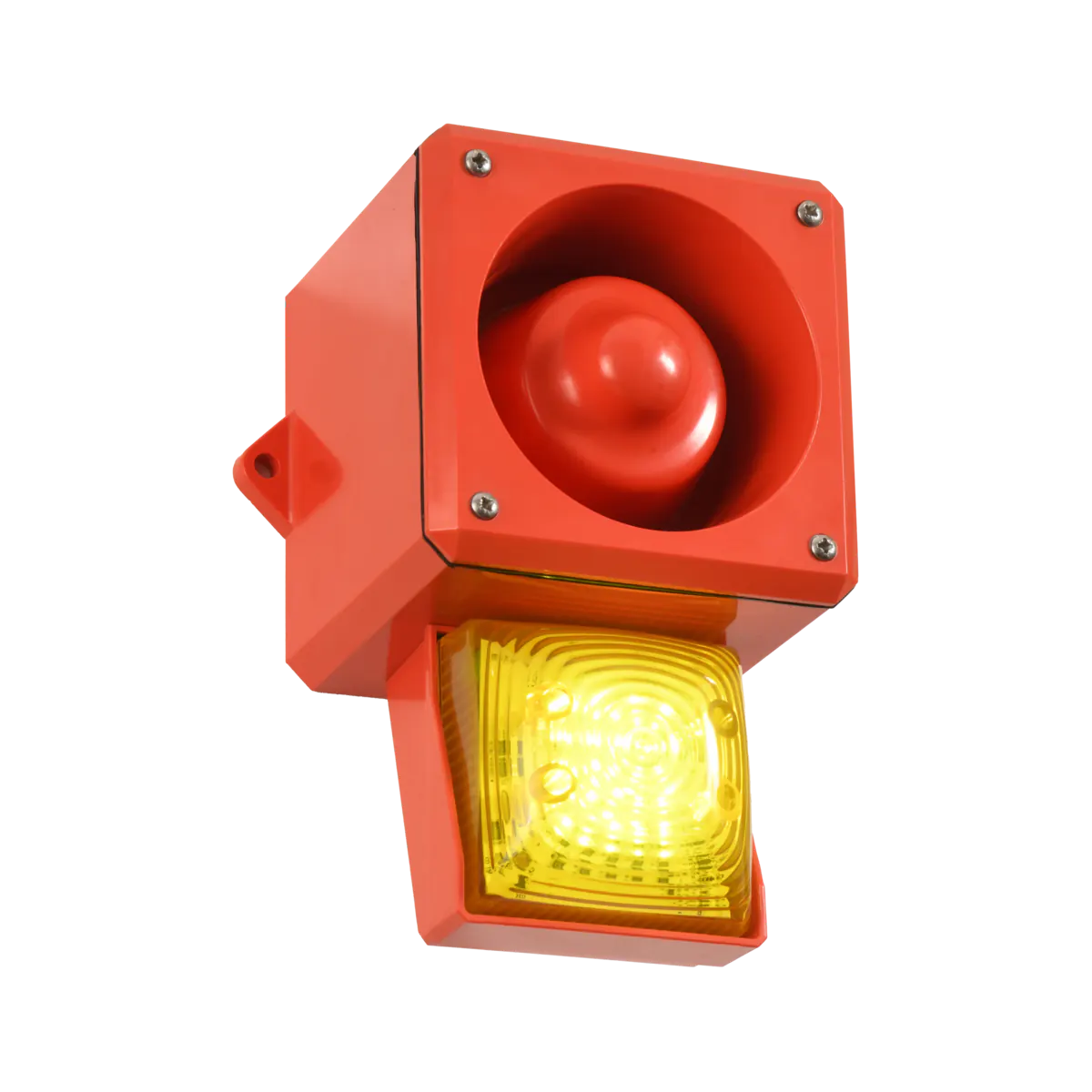

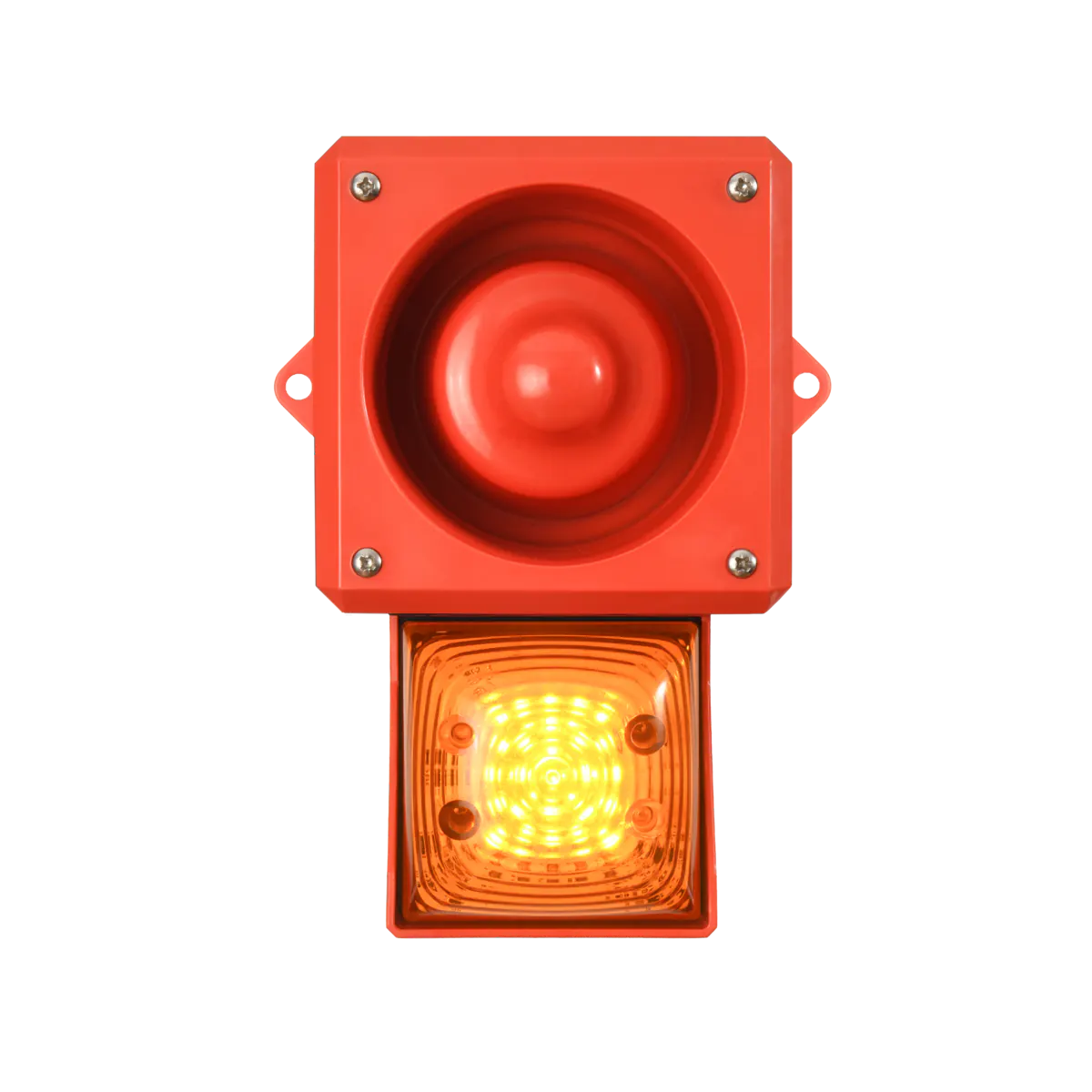

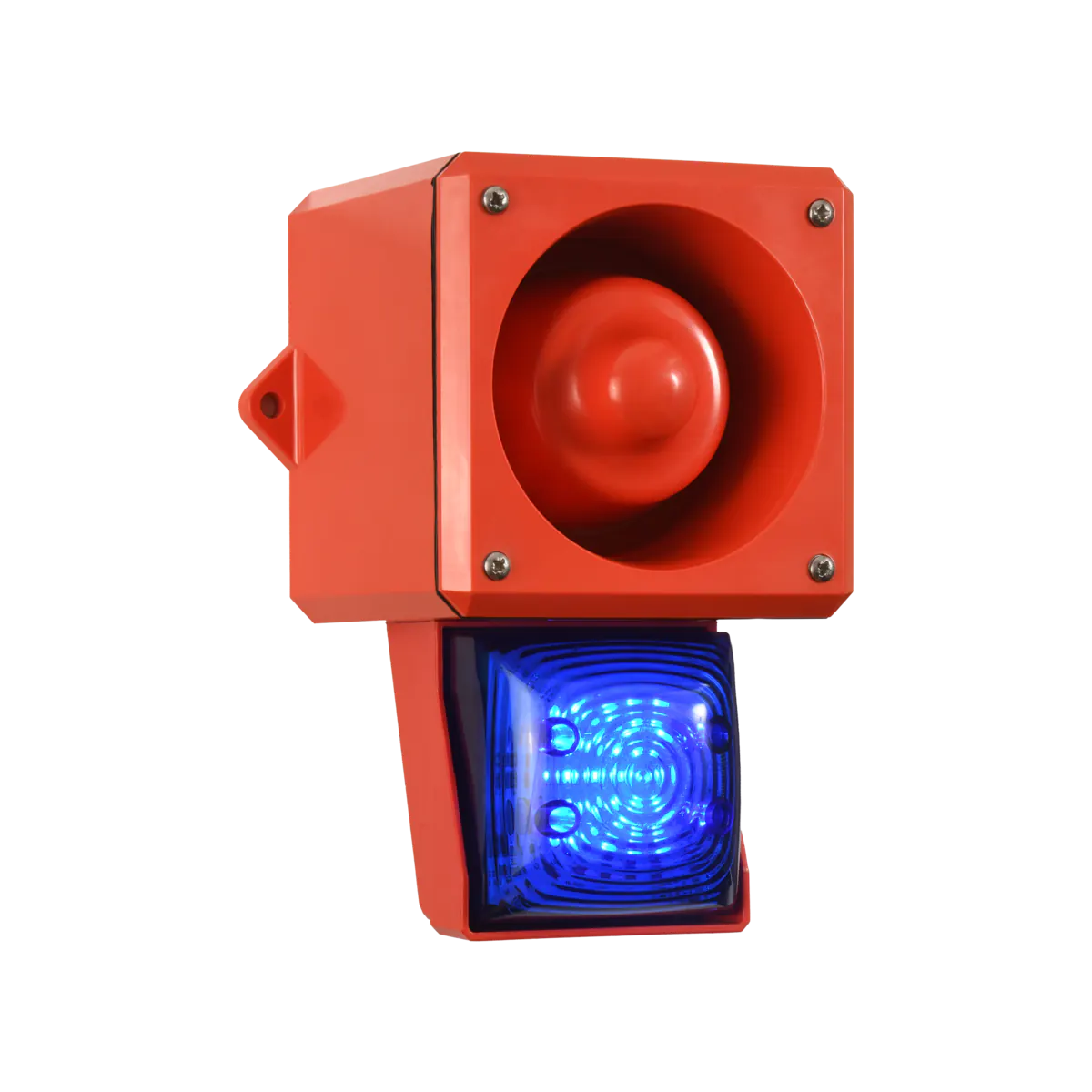

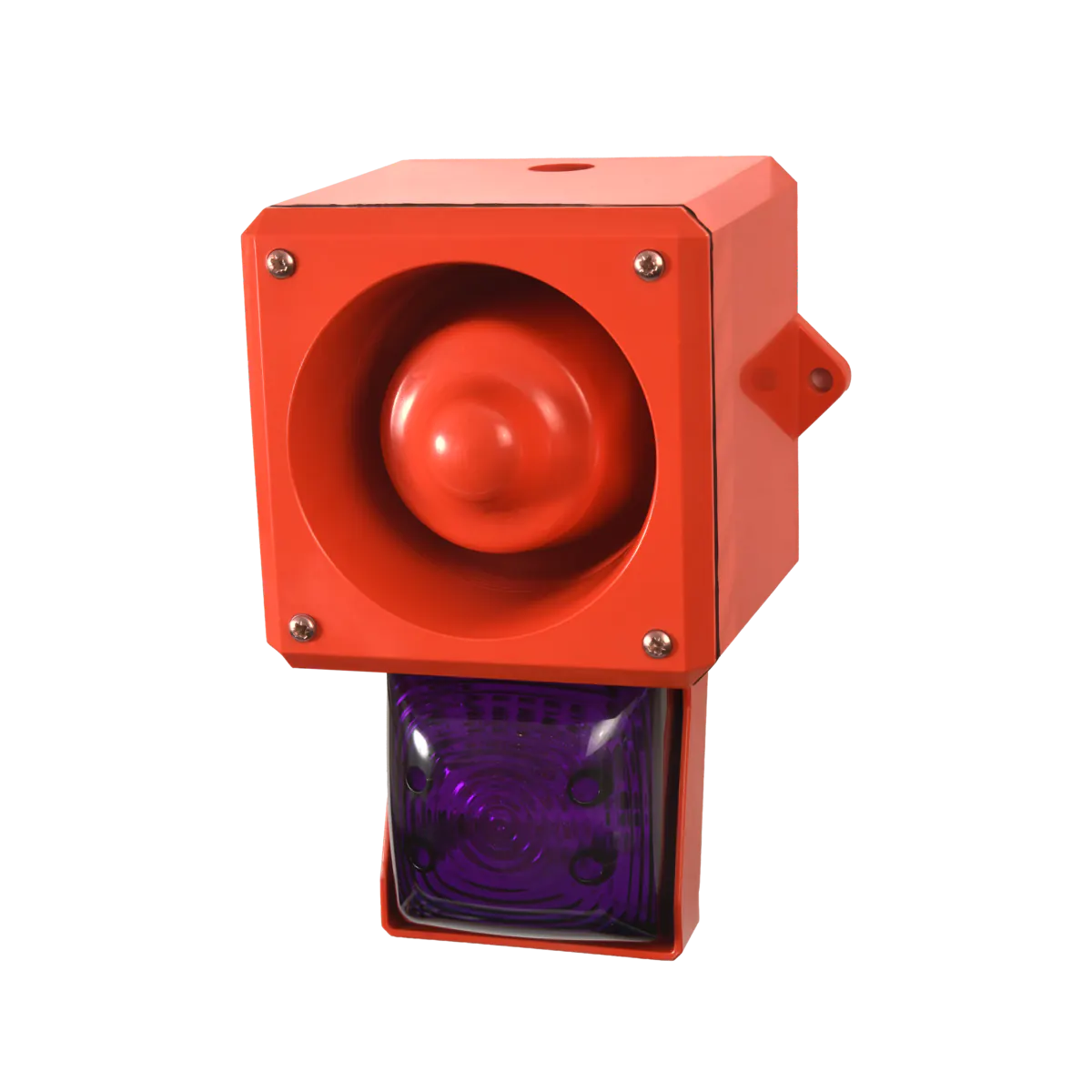

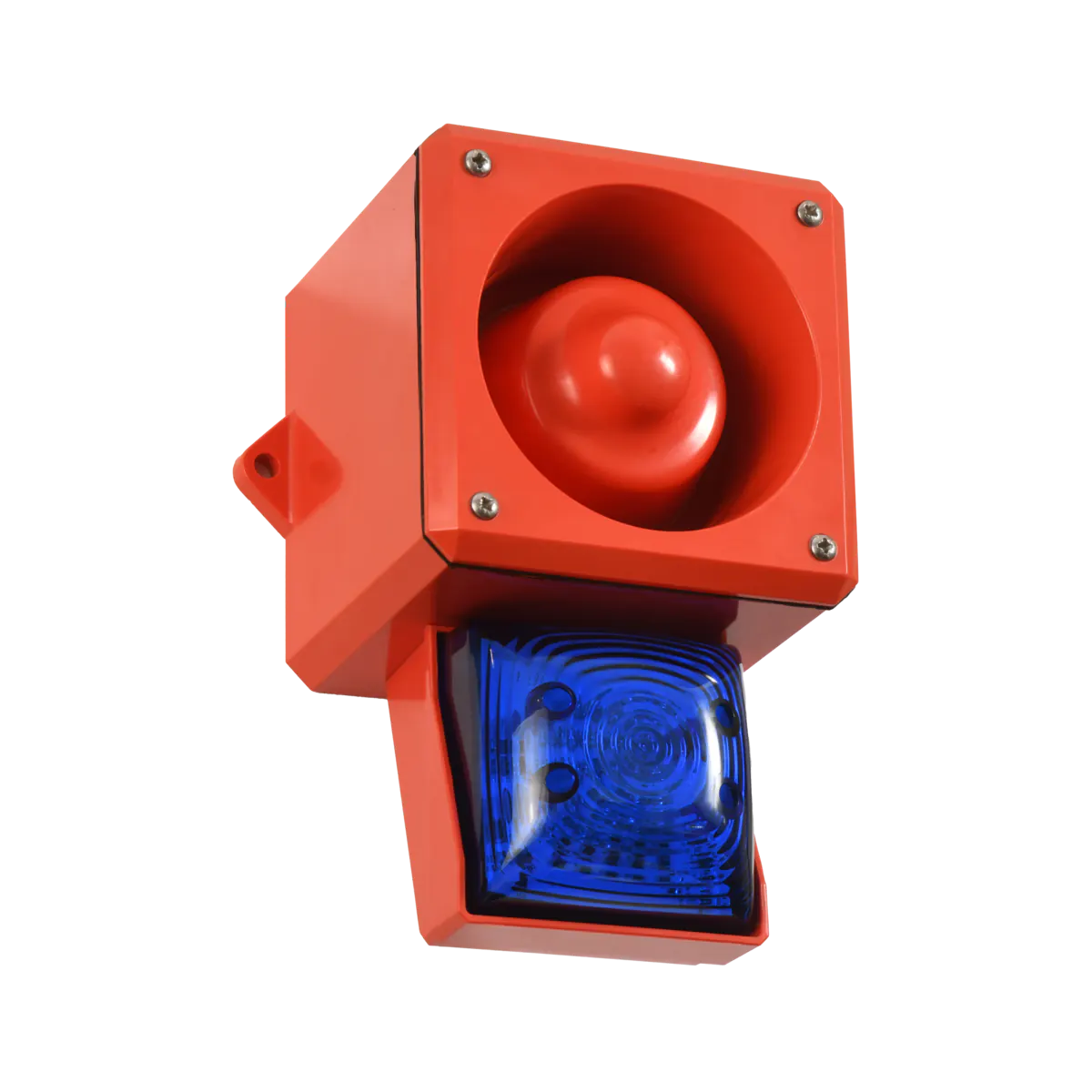

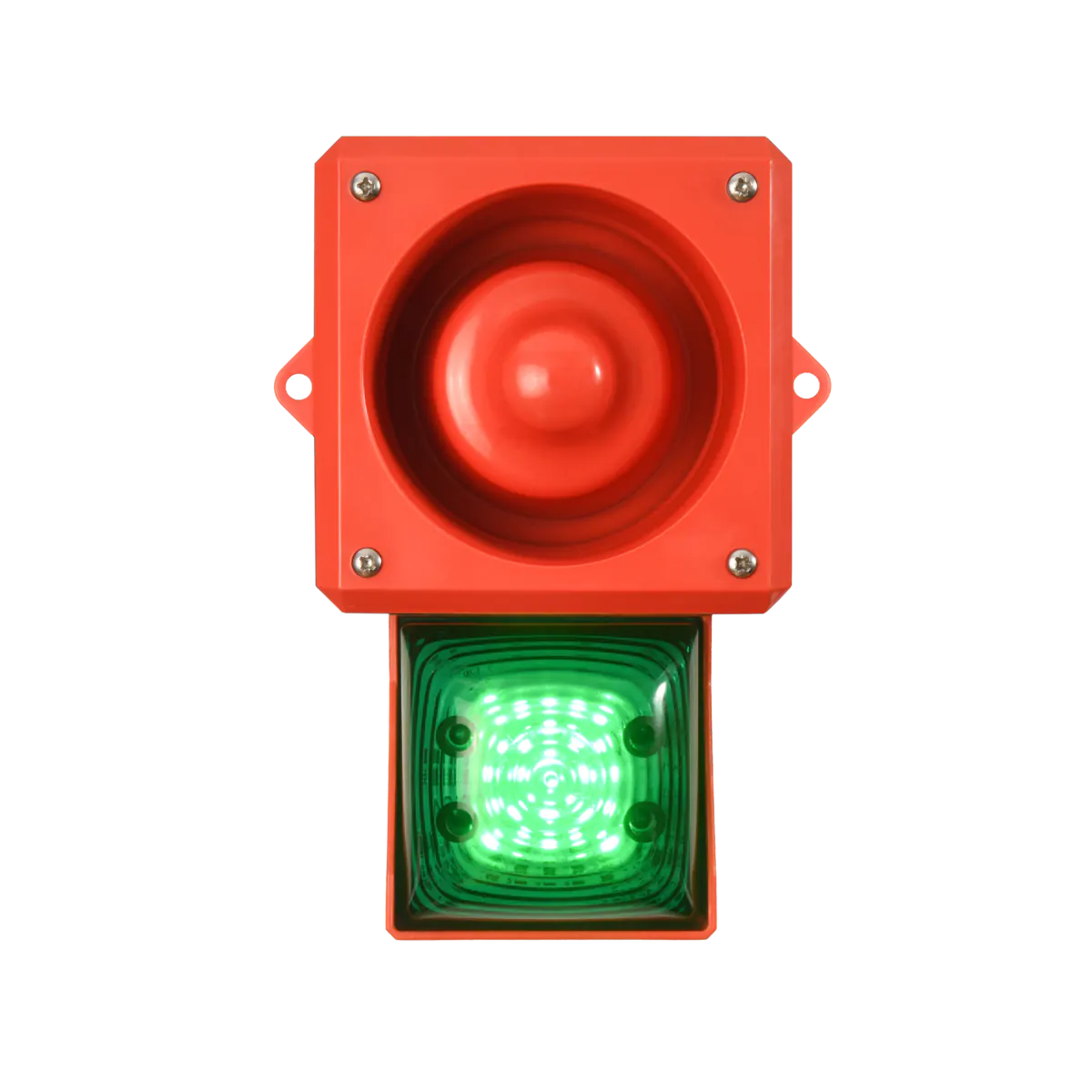

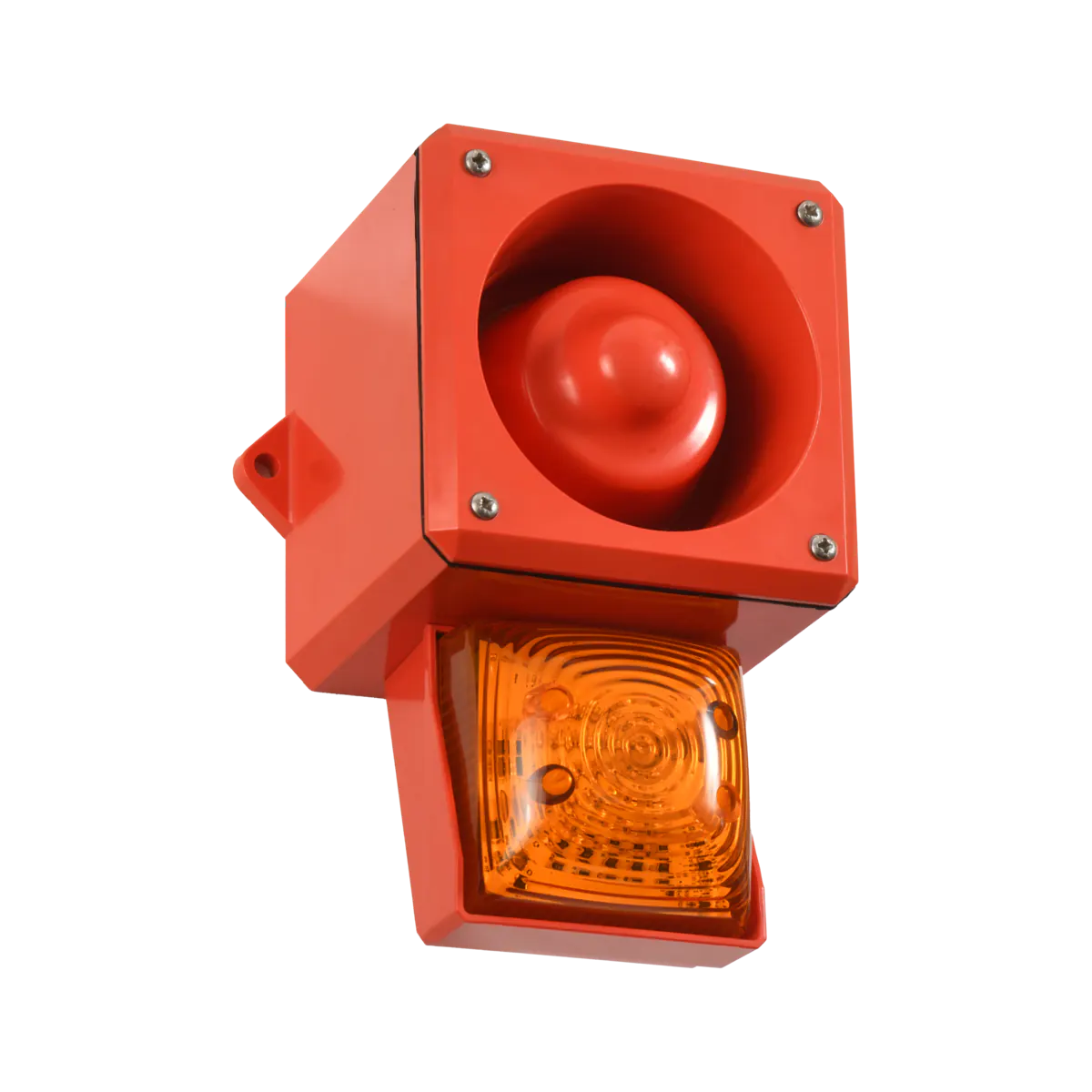

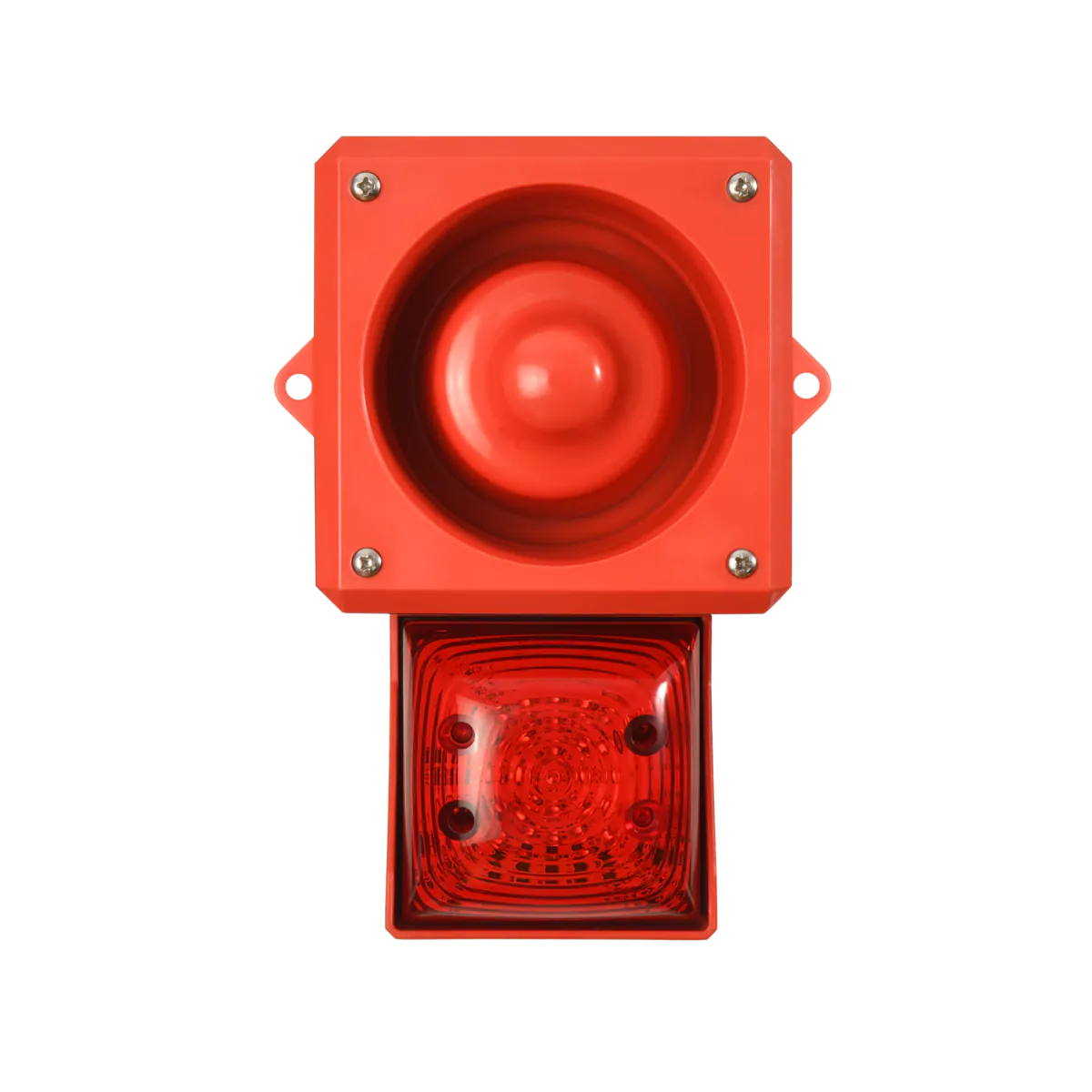

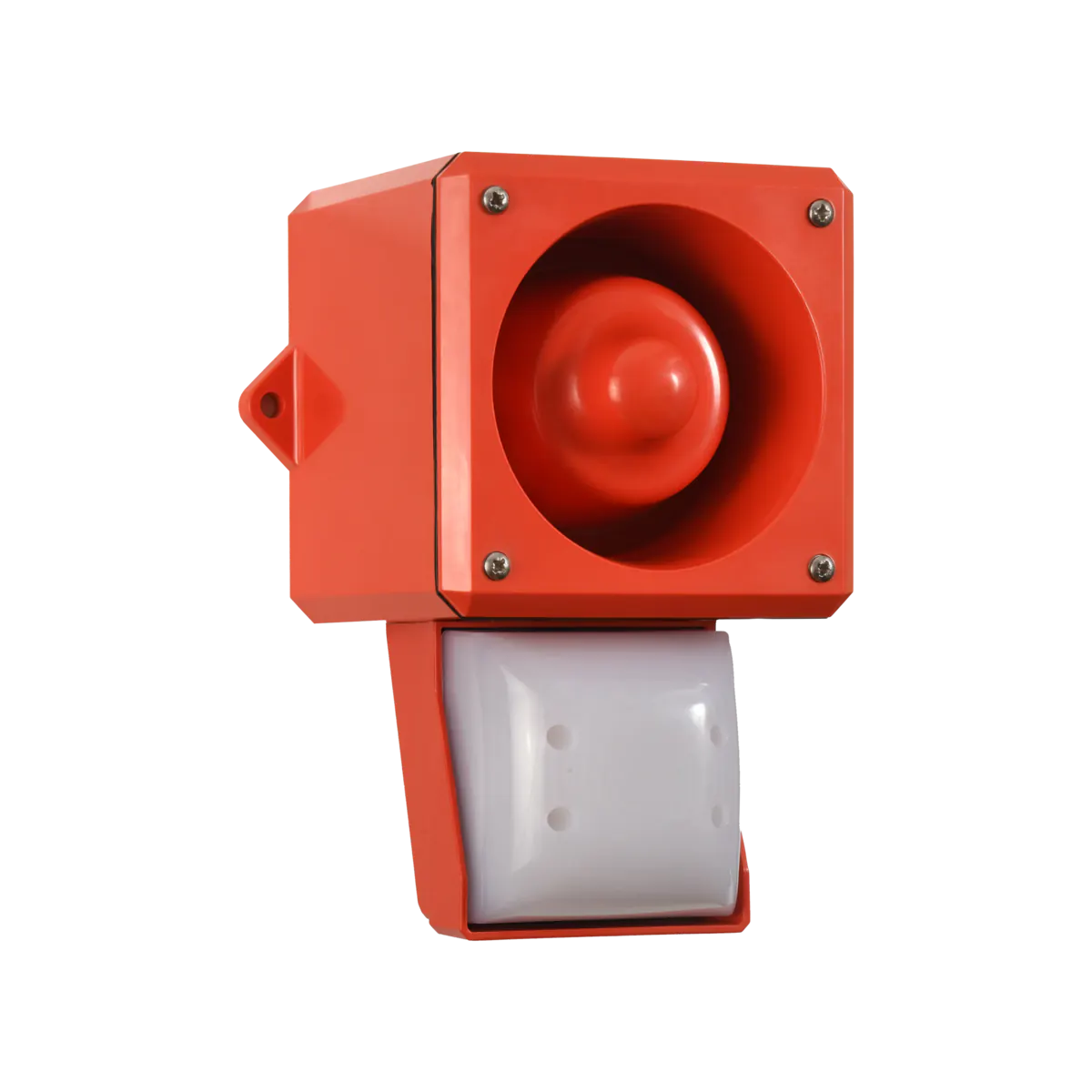

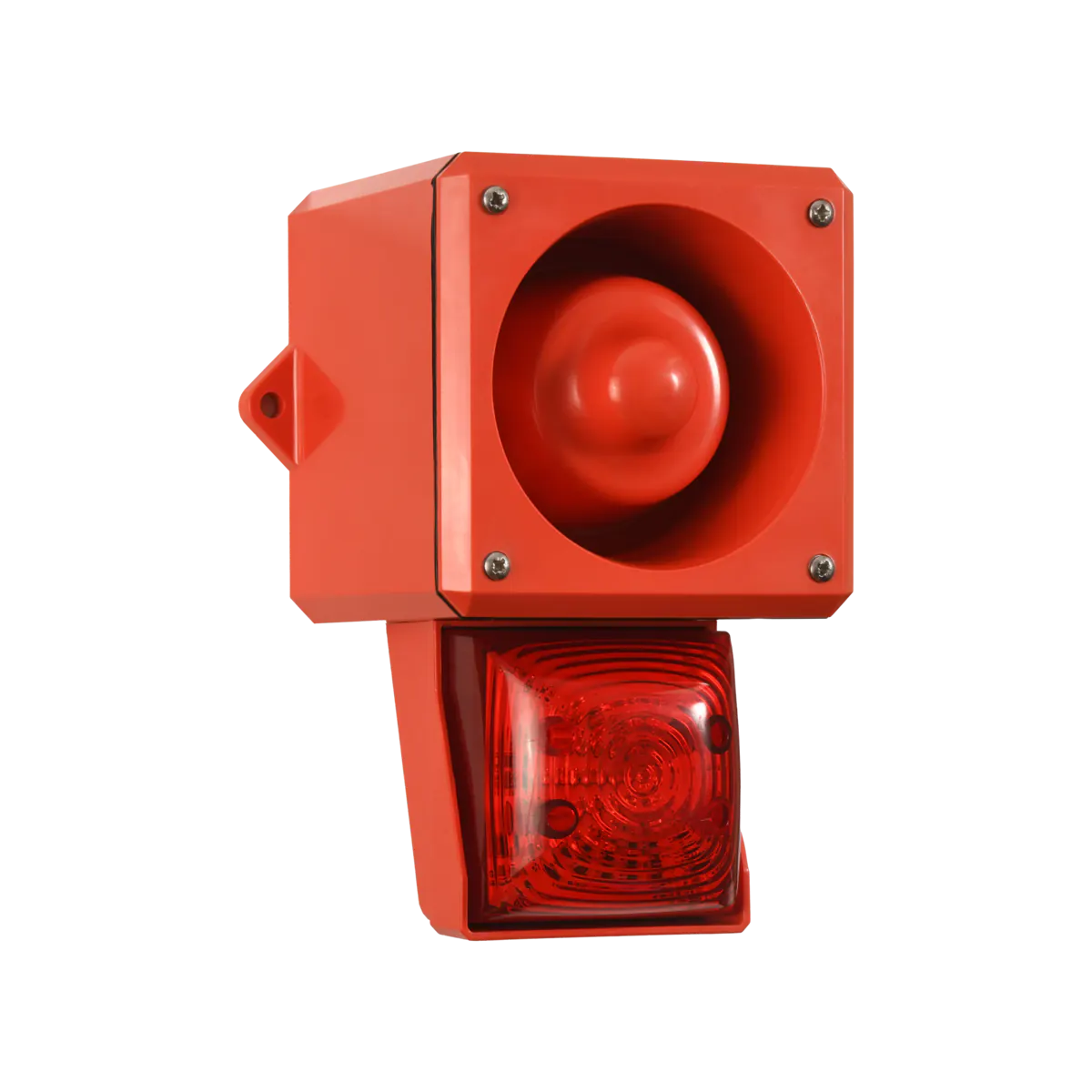

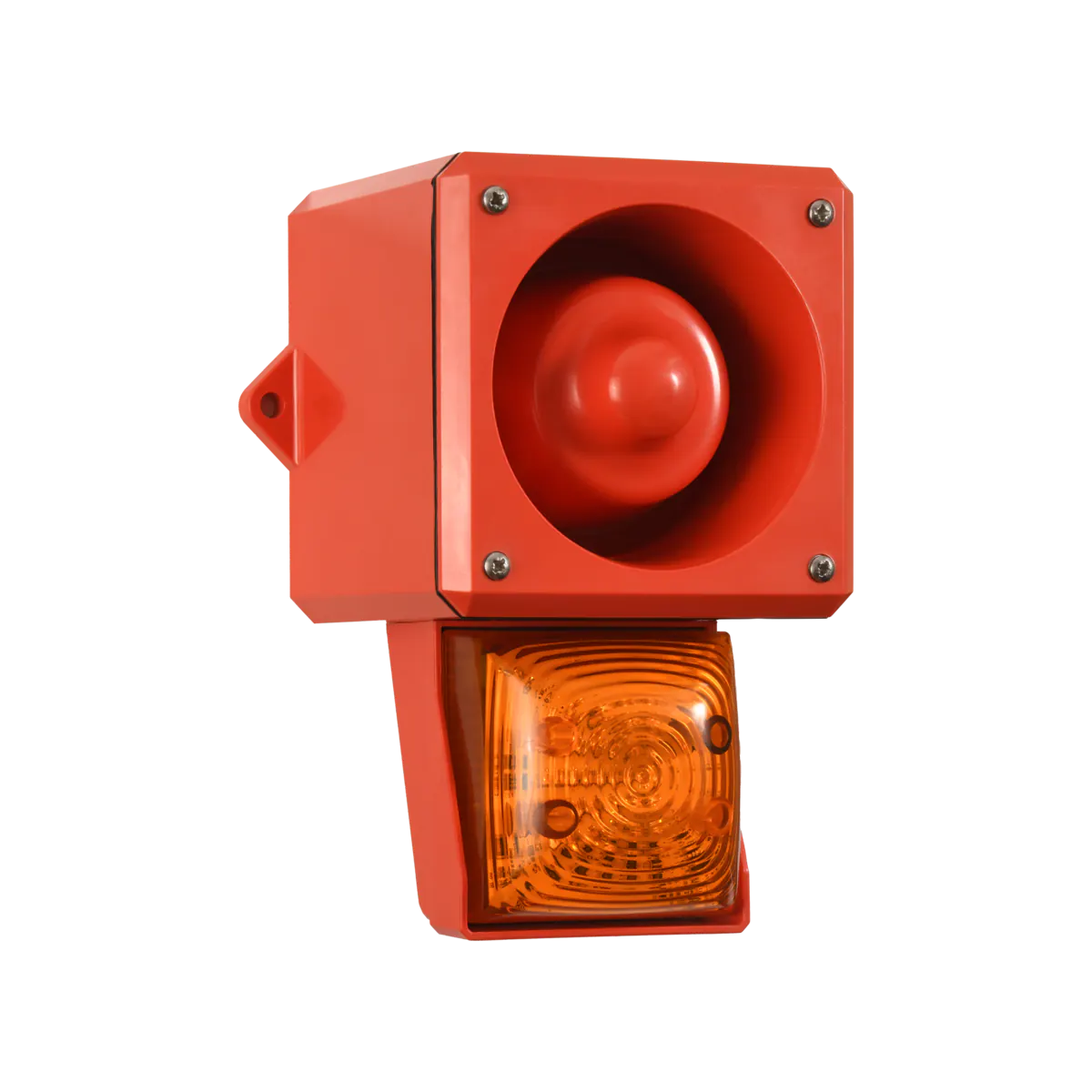

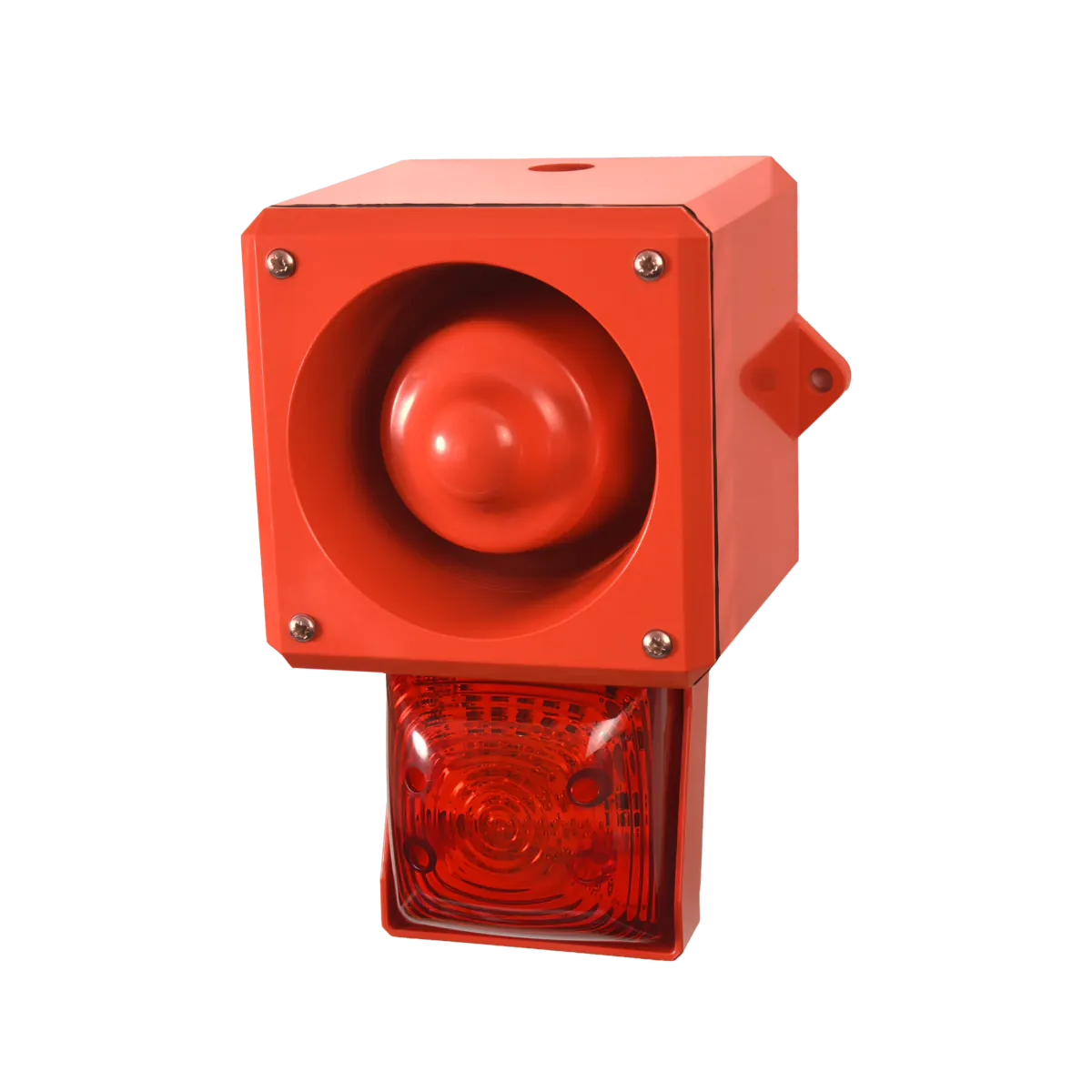

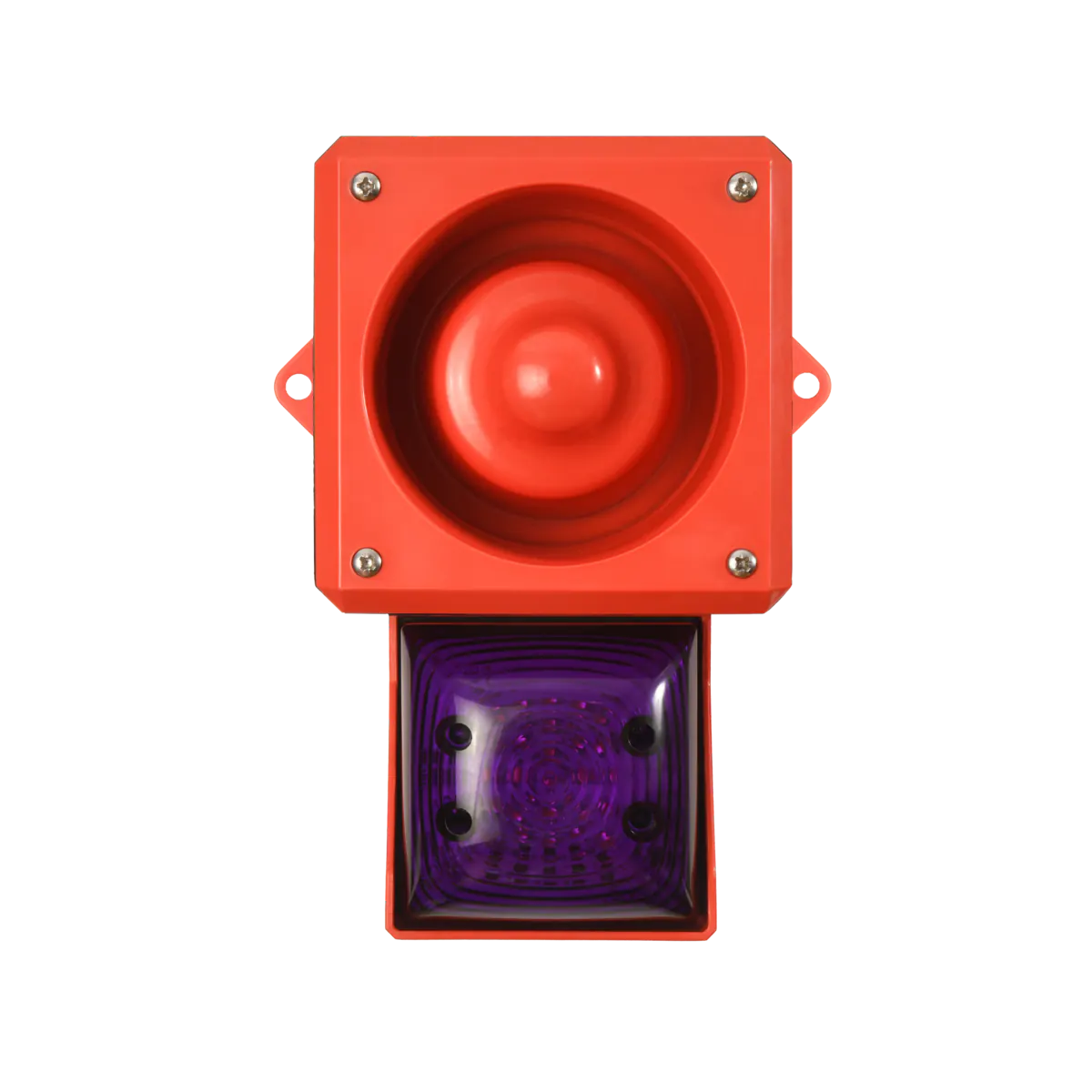

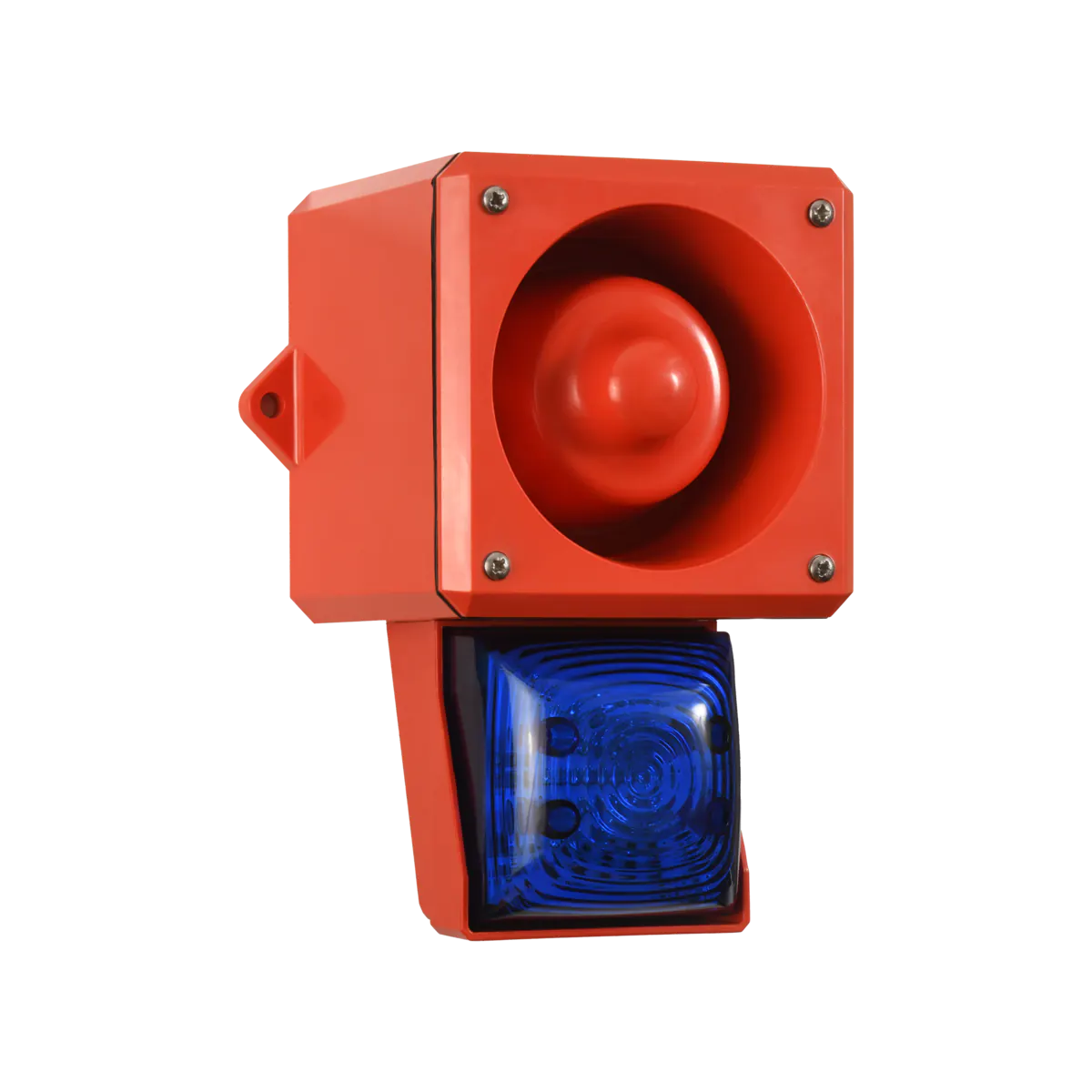

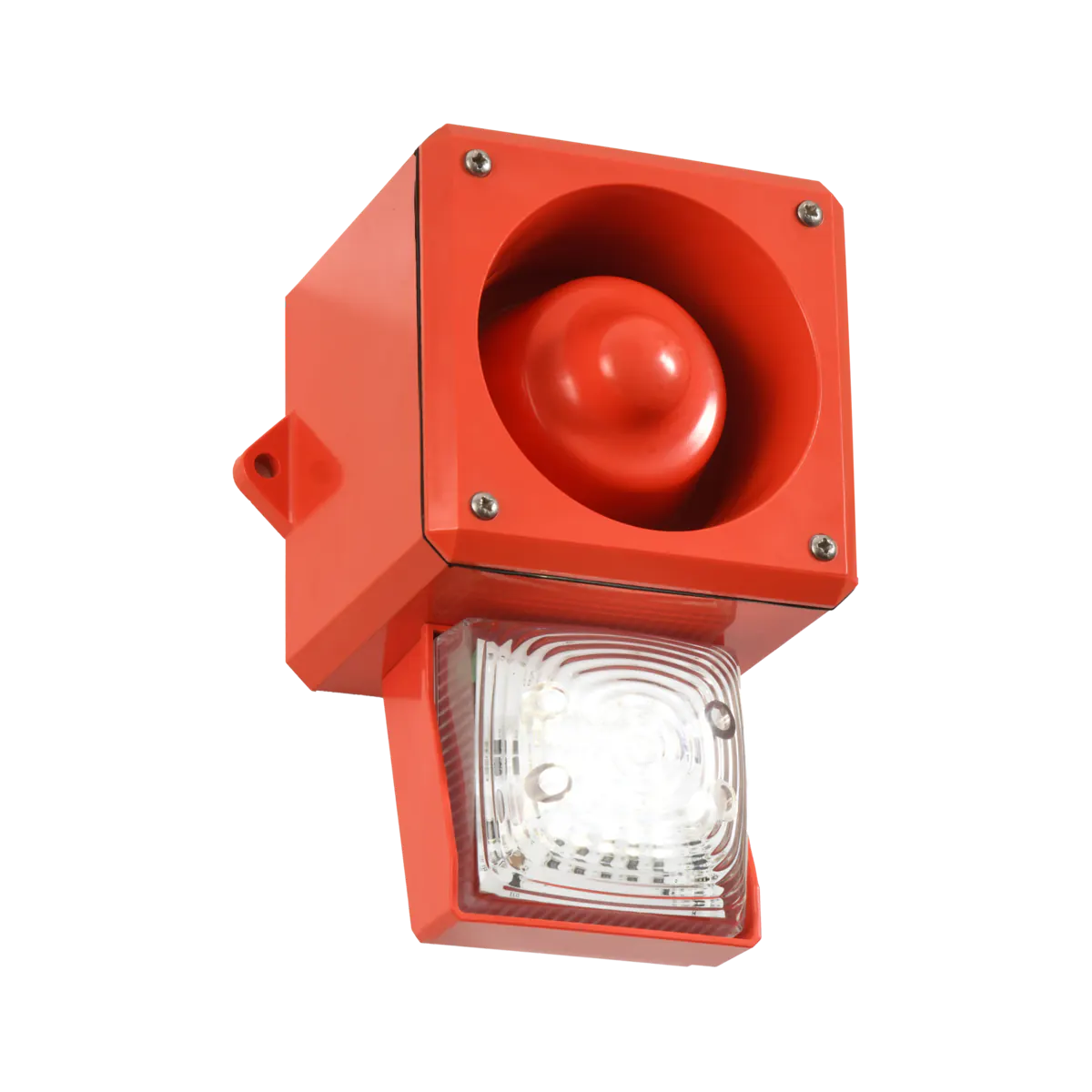

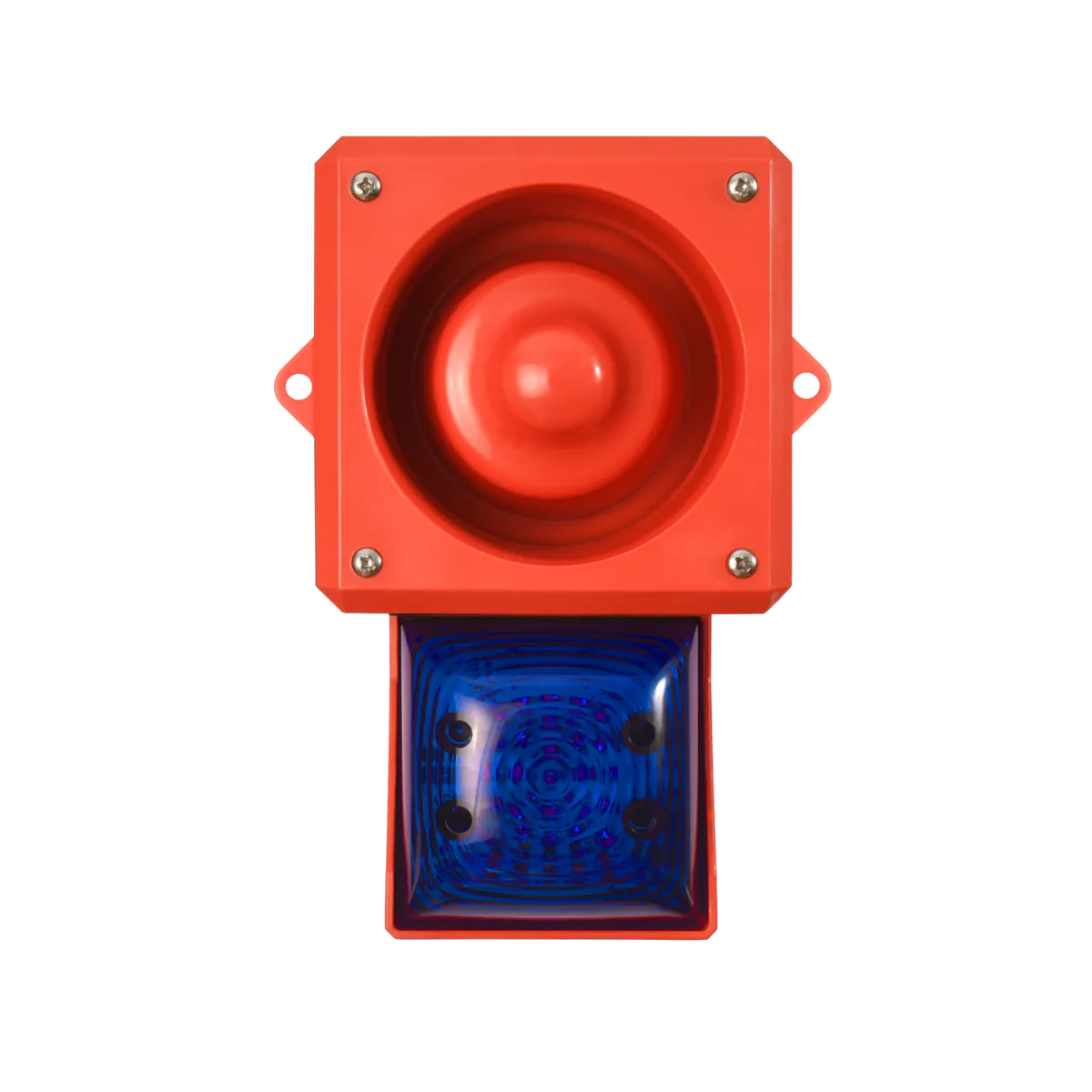

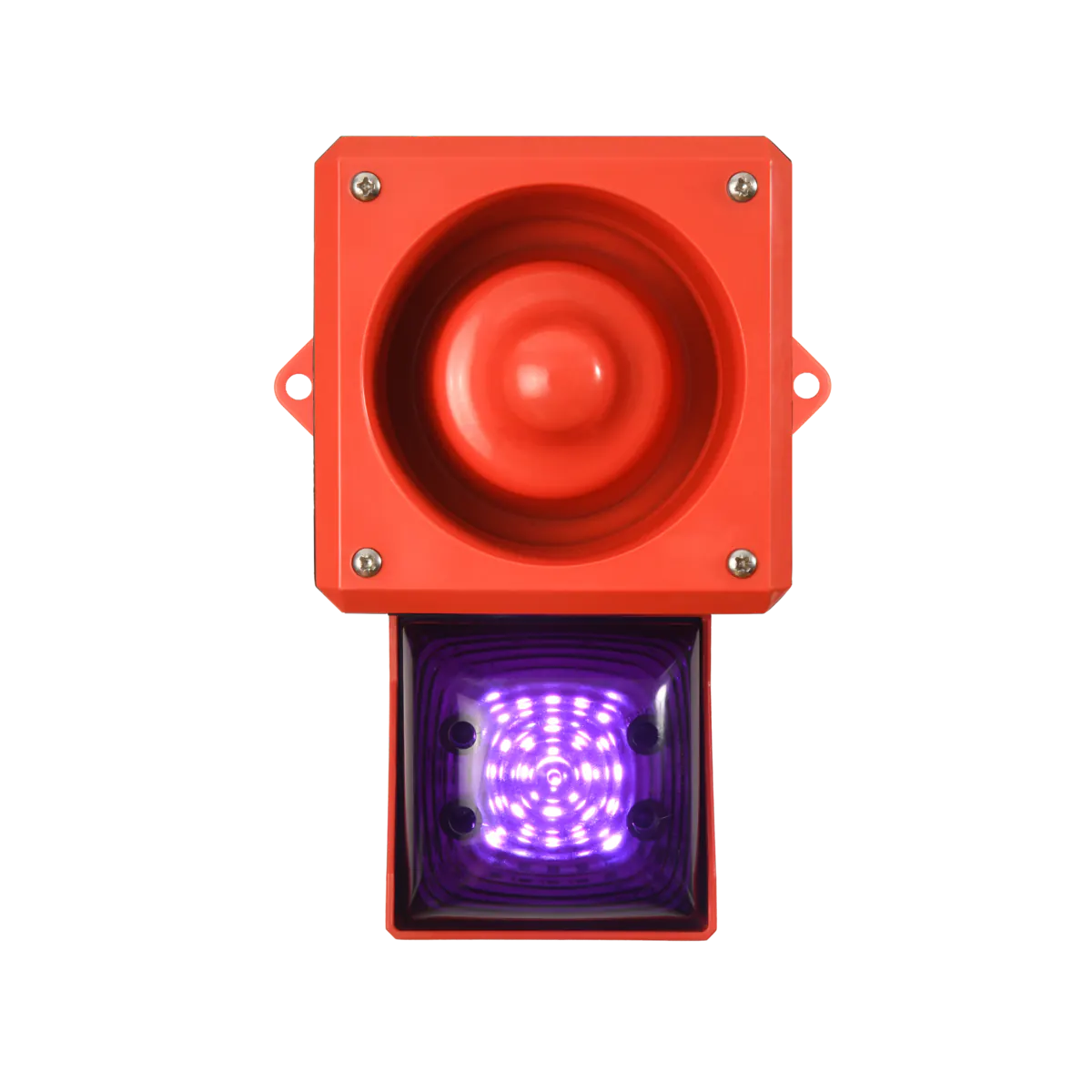

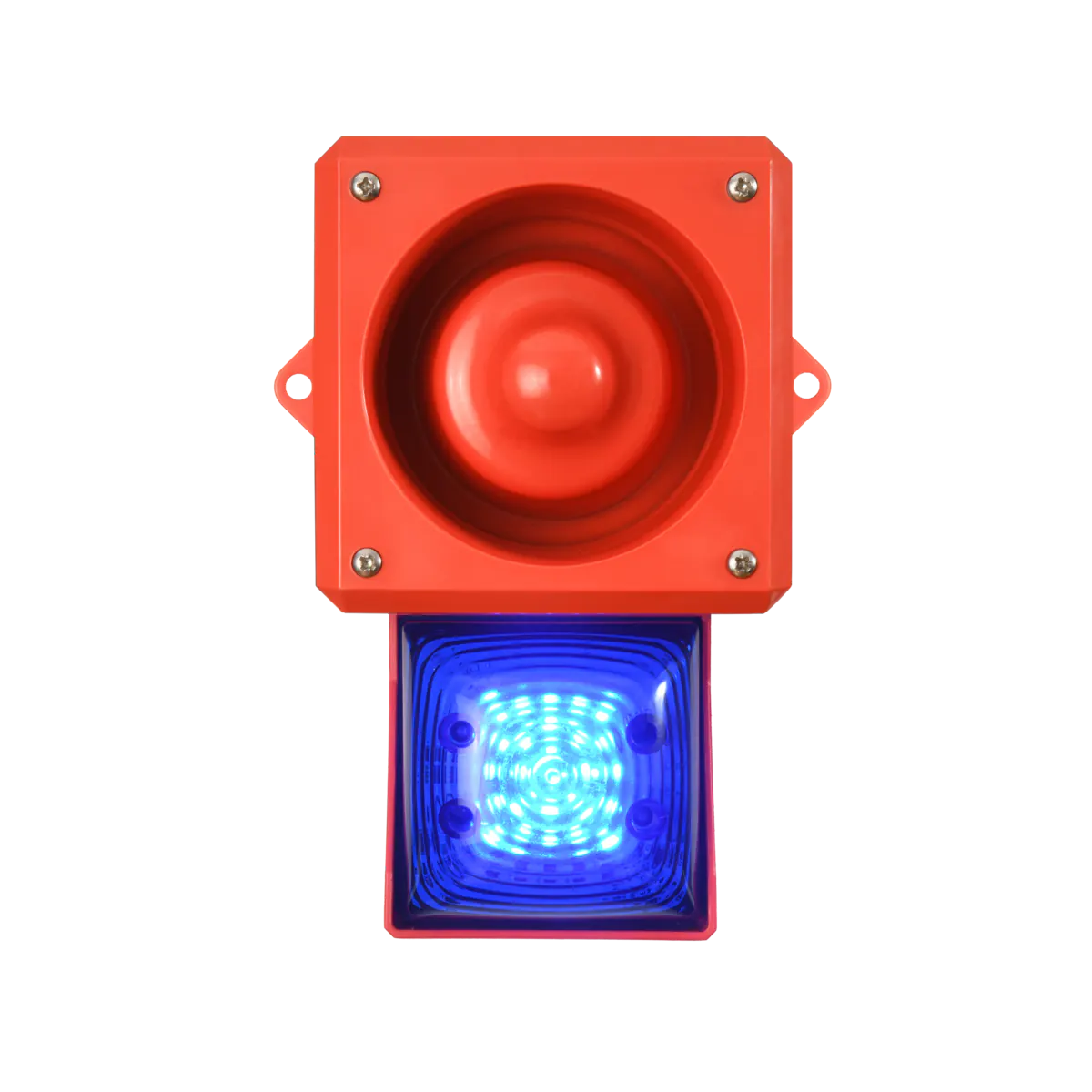

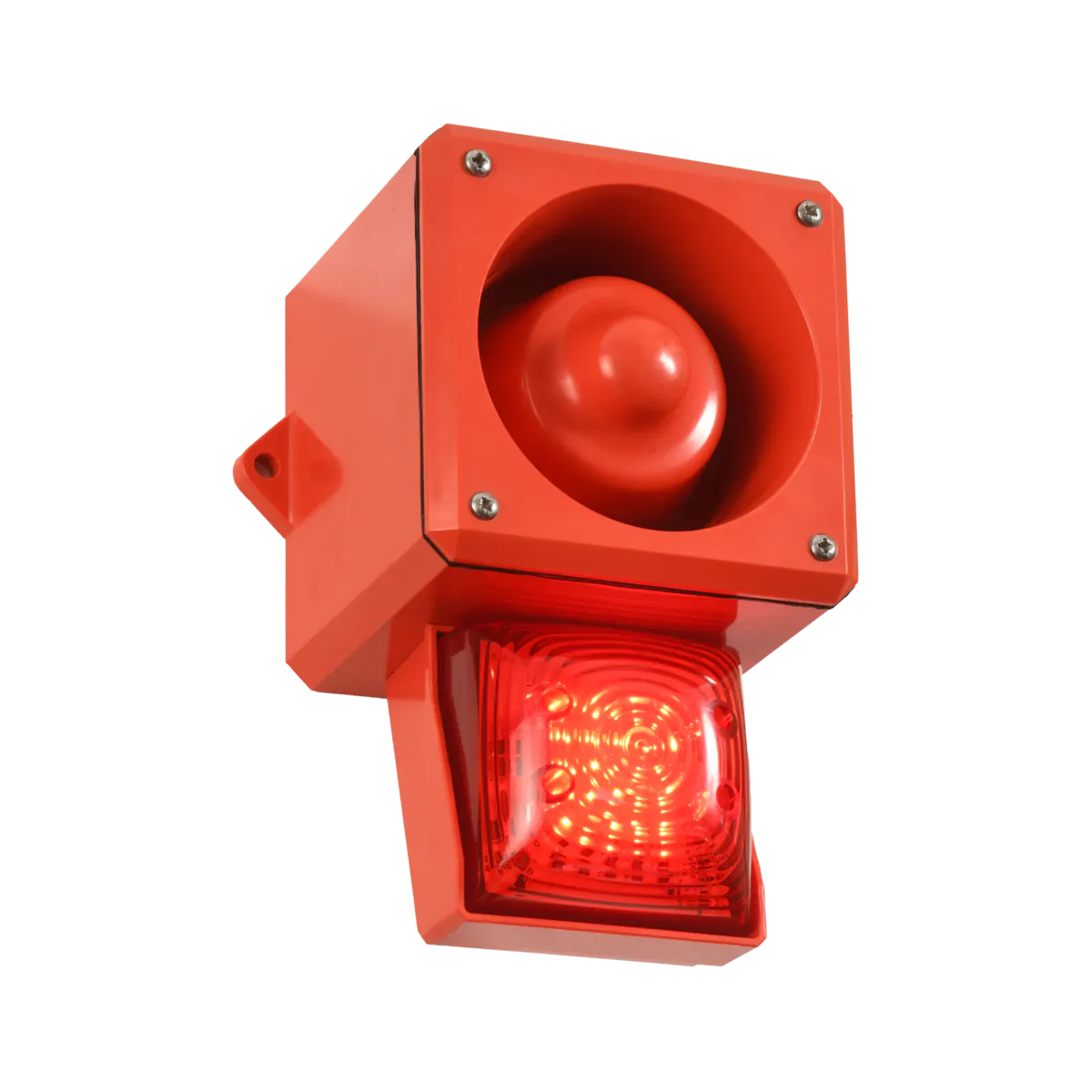

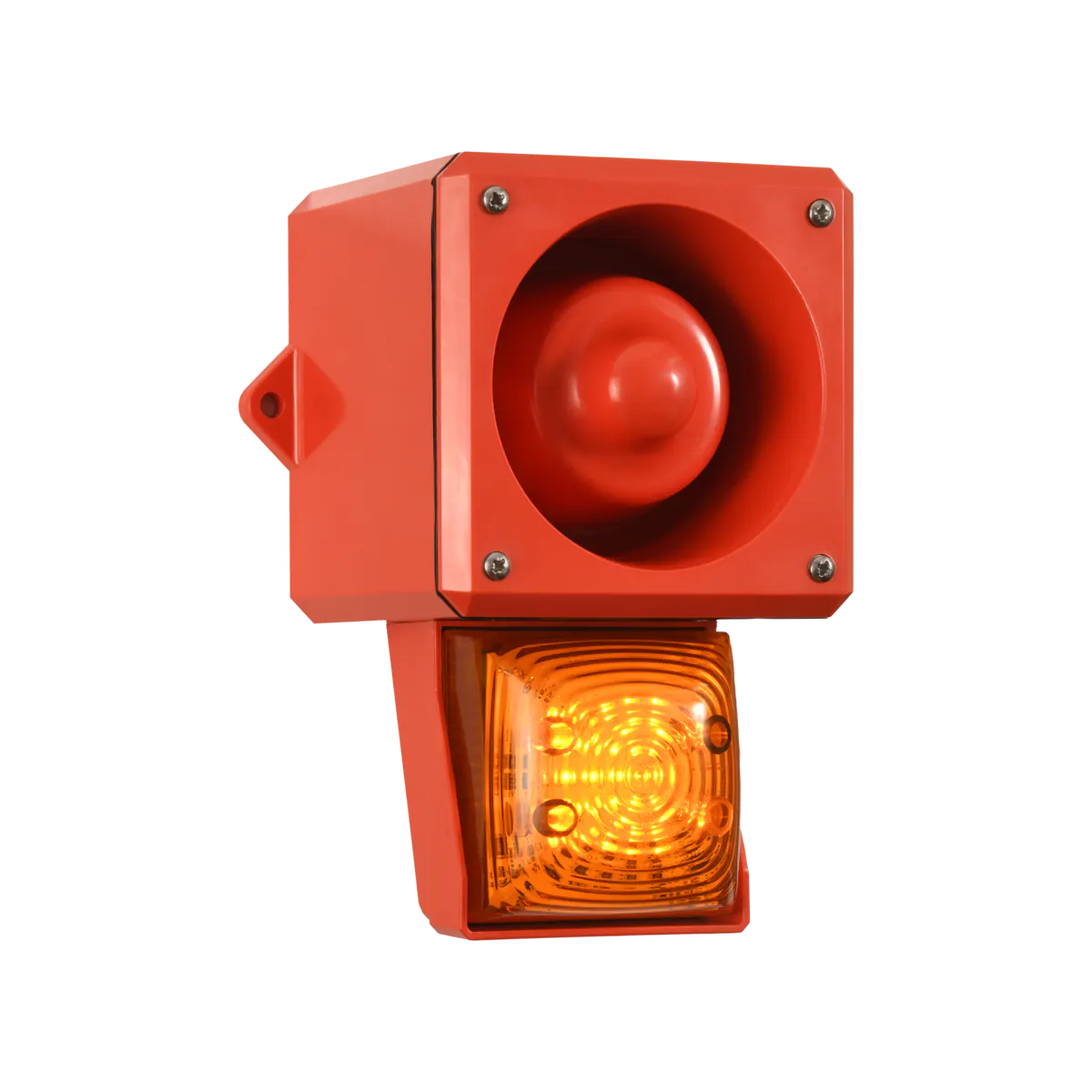

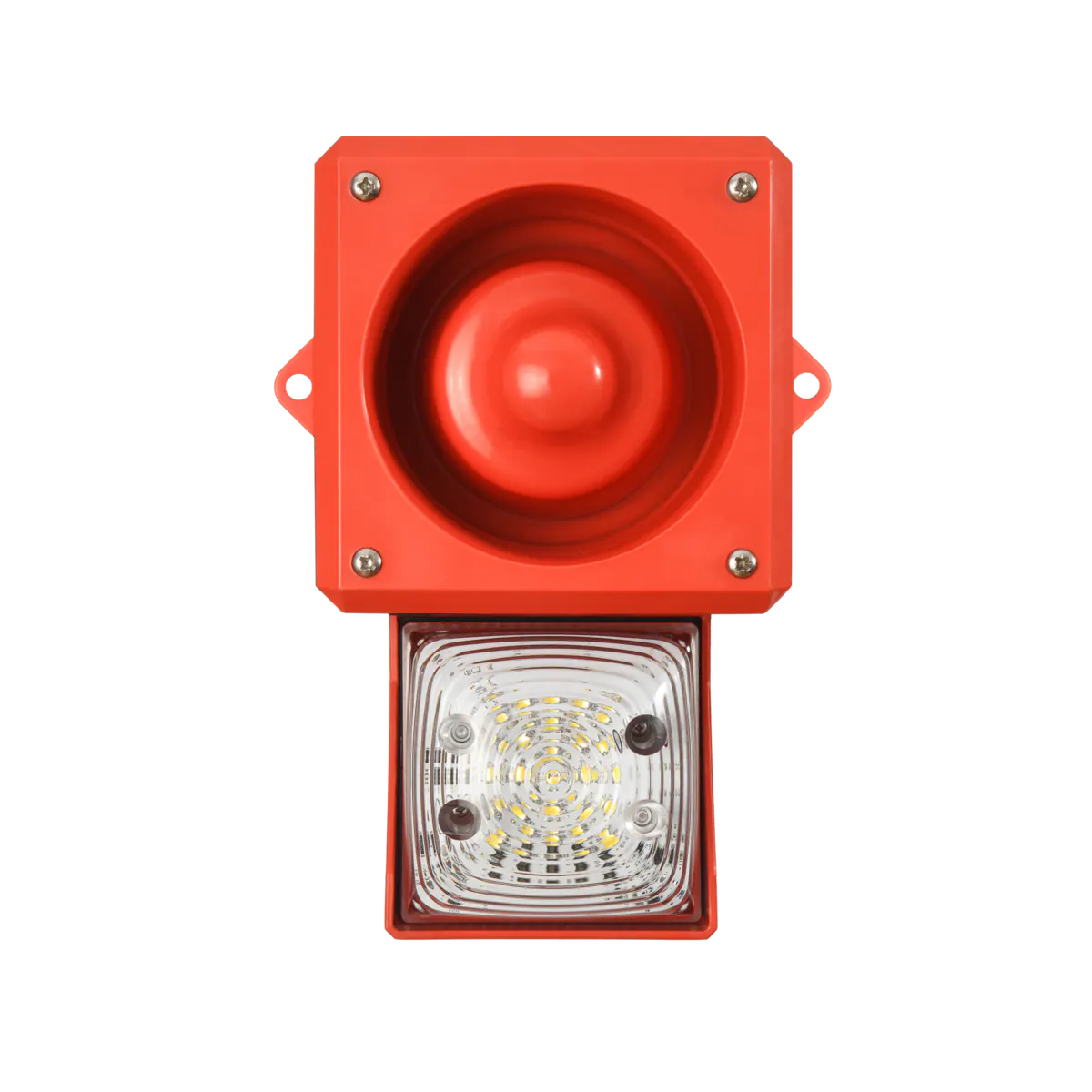

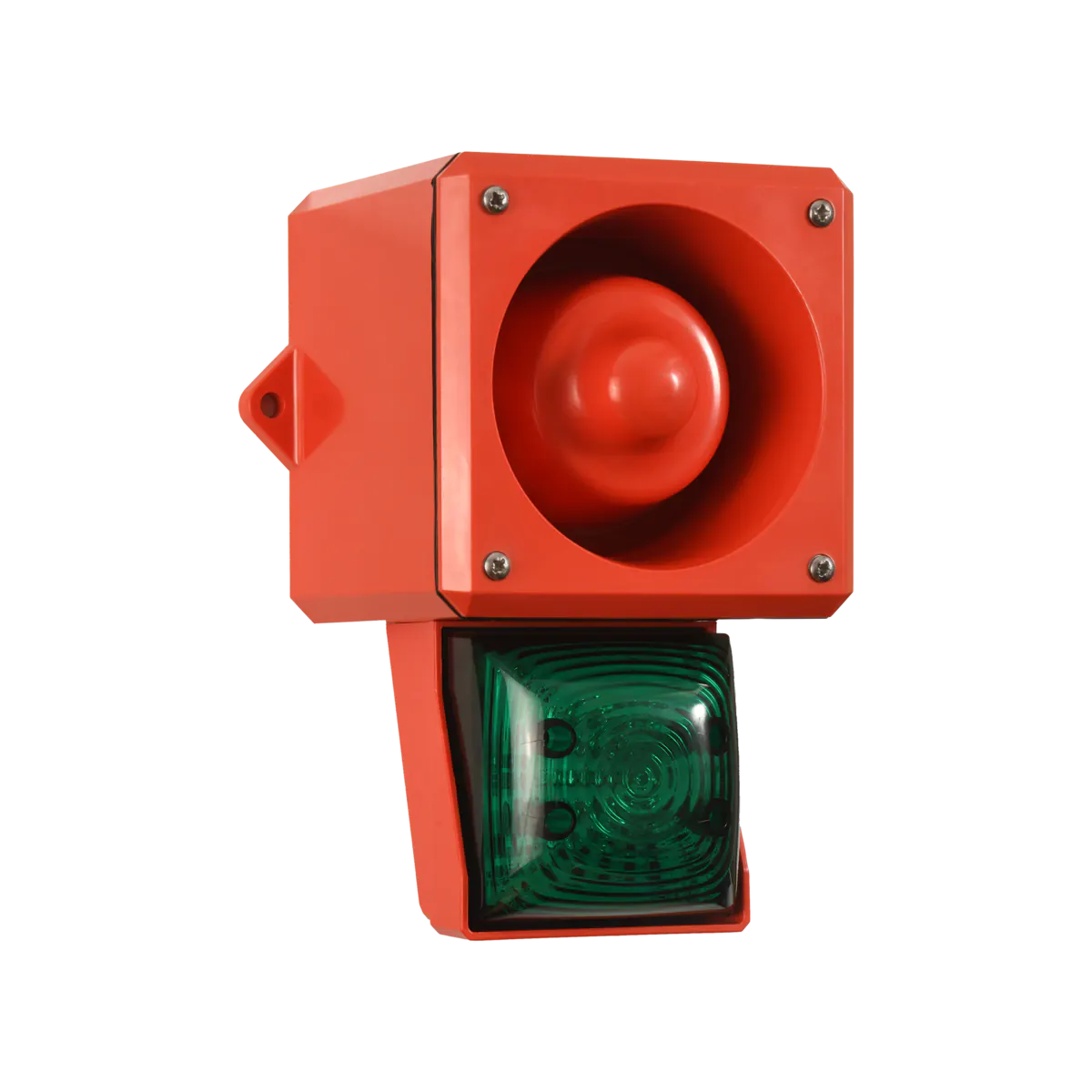

Yodalight YL50 Hi-Vis MSA — Multi-Stage Sounder Beacon

The Yodalight YL50 Hi-Vis is a combined sounder beacon designed for applications demanding maximum visual conspicuity alongside strong audible warning, pairing a high-intensity beacon with a powerful sounder rated up to 112dB at 1 metre. It retains the 32 selectable tones, two-stage alarm and independent sounder/beacon control of the YL50.

Weatherproof to IP66, its high-visibility optics make it ideal where beacons must be seen across large or brightly lit spaces, for dependable room or zone coverage.

Maximum visual conspicuity paired with powerful audible warning for large, bright spaces.

This MSA (8-stage) version is not certified to MED, MER or EN54 Pt3 — for these approvals, choose the standard 2-stage alarm version.

KEY FEATURES

● 12 LEDs or 25 LEDs

● Up to 112dB at 1 metre

● Flashing

● 32 selectable tones

● Tones meeting international regulations

● Eight-stage alarm

● Independently selectable stages

● IP66 rated

● Wall or bulkhead mounting

● Available colours: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta

● 24vDC or 85-280vAC/DC

MATERIALS

● Polycarbonate lens

● Flame-retardant ABS body

● Stainless-steel fixings

Typical applications: fire systems, large factories, transport and infrastructure, marine, process plants.

Technical Information

Weight: N/A

Dimensions: N/A

Functionnality:

32 Tones – 8 Independent Stages – Flashing

Type of fixing:

Wall and Bulkhead Mounting

Ingress Protection:

IP66

Colour:

Amber, Red, Blue, Green, Clear, Opal, Yellow, Magenta

Voltage:

24vDC, 115-230vAC/DC

Enclosure Colour:

Orange

Light Source:

12 LED, 25 LED

SKU: YL50 HI-VIS MSA Categories:LED + Sounder, Sounder / Beacons, Sounder / Beacons Brand:Clifford & Snell

Downloads

CAD

Cad

Approvals & Conformities

C-Tick
CE Marking
RoHS Directive
UKCA Importer

Tones

Description

Tone Number

Frequency

Applications

Alternating

800-1000 Hz

Fire Alarms · EN54-3

Alternating

2500-3100 Hz

Security Alarms

Alternating (fast)

800-1000 Hz

Increased urgency

Alternating (fast)

2500-3100 Hz

Security deterrent

Alternating

440-554 Hz

AFNOR, France (NFS 32001) · EN54-3

Alternating

430-470 Hz

Alternating (very fast)

800-1000 Hz

Alternating (very fast)

2500-3200 Hz

Alternating

440-554 Hz

Turn-out, Sweden

Continuous note

700 Hz

All-clear, Sweden

Continuous note

1000 Hz

EN54-3

Continuous note

1000 Hz

Continuous note

2300 Hz

Continuous note

440 Hz

Interrupted tone

1000 Hz

EN54-3

Interrupted tone

420 Hz

AS2220, Australia · EN54-3

Interrupted tone

1000 Hz

Interrupted tone

2500 Hz

Interrupted tone

2500 Hz

Interrupted tone

700 Hz

Pre-vital message, Sweden

Interrupted tone

1000 Hz

Interrupted tone

700 Hz

Air-raid, Sweden

Interrupted tone

700 Hz

Local warning, Sweden

Interrupted tone

720 Hz

Industrial alarm, Germany

Interrupted, fast, rising volume

1400 Hz

Fast siren

250-1200 Hz

Rising constant, falling

1000 Hz

Industrial alarm, Germany

ISO 8201 Evacuation

800-1000 Hz

Int'l evacuation alarm · EN54-3

Fast whoop

500-1000 Hz

Slow whoop

500-1200 Hz

Evacuation, The Netherlands · EN54-3

Reverse sweep

1200-500 Hz

Evacuation, Germany · EN54-3

Siren

500-1200 Hz

Yodalight YL50 Hi-Vis MSA – Sounder Beacon 112dB

Functionnality

Type of fixing

Ingress protection

Colour

Voltage

Enclosure colour

Light source

YL50/DL/A/RF/HV/WR(8) (245835)

Product Trade Information

YL50/DL/R/RF/HV/WR(8) (245836)

Product Trade Information

YL50/DL/G/RF/HV/WR(8) (245837)

Product Trade Information

YL50/DL/O/RF/HV/WR(8) (245838)

Product Trade Information

YL50/DL/B/RF/HV/WR(8) (245839)

Product Trade Information

YL50/DL/C/RF/HV/WR(8) (245840)

Product Trade Information

YL50/DL/Y/RF/HV/WR(8) (245841)

Product Trade Information

YL50/DL/M/RF/HV/WR(8) (245842)

Product Trade Information

YL50/ML/A/RF/HV/WR(8) (245851)

Product Trade Information

YL50/ML/R/RF/HV/WR(8) (245852)

Product Trade Information

YL50/ML/G/RF/HV/WR(8) (245853)

Product Trade Information

YL50/ML/O/RF/HV/WR(8) (245854)

Product Trade Information

YL50/ML/B/RF/HV/WR(8) (245855)

Product Trade Information

YL50/ML/C/RF/HV/WR(8) (245856)

Product Trade Information

YL50/ML/Y/RF/HV/WR(8) (245857)

Product Trade Information

YL50/ML/M/RF/HV/WR(8) (245858)

Product Trade Information

YL50/DL/A/25/RF/HV/WR(8) (245843)

Product Trade Information

YL50/DL/R/25/RF/HV/WR(8) (245844)

Product Trade Information

YL50/DL/G/25/RF/HV/WR(8) (245845)

Product Trade Information

YL50/DL/O/25/RF/HV/WR(8) (245846)

Product Trade Information

YL50/DL/B/25/RF/HV/WR(8) (245847)

Product Trade Information

YL50/DL/C/25/RF/HV/WR(8) (245848)

Product Trade Information

YL50/DL/Y/25/RF/HV/WR(8) (245849)

Product Trade Information

YL50/DL/M/25/RF/HV/WR(8) (245850)

Product Trade Information
