Yodalight YL50 Hi-Vis – Sounder Beacon 112dB

Functionnality: 32 Tones - 2 Stages - Flashing

Type of fixing: Wall and Bulkhead Mounting

Ingress protection: IP66

Enclosure colour: Orange

Colour
Voltage
Enclosure colour
Light source

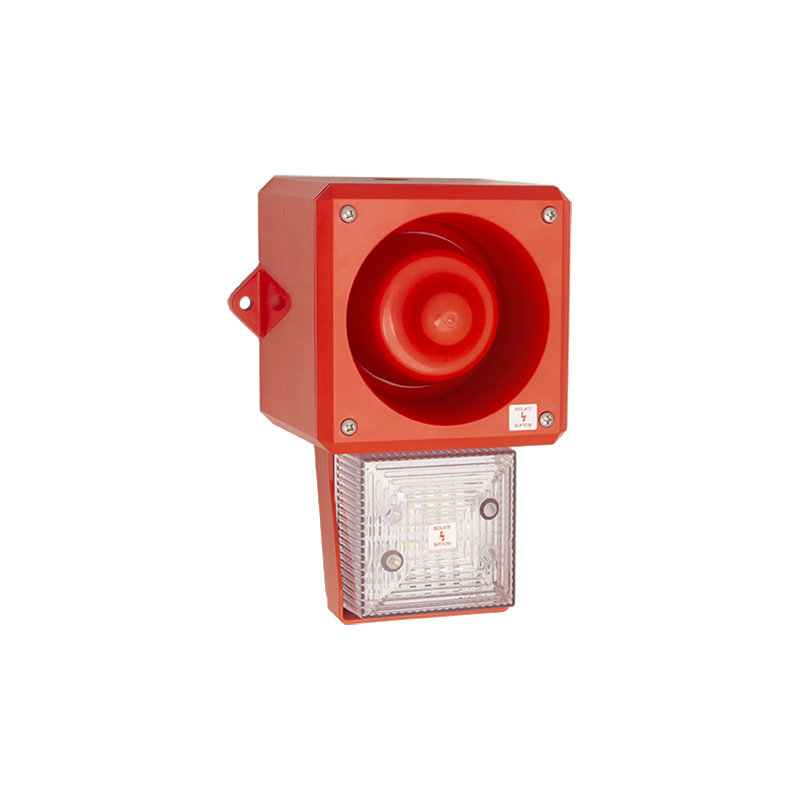

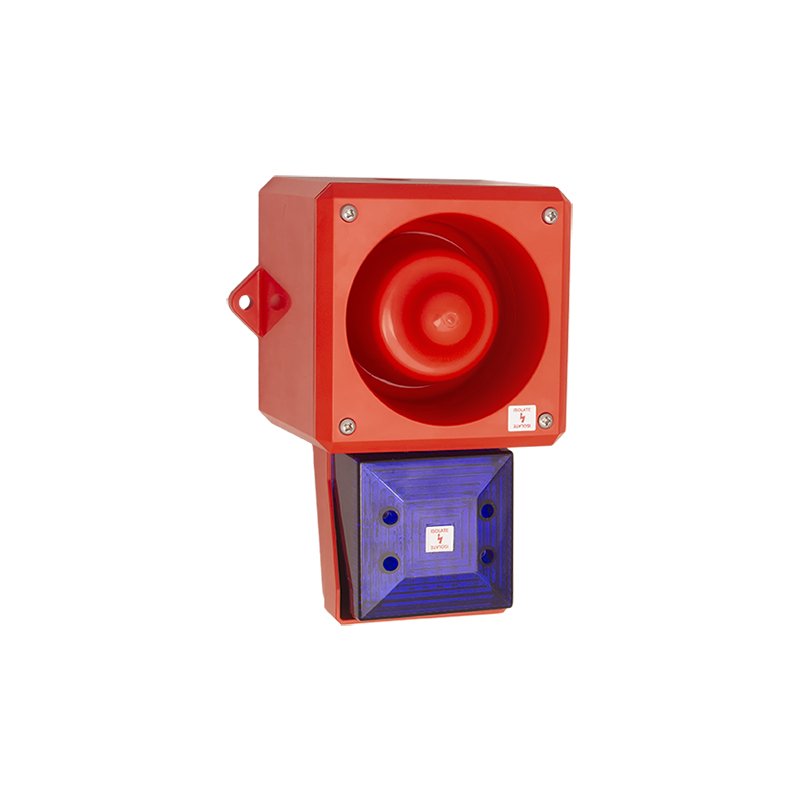

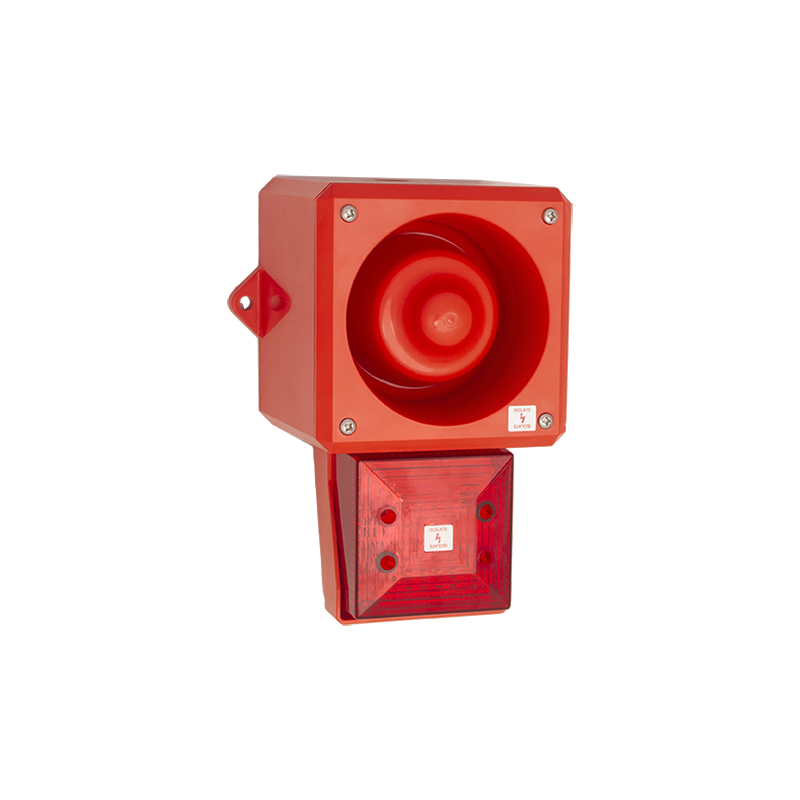

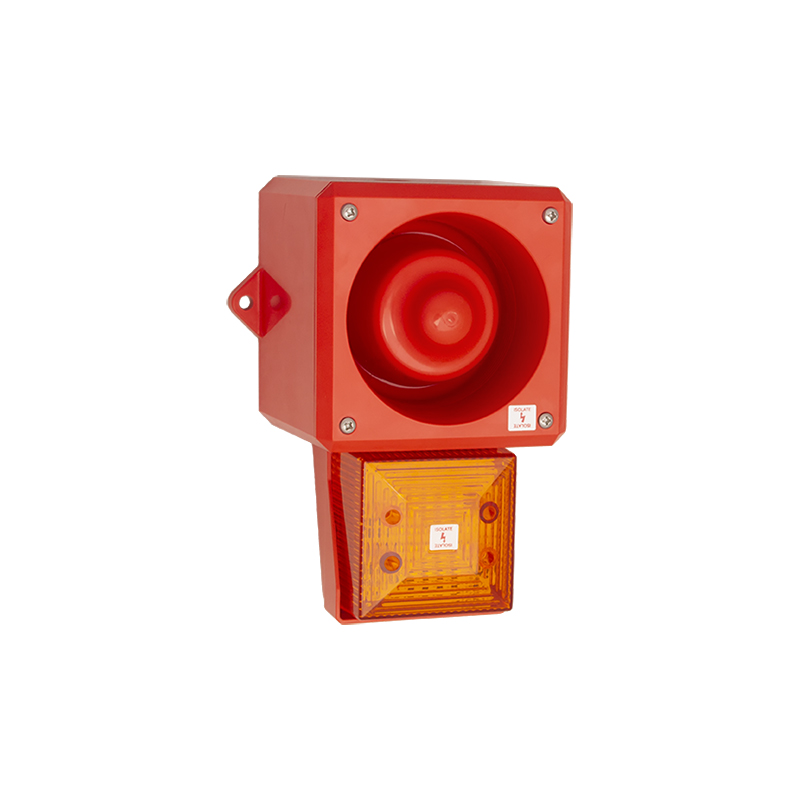

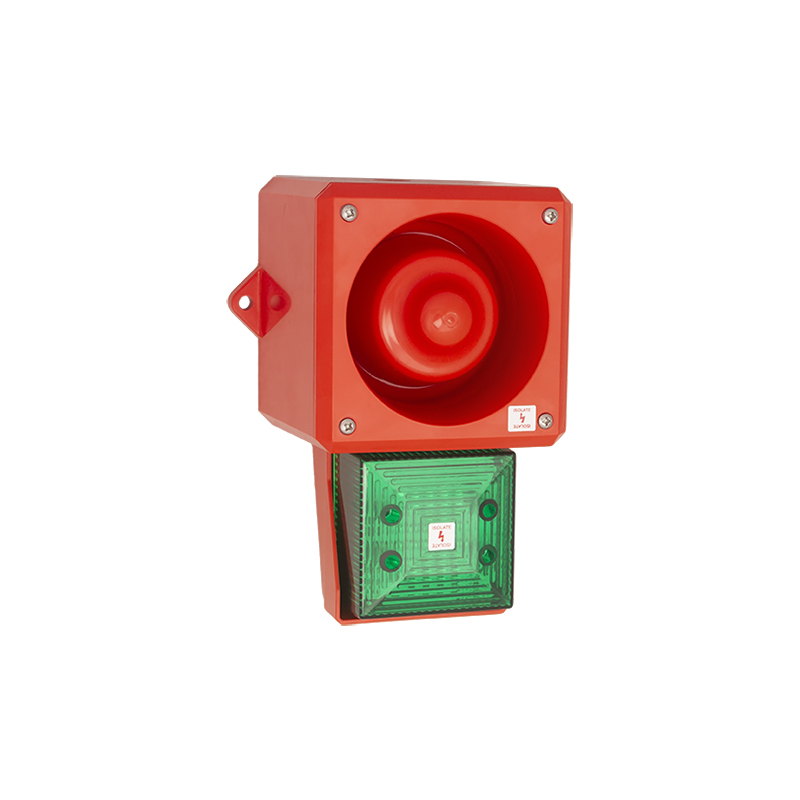

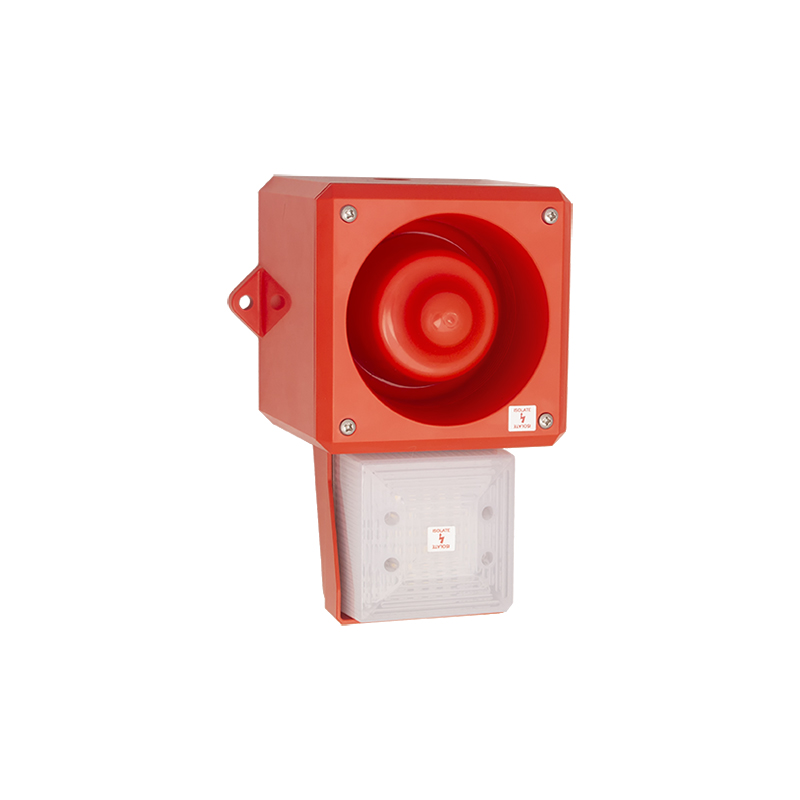

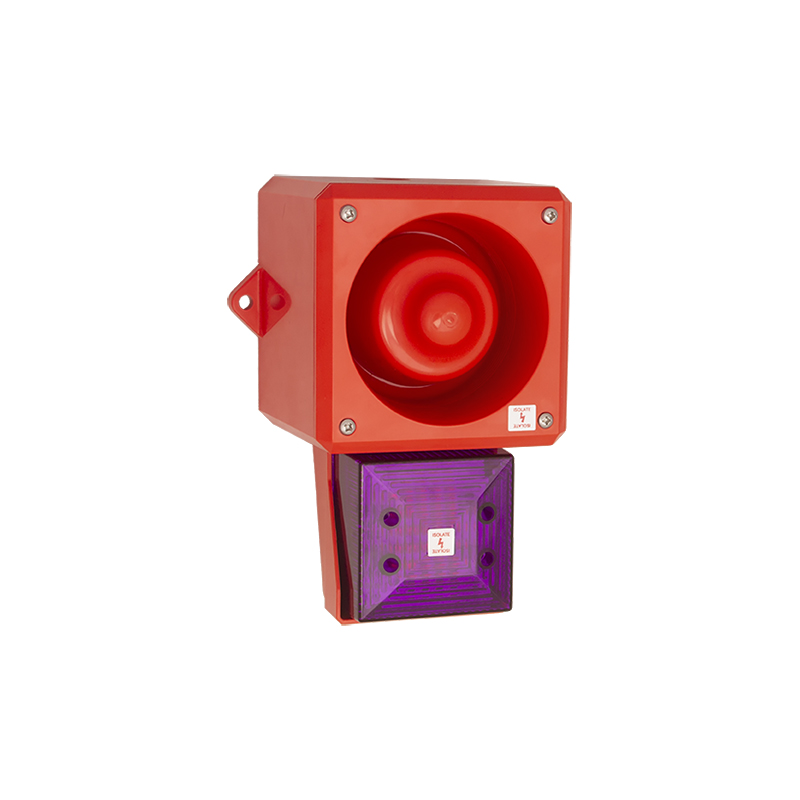

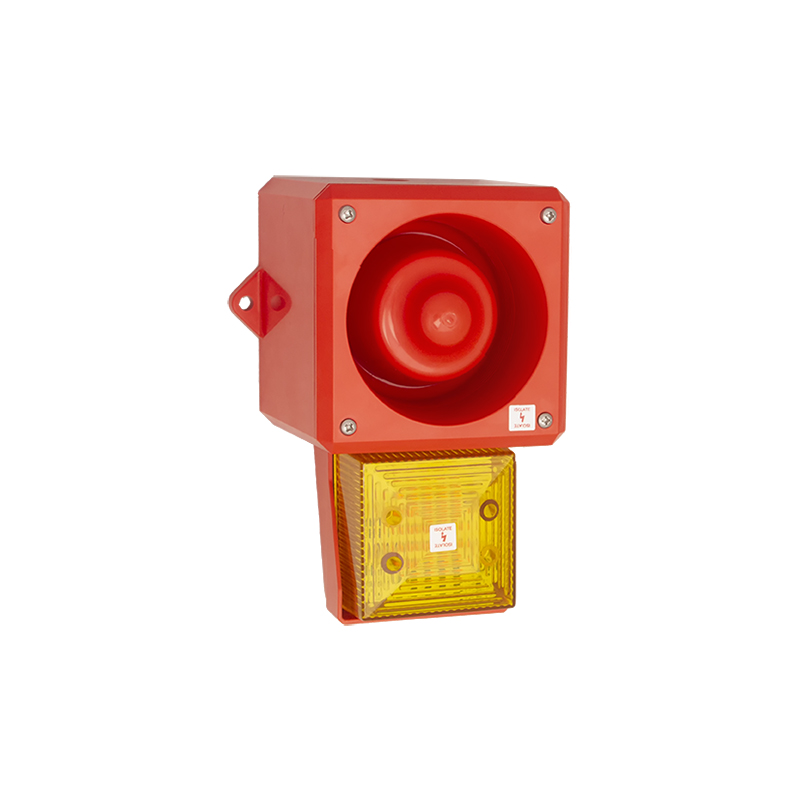

Yodalight YL50 Hi-Vis — Sounder Beacon

The Yodalight YL50 Hi-Vis is a combined sounder beacon designed for applications demanding maximum visual conspicuity alongside strong audible warning, pairing a high-intensity beacon with a powerful sounder rated up to 112dB at 1 metre. It retains the 32 selectable tones, two-stage alarm and independent sounder/beacon control of the YL50.

Weatherproof to IP66, its high-visibility optics make it ideal where beacons must be seen across large or brightly lit spaces, for dependable room or zone coverage.

Maximum visual conspicuity paired with powerful audible warning for large, bright spaces.

An 8-stage (MSA) alarm version is also available, but it is not certified to MED, MER or EN54 Pt3.

KEY FEATURES
  12 LEDs or 25 LEDs
  Up to 112dB at 1 metre
  Flashing
  32 selectable tones
  Tones meeting international regulations
  Two-stage alarm
  Independent 2nd stage option
  IP66 rated
  Wall or bulkhead mounting
  MED, MER & EN54-3 approved
  Available colours: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta
  24vDC, 48vDC, 115vAC or 230vAC
MATERIALS
  Polycarbonate lens
  Flame-retardant ABS body
  Stainless-steel fixings

Typical applications: fire systems, large factories, transport and infrastructure, marine, process plants.

Technical Information

Weight: N/A
Dimensions: N/A
Functionnality:

32 Tones – 2 Stages – Flashing

Type of fixing:

Wall and Bulkhead Mounting

Ingress Protection:

IP66

Colour:

Amber, Red, Blue, Green, Clear, Opal, Yellow, Magenta

Voltage:

24vDC, 115vAC, 230vAC, 48vDC

Enclosure Colour:

Orange

Light Source:

12 LED, 25 LED

Approvals & Conformities

  • C-Tick
  • CE Marking
  • MED
  • MER
  • RoHS Directive
  • UKCA Importer

Tones

Description
Tone Number
Frequency
Applications
Alternating
1
800-1000 Hz
Fire Alarms · EN54-3
Alternating
2
2500-3100 Hz
Security Alarms
Alternating (fast)
3
800-1000 Hz
Increased urgency
Alternating (fast)
4
2500-3100 Hz
Security deterrent
Alternating
5
440-554 Hz
AFNOR, France (NFS 32001) · EN54-3
Alternating
6
430-470 Hz
Alternating (very fast)
7
800-1000 Hz
Alternating (very fast)
8
2500-3200 Hz
Alternating
9
440-554 Hz
Turn-out, Sweden
Continuous note
10
700 Hz
All-clear, Sweden
Continuous note
11
1000 Hz
EN54-3
Continuous note
12
1000 Hz
Continuous note
13
2300 Hz
Continuous note
14
440 Hz
Interrupted tone
15
1000 Hz
EN54-3
Interrupted tone
16
420 Hz
AS2220, Australia · EN54-3
Interrupted tone
17
1000 Hz
Interrupted tone
18
2500 Hz
Interrupted tone
19
2500 Hz
Interrupted tone
20
700 Hz
Pre-vital message, Sweden
Interrupted tone
21
1000 Hz
Interrupted tone
22
700 Hz
Air-raid, Sweden
Interrupted tone
23
700 Hz
Local warning, Sweden
Interrupted tone
24
720 Hz
Industrial alarm, Germany
Interrupted, fast, rising volume
25
1400 Hz
Fast siren
26
250-1200 Hz
Rising constant, falling
27
1000 Hz
Industrial alarm, Germany
ISO 8201 Evacuation
28
800-1000 Hz
Int'l evacuation alarm · EN54-3
Fast whoop
29
500-1000 Hz
Slow whoop
30
500-1200 Hz
Evacuation, The Netherlands · EN54-3
Reverse sweep
31
1200-500 Hz
Evacuation, Germany · EN54-3
Siren
32
500-1200 Hz
