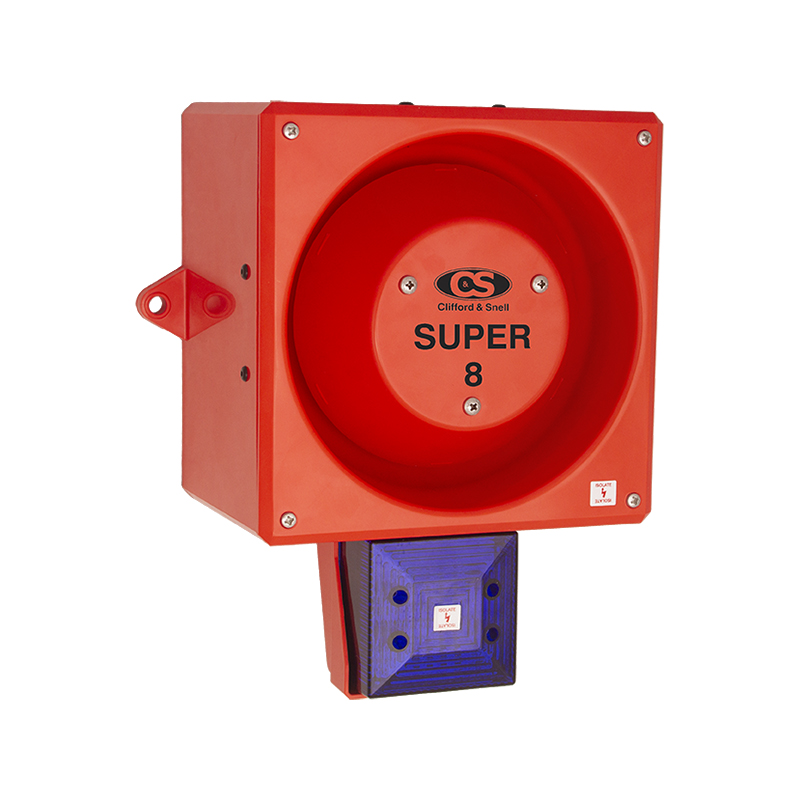

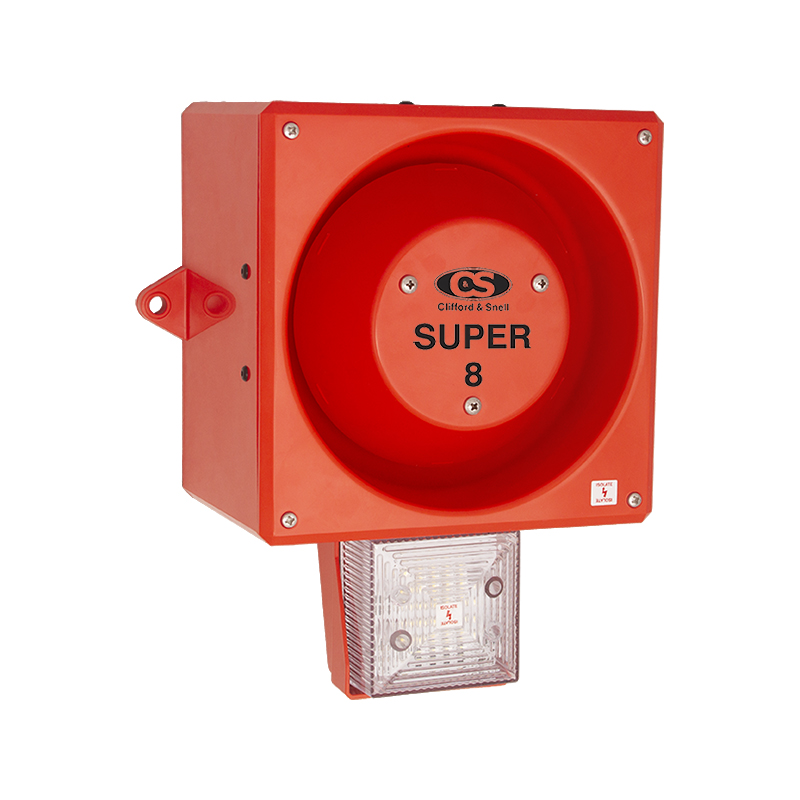

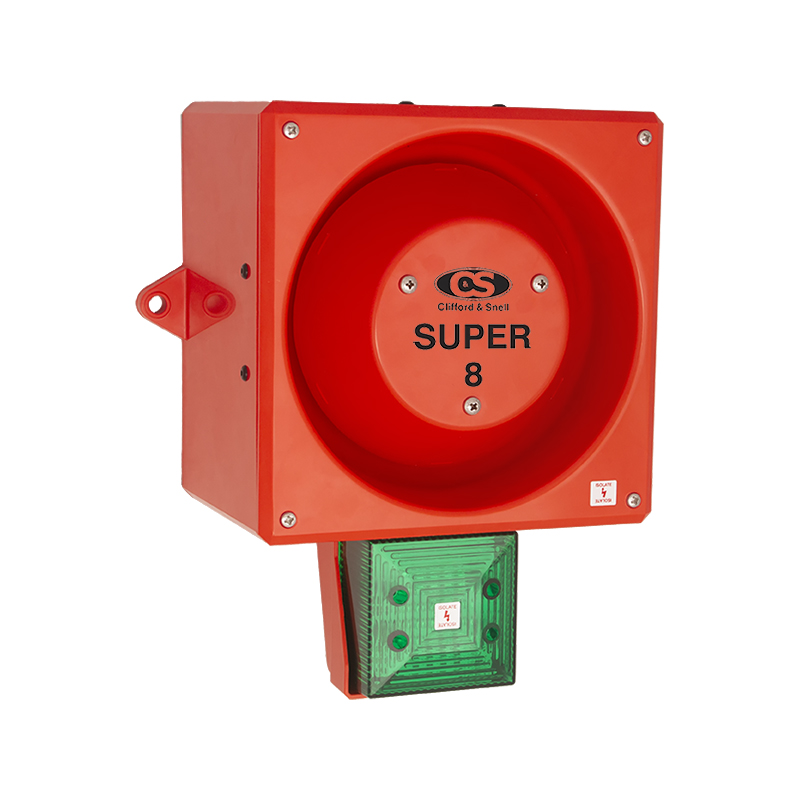

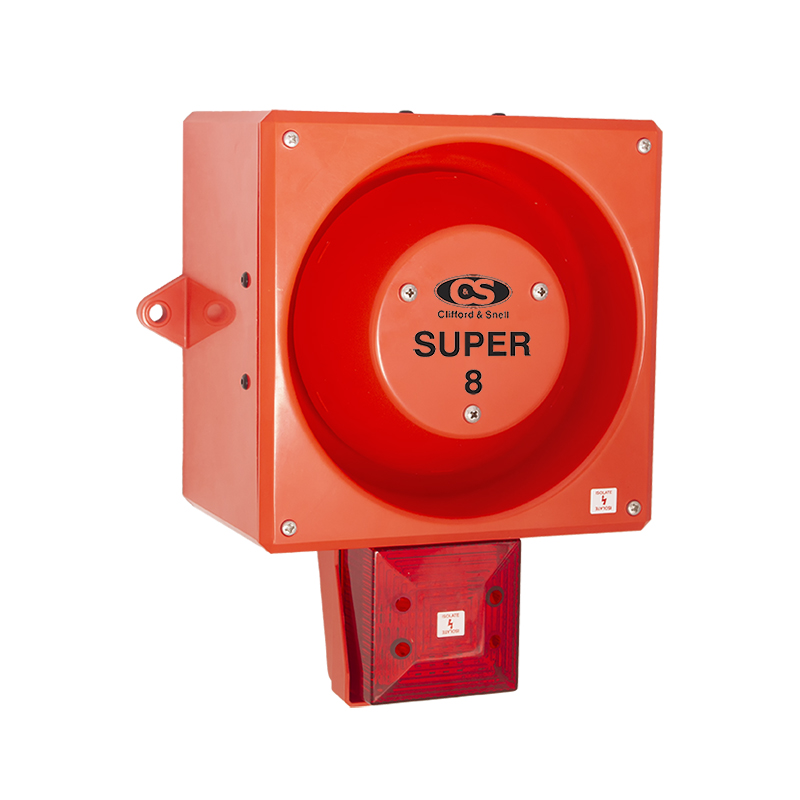

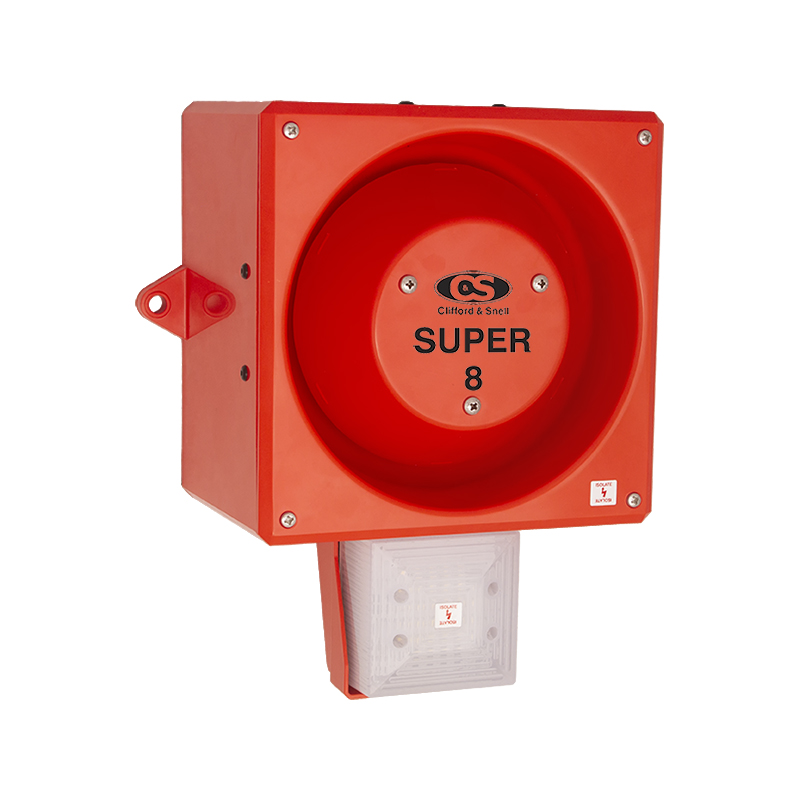

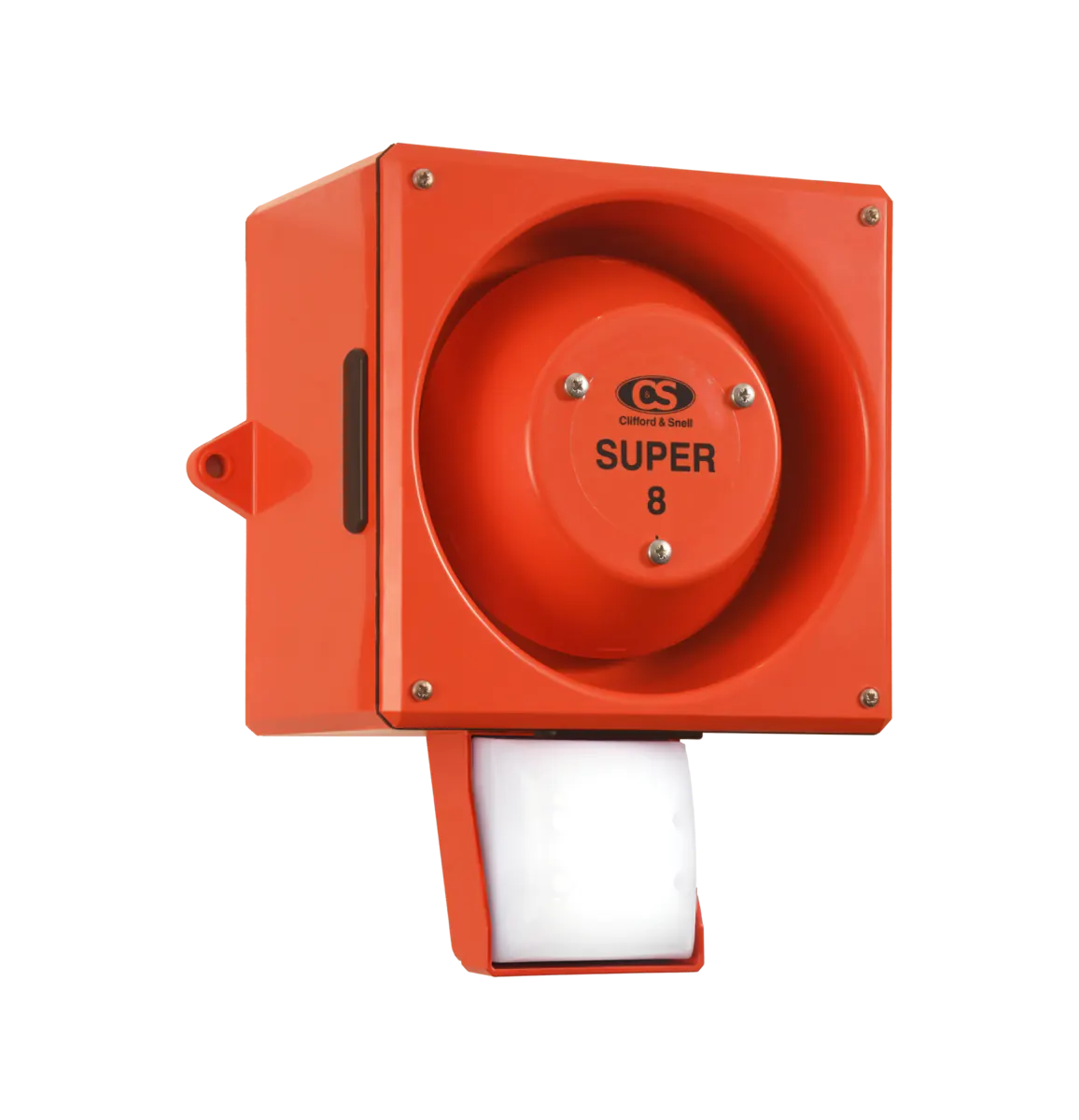

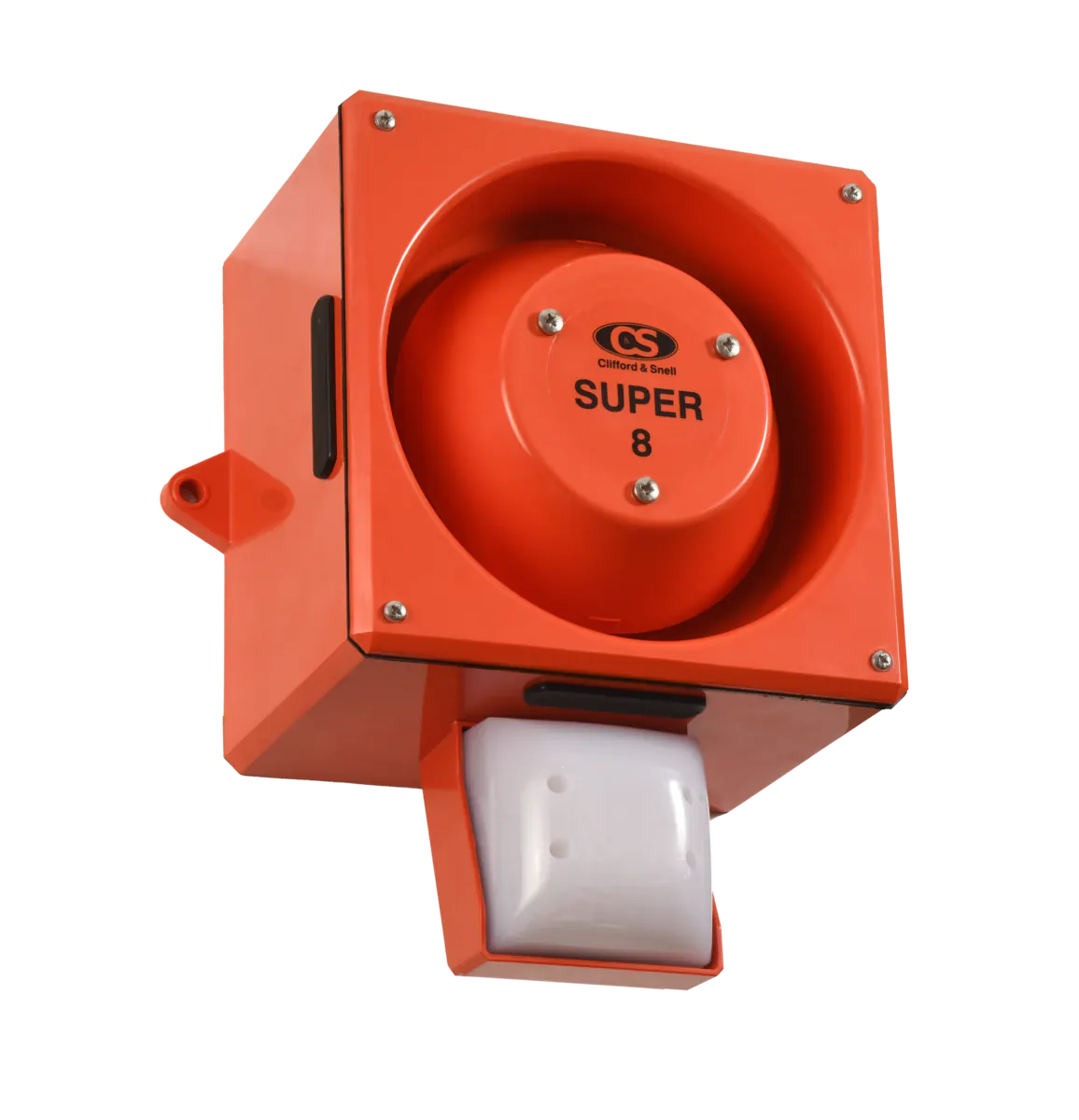

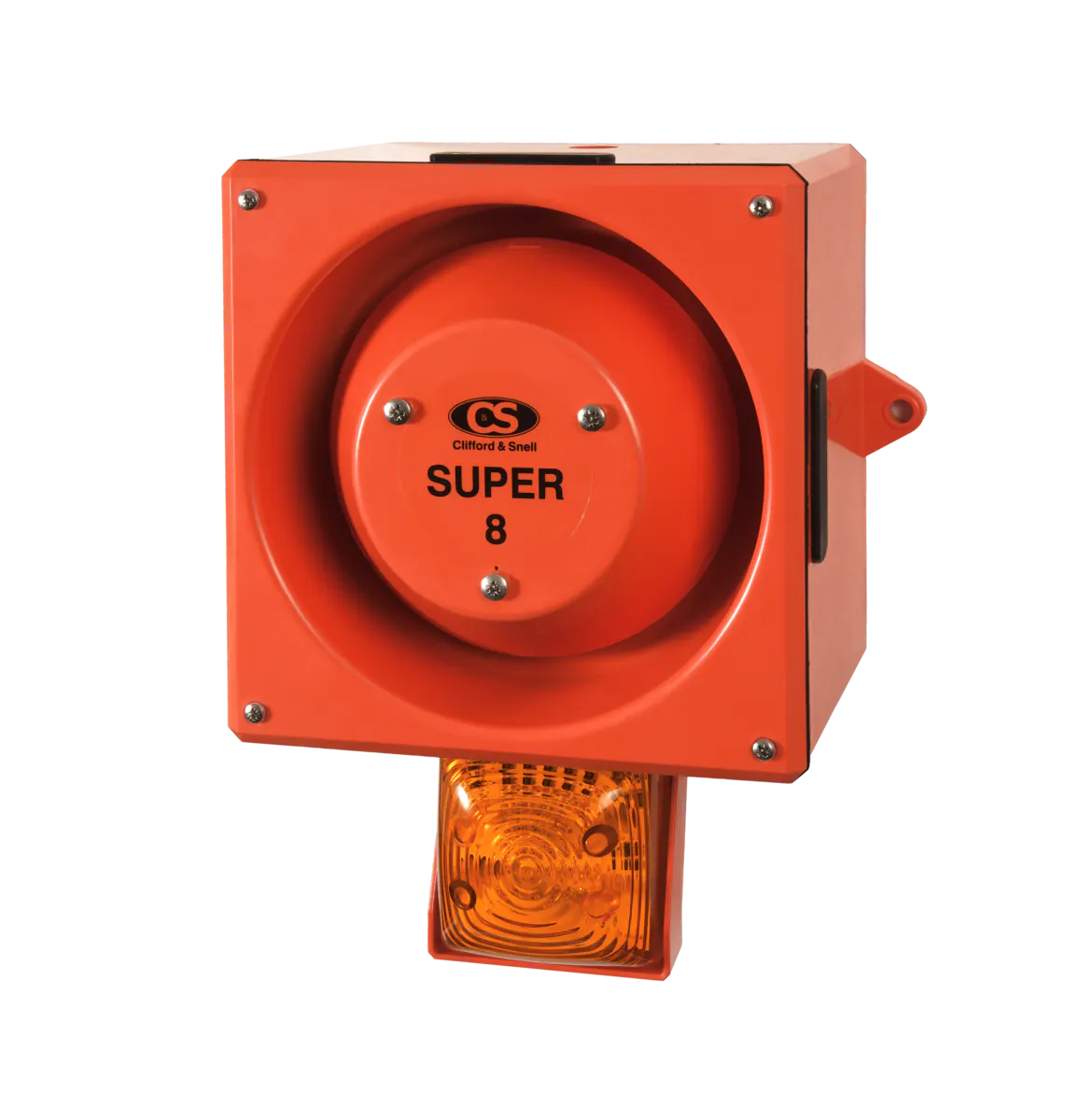

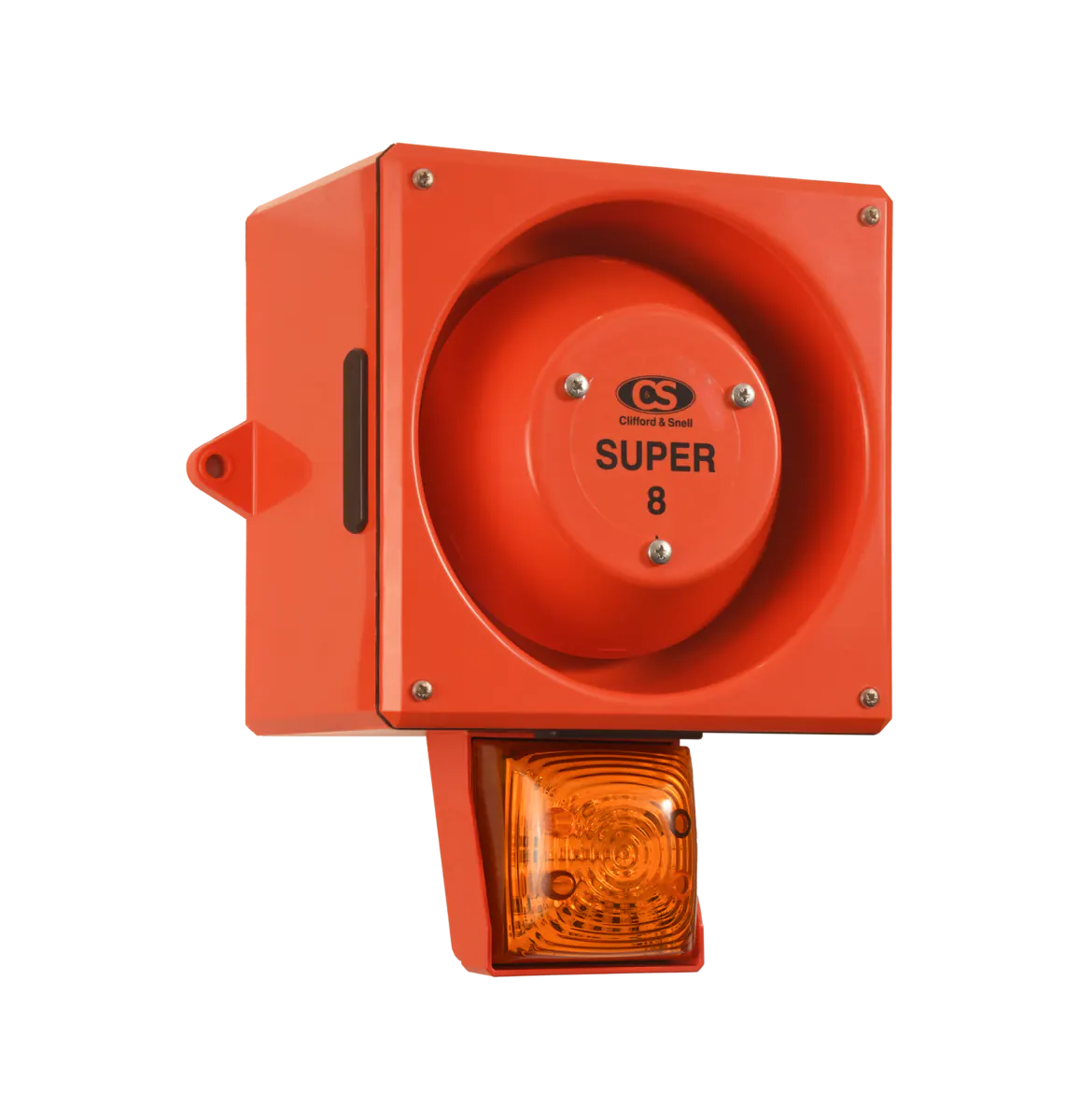

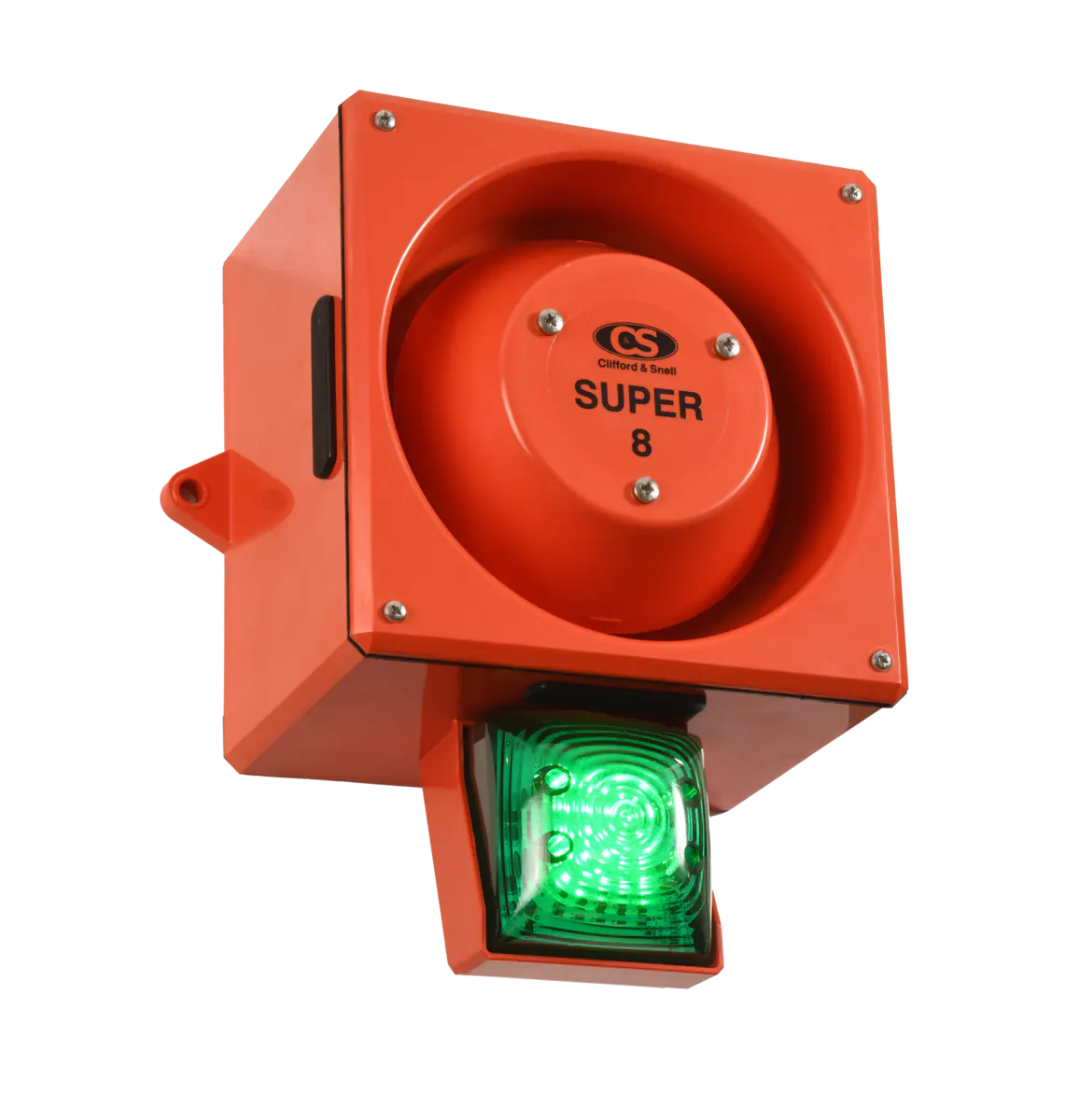

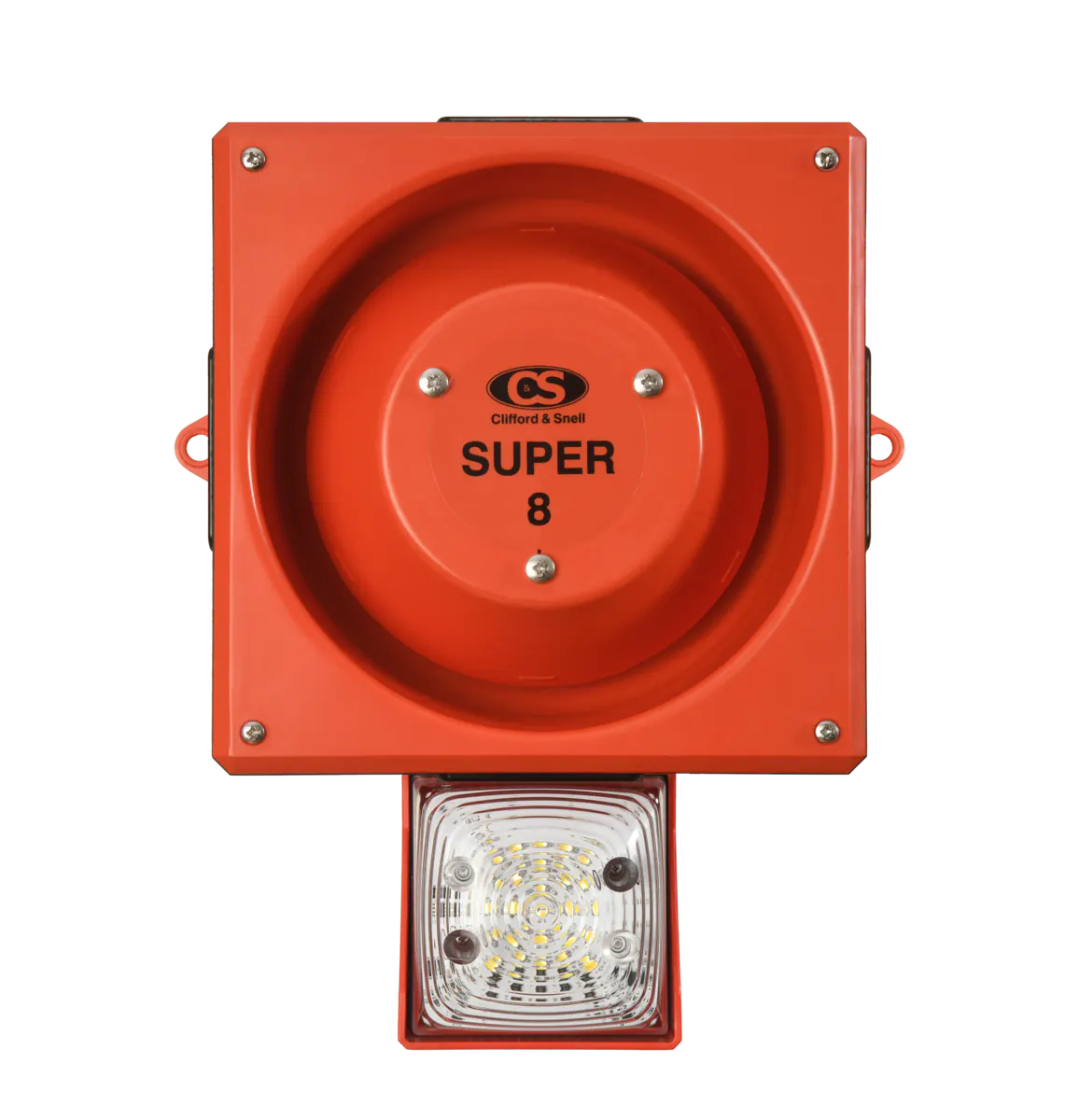

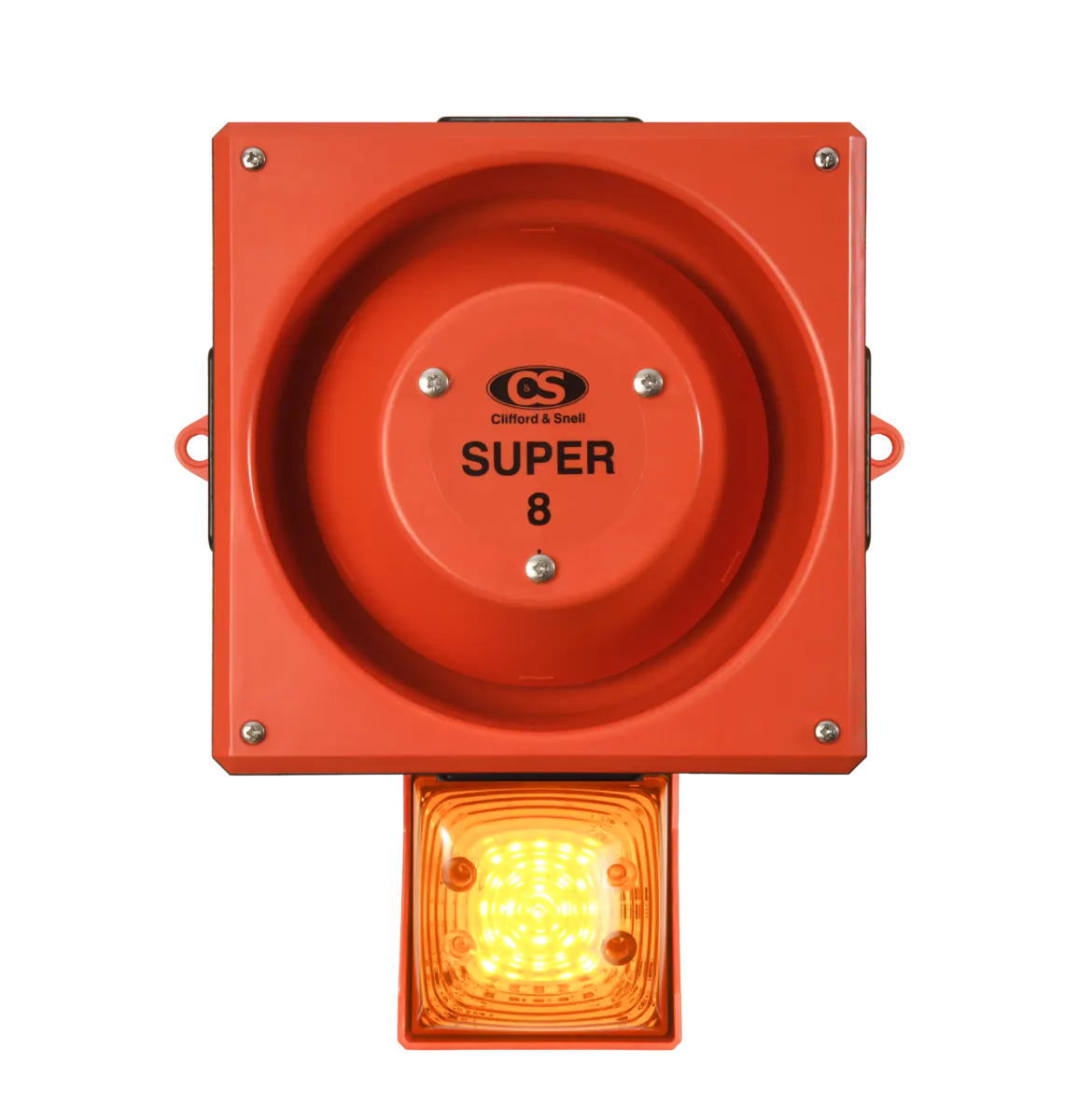

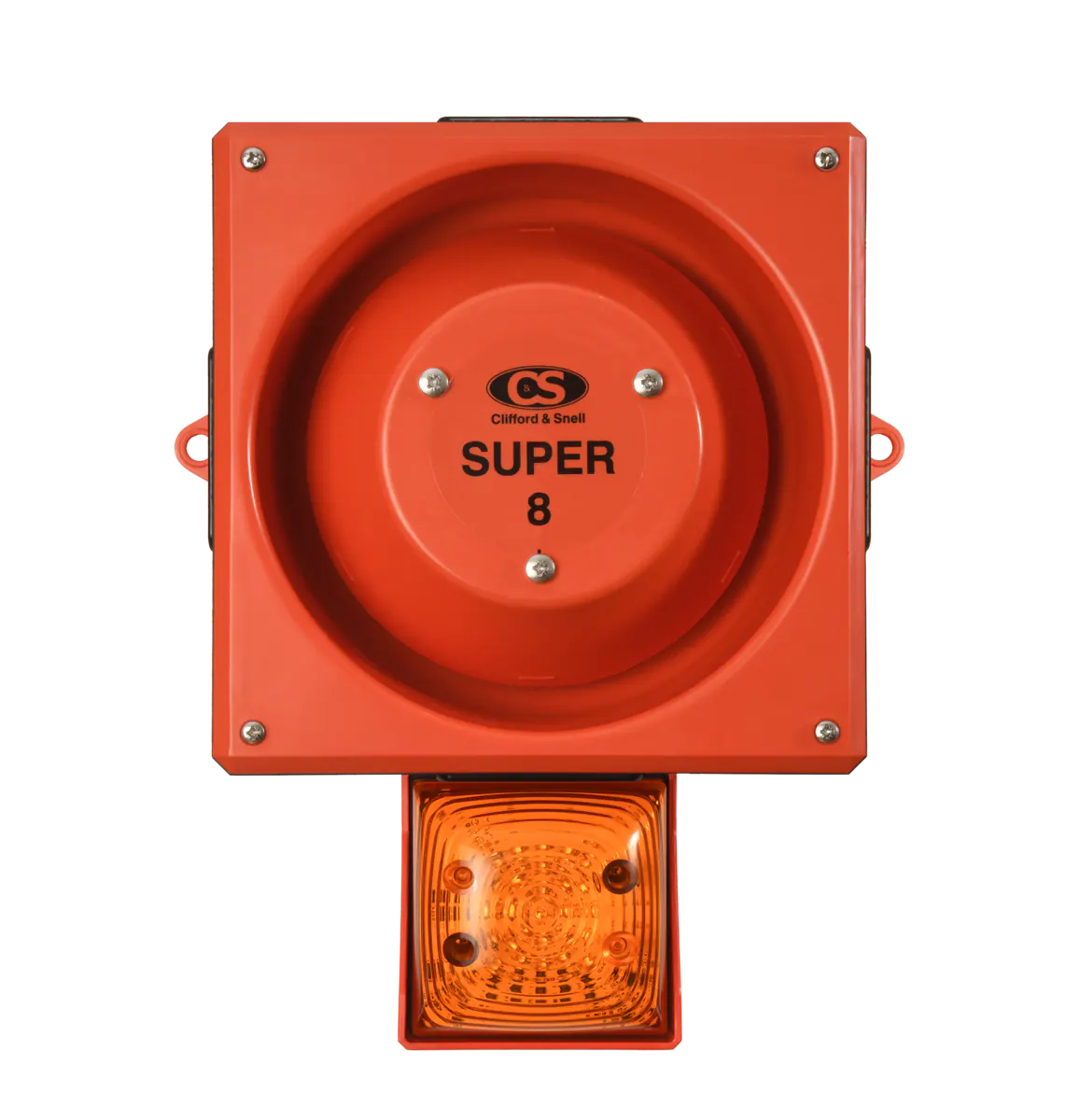

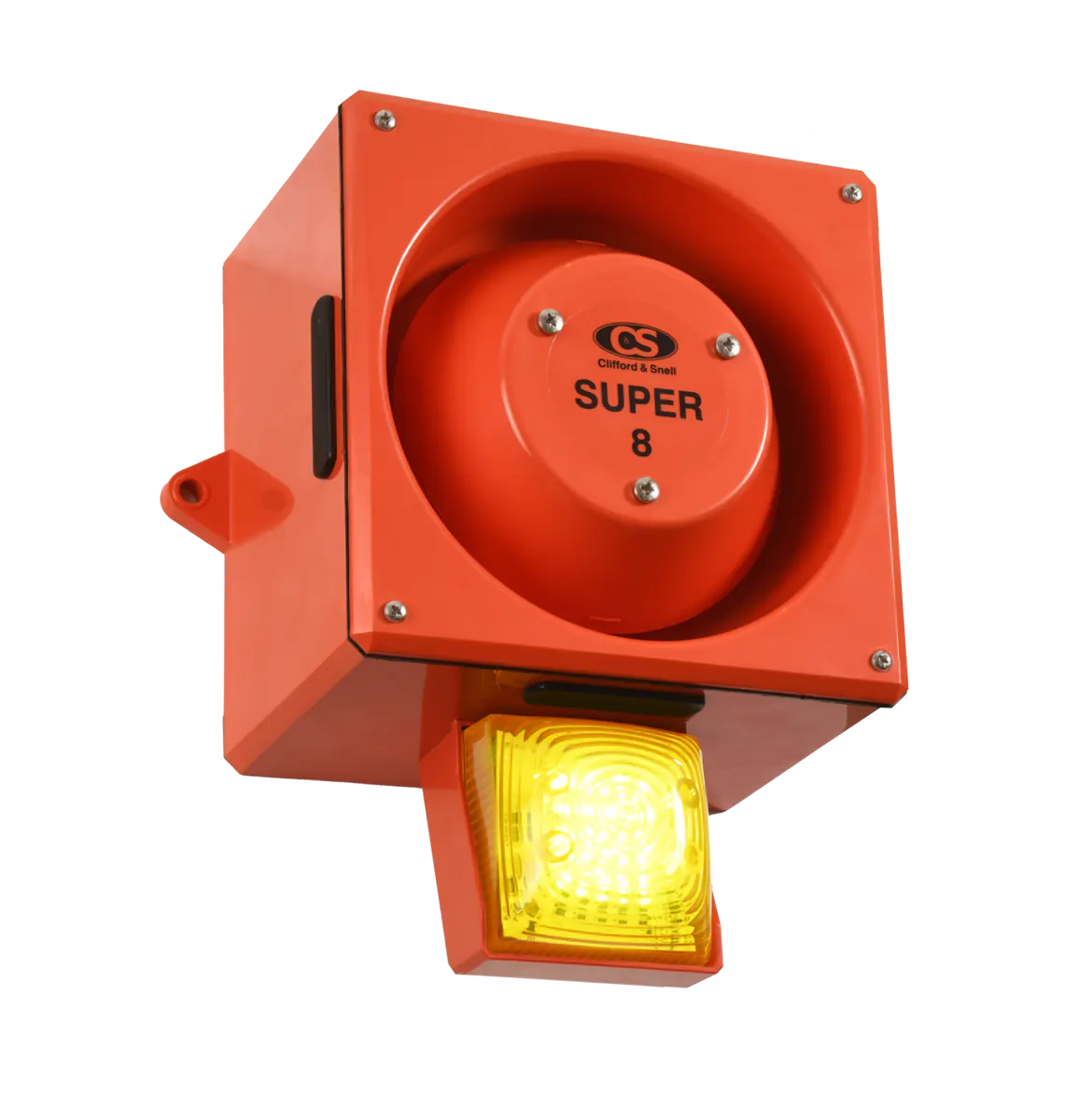

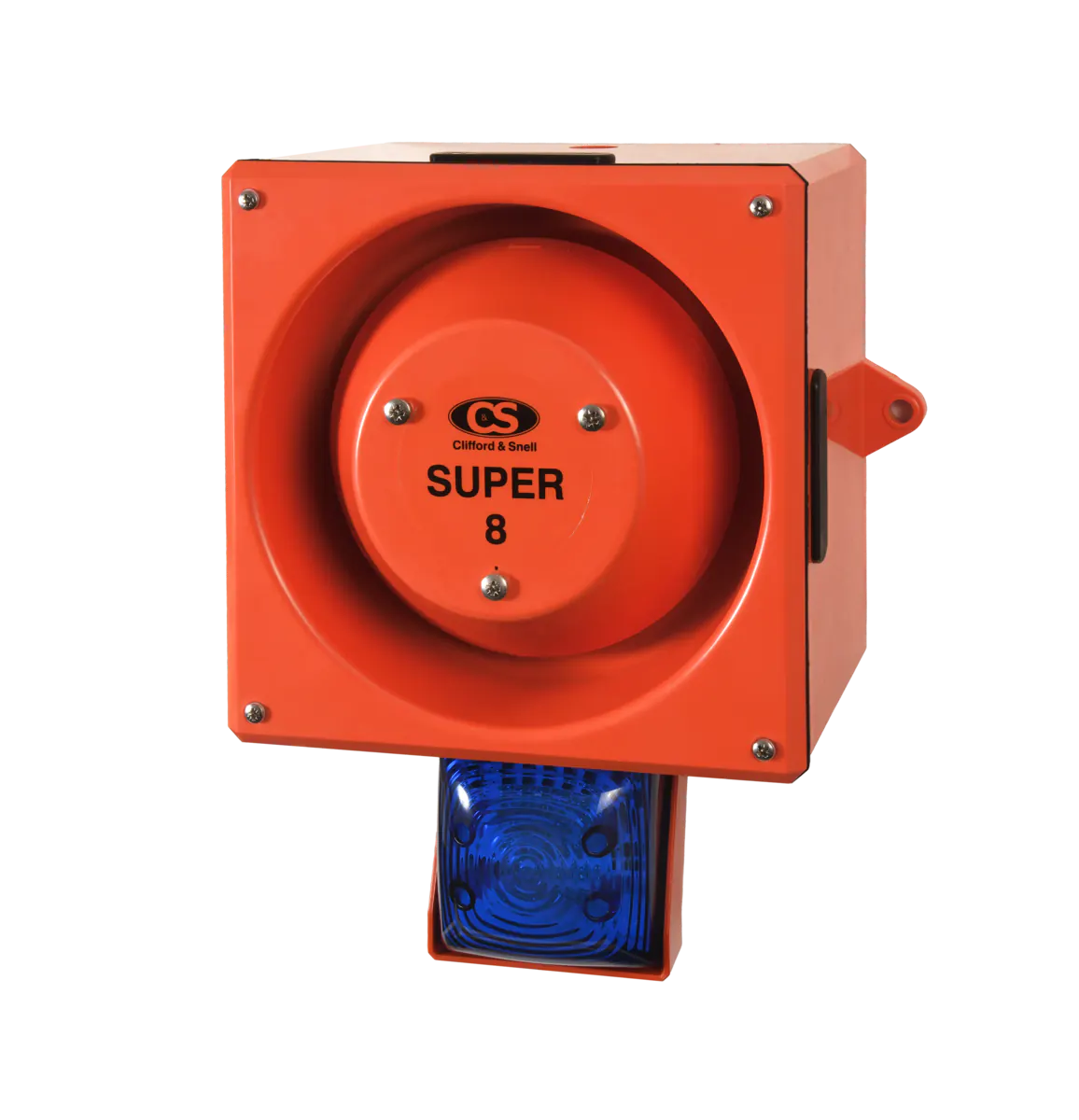

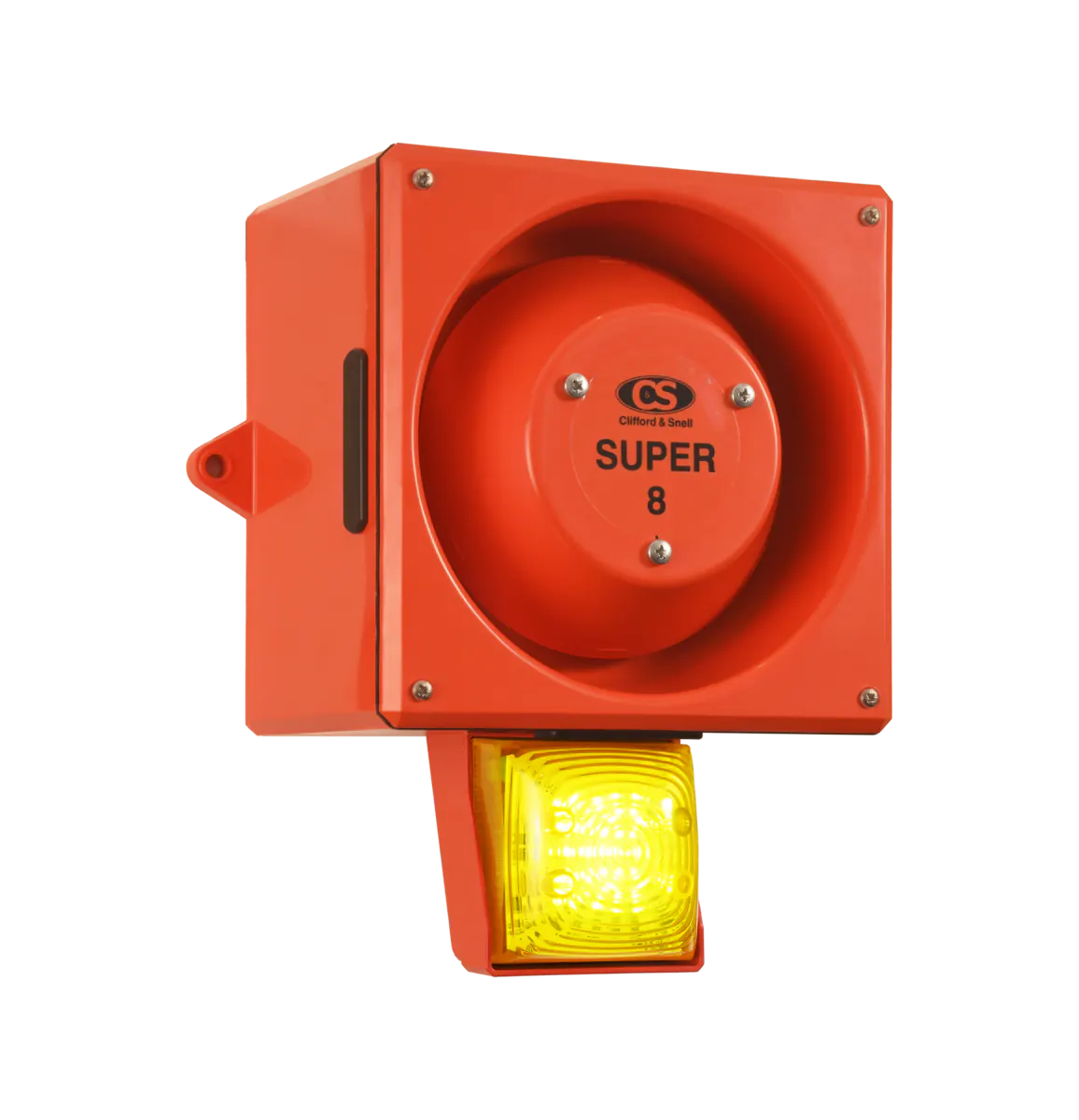

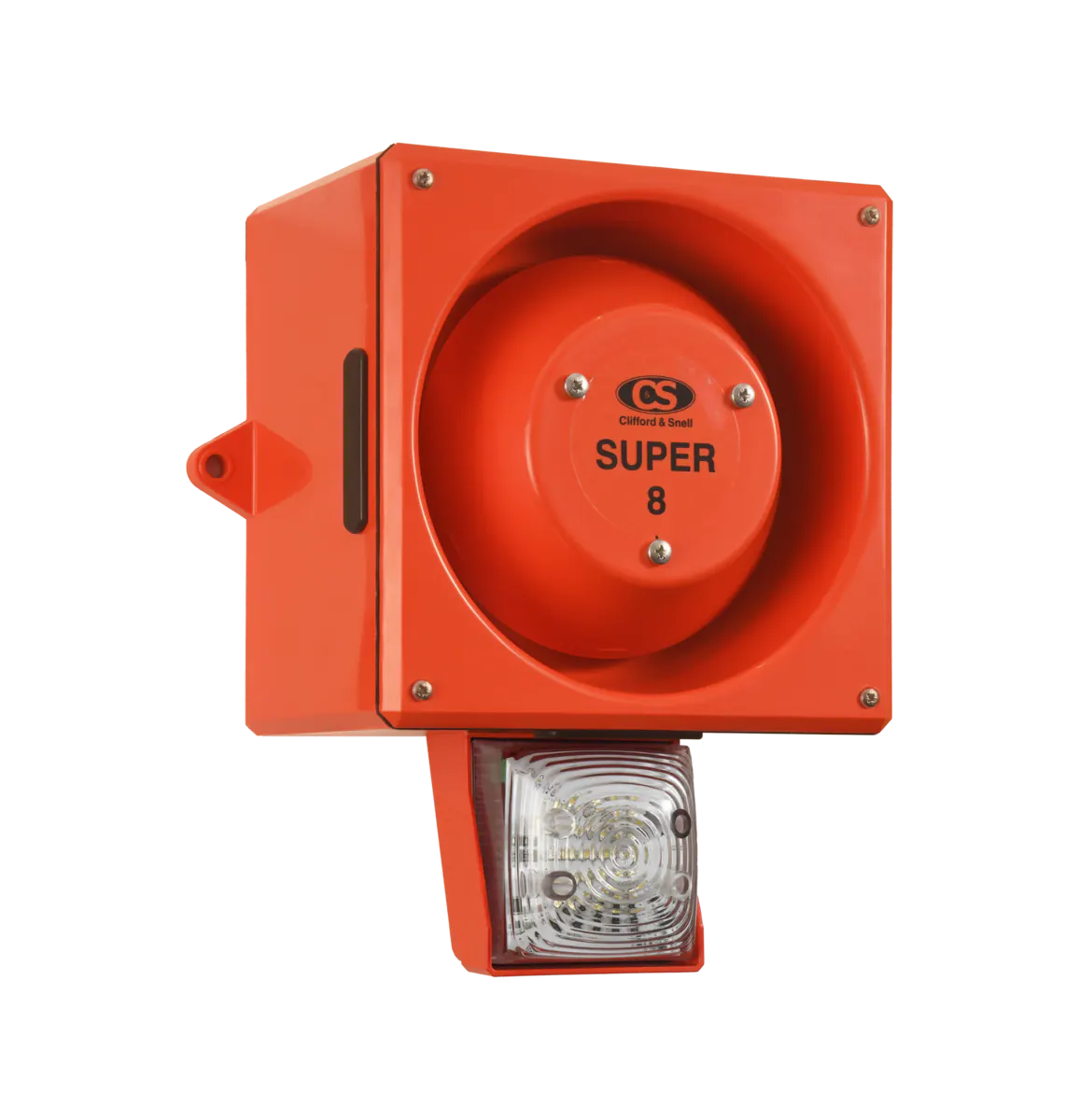

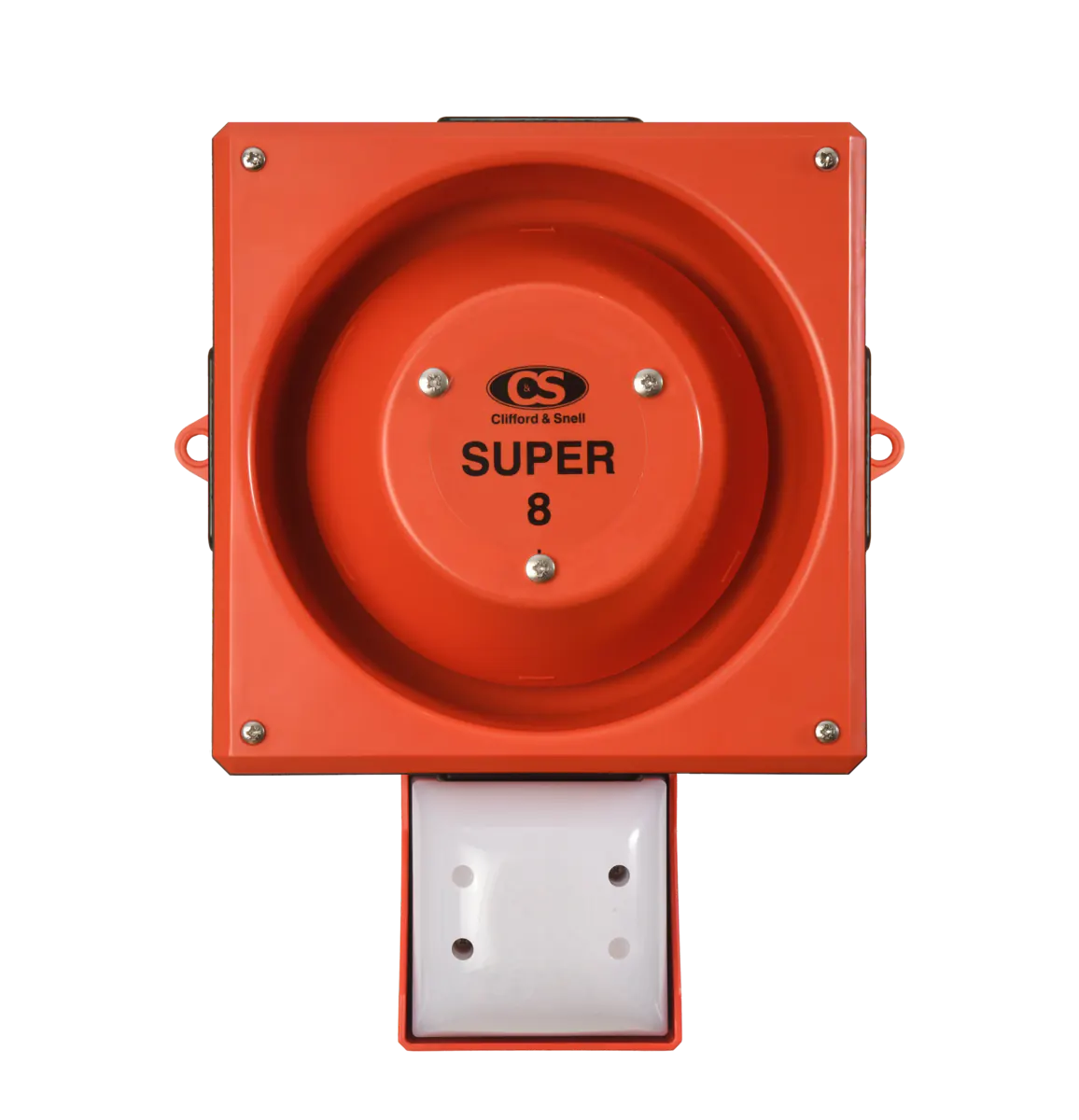

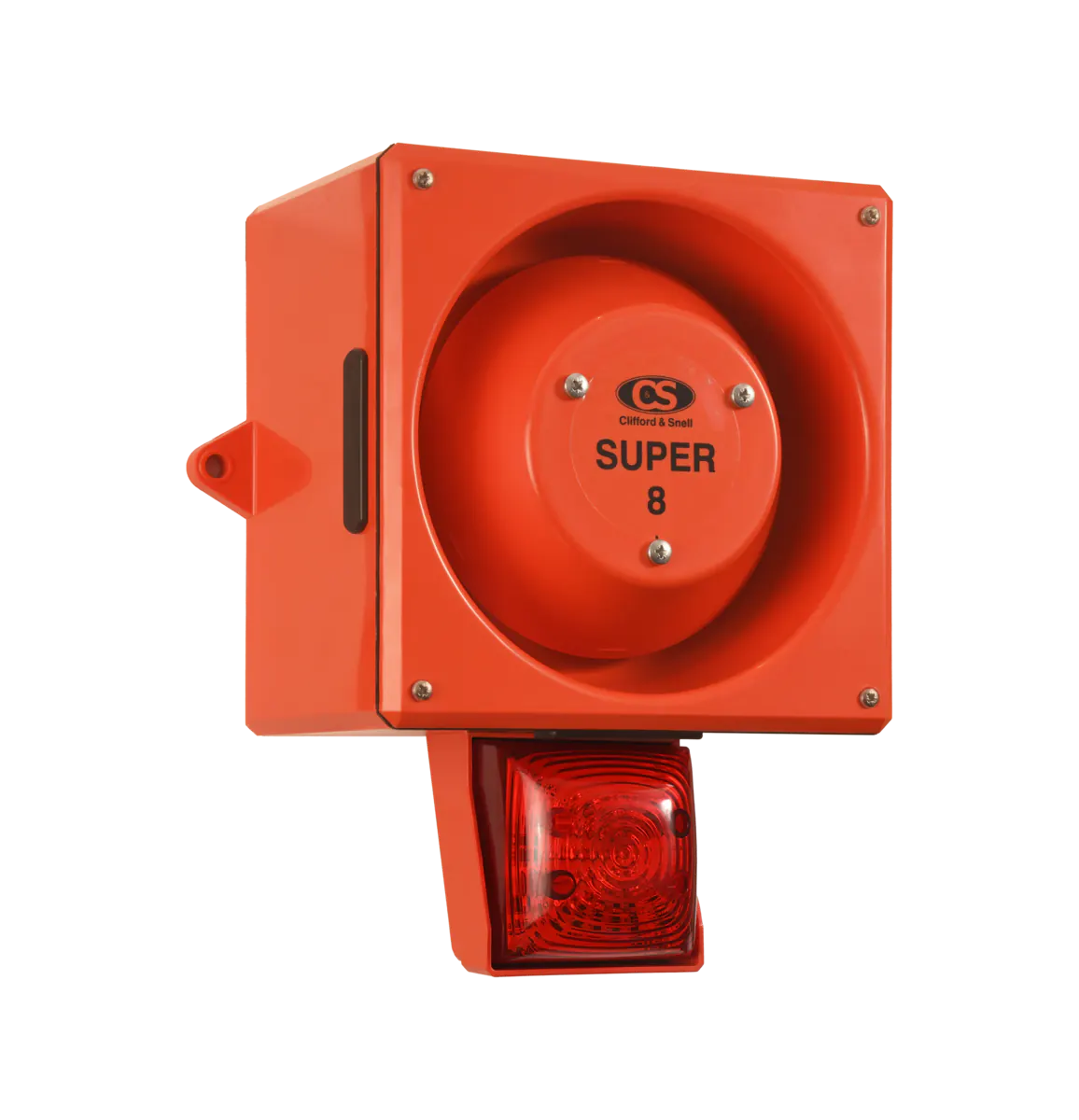

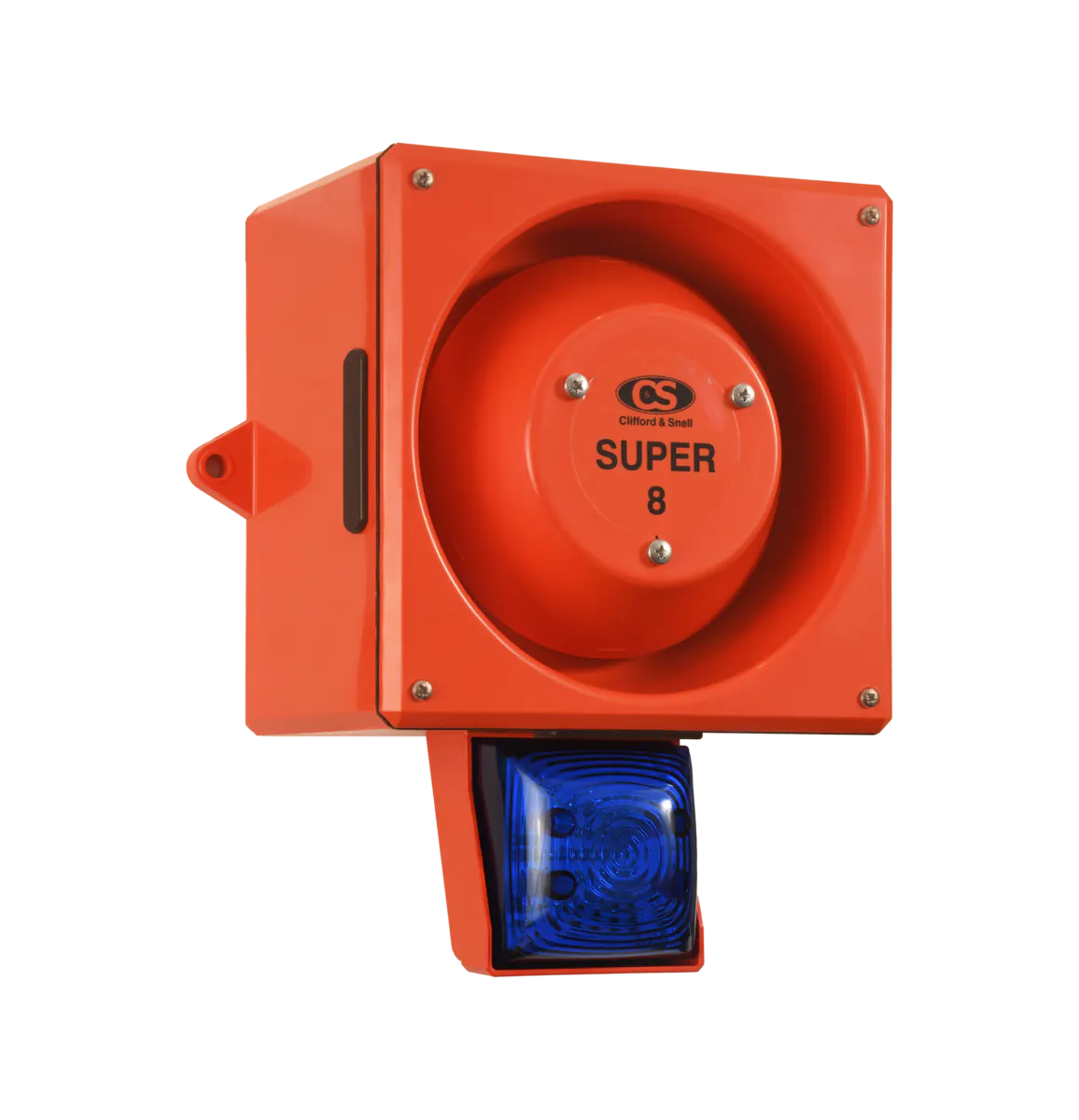

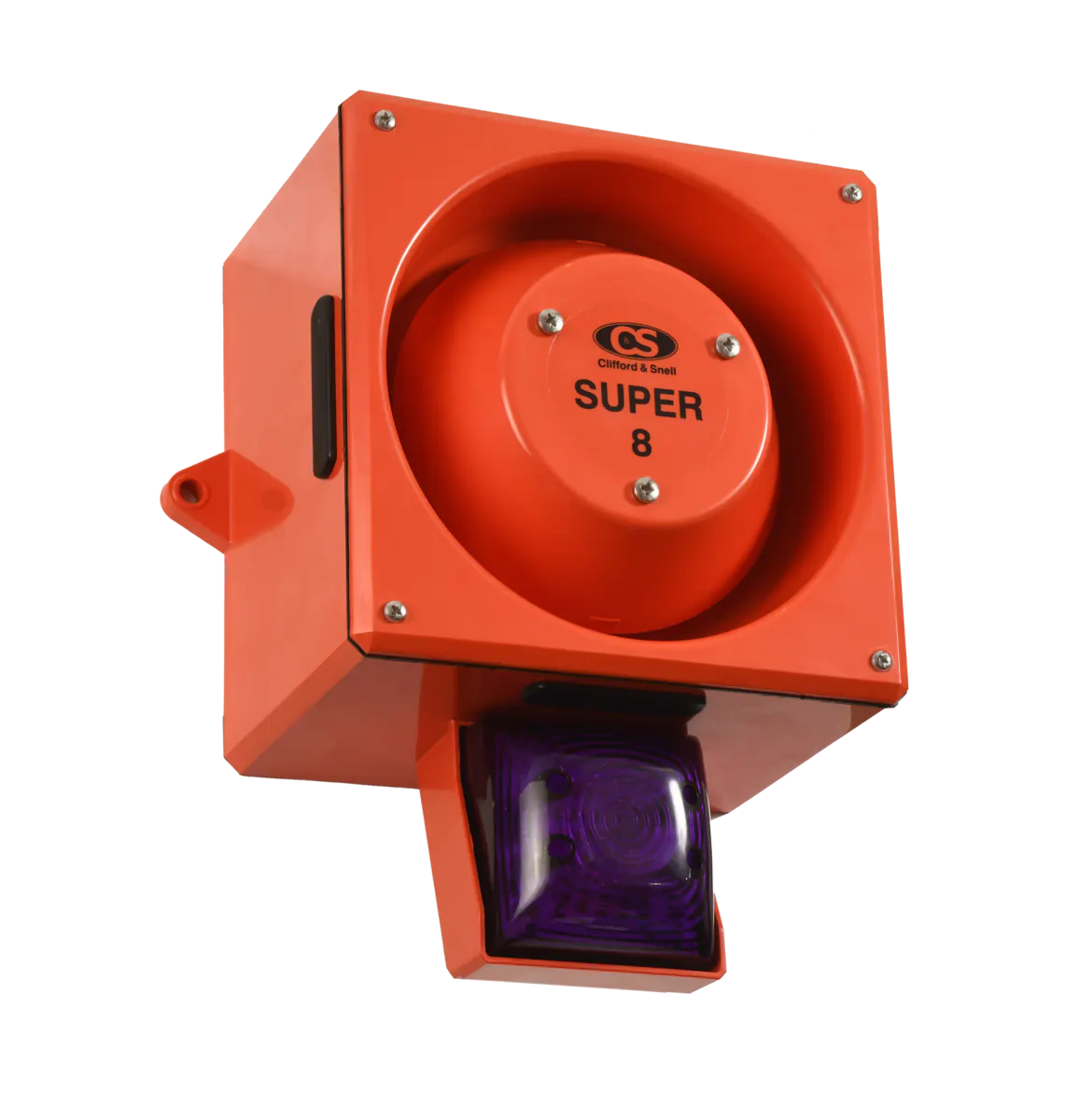

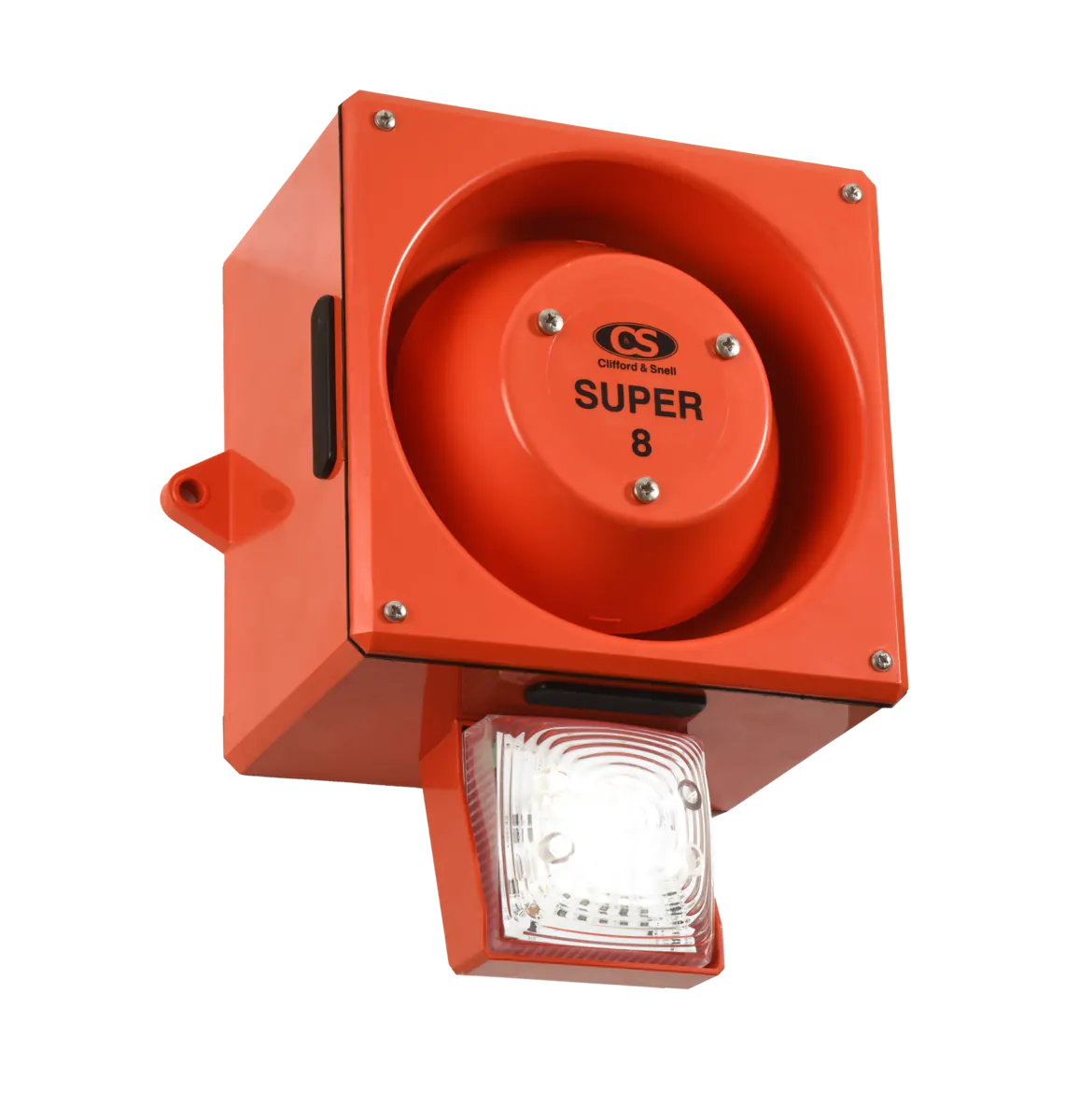

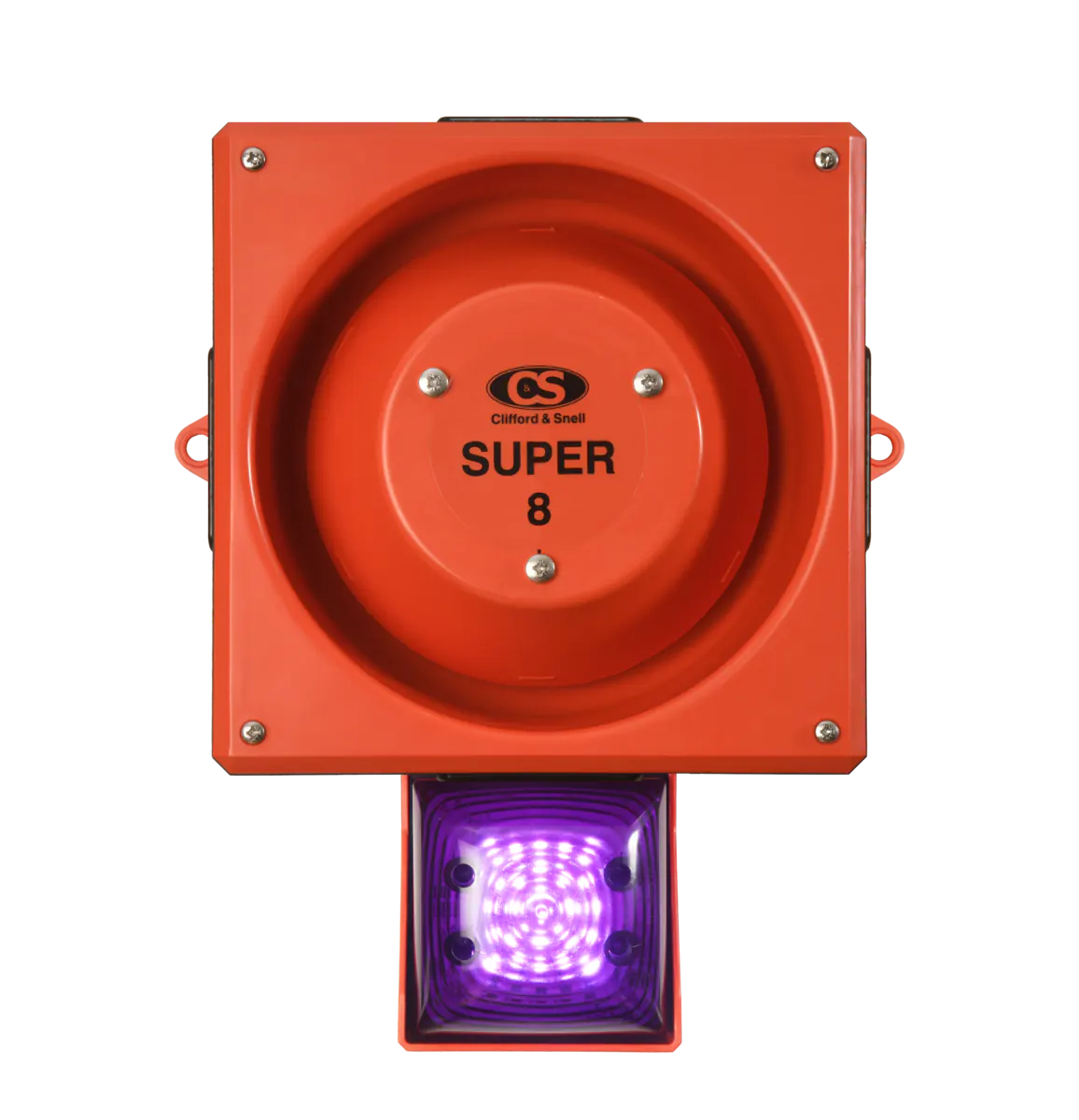

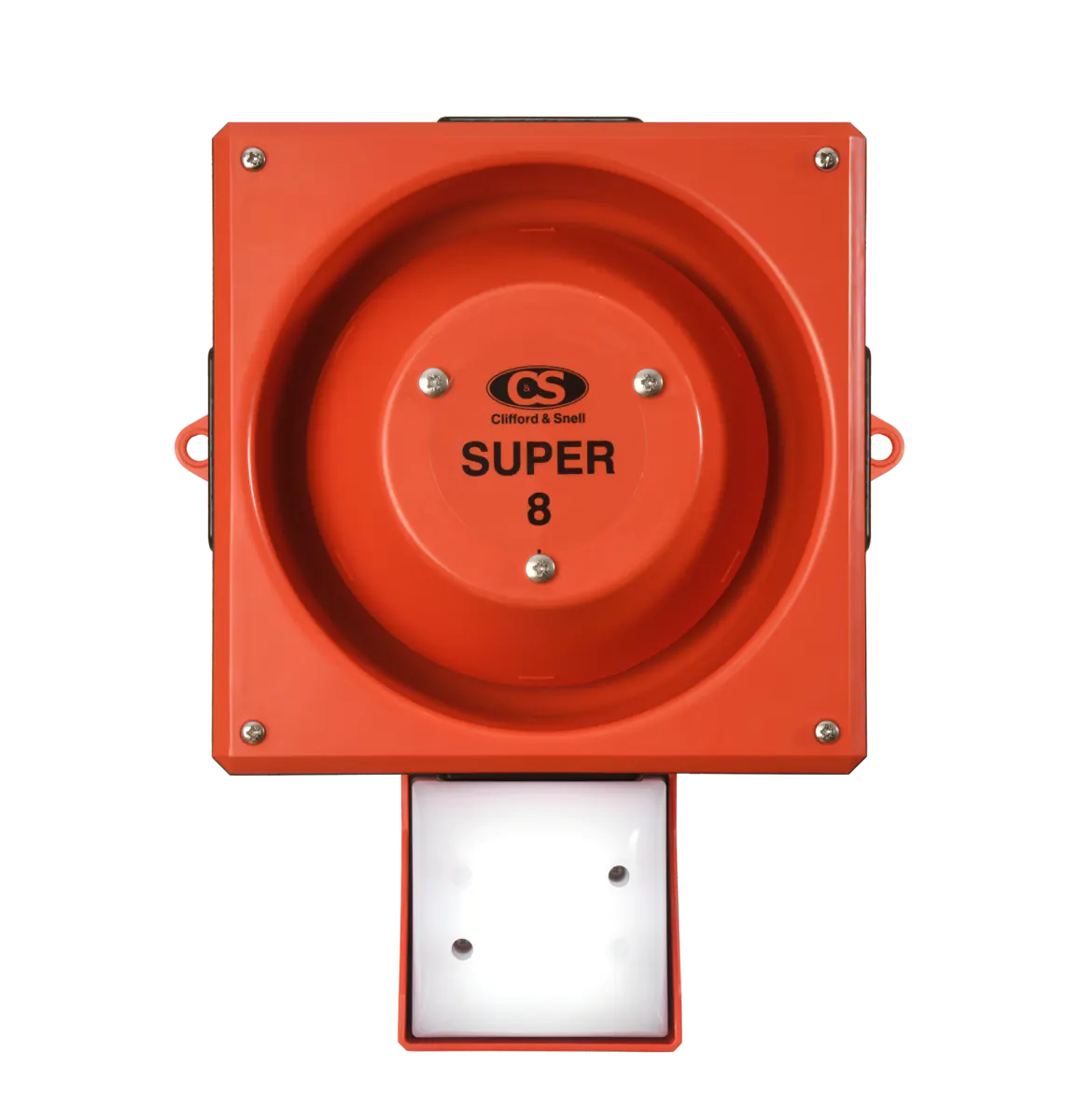

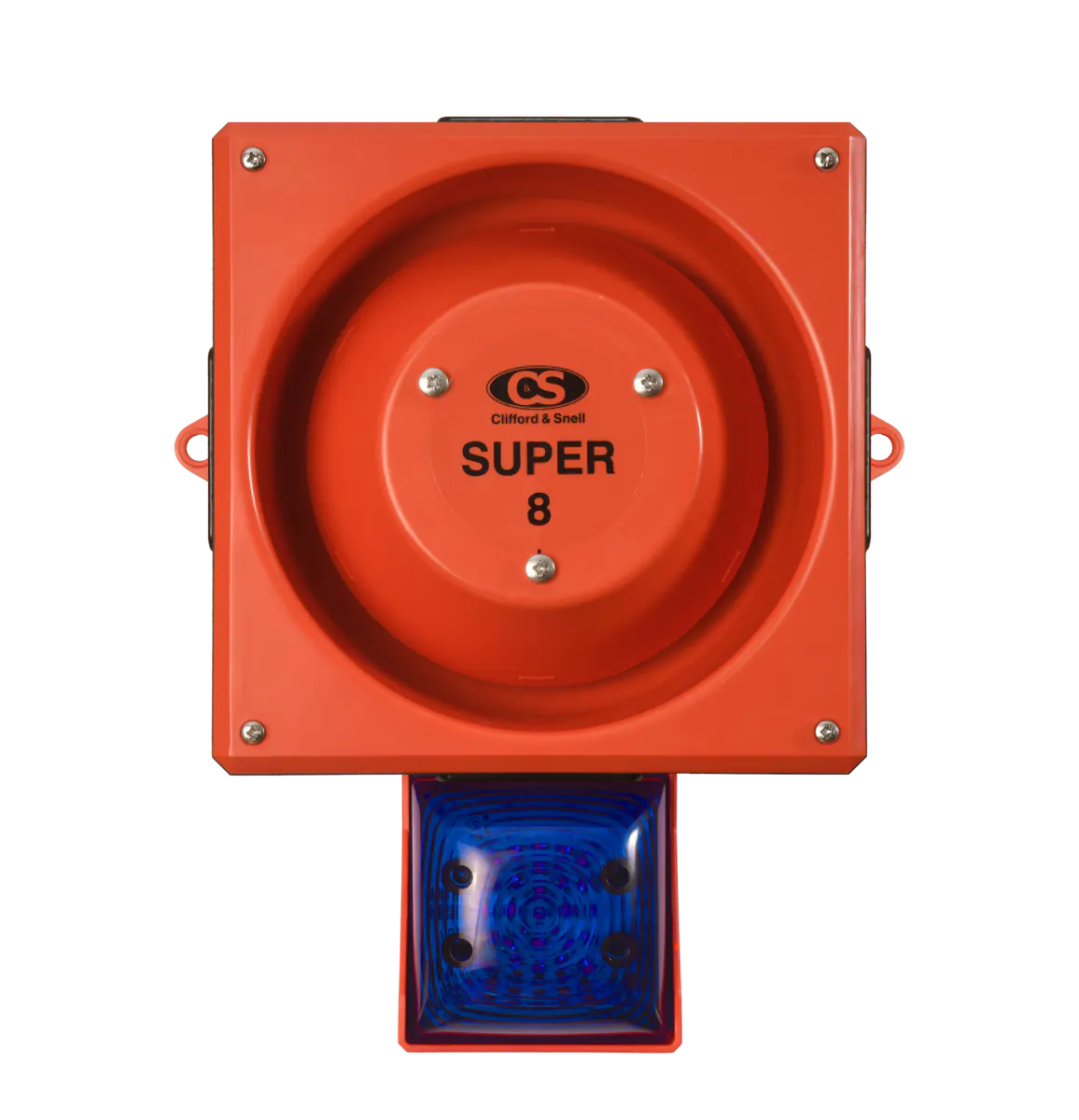

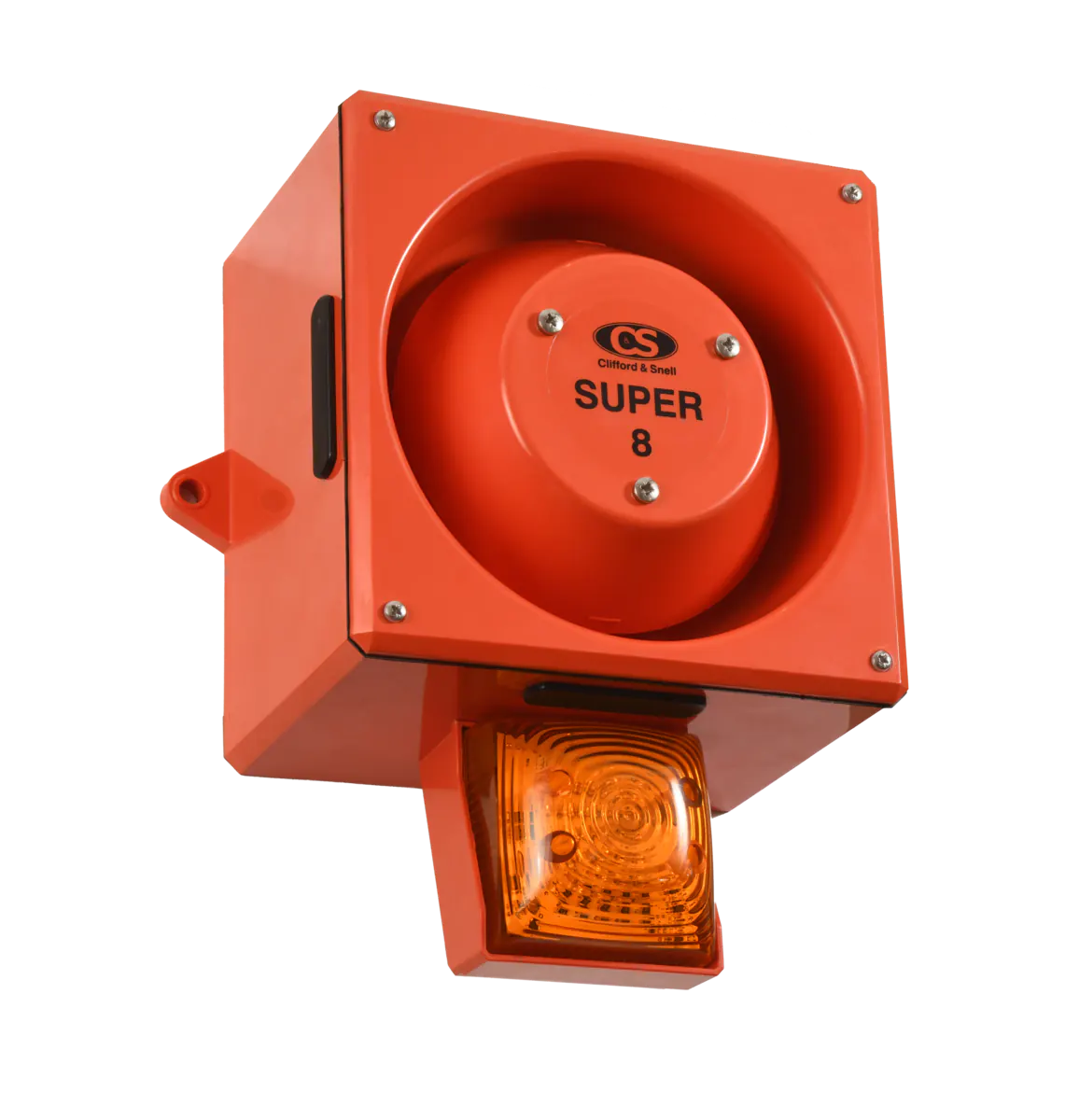

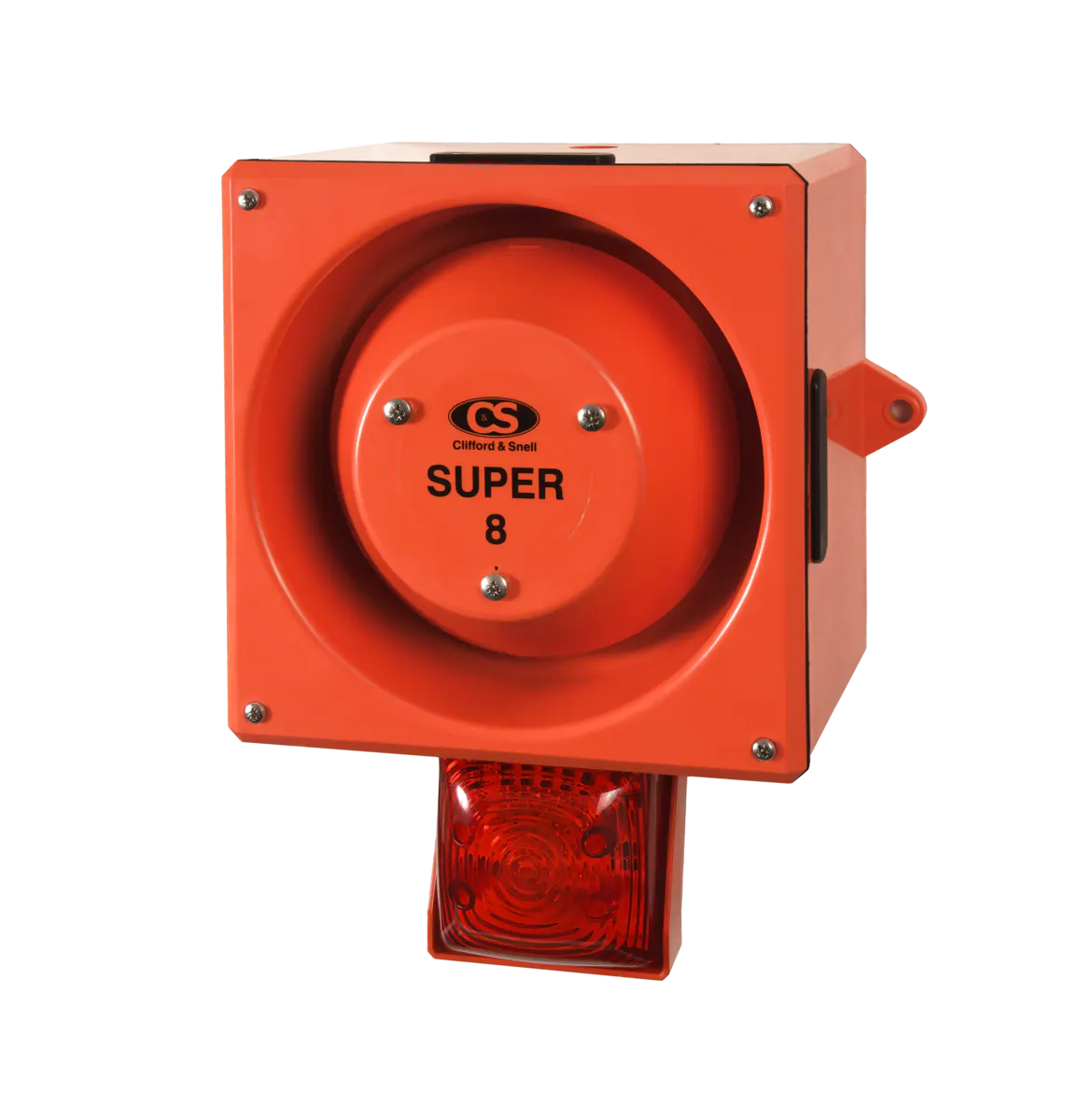

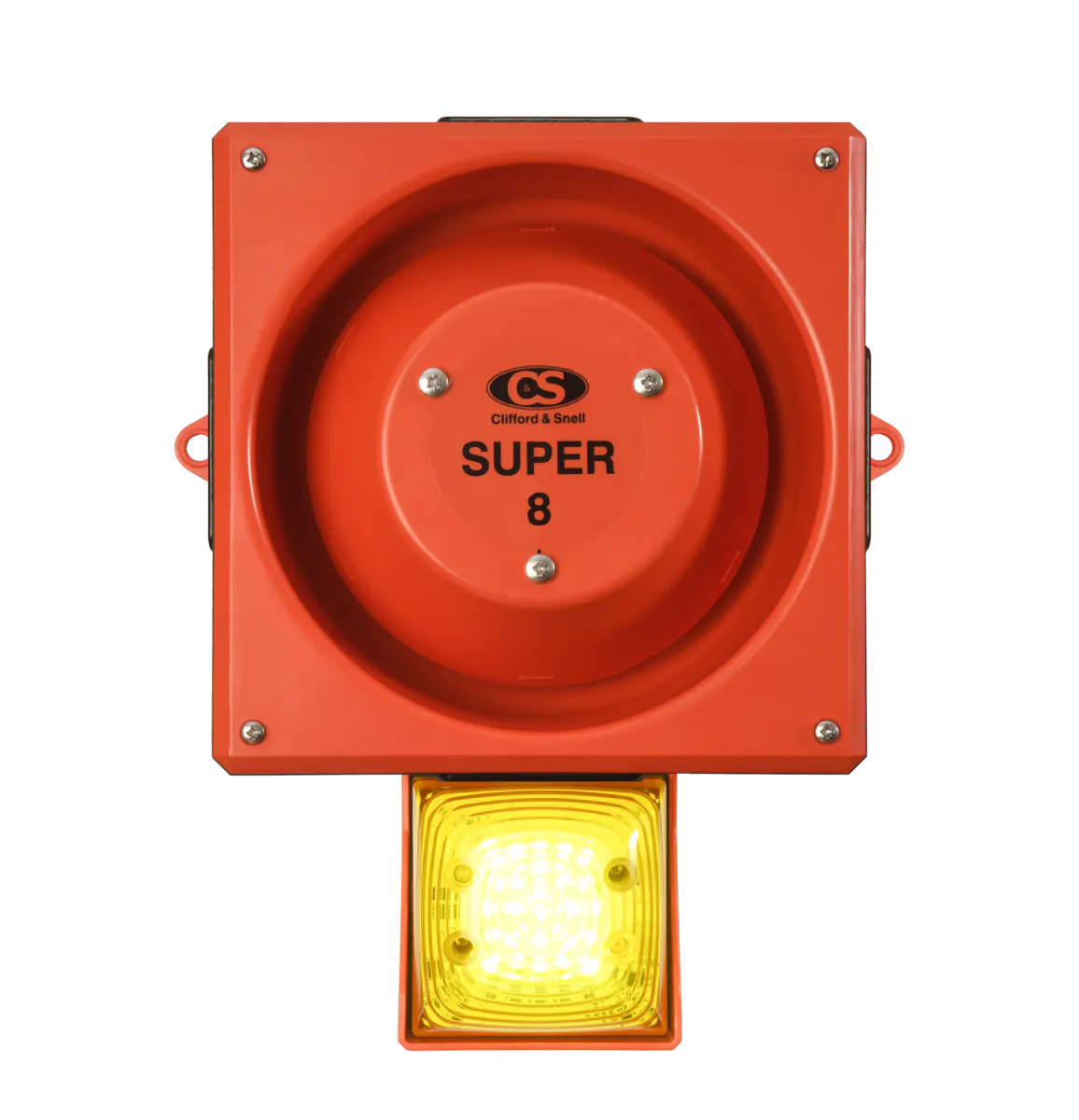

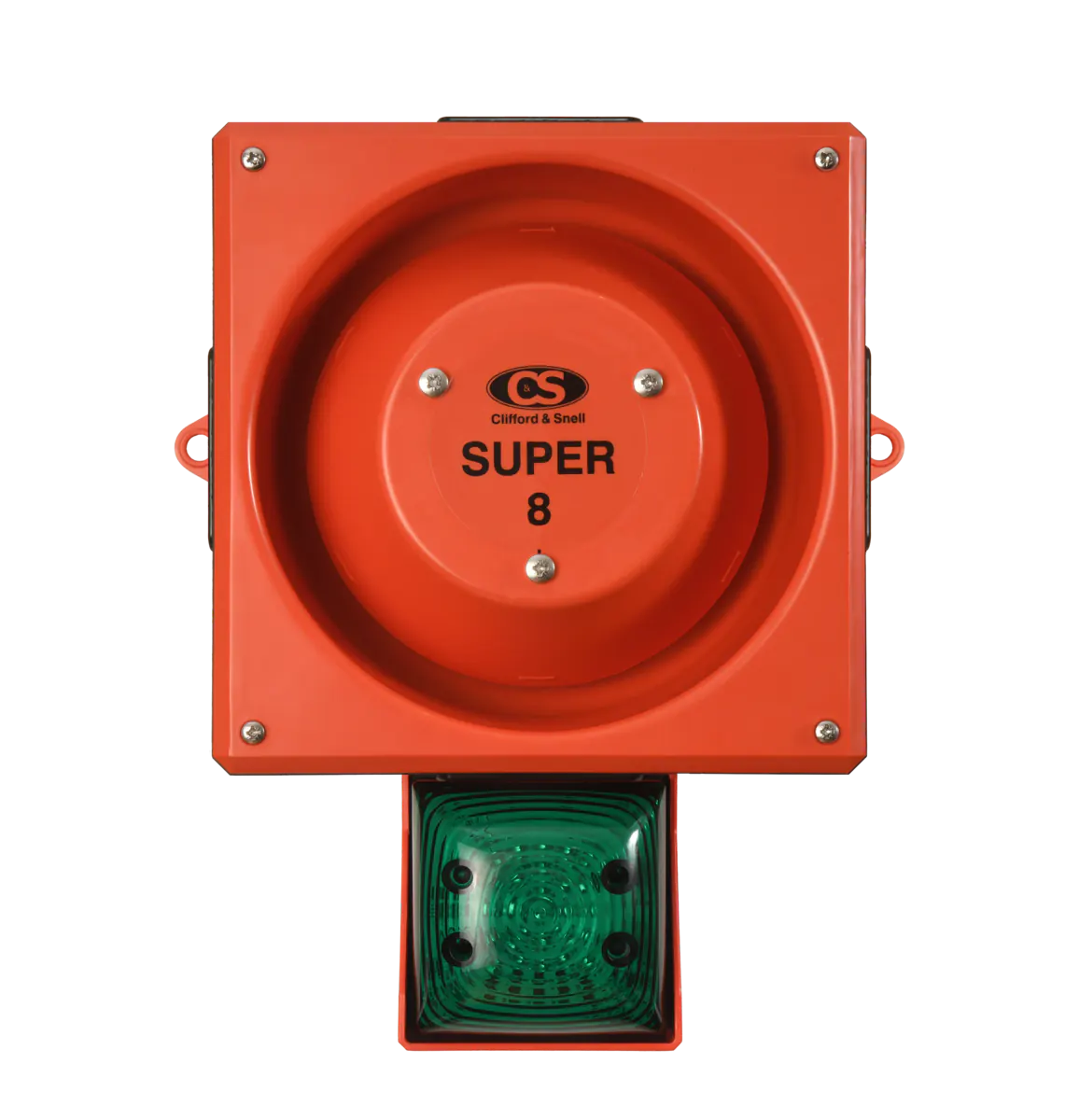

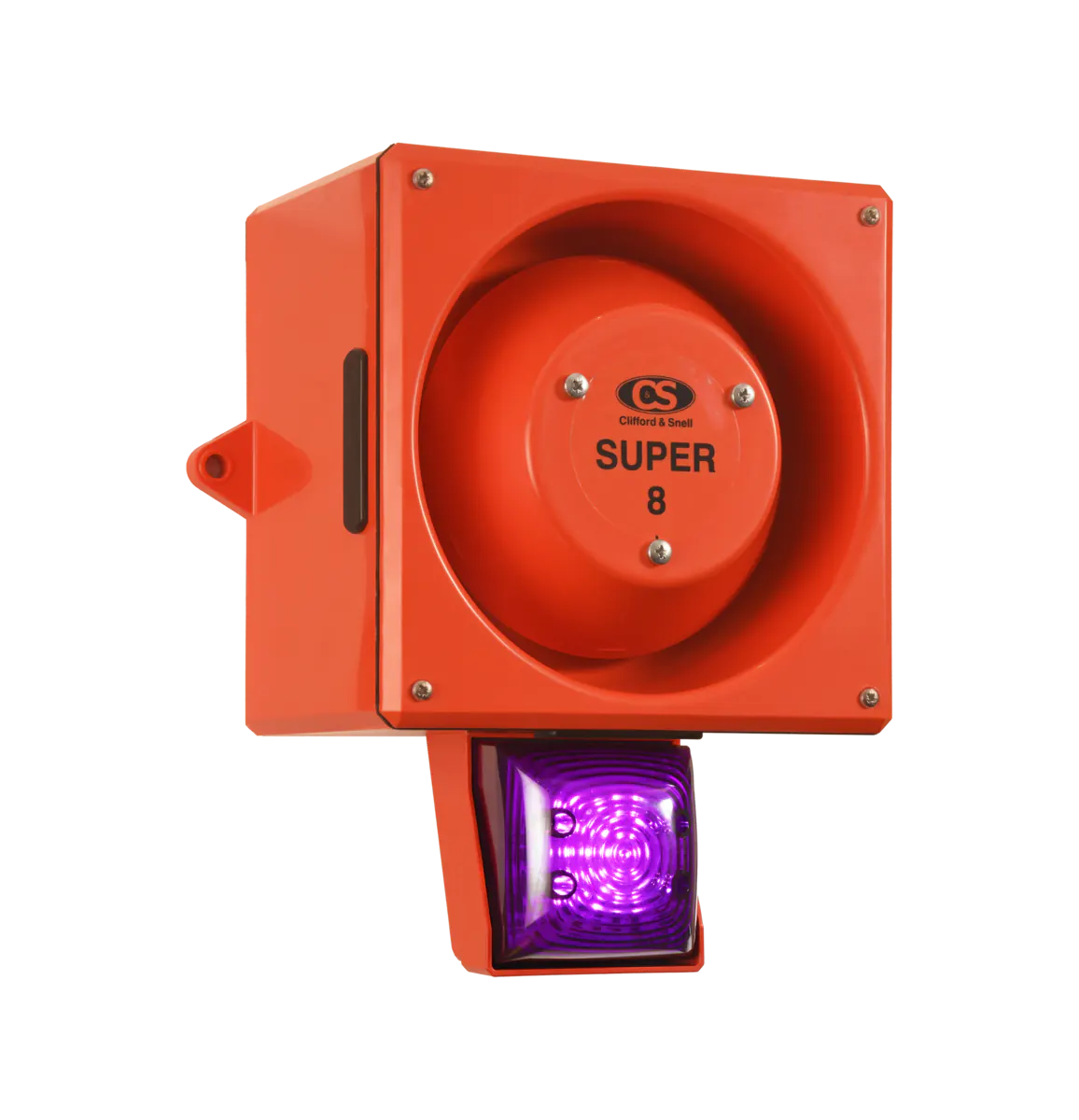

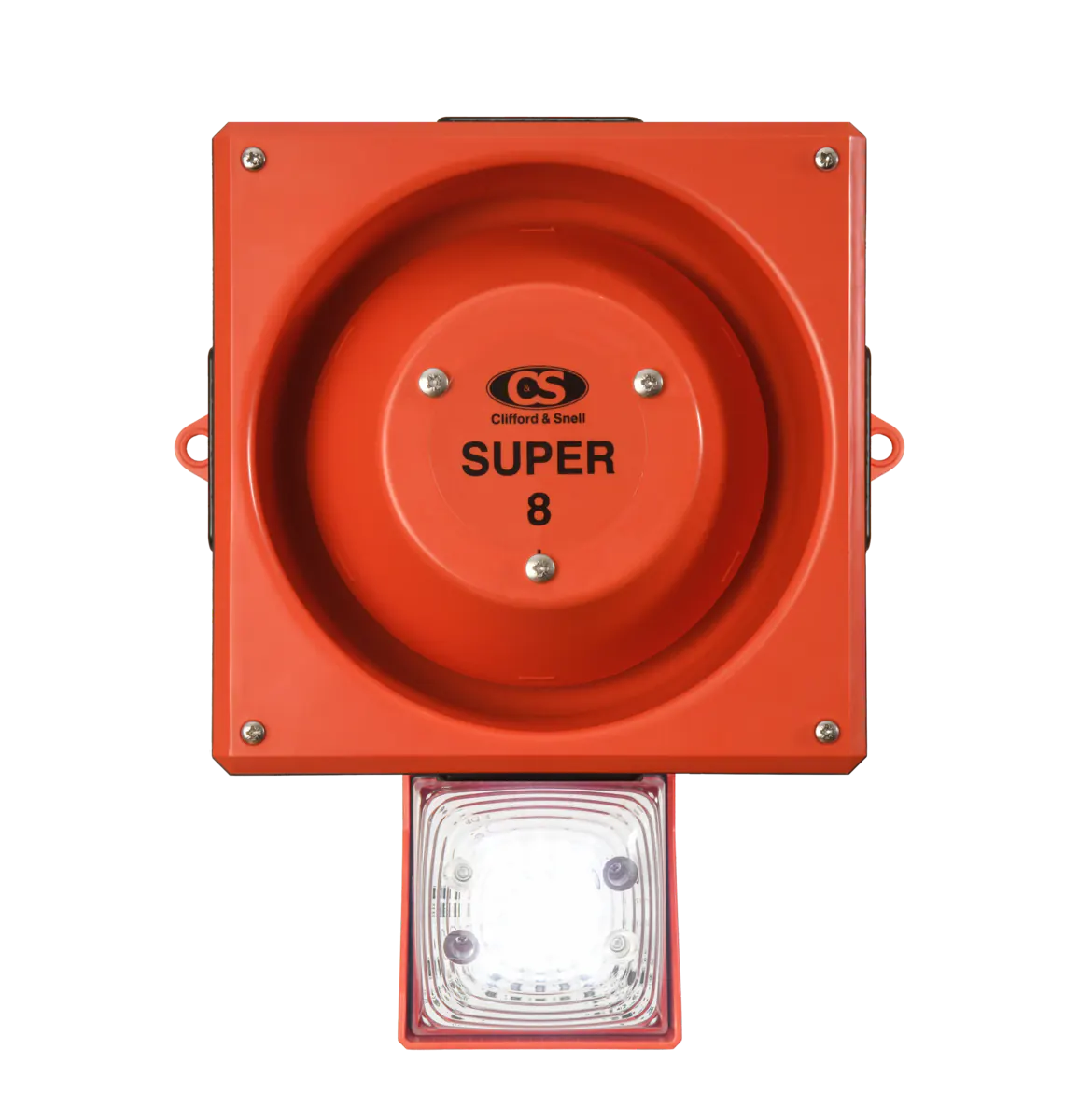

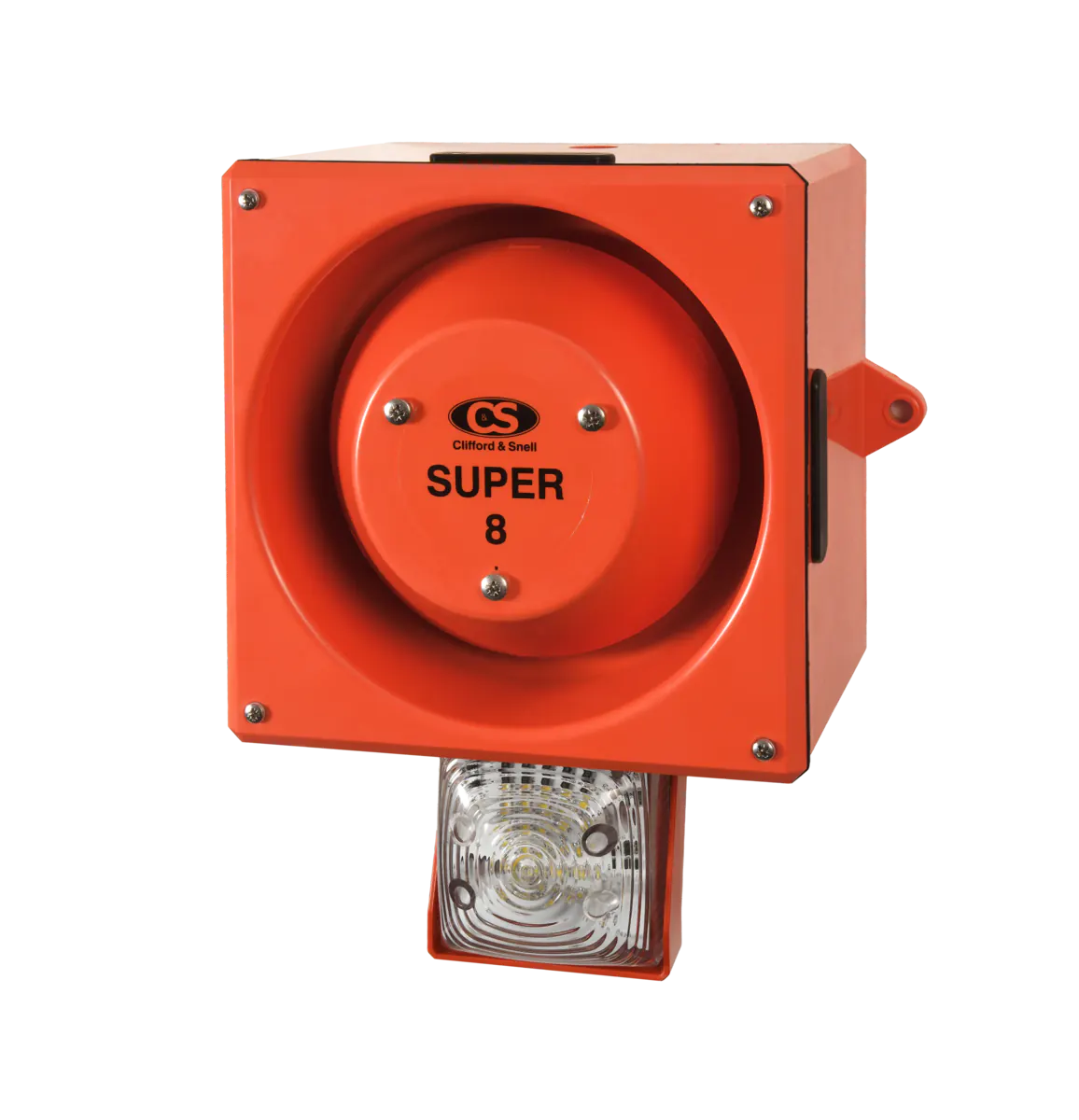

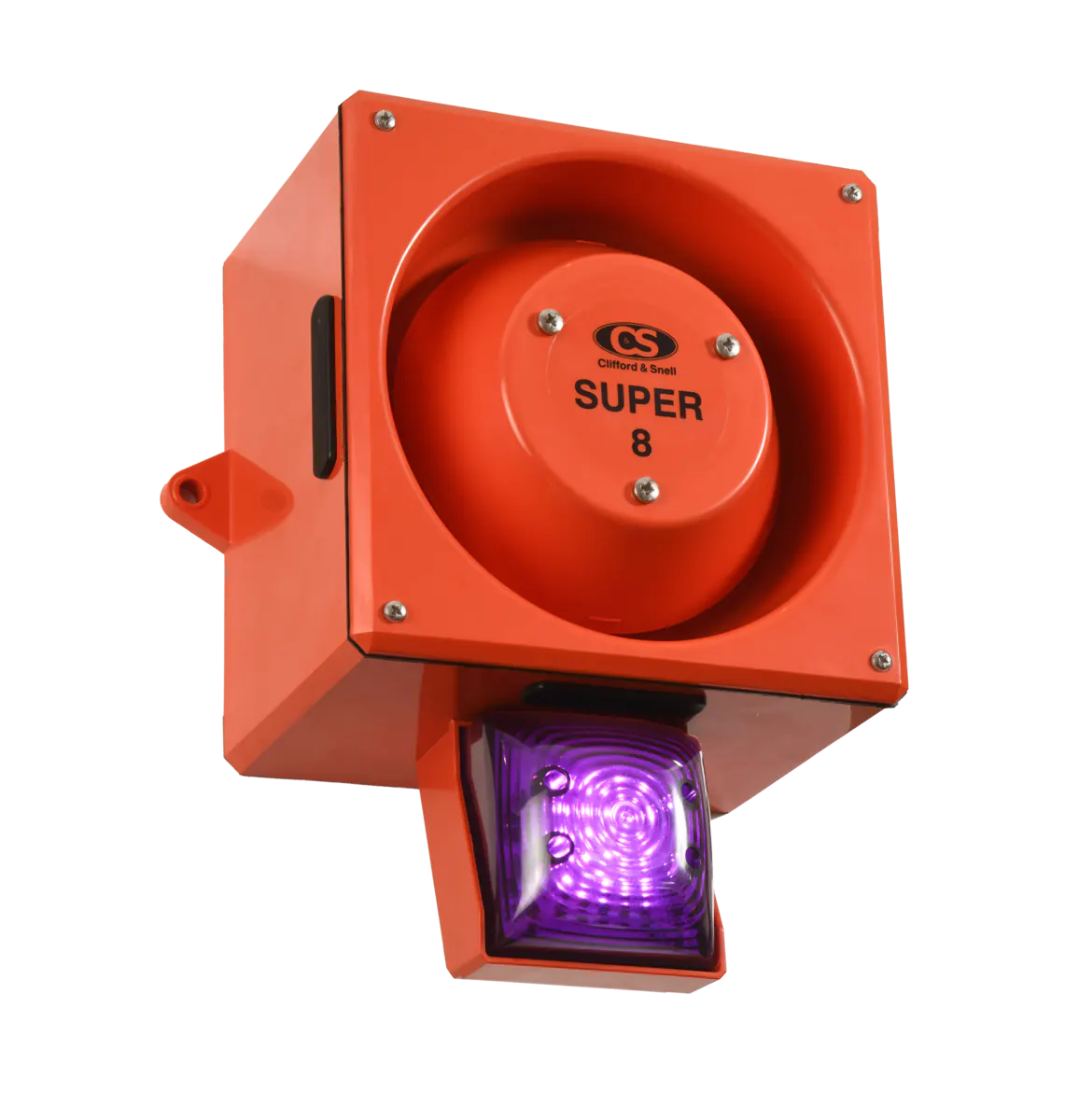

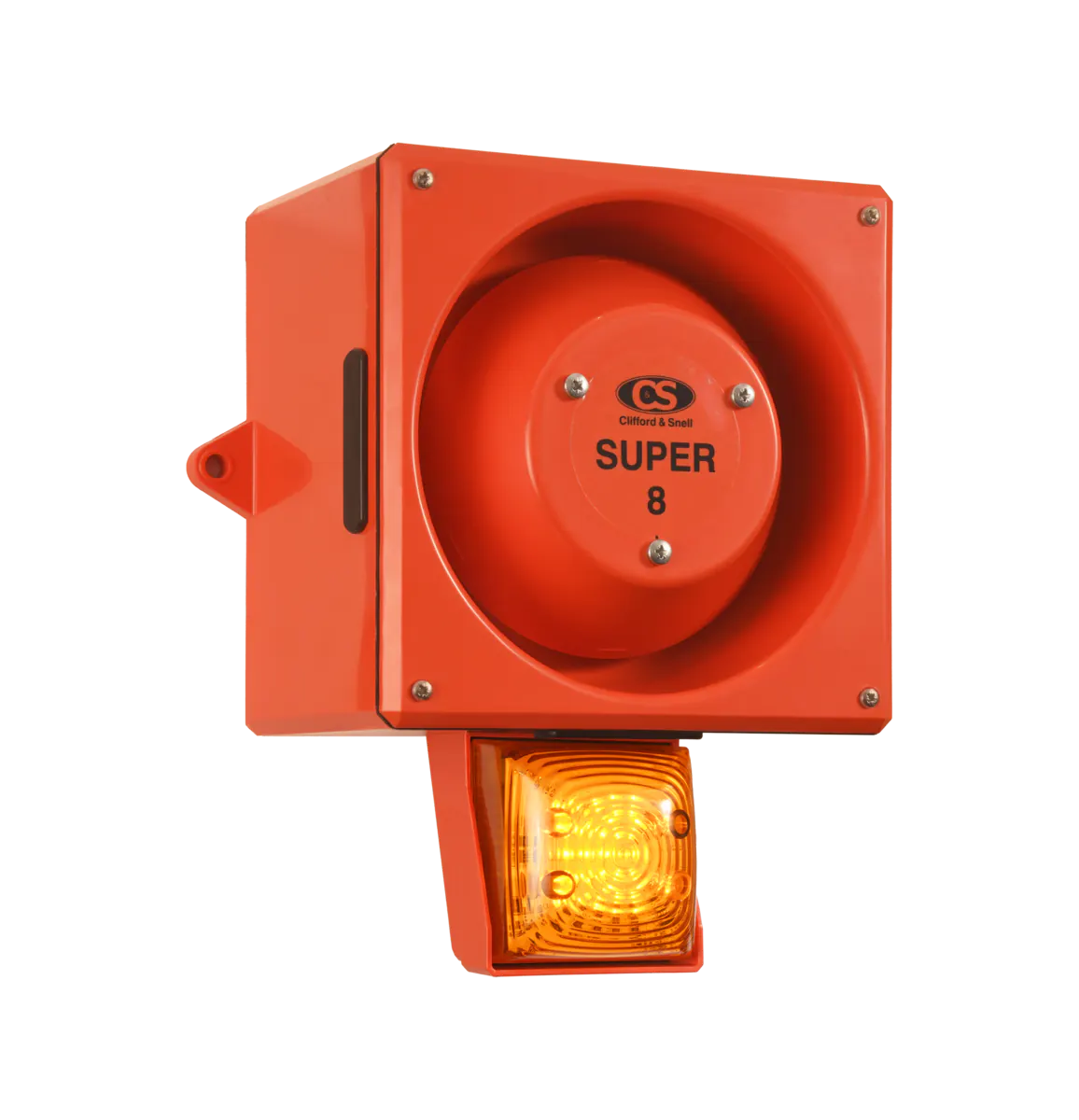

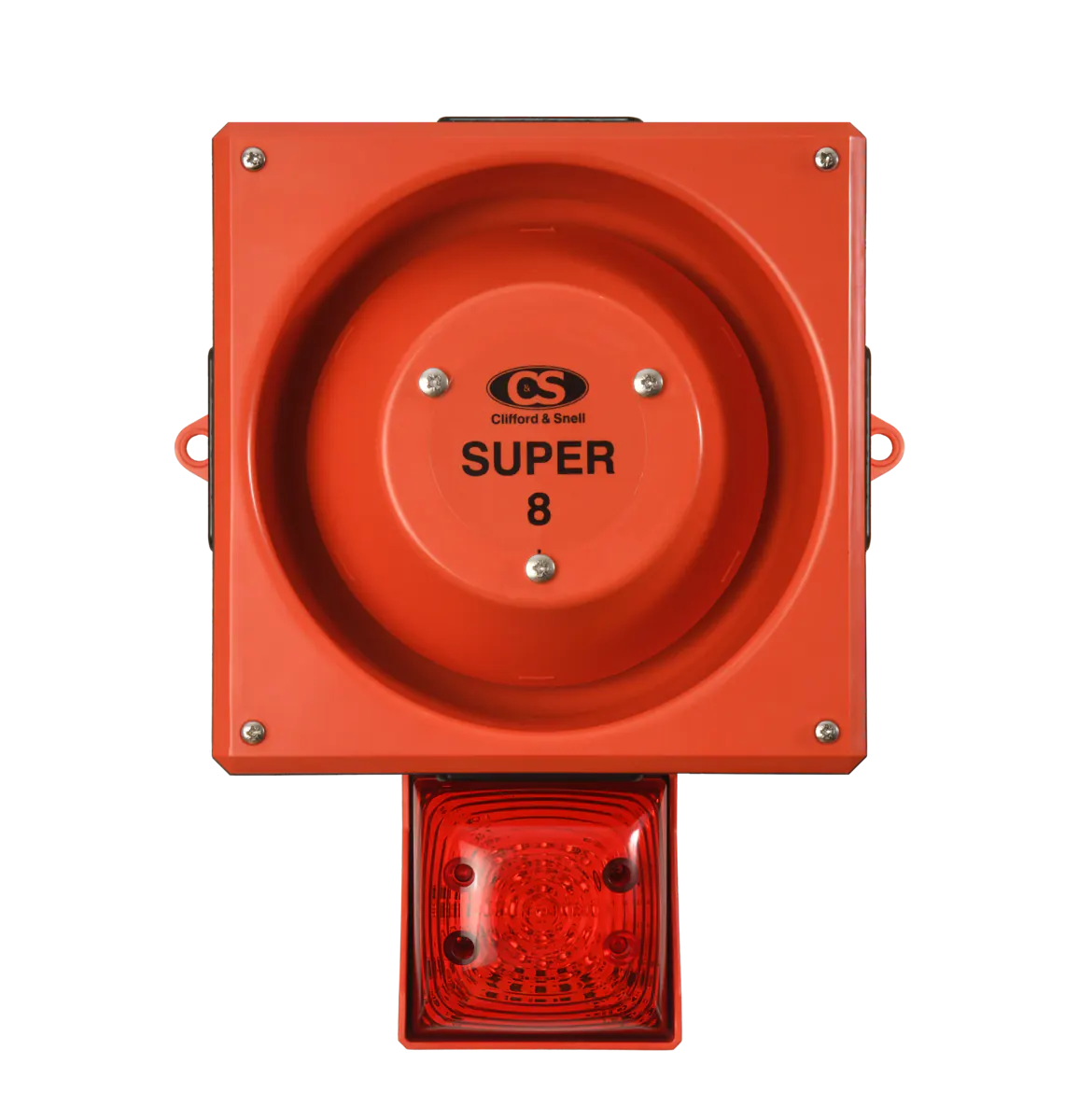

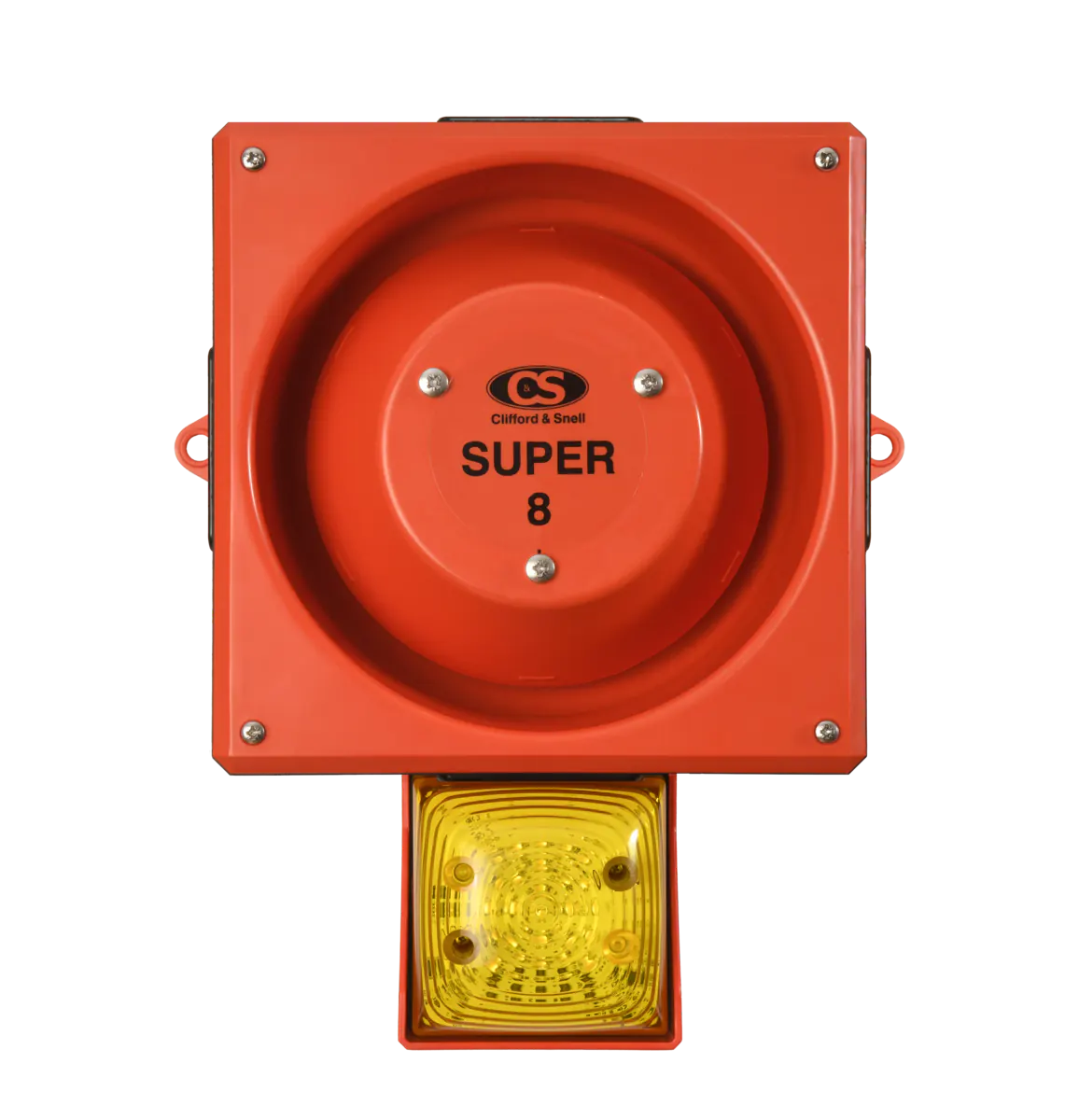

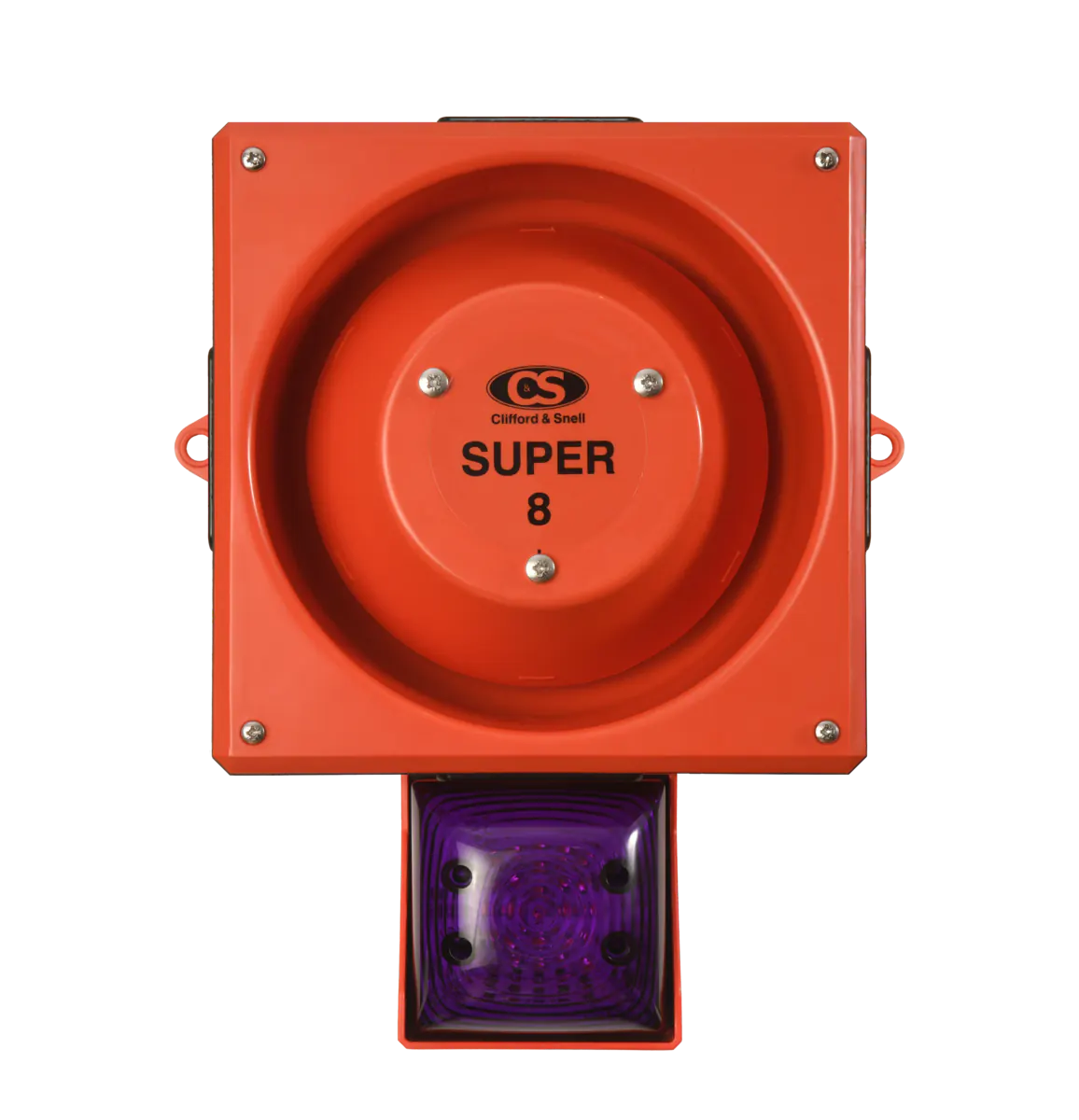

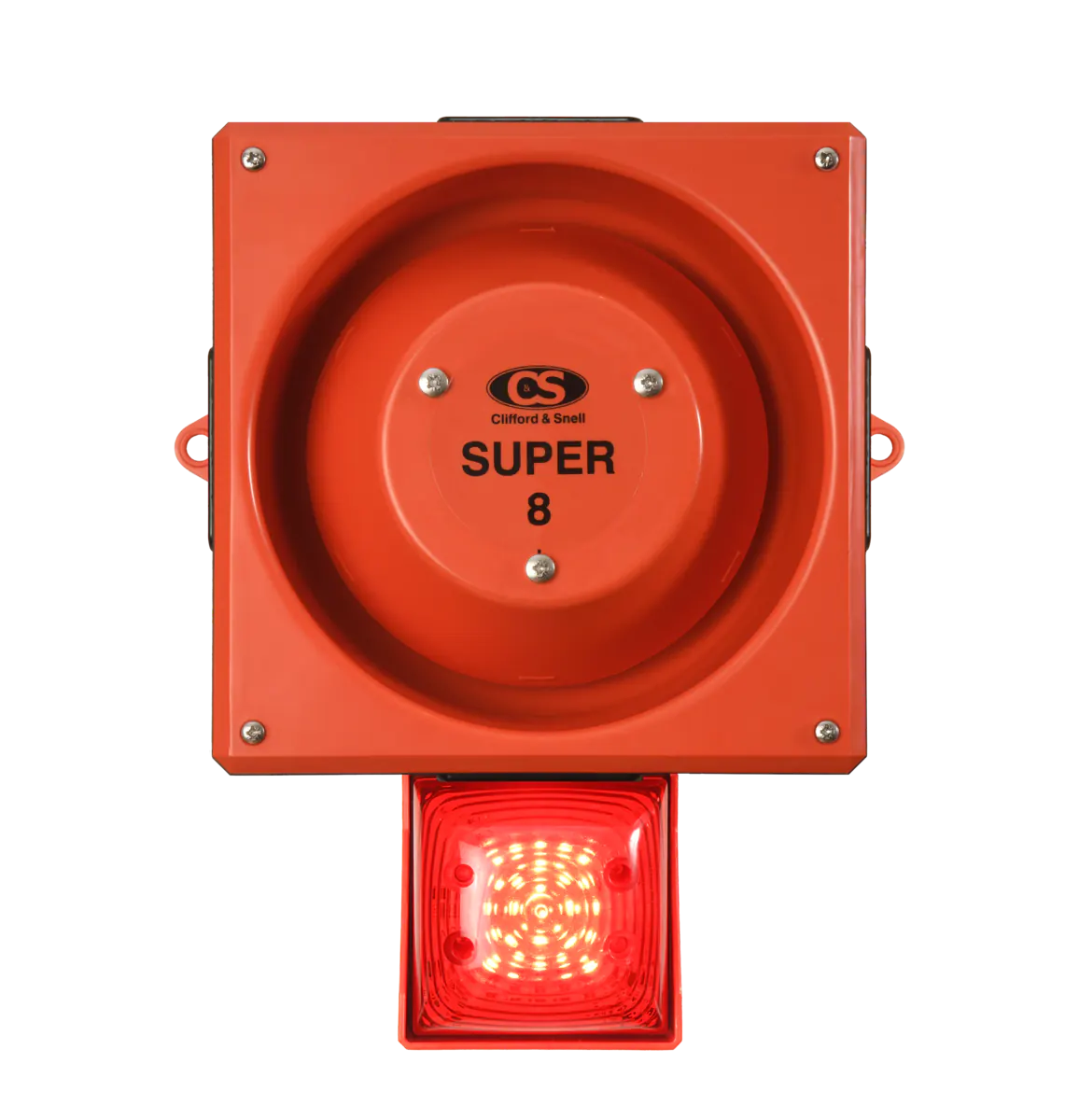

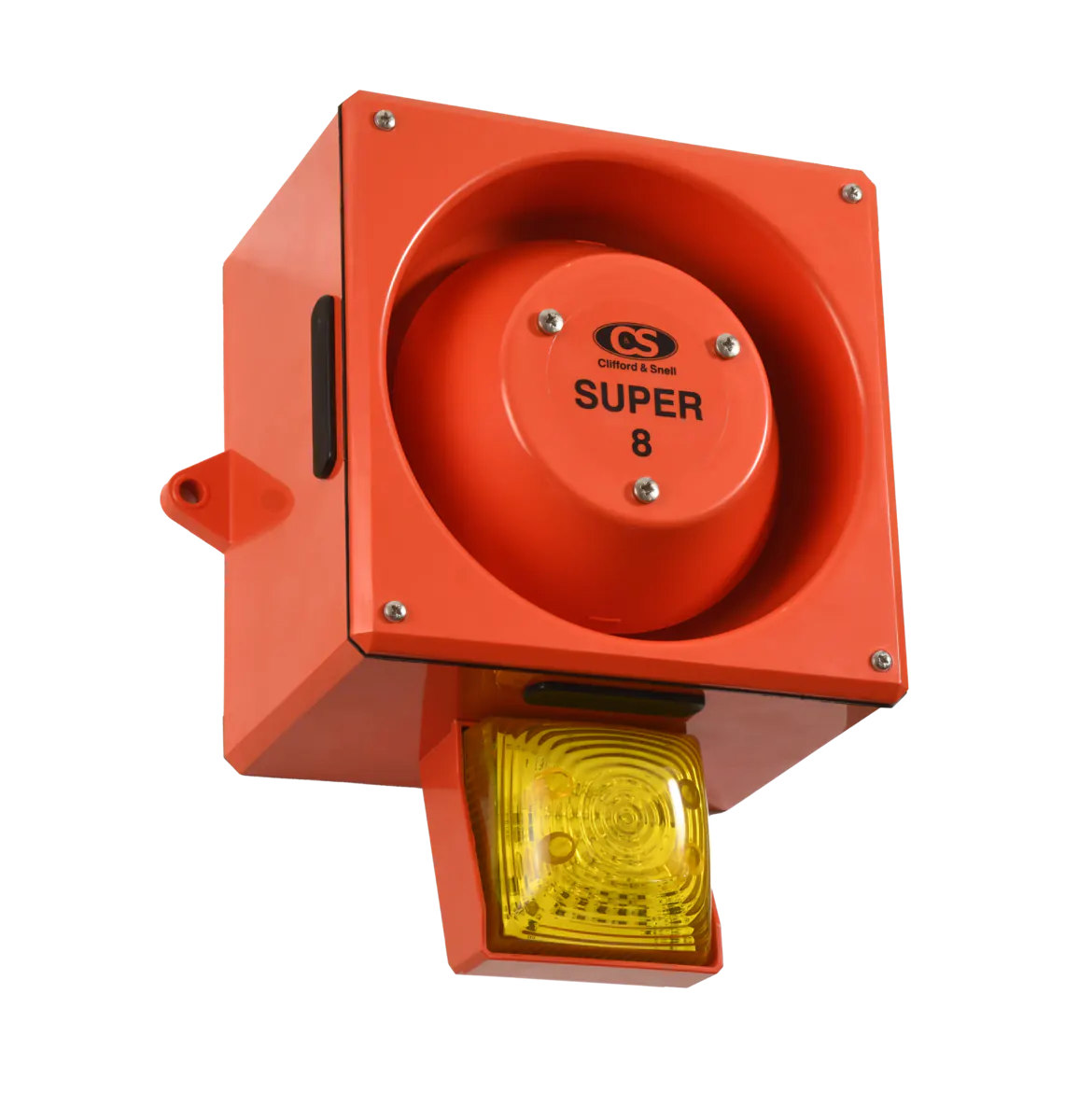

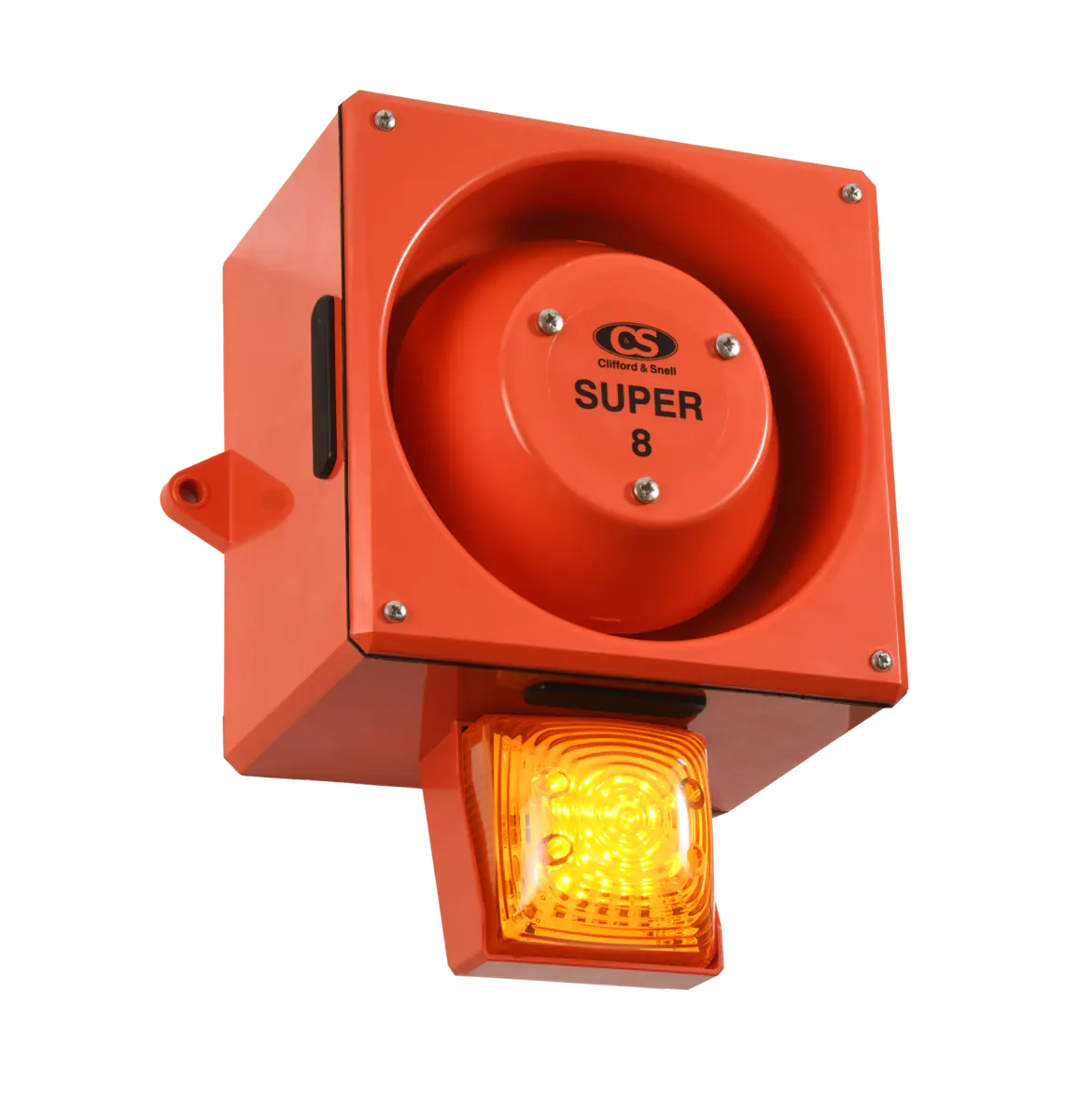

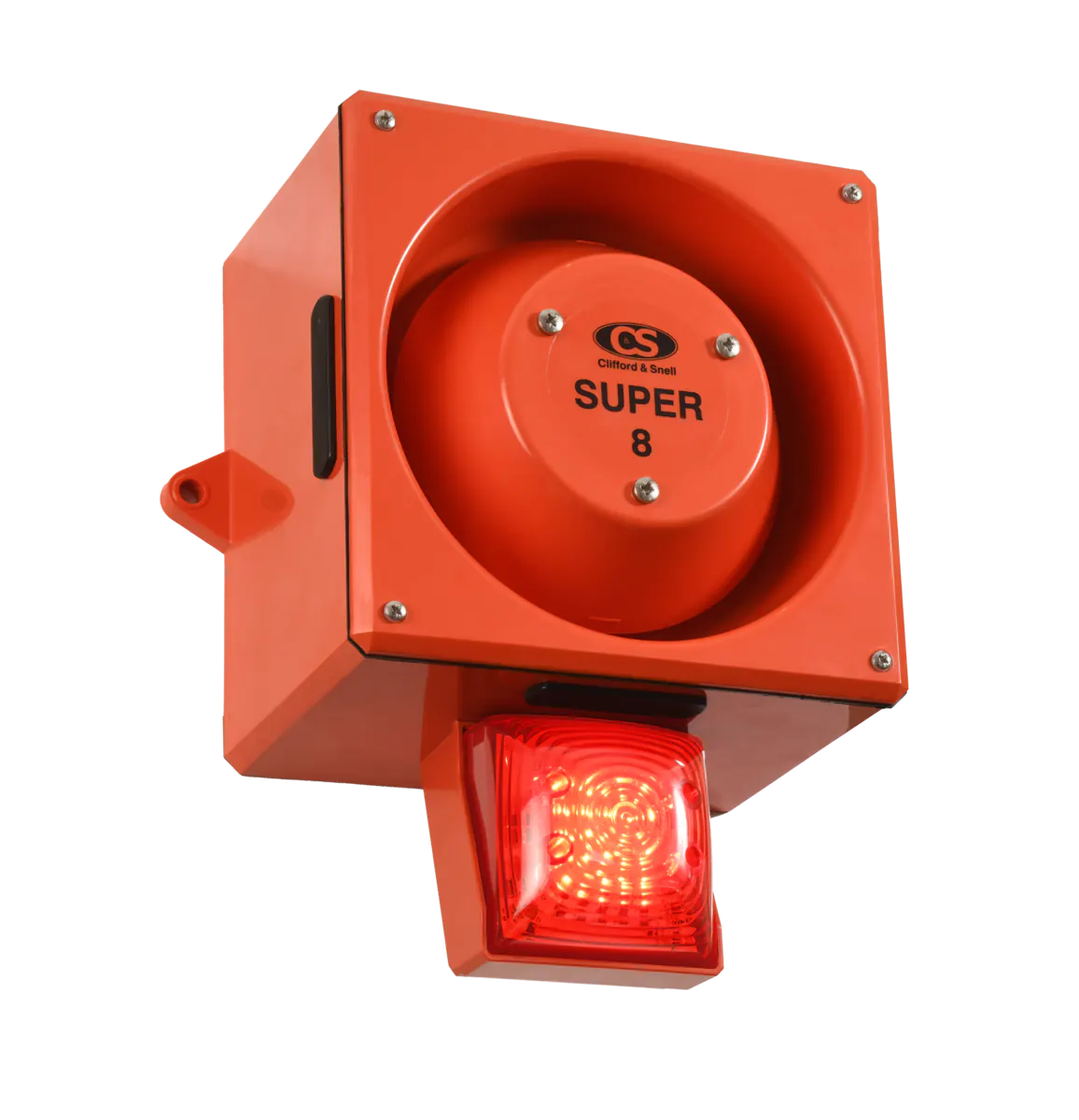

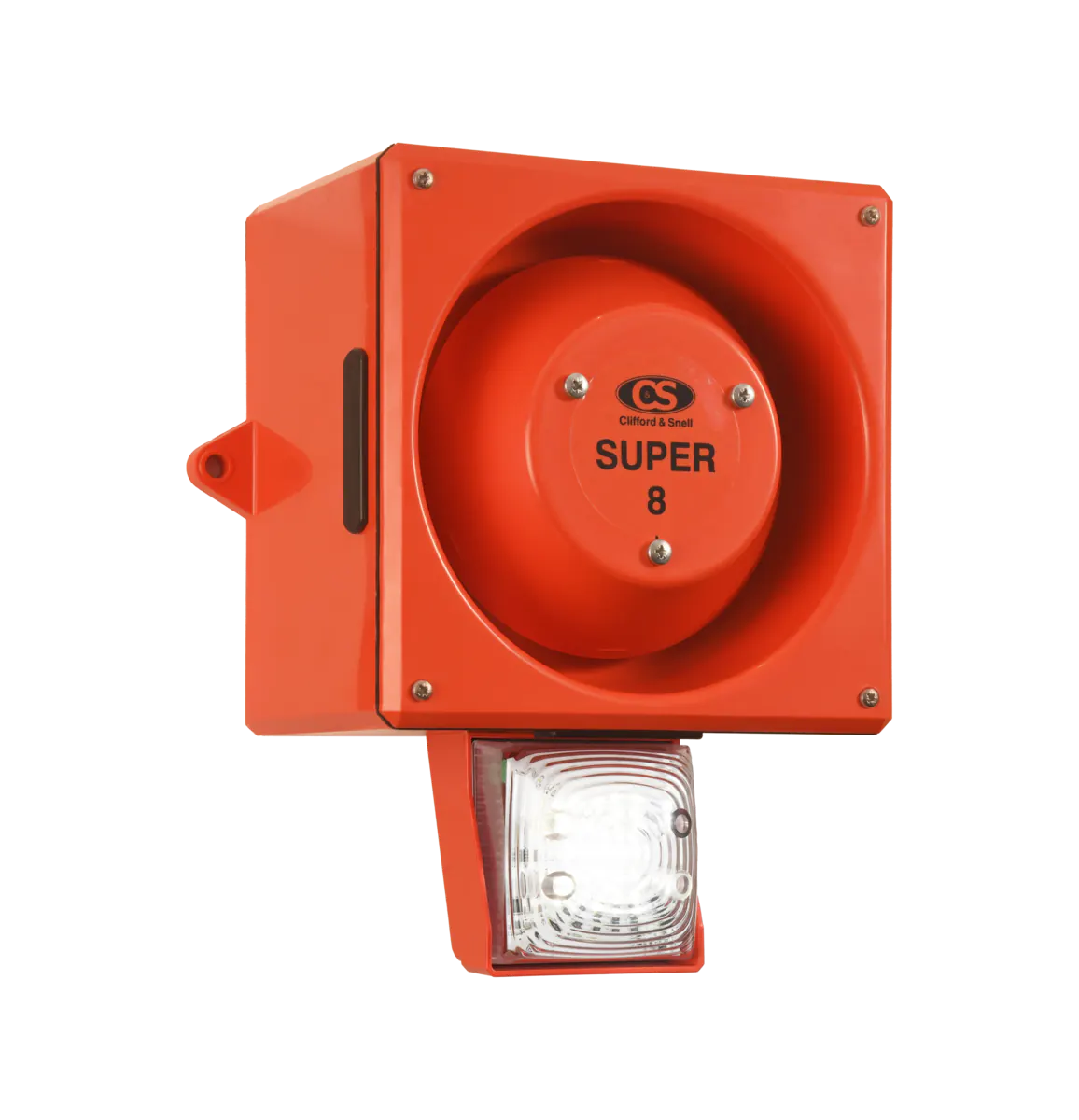

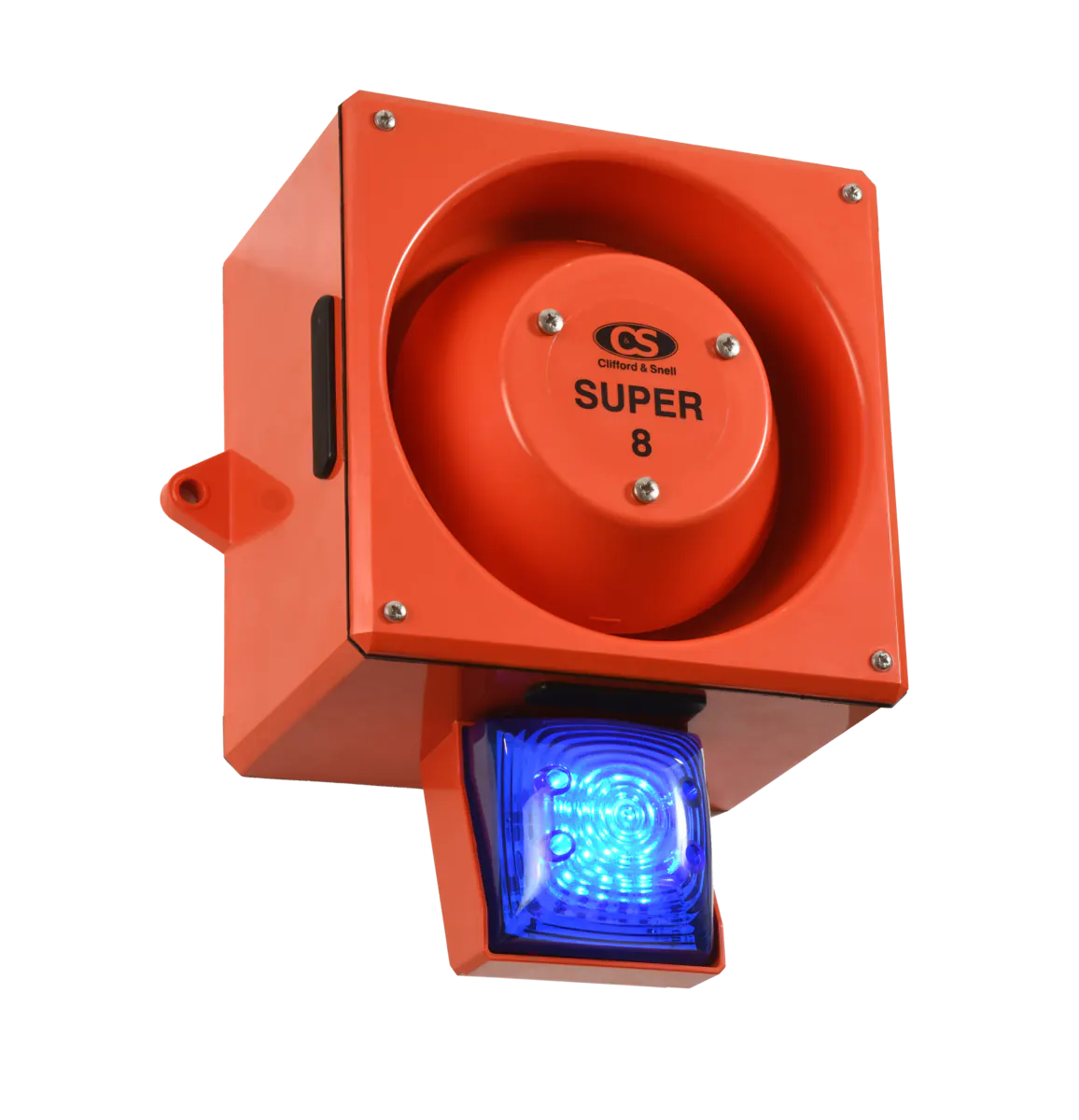

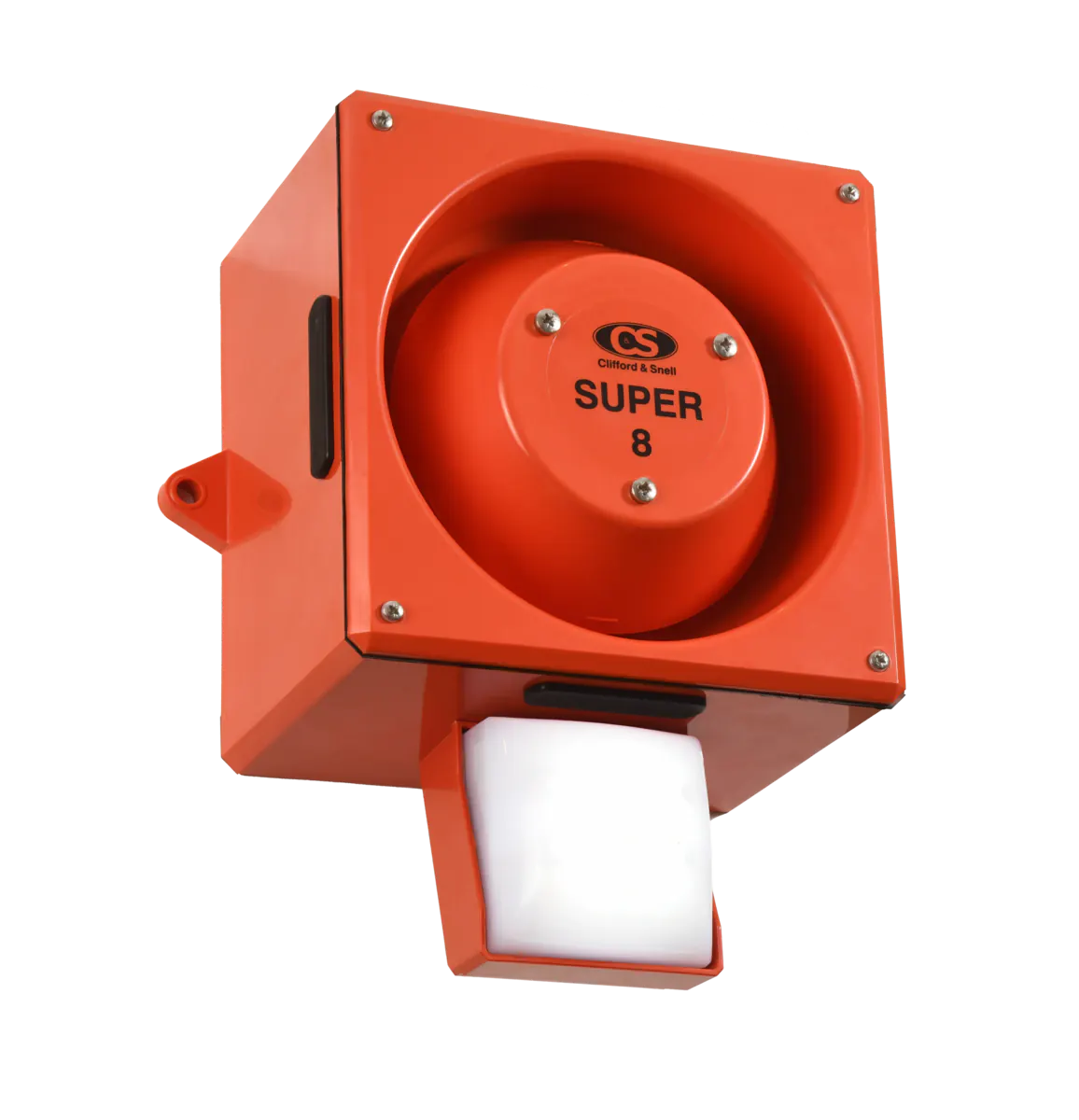

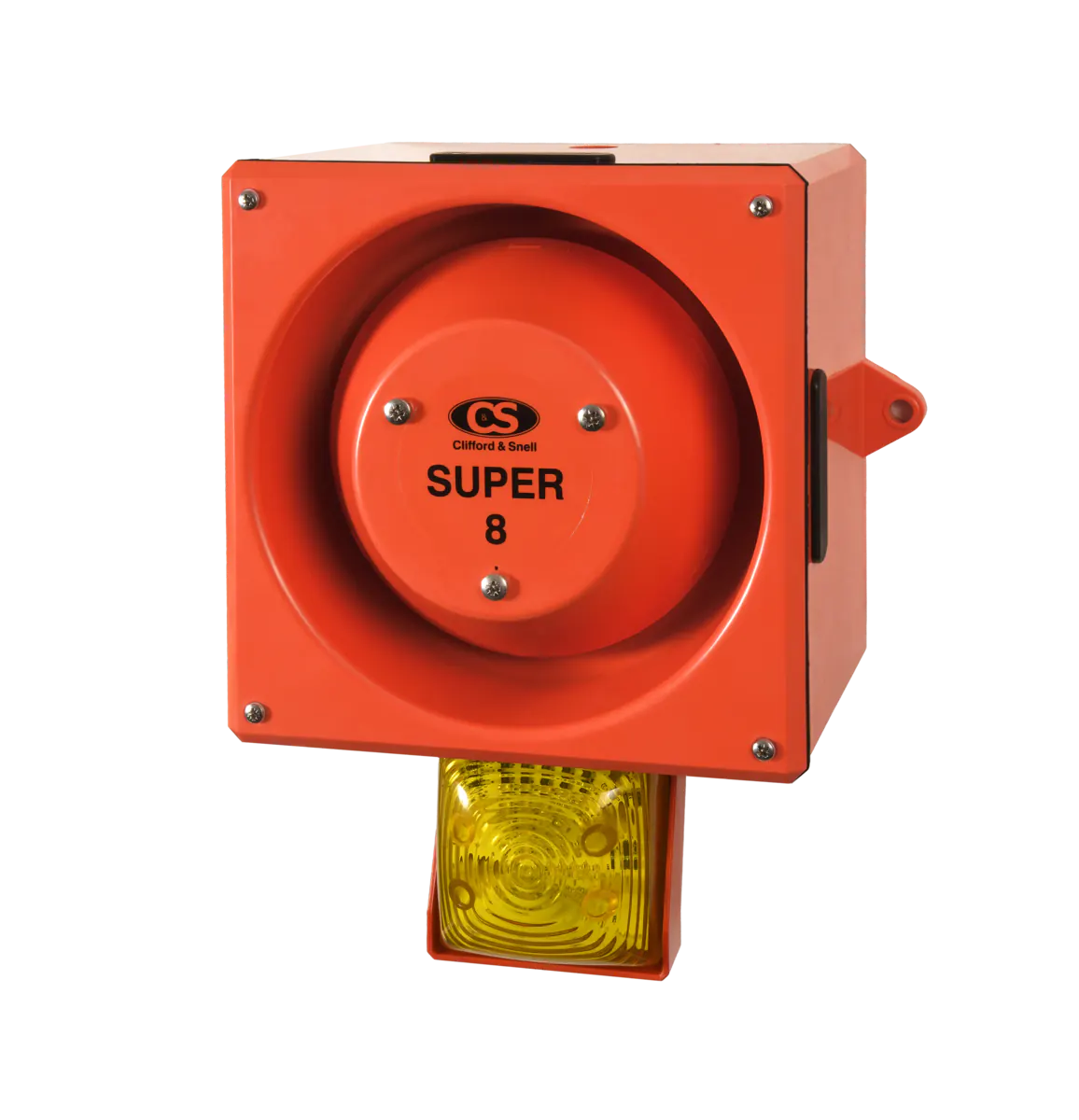

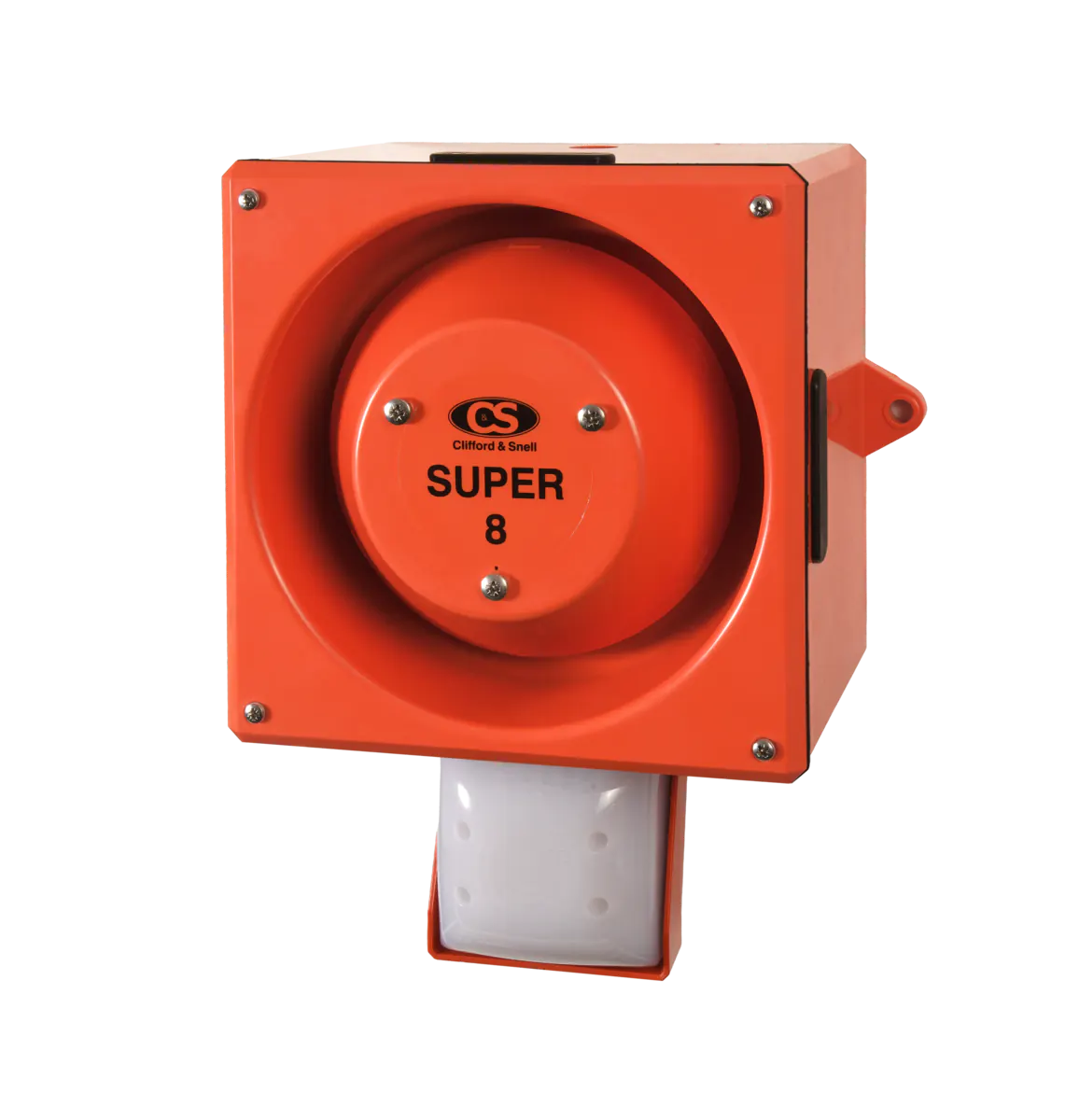

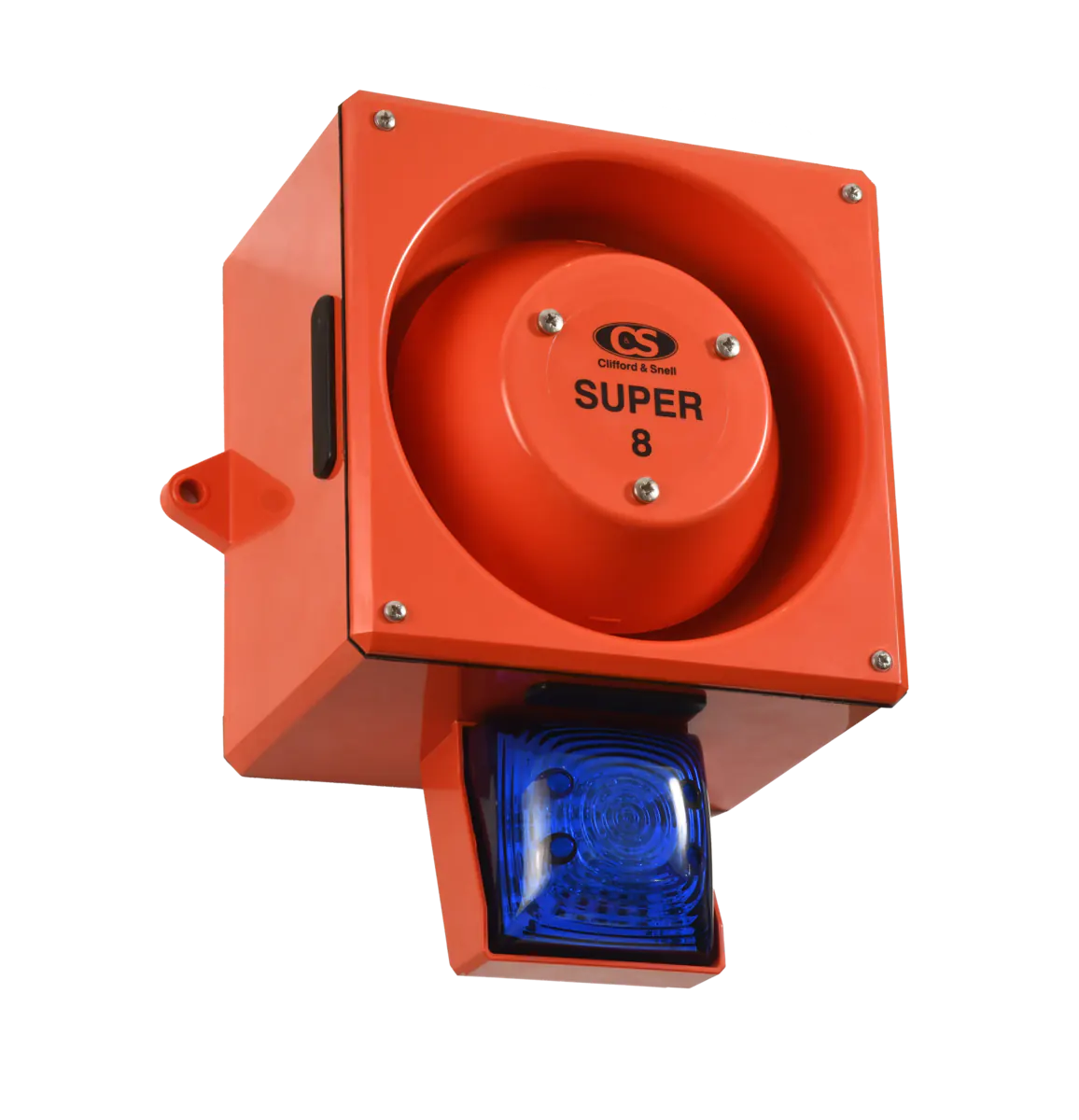

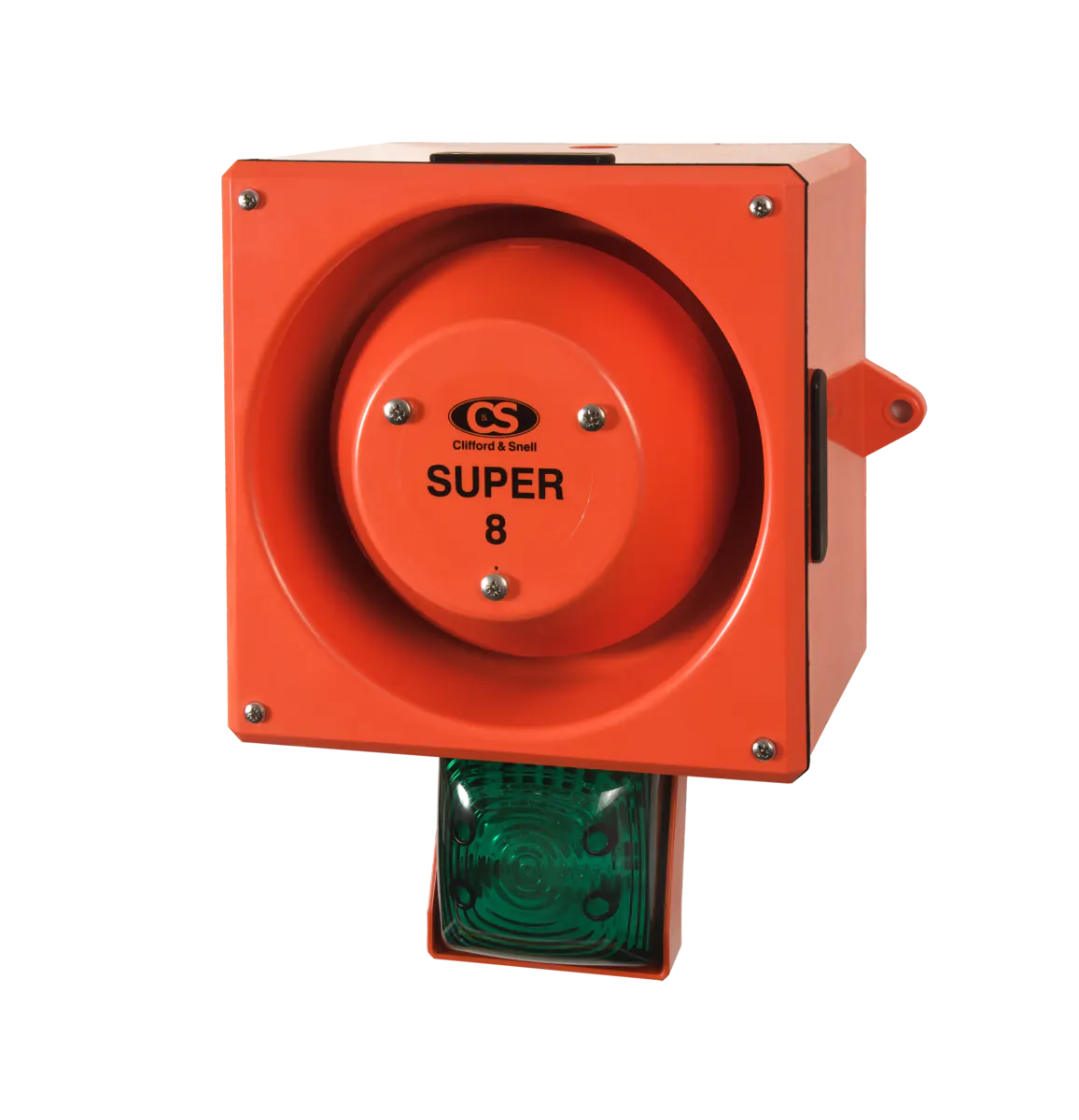

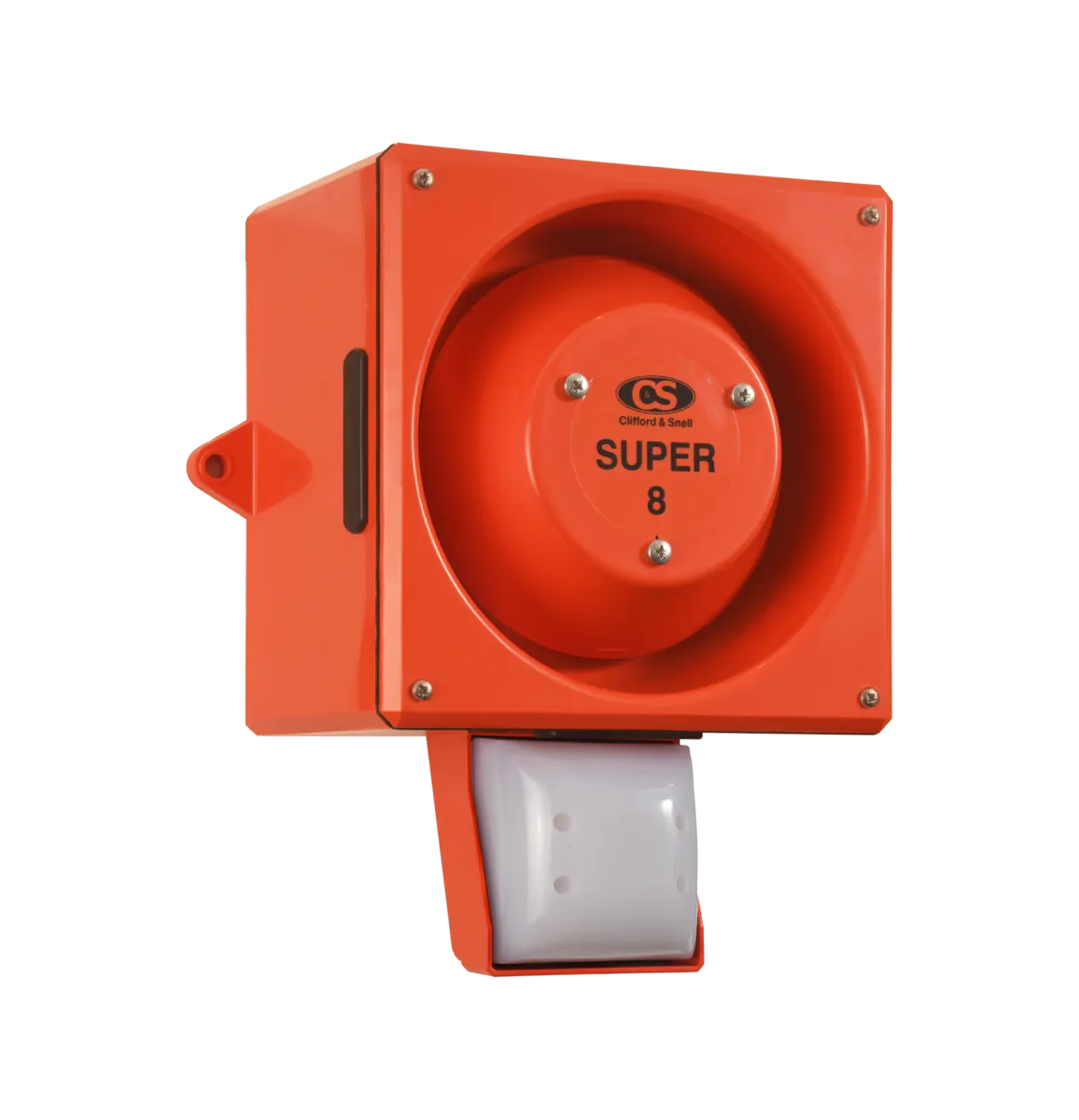

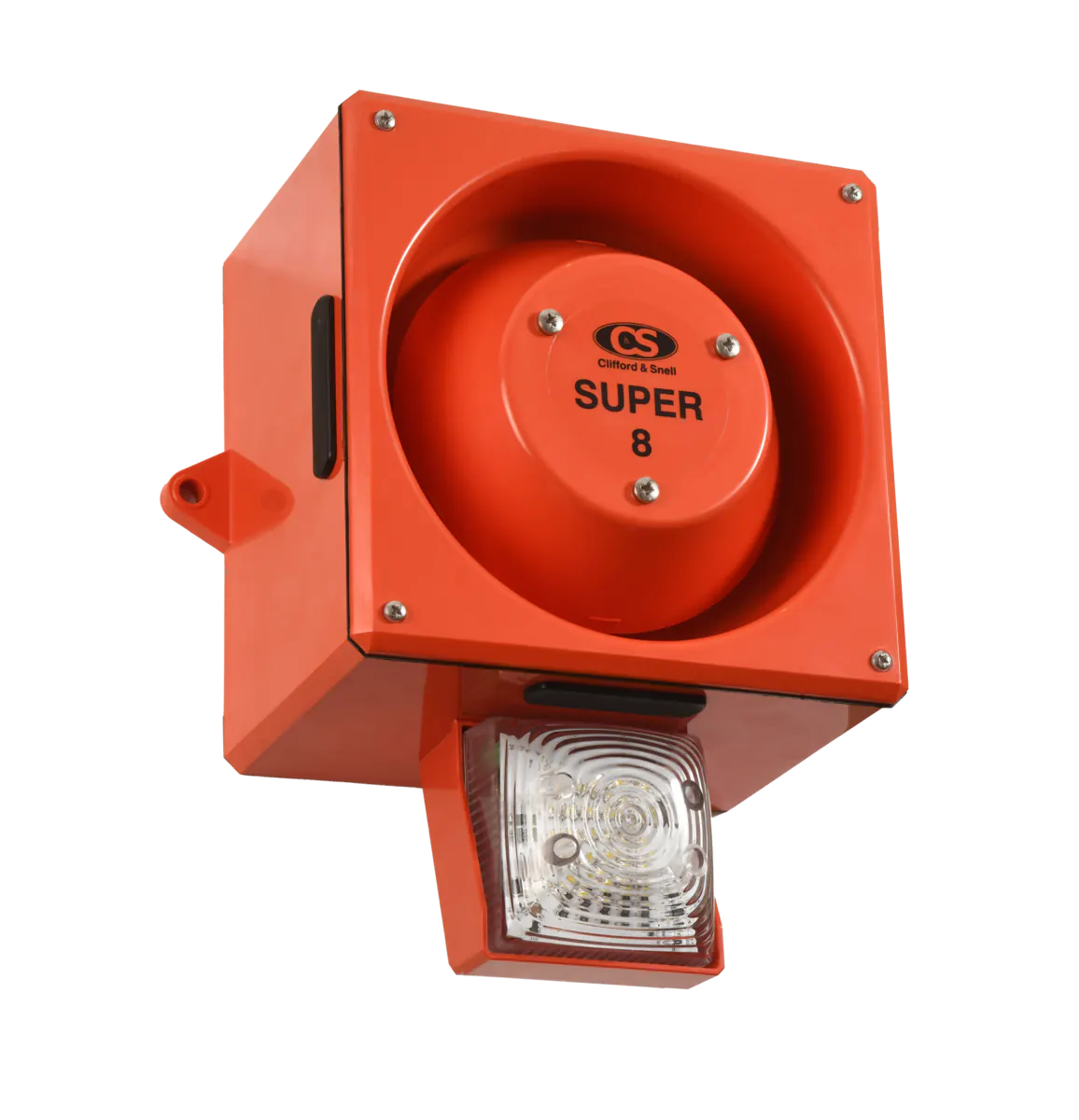

Yodalight YL80 Super Hi-Vis — Sounder Beacon

The Yodalight YL80 Super Hi-Vis is the flagship combined sounder beacon, designed for the most challenging environments, uniting the 120dB Super sounder with a high-intensity beacon for maximum audible and visual reach. It offers 32 selectable tones, a two-stage alarm and independent sounder/beacon control.

Weatherproof to IP66 in a flame-retardant ABS enclosure with stainless-steel fixings.

The flagship combined signal. Maximum audible and visual reach in one unit.

KEY FEATURES

● 12 LEDs or 25 LEDs

● Up to 120dB at 1 metre

● Flashing

● 32 selectable tones

● Tones meeting international regulations

● Two-stage alarm

● IP66 rated

● Wall or bulkhead mounting

● MED, MER & EN54-3 approved

● Available colours: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta

● 24vDC, 115vAC or 230vAC

MATERIALS

● Polycarbonate lens

● Flame-retardant ABS body

● Stainless-steel fixings

Typical applications: refineries, offshore, heavy industry, high-noise sites, fire systems.

Technical Information

Weight: N/A

Dimensions: N/A

Functionnality:

32 Tones – 2 Stages – Flashing

Type of fixing:

Wall and Bulkhead Mounting

Ingress Protection:

IP66

Colour:

Amber, Red, Blue, Green, Clear, Opal, Yellow, Magenta

Voltage:

24vDC, 115vAC, 230vAC

Enclosure Colour:

Orange

Light Source:

12 LED, 25 LED

SKU: YL80 SUPER HI-VIS Categories:LED + Sounder, Sounder / Beacons, Sounder / Beacons Brand:Clifford & Snell

Downloads

Approvals & Conformities

C-Tick
CE Marking
MED
MER
RoHS Directive
UKCA Importer

Tones

Description

Tone Number

Frequency

Applications

Alternating

800-1000 Hz

Fire Alarms · EN54-3

Alternating

2500-3100 Hz

Security Alarms

Alternating (fast)

800-1000 Hz

Increased urgency

Alternating (fast)

2500-3100 Hz

Security deterrent

Alternating

440-554 Hz

AFNOR, France (NFS 32001) · EN54-3

Alternating

430-470 Hz

Alternating (very fast)

800-1000 Hz

Alternating (very fast)

2500-3200 Hz

Alternating

440-554 Hz

Turn-out, Sweden

Continuous note

700 Hz

All-clear, Sweden

Continuous note

1000 Hz

EN54-3

Continuous note

1000 Hz

Continuous note

2300 Hz

Continuous note

440 Hz

Interrupted tone

1000 Hz

EN54-3

Interrupted tone

420 Hz

AS2220, Australia · EN54-3

Interrupted tone

1000 Hz

Interrupted tone

2500 Hz

Interrupted tone

2500 Hz

Interrupted tone

700 Hz

Pre-vital message, Sweden

Interrupted tone

1000 Hz

Interrupted tone

700 Hz

Air-raid, Sweden

Interrupted tone

700 Hz

Local warning, Sweden

Interrupted tone

720 Hz

Industrial alarm, Germany

Interrupted, fast, rising volume

1400 Hz

Fast siren

250-1200 Hz

Rising constant, falling

1000 Hz

Industrial alarm, Germany

ISO 8201 Evacuation

800-1000 Hz

Int'l evacuation alarm · EN54-3

Fast whoop

500-1000 Hz

Slow whoop

500-1200 Hz

Evacuation, The Netherlands · EN54-3

Reverse sweep

1200-500 Hz

Evacuation, Germany · EN54-3

Siren

500-1200 Hz

Yodalight YL80 Super Hi-Vis – Sounder Beacon 120dB

Functionnality

Type of fixing

Ingress protection

Colour

Voltage

Enclosure colour

Light source

YL80/DL/A/RF/HV/SU/WR (245370)

Product Trade Information

YL80/DL/R/RF/HV/SU/WR (245371)

Product Trade Information

YL80/DL/G/RF/HV/SU/WR (245372)

Product Trade Information

YL80/DL/O/RF/HV/SU/WR (245373)

Product Trade Information

YL80/DL/B/RF/HV/SU/WR (245374)

Product Trade Information

YL80/DL/C/RF/HV/SU/WR (245375)

Product Trade Information

YL80/DL/Y/RF/HV/SU/WR (245376)

Product Trade Information

YL80/DL/M/RF/HV/SU/WR (245377)

Product Trade Information

YL80/DL/A/25/RF/HV/SU/WR (245826)

Product Trade Information

YL80/DL/R/25/RF/HV/SU/WR (245827)

Product Trade Information

YL80/DL/G/25/RF/HV/SU/WR (245828)

Product Trade Information

YL80/DL/O/25/RF/HV/SU/WR (245829)

Product Trade Information

YL80/DL/B/25/RF/HV/SU/WR (245830)

Product Trade Information

YL80/DL/C/25/RF/HV/SU/WR (245831)

Product Trade Information

YL80/DL/Y/25/RF/HV/SU/WR (245832)

Product Trade Information

YL80/DL/M/25/RF/HV/SU/WR (245833)

Product Trade Information

YL80/LL/A/RF/HV/SU/WR (245386)

Product Trade Information

YL80/LL/R/RF/HV/SU/WR (245387)

Product Trade Information

YL80/LL/G/RF/HV/SU/WR (245388)

Product Trade Information

YL80/LL/O/RF/HV/SU/WR (245389)

Product Trade Information

YL80/LL/B/RF/HV/SU/WR (245390)

Product Trade Information

YL80/LL/C/RF/HV/SU/WR (245391)

Product Trade Information

YL80/LL/Y/RF/HV/SU/WR (245392)

Product Trade Information

YL80/LL/M/RF/HV/SU/WR (245393)

Product Trade Information

YL80/NL/A/RF/HV/SU/WR (245394)

Product Trade Information

YL80/NL/R/RF/HV/SU/WR (245395)

Product Trade Information

YL80/NL/G/RF/HV/SU/WR (245396)

Product Trade Information

YL80/NL/O/RF/HV/SU/WR (245397)

Product Trade Information

YL80/NL/B/RF/HV/SU/WR (245398)

Product Trade Information

YL80/NL/C/RF/HV/SU/WR (245399)

Product Trade Information

YL80/NL/Y/RF/HV/SU/WR (245490)

Product Trade Information

YL80/NL/M/RF/HV/SU/WR (245491)

Product Trade Information
