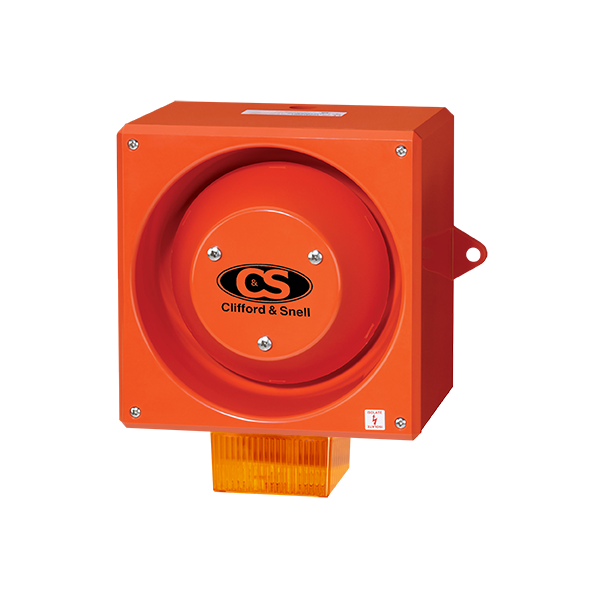

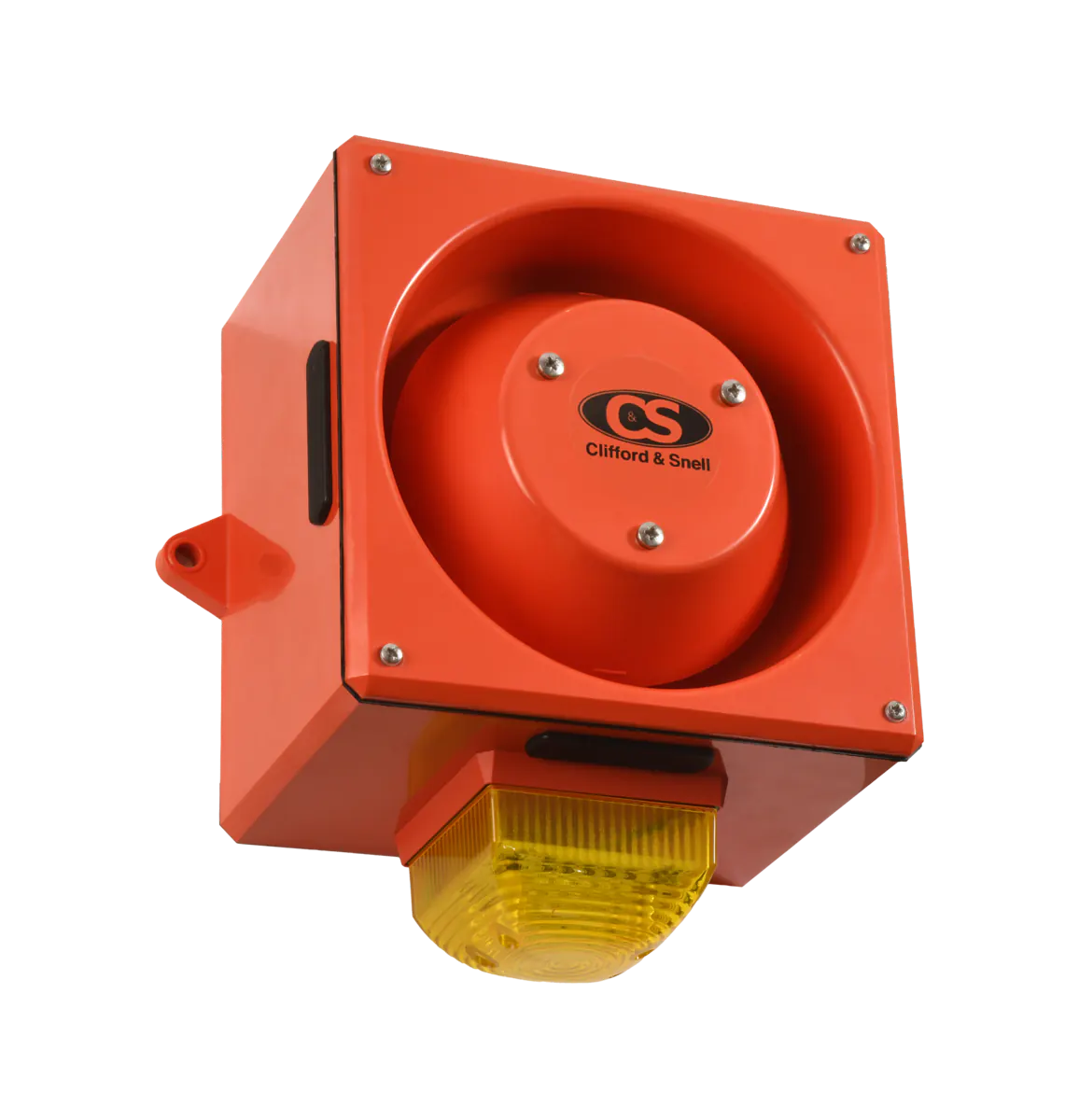

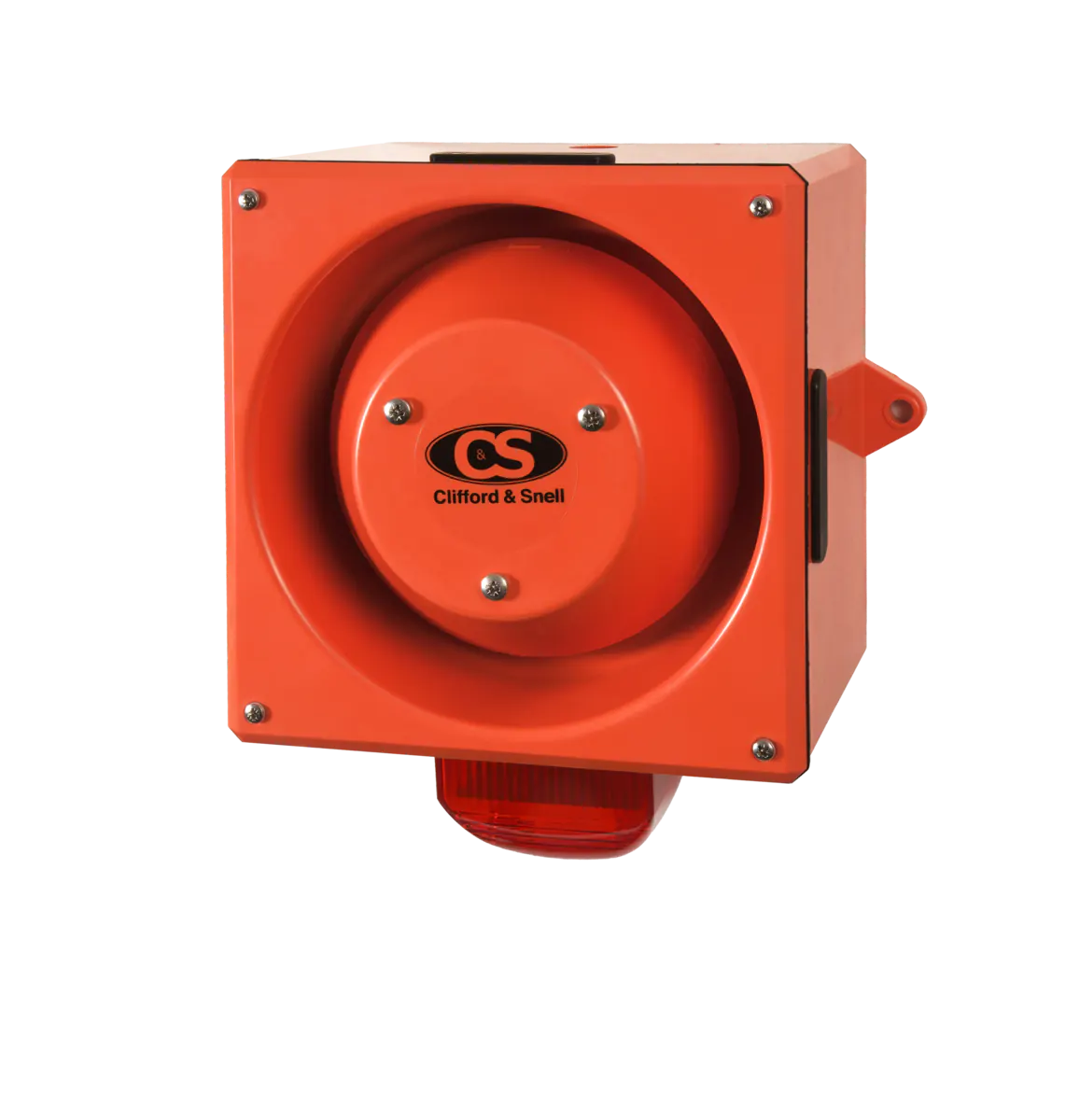

Yodalight YL80 - Sounder Beacon 116dB

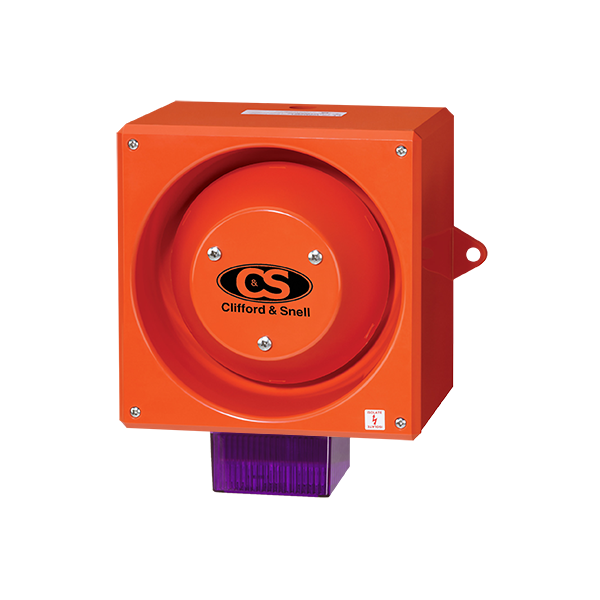

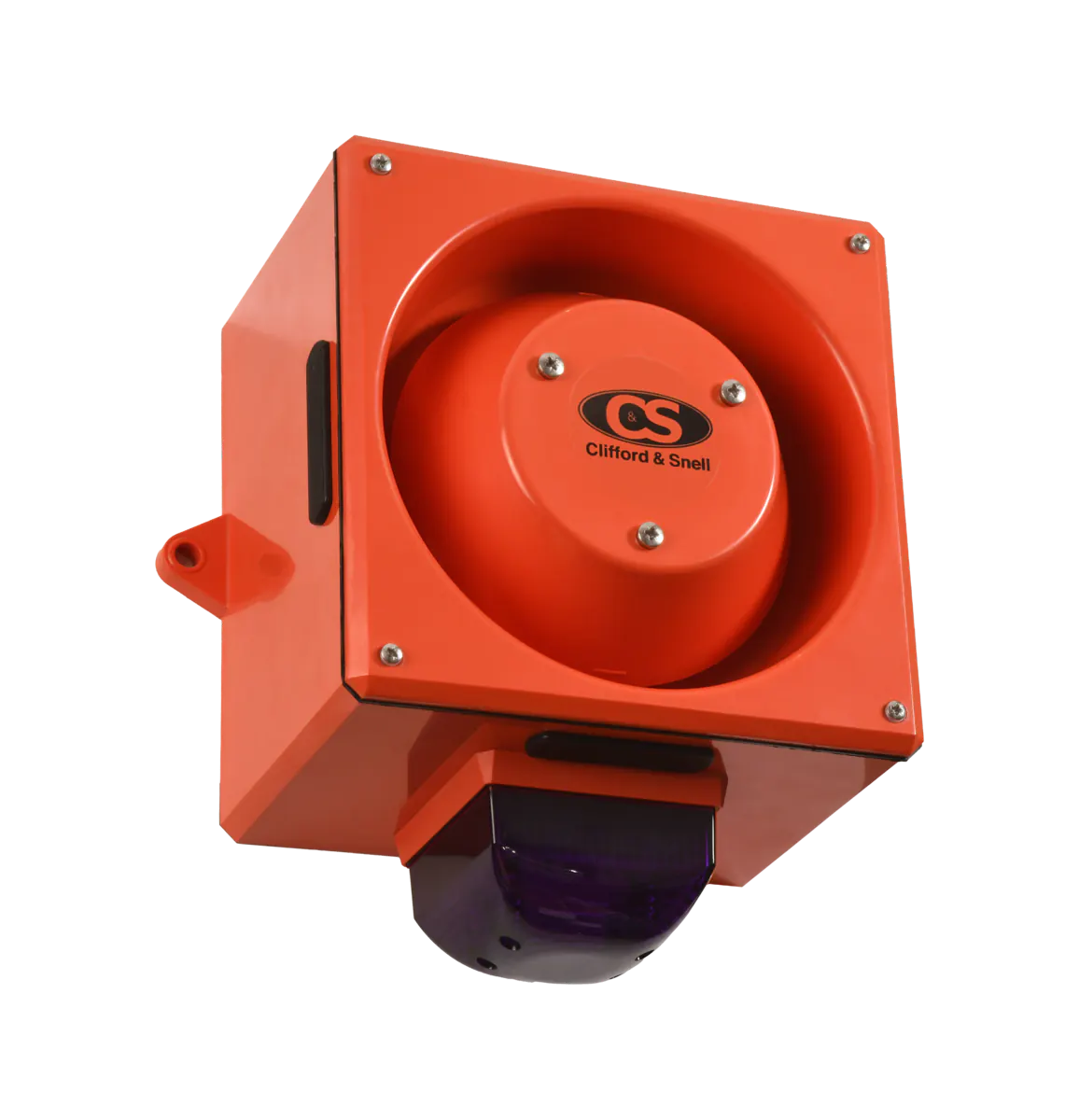

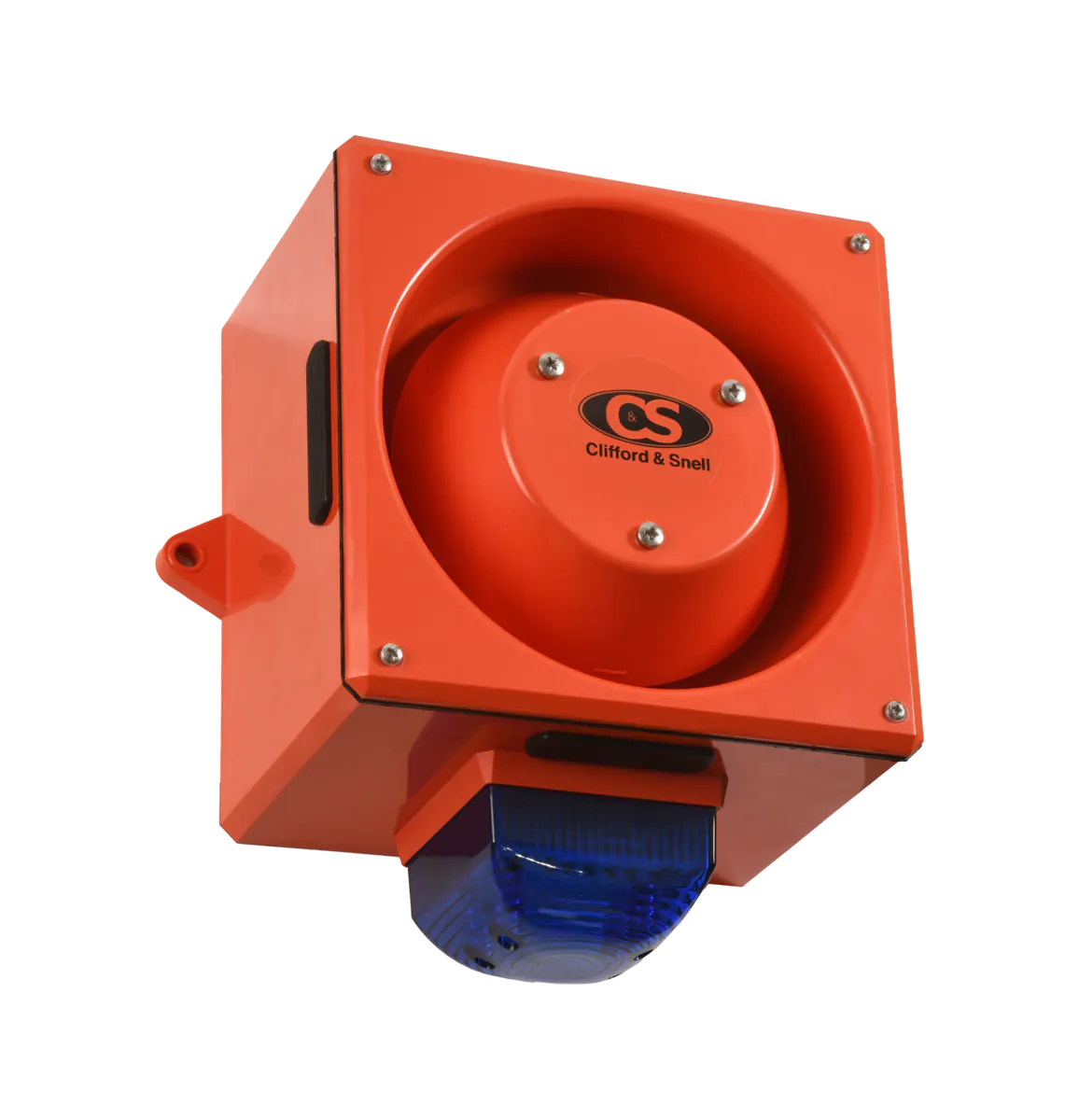

Yodalight YL80 - Sounder Beacon 116dB - Image 2

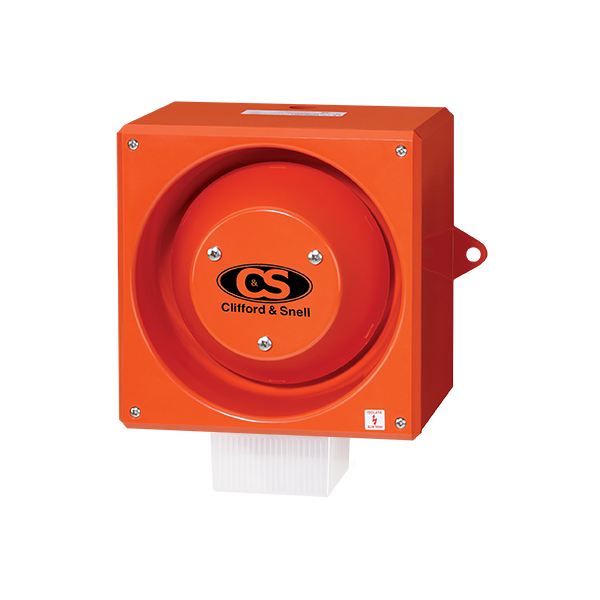

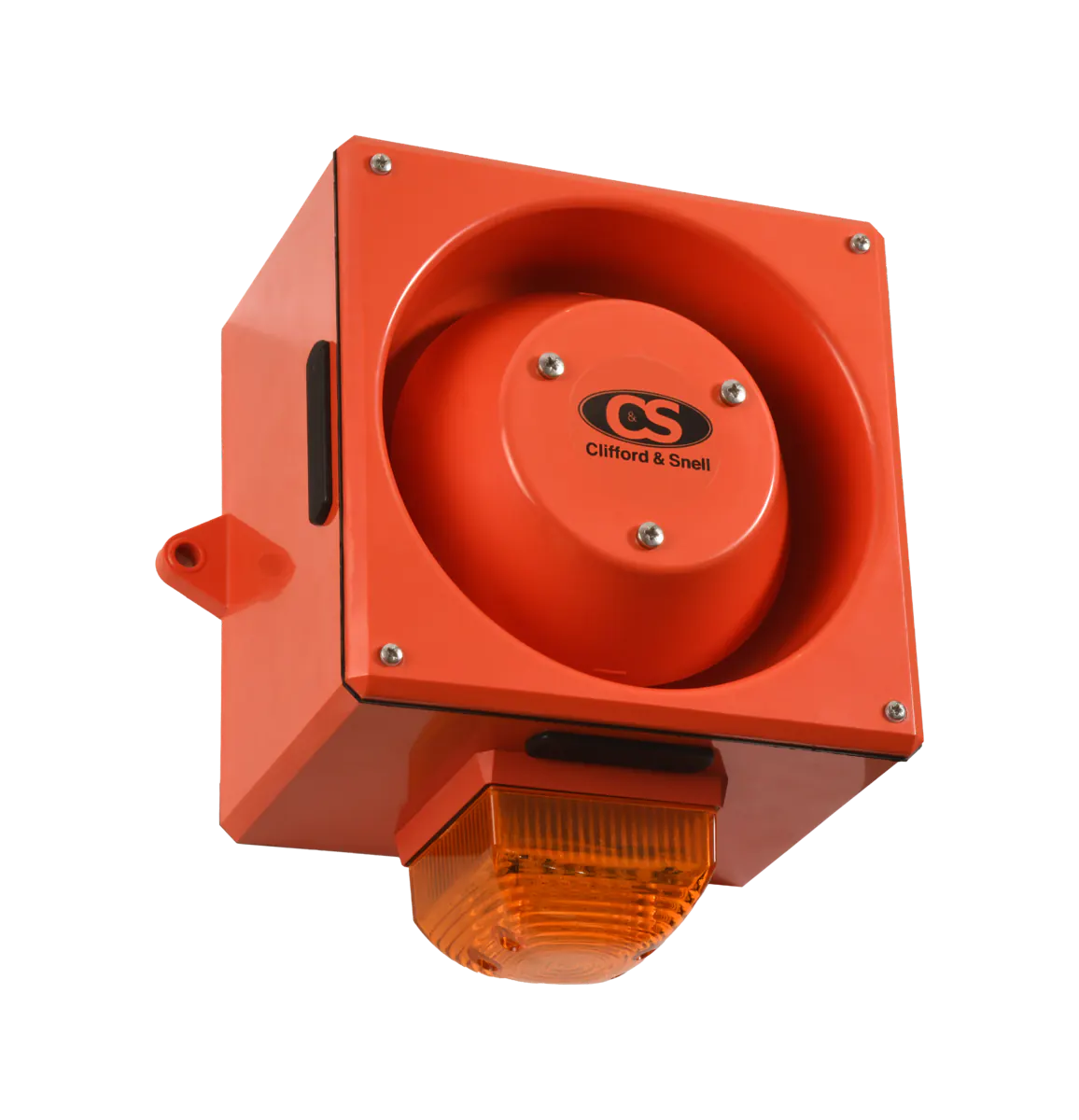

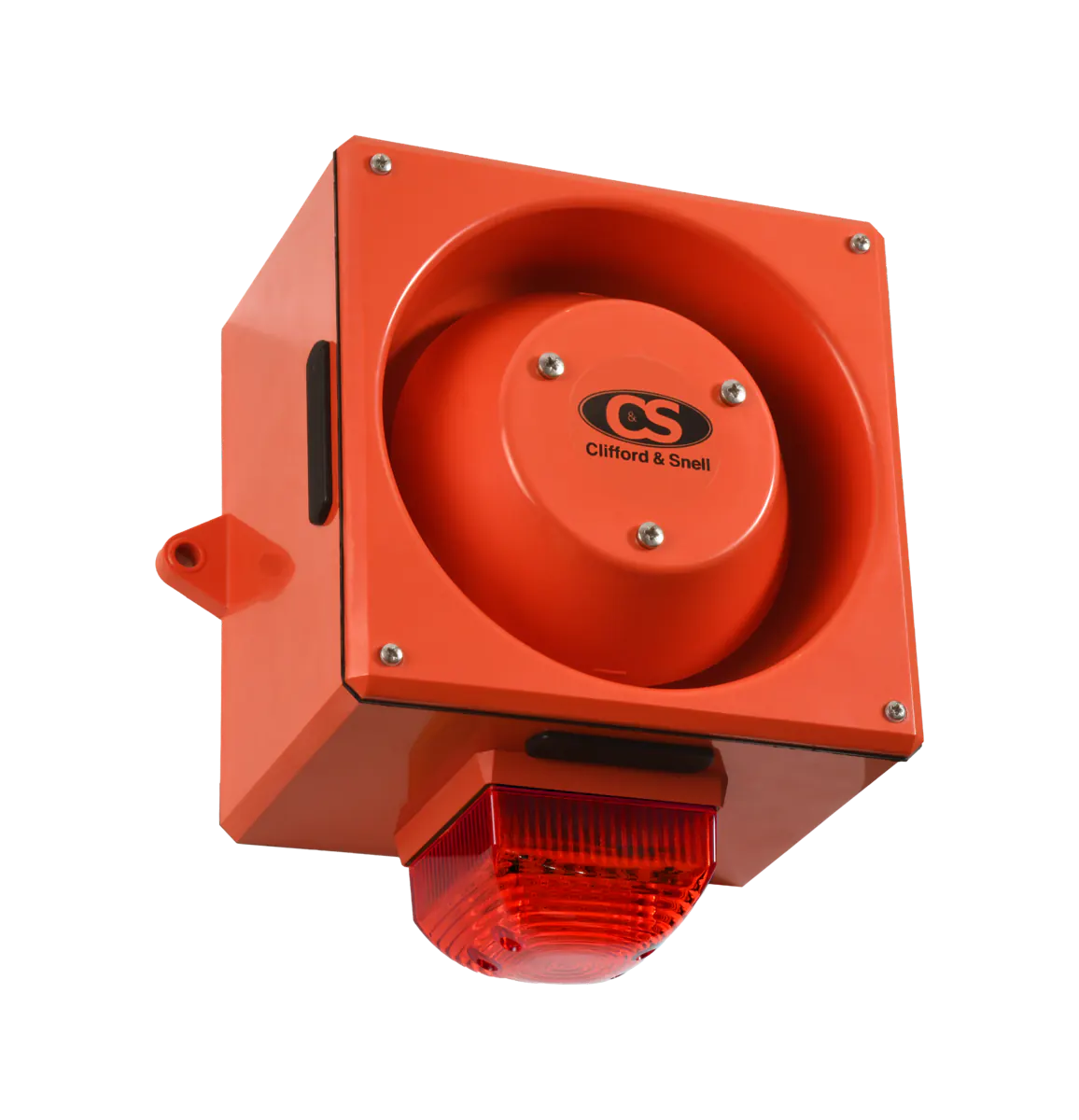

Yodalight YL80 - Sounder Beacon 116dB - Image 3

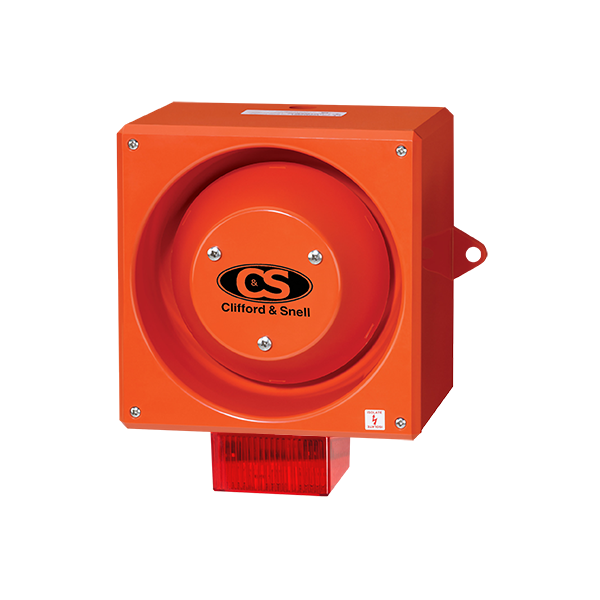

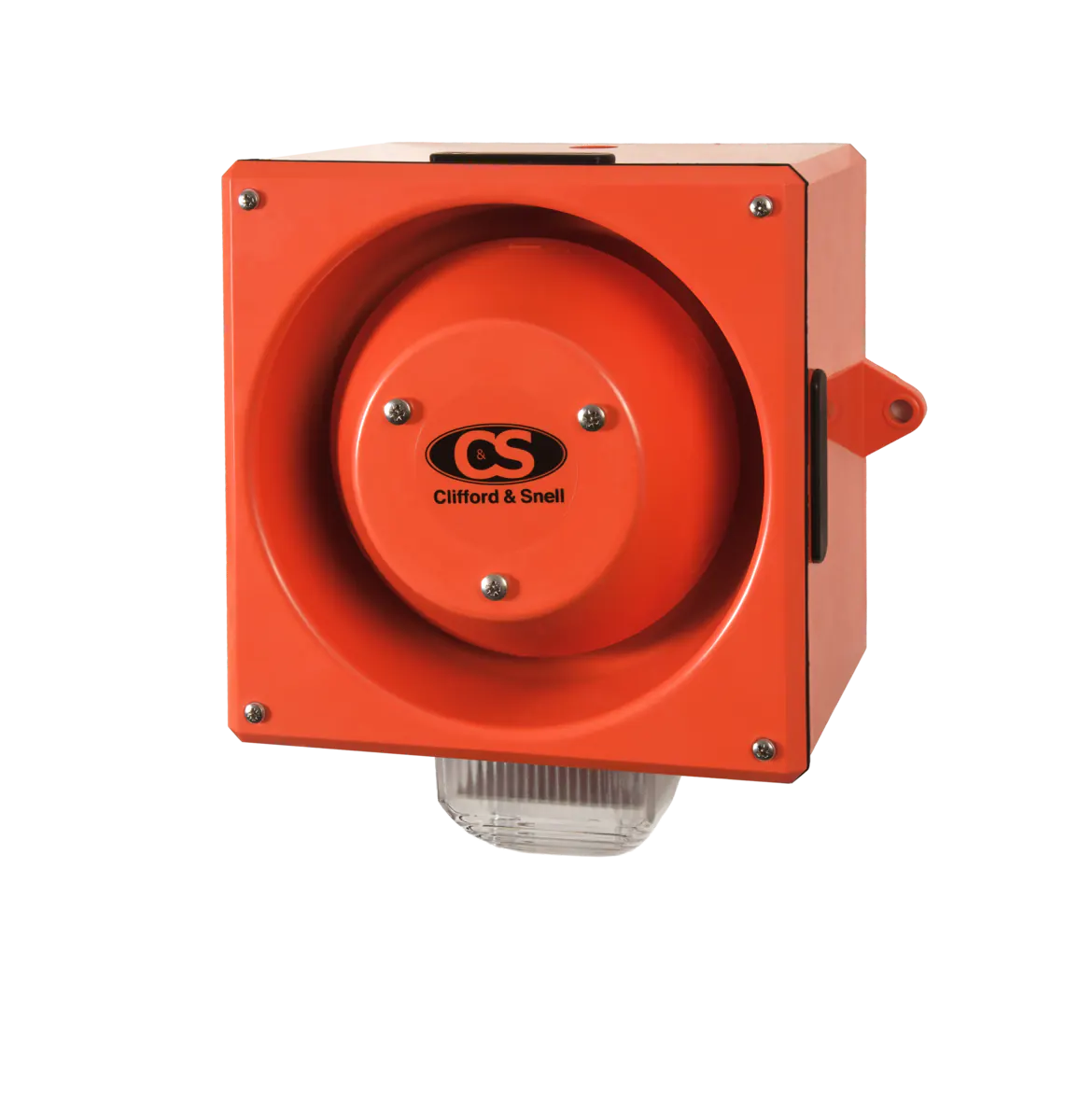

Yodalight YL80 - Sounder Beacon 116dB - Image 4

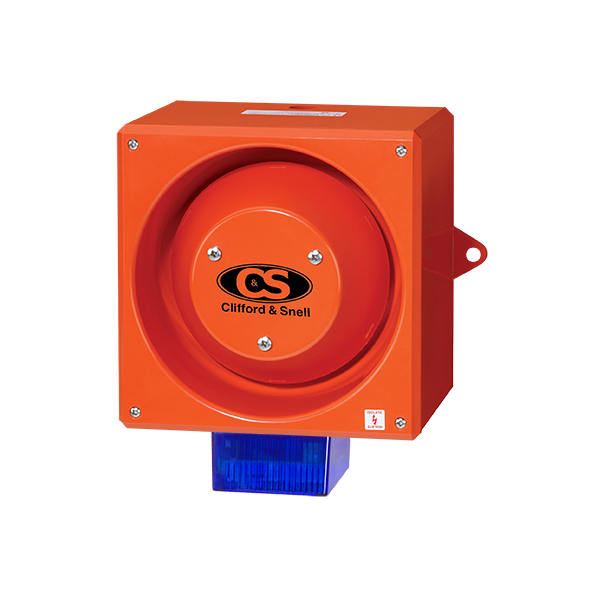

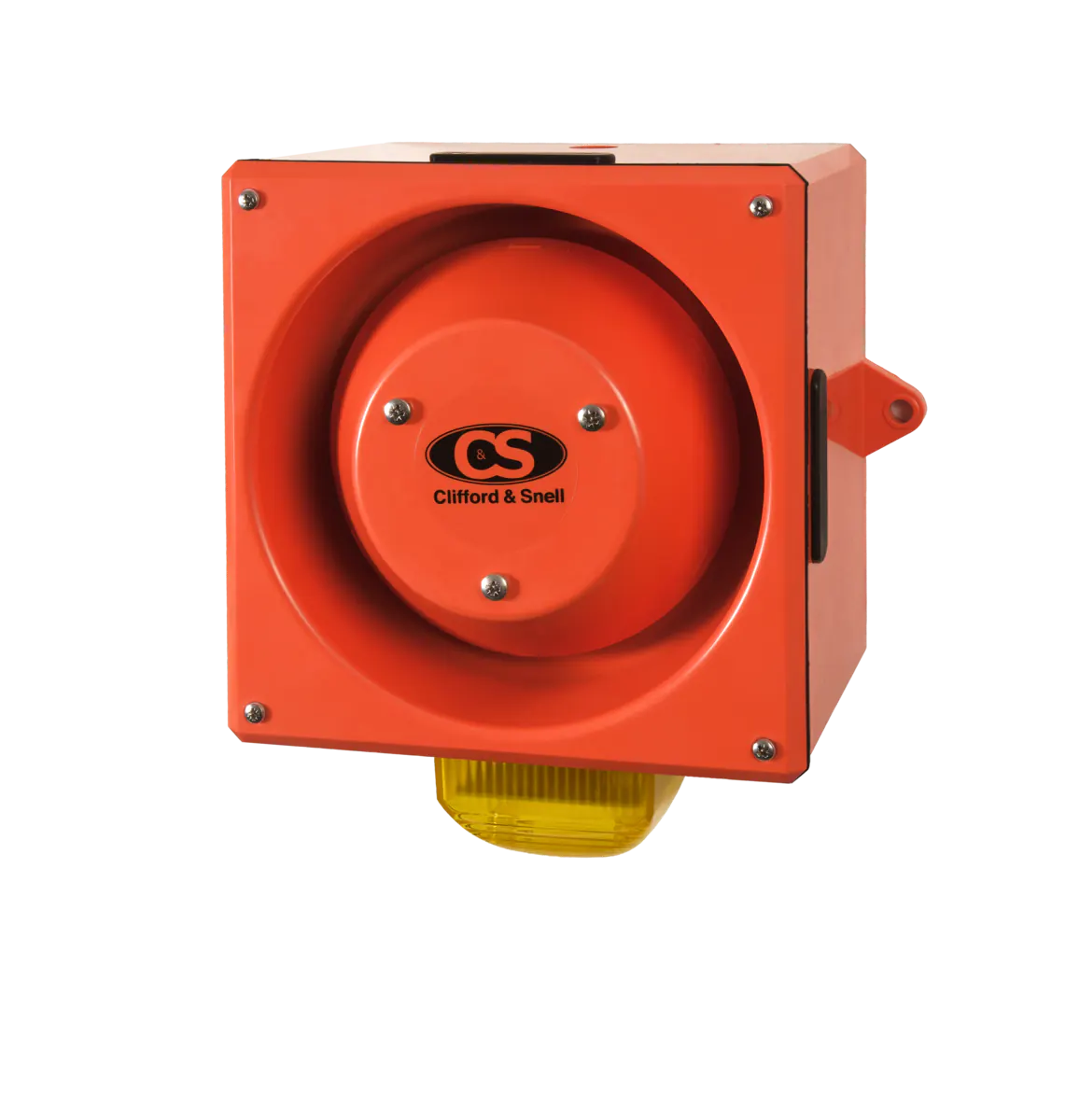

Yodalight YL80 - Sounder Beacon 116dB - Image 5

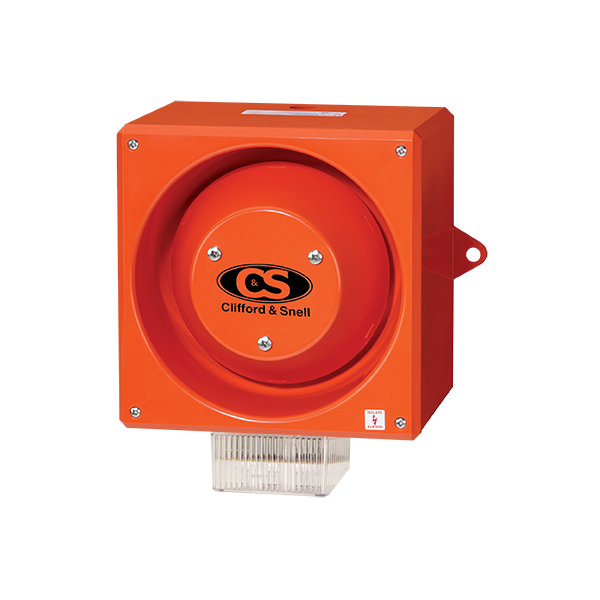

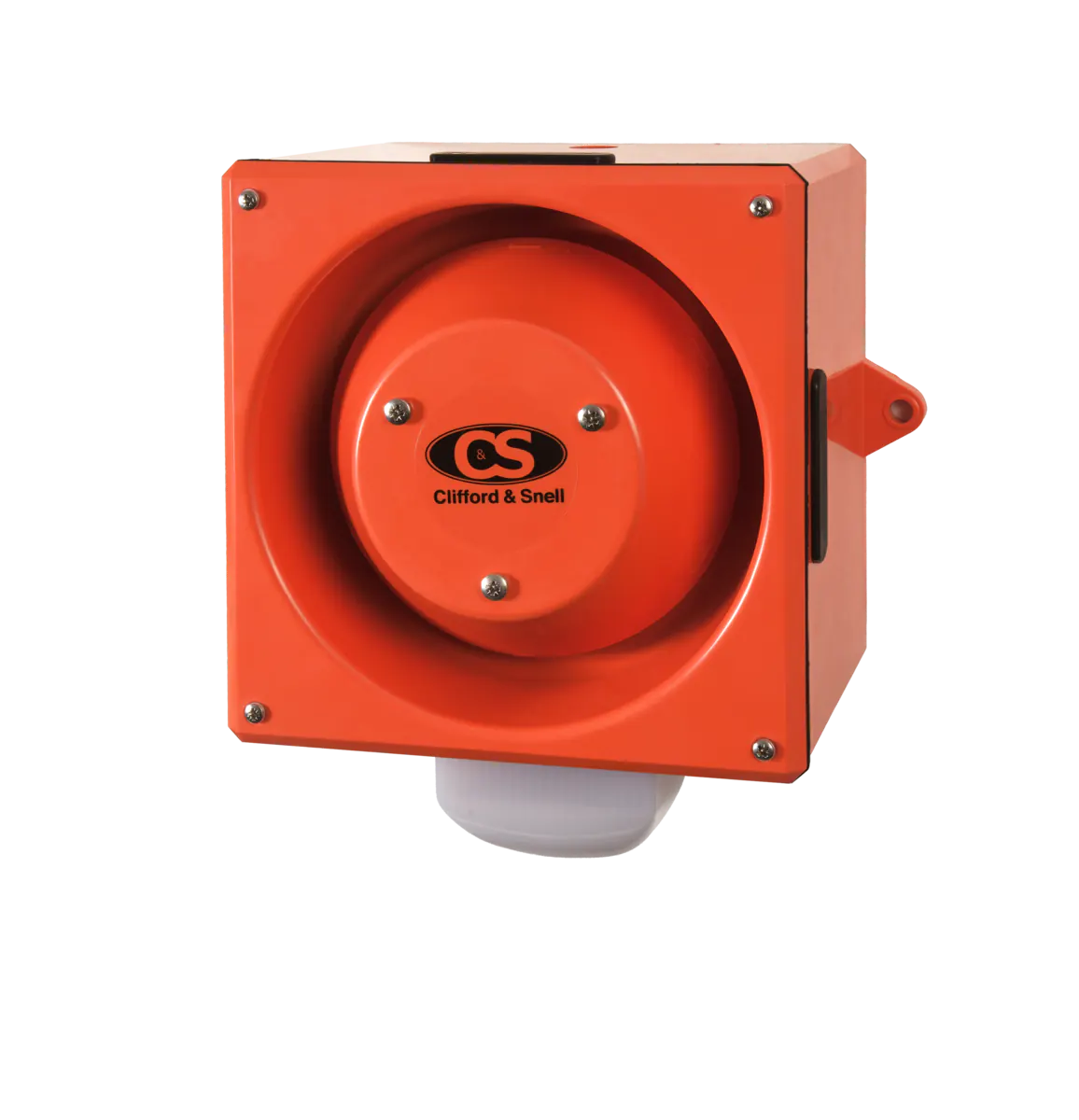

Yodalight YL80 - Sounder Beacon 116dB - Image 6

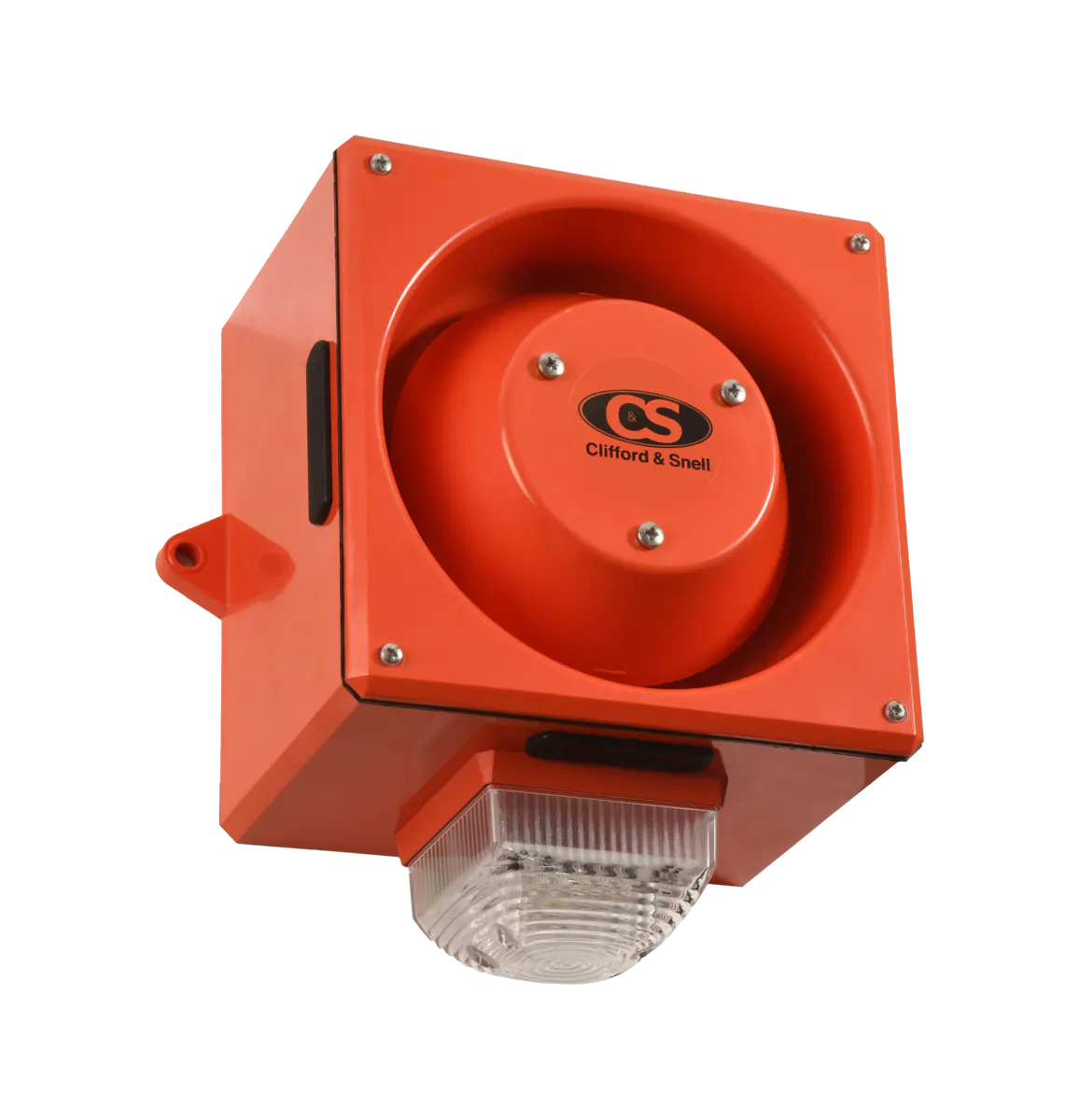

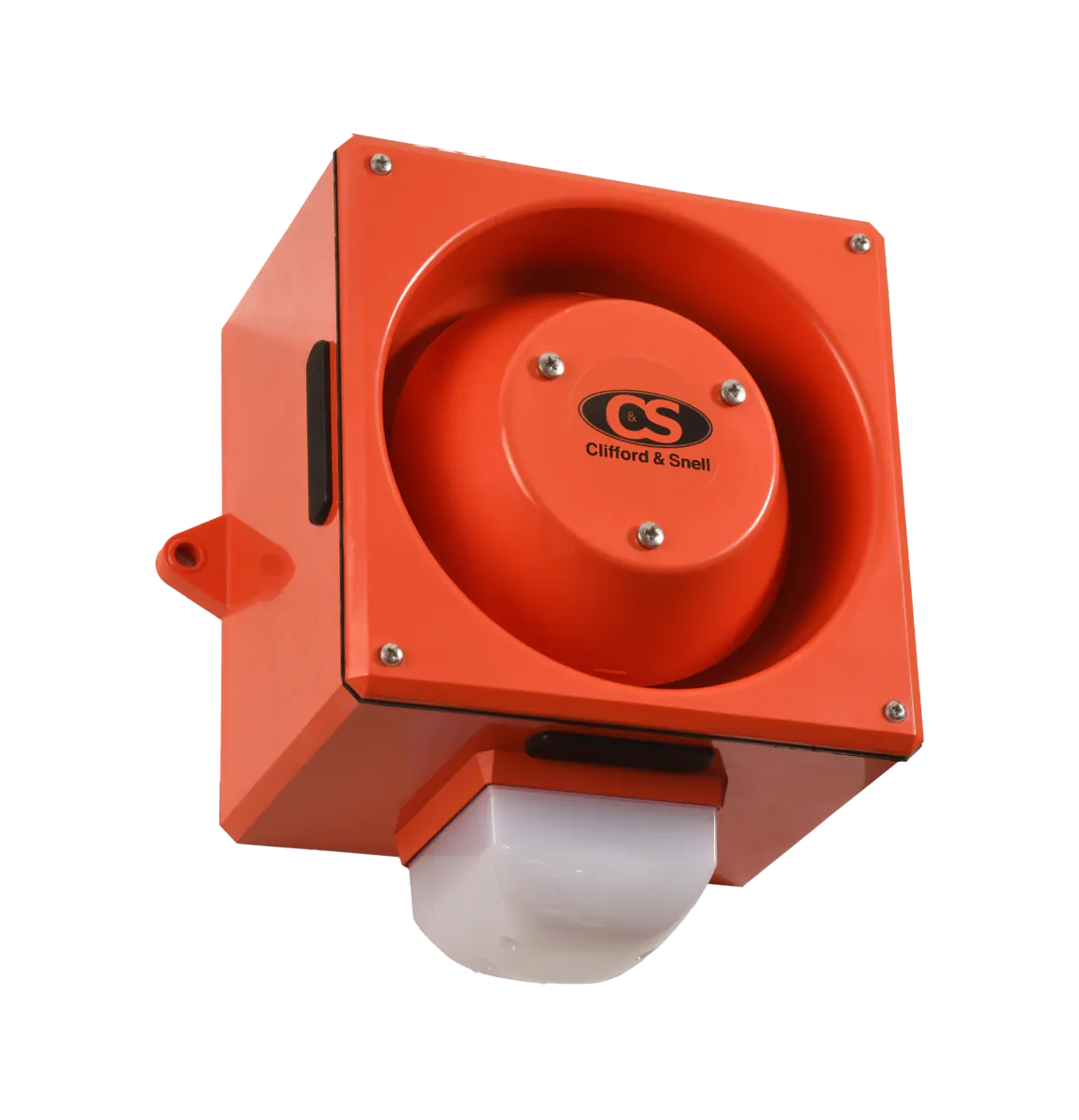

Yodalight YL80 - Sounder Beacon 116dB - Image 7

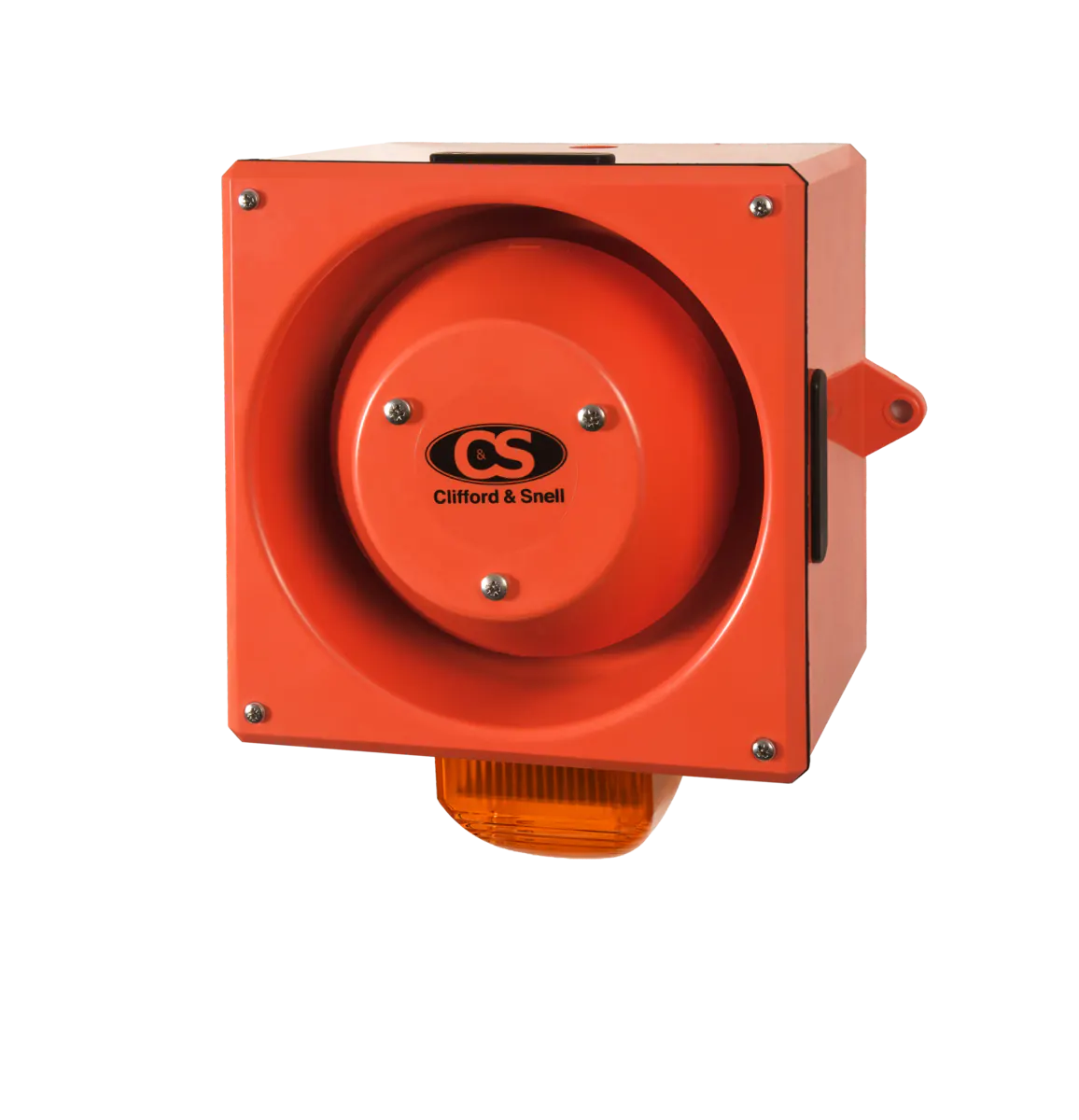

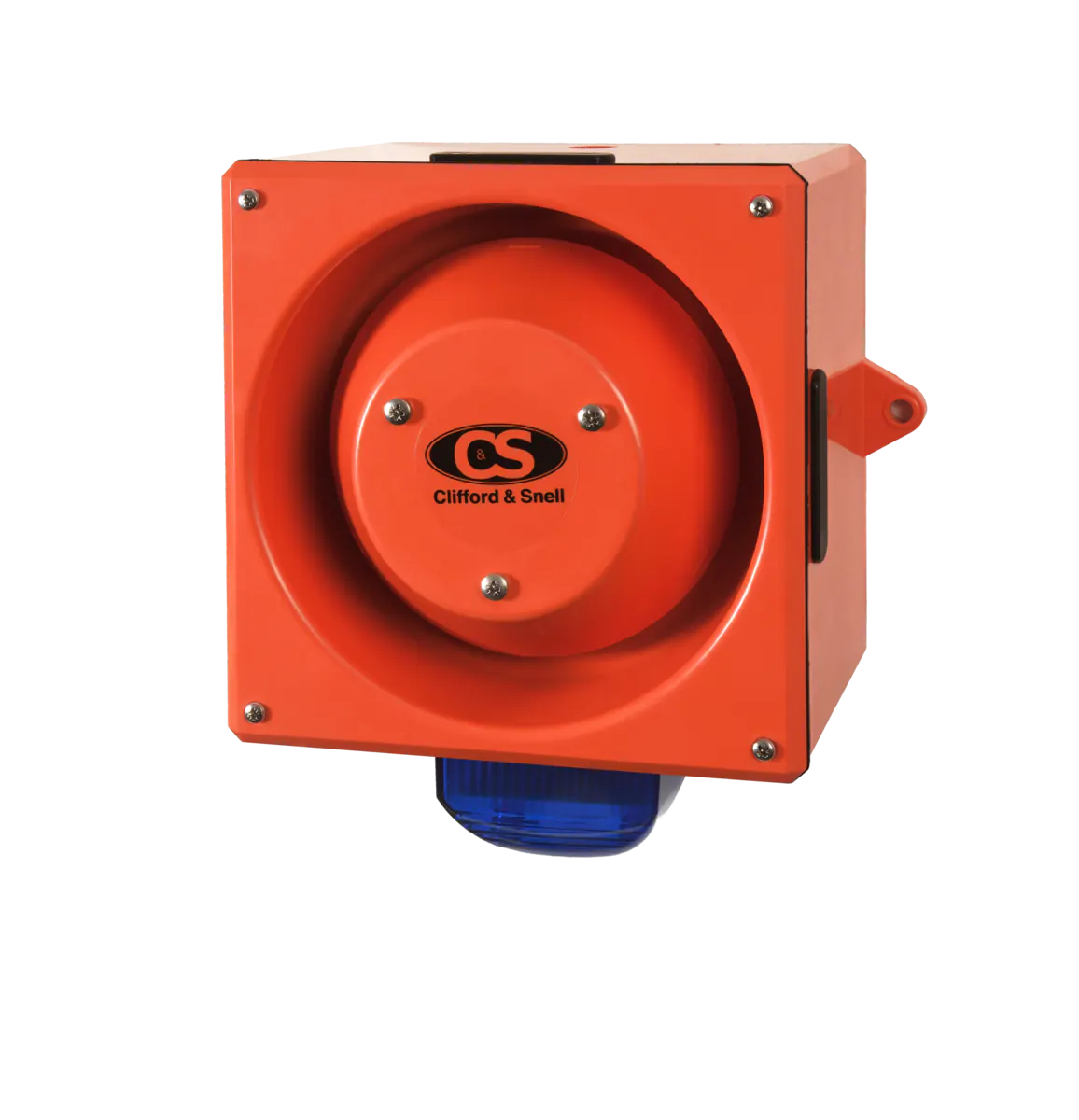

Yodalight YL80 - Sounder Beacon 116dB - Image 8
Yodalight YL80 - Sounder Beacon 116dB - Image 9
Yodalight YL80 - Sounder Beacon 116dB - Image 10
Yodalight YL80 - Sounder Beacon 116dB - Image 11
Yodalight YL80 - Sounder Beacon 116dB - Image 12
Yodalight YL80 - Sounder Beacon 116dB - Image 13
Yodalight YL80 - Sounder Beacon 116dB - Image 14
Yodalight YL80 - Sounder Beacon 116dB - Image 15
Yodalight YL80 - Sounder Beacon 116dB - Image 16
Yodalight YL80 - Sounder Beacon 116dB - Image 17
Back To Our Shop

Yodalight YL80 – Sounder Beacon 116dB

Functionnality: 32 Tones - 2 Stages - Flashing

Type of fixing: Wall and Bulkhead Mounting

Ingress protection: IP66

Enclosure colour: Orange

Colour
Voltage
Enclosure colour
Light source

Yodalight YL80 — Sounder Beacon

The Yodalight YL80 is a high-output combined sounder beacon designed for noisy industrial settings, delivering up to 116dB(A) at 1 metre with a 5J Xenon or high-brightness LED beacon for building coverage. It offers 32 selectable tones, a two-stage alarm and fully independent control of the sounder and beacon sections.

The flame-retardant ABS enclosure is weatherproof to IP66 with stainless-steel fixings. Eight lens colours are also available.

High-output combined signalling for noisy heavy-industry and marine settings.

KEY FEATURES
●  25 LEDs
●  5J Xenon
●  Up to 116dB at 1 metre
●  Flashing
●  32 selectable tones
●  Tones meeting international regulations
●  Two-stage alarm
●  IP66 rated
●  Wall or bulkhead mounting
●  MED, MER & EN54-3 approved
●  Available colours: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta
●  24vDC, 48vDC, 115vAC or 230vAC
MATERIALS
●  Polycarbonate lens
●  Flame-retardant ABS body
●  Stainless-steel fixings

Typical applications: heavy industry, fire systems, high-noise sites, marine, process plants.

Technical Information

Weight: N/A
Dimensions: N/A
Functionnality:

32 Tones – 2 Stages – Flashing
Type of fixing:

Wall and Bulkhead Mounting
Ingress Protection:

IP66
Colour:

Amber, Red, Blue, Green, Clear, Opal, Yellow, Magenta
Voltage:

24vDC, 115vAC, 230vAC, 48vDC
Enclosure Colour:

Orange
Light Source:

25 LED, Xenon 5J
SKU: YL80 Categories:, , , Brand:Clifford & Snell

Downloads

Approvals & Conformities

  • C-Tick
  • CE Marking
  • MED
  • MER
  • RoHS Directive
  • UKCA Importer

Tones

Description
Tone Number
Frequency
Applications
Alternating
1
800-1000 Hz
Fire Alarms · EN54-3
Alternating
2
2500-3100 Hz
Security Alarms
Alternating (fast)
3
800-1000 Hz
Increased urgency
Alternating (fast)
4
2500-3100 Hz
Security deterrent
Alternating
5
440-554 Hz
AFNOR, France (NFS 32001) · EN54-3
Alternating
6
430-470 Hz
Alternating (very fast)
7
800-1000 Hz
Alternating (very fast)
8
2500-3200 Hz
Alternating
9
440-554 Hz
Turn-out, Sweden
Continuous note
10
700 Hz
All-clear, Sweden
Continuous note
11
1000 Hz
EN54-3
Continuous note
12
1000 Hz
Continuous note
13
2300 Hz
Continuous note
14
440 Hz
Interrupted tone
15
1000 Hz
EN54-3
Interrupted tone
16
420 Hz
AS2220, Australia · EN54-3
Interrupted tone
17
1000 Hz
Interrupted tone
18
2500 Hz
Interrupted tone
19
2500 Hz
Interrupted tone
20
700 Hz
Pre-vital message, Sweden
Interrupted tone
21
1000 Hz
Interrupted tone
22
700 Hz
Air-raid, Sweden
Interrupted tone
23
700 Hz
Local warning, Sweden
Interrupted tone
24
720 Hz
Industrial alarm, Germany
Interrupted, fast, rising volume
25
1400 Hz
Fast siren
26
250-1200 Hz
Rising constant, falling
27
1000 Hz
Industrial alarm, Germany
ISO 8201 Evacuation
28
800-1000 Hz
Int'l evacuation alarm · EN54-3
Fast whoop
29
500-1000 Hz
Slow whoop
30
500-1200 Hz
Evacuation, The Netherlands · EN54-3
Reverse sweep
31
1200-500 Hz
Evacuation, Germany · EN54-3
Siren
32
500-1200 Hz
