VORTEx® Injection Resin
Explosion Proof & Hazardous Area Accessories
Accurate, Instant Mixing and Application in One Single Action
for Hazardous Area Installations
Features and Benefits
CCG’s VORTEx® Barrier Gland with an instant mixing, injecting resin has all but eliminated the hassles surrounding the preparation, mixing, and application of compounds/resins in Barrier Glands. The VORTEx® Injection Resin system is instantly and 100% accurately mixed whilst being simultaneously injected into the barrier gland in one single action.
This reduces the installation time and gives increased confidence in the installation compared to the epoxy putty or sachet mix liquid pour resins.
The Injection resin flows into all the cable voids and interstices, completely filling the cable end. This forms a 100% barrier to any migration of explosive gases or fluids down the inside of an unfilled hygroscopic cable. VORTEx® barrier glands are tested and fully comply with the latest IEC Ex standards and installation codes of practice.CCG’s VORTEx® Barrier Gland with an instant mixing, injecting resin has all but eliminated the hassles surrounding the preparation, mixing, and application of compounds/resins in Barrier Glands. The VORTEx® Injection Resin system is instantly and 100% accurately mixed whilst being simultaneously injected into the barrier gland in one single action.
This reduces the installation time and gives increased confidence in the installation compared to the epoxy putty or sachet mix liquid pour resins.
The Injection resin flows into all the cable voids and interstices, completely filling the cable end. This forms a 100% barrier to any migration of explosive gases or fluids down the inside of an unfilled hygroscopic cable. VORTEx® barrier glands are tested and fully comply with the latest IEC Ex standards and installation codes of practice.
Ease of use

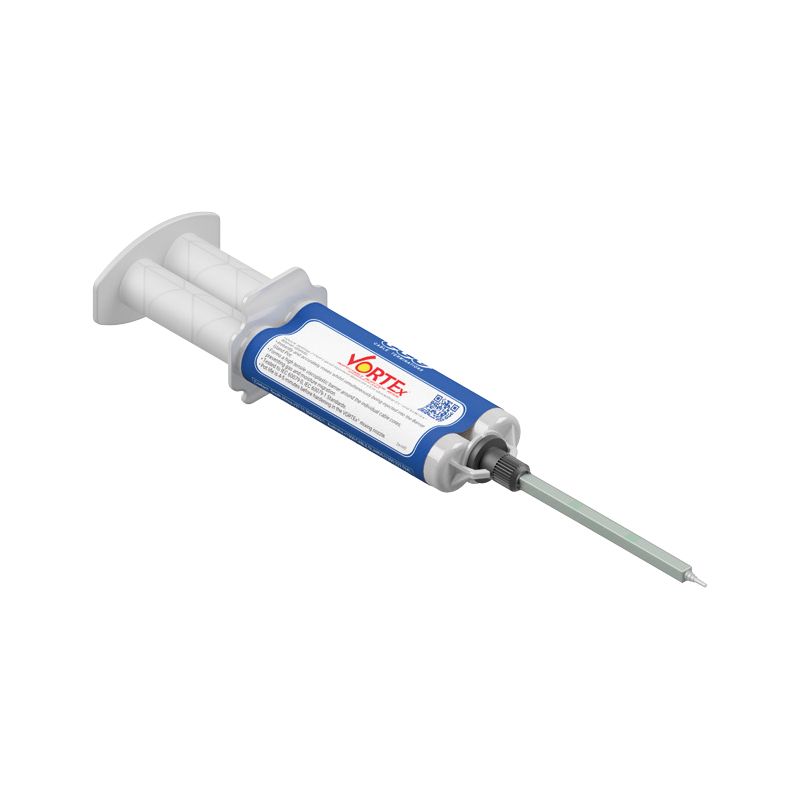

VORTEx® Injection Resin® is held in injection tubes and with a vortex mixing nozzle, it requires just one hand to mix and apply. Unlike a sachet, liquid resins require two hands to mix.
Instant Accurate Mixing and Simultaneous Injection
VORTEx® Injection Resin® is instantly and accurately mixed and then simultaneously injected through the vortex mixing nozzle in just one action, completely eliminating the time taken as well as the risks involved, which are prevalent when premixing other forms of resin.
100% Safe And Effective
VORTEx® liquid resin flows into and fills all the voids in unfilled multi-core cables displacing all air and guaranteeing a 100% perfect barrier seal. Unlike traditional putty filled barrier glands requiring specialized skill and care to install.
Quick Setting
VORTEx® Resin sets in minutes. At 20oC it takes 15- minutes and at 30oC it takes just 10- minutes to set.
Inspectable Chamber
A clear, inspectable resin chamber seal and yellow-coloured resin allow for ease of inspection.
