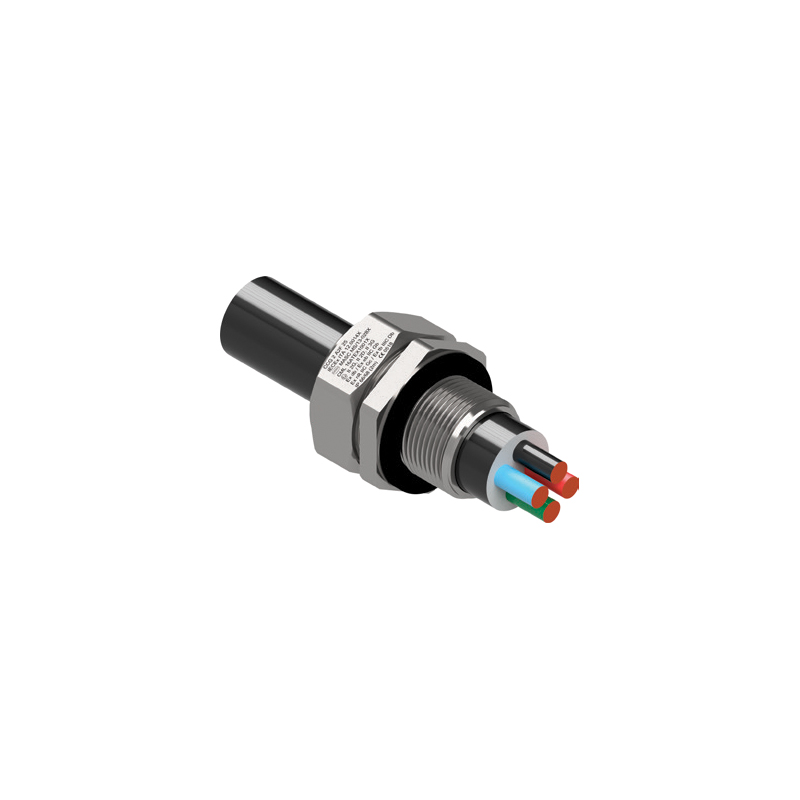

A2F Compression Gland

Material

Gland Material:
Brass (Marine Grade Electroless Nickel Plated™), Aluminium and Stainless Steel 316/316L

Seal Material:
Standard Thermoset Elastomer or Extreme Temperature Seals

Sealing Gasket Material:
HDPE, Nylon 66 or PTFE

Cable Type:
Single or Multi-Core Unarmoured

Sealing Area:
Outer Sheath

Optional Accessories:
Adaptor, Reducer, Earth Tag, Locknut, Serrated Washer and Shroud

Note:
The installer should ensure that the materials are suitable for the installation environment.

Description
Technical information

[vc_row][vc_column][vc_column_text css=””]

A2F Compression Gland
Explosion Proof & Hazardous Area Accessories

Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC
for Single or Multi-Core Unarmoured Cable

Passes the IECEx / UKEX / ATEX 100% pull test, so no additional cable clamping is required.
For indoor, outdoor, Group I, II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating.
Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium is not suitable for Group I applications.)
Supplied with a thread sealing gasket (parallel threads only)

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_icon_fontawesome=”fa fa-download” add_icon=”true” title=”Downloads” tab_id=”1530092431306-6d56bb27-2d69″][vcex_button layout=”block” style=”plain-text” color=”blue” icon_right=”download” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/Explosion-Proof-Accessories/0541_A2F_Gland_GH090126MF.pdf” onclick_target=”blank”]Datasheet[/vcex_button][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]

IP Rating:

IP 65, IP 66, IP 68
