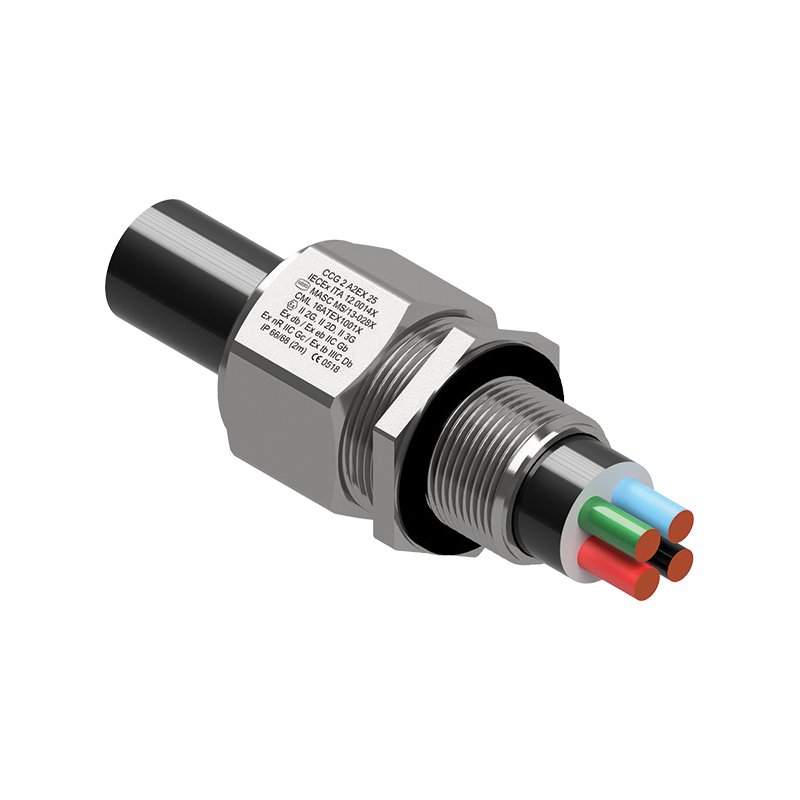

A2EX Compression Gland

Material

Gland Material:
Brass (Marine Grade Electroless Nickel Plated™), Aluminium and Stainless Steel 316/316L

Seal Material:
Standard Thermoset Elastomer or Extreme Temperature Seals

Sealing Gasket Material:
HDPE, Nylon 66 or PTFE

Cable Type:
Single or Multi-Core Unarmoured

Sealing Area:
Outer Sheath

Optional Accessories:
Adaptor, Reducer, Earth Tag, Locknut, Serrated Washer and Shroud

Note:
The installer should ensure that the materials are suitable for the installation environment.

Description
Technical information

[vc_row][vc_column][vc_column_text css=””]

A2EX Compression Gland
Explosion Proof & Hazardous Area Accessories

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
for Single or Multi-Core Unarmoured Cable

For indoor, outdoor, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
Inner seal, seals on the cable sheath.
Harder outer seal grips the cable, giving it superior cable retention and IP rating.
Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™), available in aluminium or stainless steel 316/316L on request.
Supplied with a thread-sealing gasket (parallel threads only).

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_icon_fontawesome=”fa fa-download” add_icon=”true” title=”Downloads” tab_id=”1530092431306-6d56bb27-2d69″][vcex_button layout=”block” style=”plain-text” color=”blue” icon_right=”download” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/Explosion-Proof-Accessories/0536_A2EX_GH090126MF.pdf” onclick_target=”blank”]Datasheet[/vcex_button][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]

IP Rating:

IP 65, IP 66, IP 68
