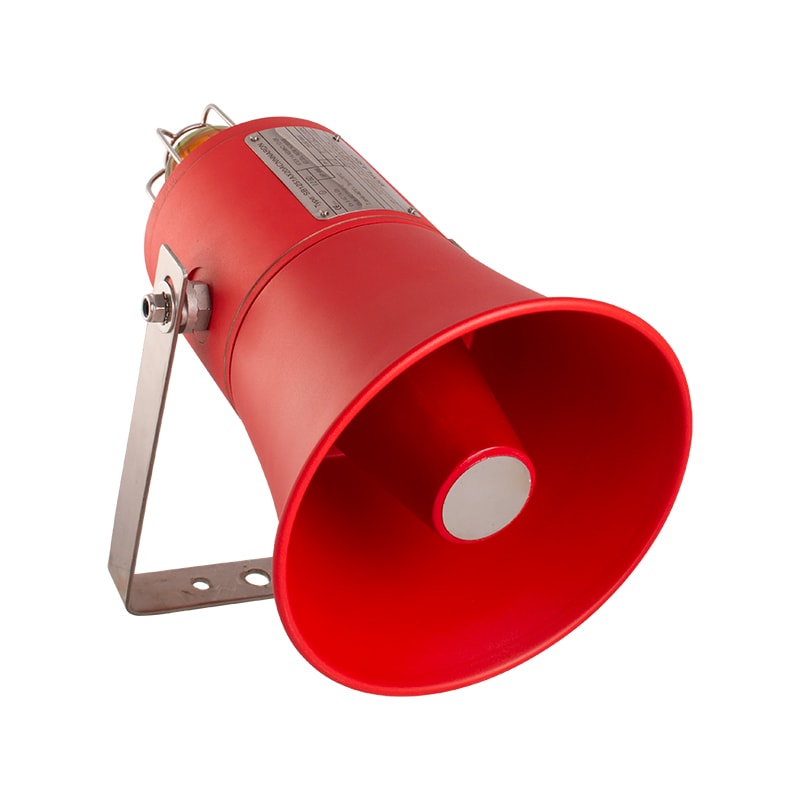

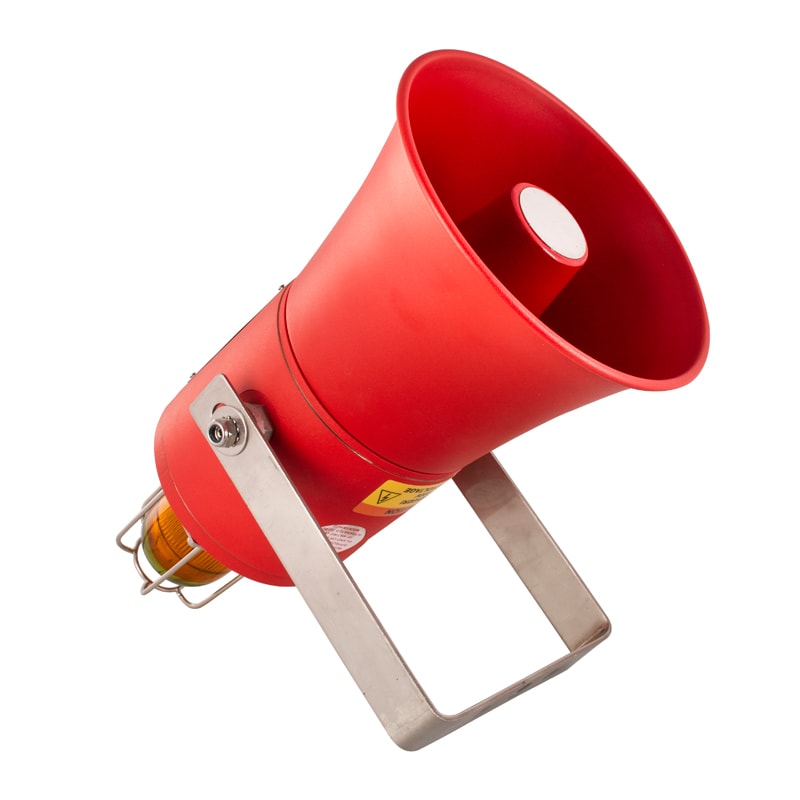

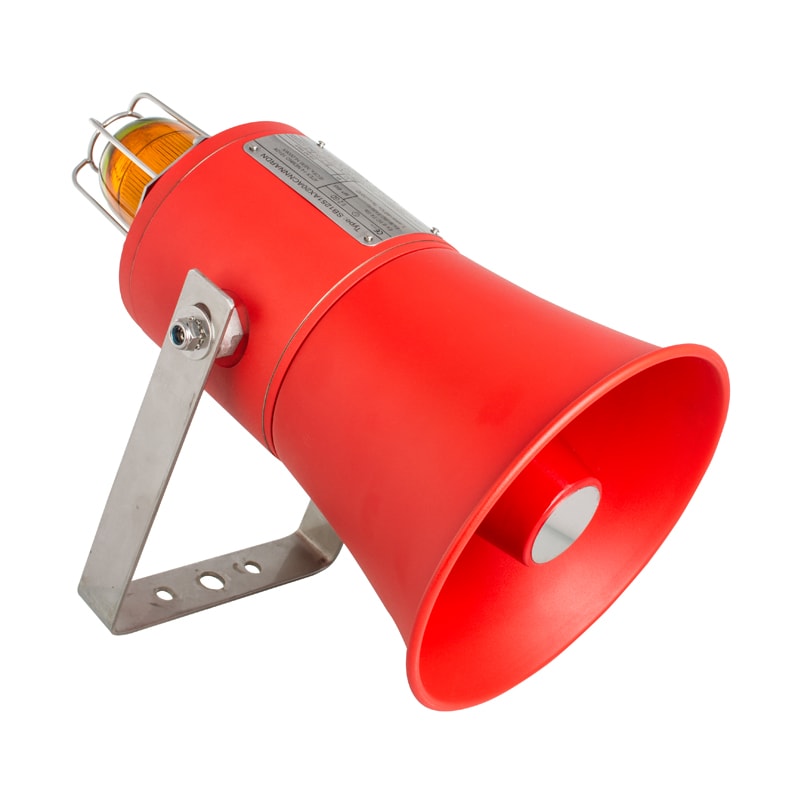

SB125-1 Series (Stainless Steel)

Explosion Proof Combined Sounder Beacon

The SB125-1 electronic combined sounder beacon range has been approved for use in potentially explosive atmospheres and very harsh environmental conditions.

Typical applications are Oil and Gas, On-shore and Offshore, Chemical, Petrochemical, Refineries & Marine locations etc.

The unit incorporates a four stage alarm option with sixty three tones to choose from which includes four tones that can be recorded or customised by the installer.

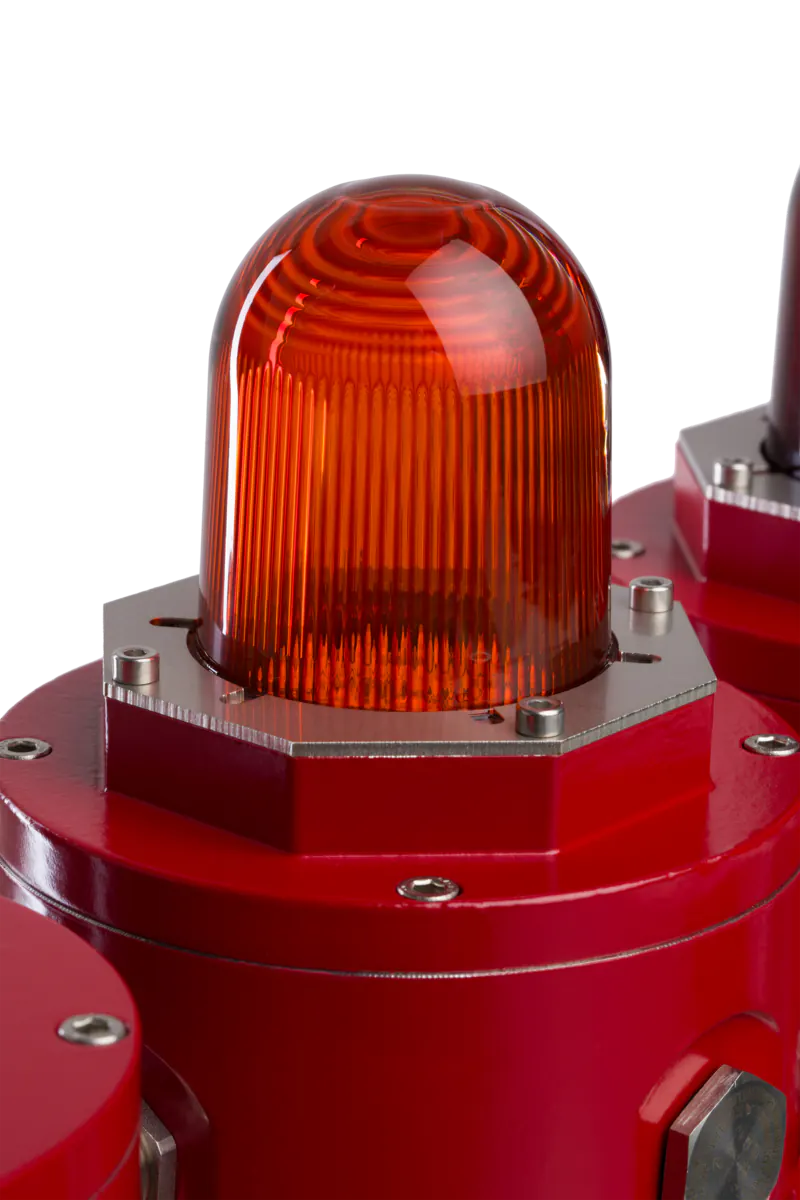

All tones can be pre-set during installation. In addition, the unit also incorporates a visual warning signal with a choice of two types of light source: either xenon (strobe) with multiple flash rates and power ratings or an LED array with three status type indication options.

The units also have the ability to be fitted with a telephone initiation function and can be used as the second ring output indicator for telephones when installed in very noisy environments.

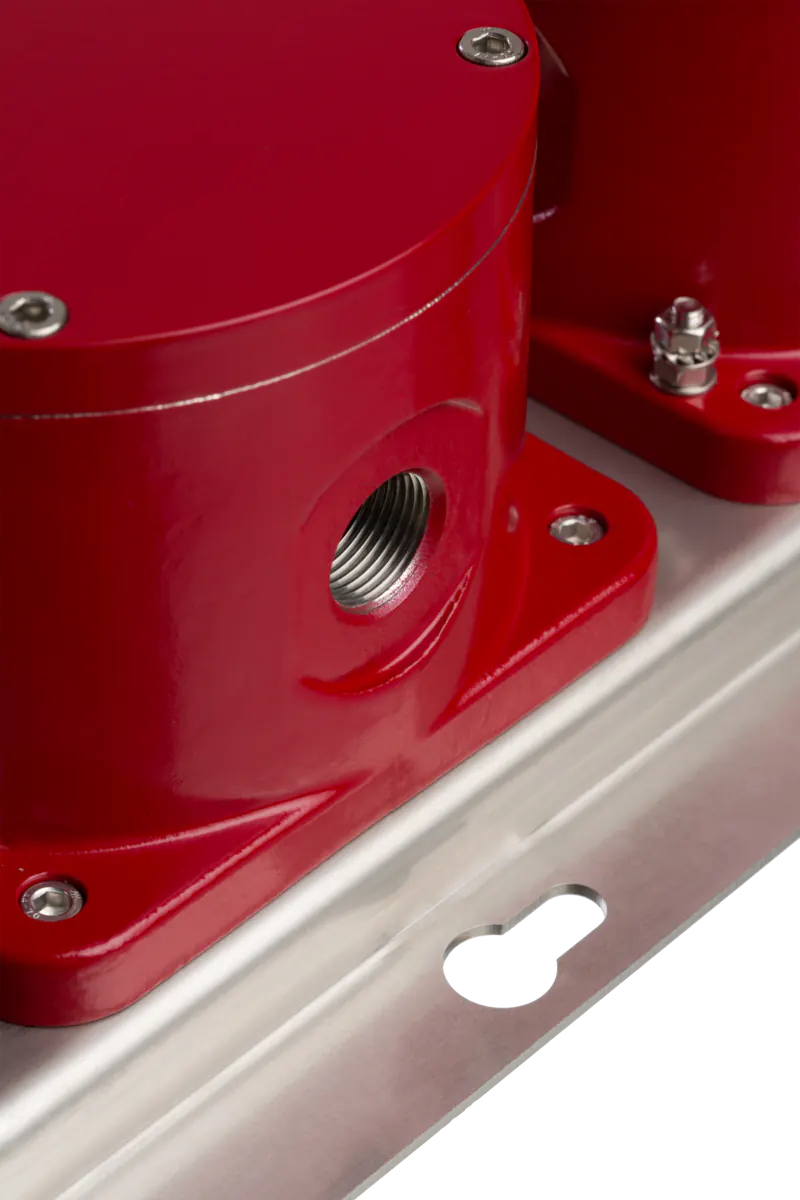

The design allows for termination inside the enclosure. The unit can be bracket mounted only.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_icon_fontawesome=”fa fa-info-circle” add_icon=”true” title=”Info” tab_id=”1530202630103-c6a631a6-ffa2″][vc_column_text][table id=185 /]
[table id=69 /][/vc_column_text][vc_column_text][table id=70 /][/vc_column_text][vc_column_text]Power Consumption: Sounder: 5-20W & LED: 5W[/vc_column_text][vc_column_text][table id=71 /][/vc_column_text][vc_column_text]Working Current: Sounder: 250 mA – 1500 mA & LED: 220 mA (Max)[/vc_column_text][vc_column_text][table id=72 /][/vc_column_text][vcex_image_grid image_ids=”4814,4815,4816″ css_animation=”fadeInDown” img_size=”medium” hover_animation=”shrink” img_hover_style=”shrink”][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-download” add_icon=”true” title=”Downloads” tab_id=”1530202630127-14d7877b-62f9″][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/SB125/Issue-10-SB125-1-Issue-3.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Datasheet – English[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/SB125/french/Issue-10-SB125-1-Issue-3.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Datasheet – French[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” style=”plain-text” color=”blue” icon_right=”download” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/SB125/SB125-1-S00527-Issue-8.pdf” onclick_target=”blank”]Installation Sheet[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/SB125/SB125-1-S00528-Tone-Selection-Issue-6.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Tone Selection[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/SB125/Moflash-SB125.zip” target=”blank” style=”plain-text” color=”red” icon_right=”fa fa-download”]CAD File[/vcex_button][vcex_spacing size=”5px”][vc_text_separator title=”Certification” i_icon_fontawesome=”fa fa-check-square-o” i_background_style=”rounded-outline” i_background_color=”blue” i_size=”xs” title_align=”separator_align_left” align=”align_left” color=”blue” el_width=”50″ add_icon=”true”][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/SB125-SB150/Moflash-ATEX-14-NEMKO-1010X-Certificate.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]ATEX[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/SB125-SB150/Moflash-iecex-certificate-SB125SB150.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]IECEx[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/SB125-SB150/EU-DOC-Master-SB125-SB150-Issue-F.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]Declaration of Conformity[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/SB125-SB150/Address-Change-Statement-for-Moflash.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]Address Change[/vcex_button][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-cube” add_icon=”true” title=”3D Model” tab_id=”1530206068605-abb83081-aa6a”][vc_column_text]
