EN54 Sonos Sounder Series

Features

  • Wide voltage range
  • 2 Alarm stages and 32 tones
  • Cable Entries: Deep Base: 2 x 20mm Cable Glands
  • VdS Approved
  • Synchronised alarm tones
  • Compliance: EN54-3 Type A (Shallow Base) EN54-3 Type B (Deep Base)
  • Volume control – Typical 8dB
  • IP65 (Deep Base unit only)

Material

  • Flame Retardant Polycarbonate

[vc_row][vc_column][vc_column_text]

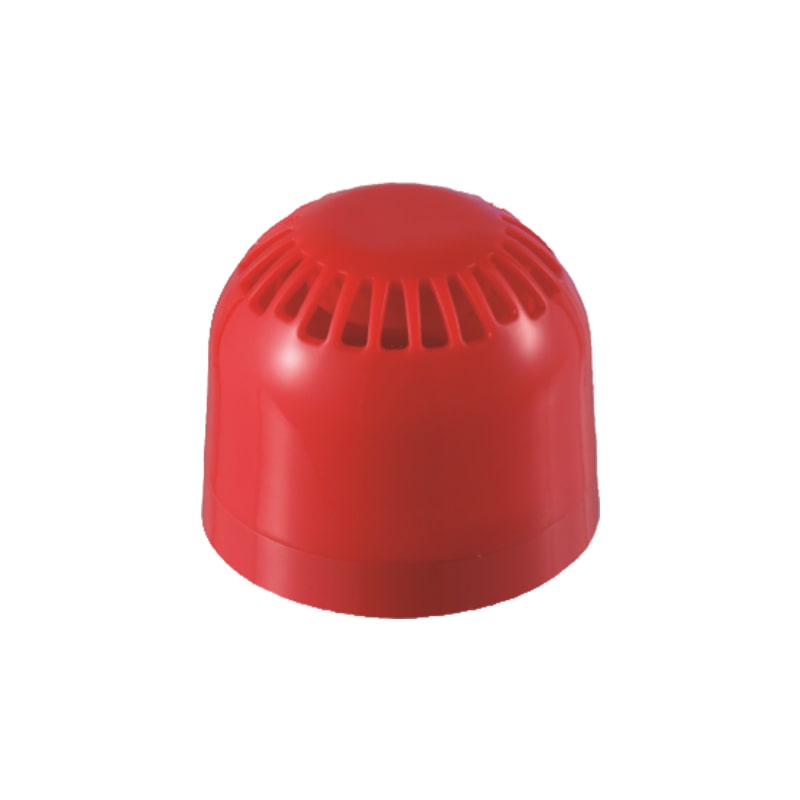

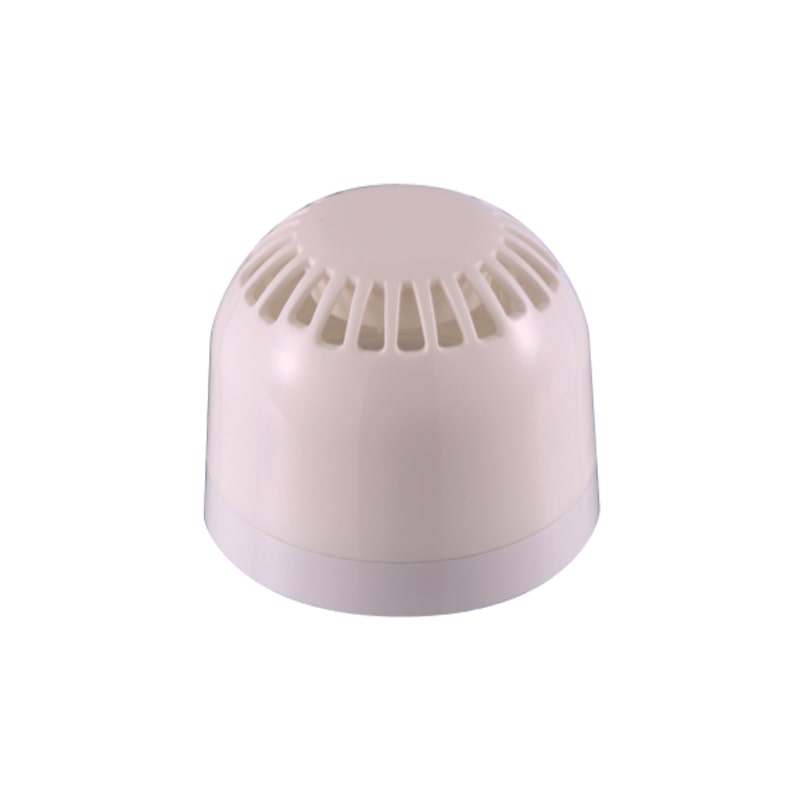

EN54 Sonos Sounder Series

With the TimeSaver base, connections are made to the base during the initial wiring phase, which results in a faster and more reliable installation. The Sounder head ‘twists and clicks’ onto the base on commissioning, avoiding the wiring and connection problems  associated with traditional sounders.

With a choice of 32 tones including all the major international standards, the Sonos Sounder has universal acceptance. Deep Base units have weatherproof protection to IP65 and can be used in all locations both indoors and outdoors. Sonos Sounder units are available in either Red or White and with a choice of Deep or Shallow TimeSaver bases.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_icon_fontawesome=”fa fa-info-circle” add_icon=”true” title=”Info” tab_id=”1550226064531-db6c3e03-717f”][vc_column_text][table id=196 /][/vc_column_text][vcex_spacing size=”15px”][vcex_image_grid css_animation=”fadeIn” columns=”2″ img_size=”medium_large” image_ids=”6412,6411″ img_hover_style=”grow”][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-download” add_icon=”true” title=”Downloads” tab_id=”1550226064550-22b17748-d04d”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/en54-3-sonos-sounder/EN54-3-Sonos-Sounder-Series-Issue-1.pdf” target=”blank” layout=”block” style=”plain-text” align=”left” color=”blue” icon_right=”fa fa-download”]Datasheet – English[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/en54-3-sonos-sounder/france/EN54-3-Sonos-Sounder.pdf” target=”blank” layout=”block” style=”plain-text” align=”left” color=”blue” icon_right=”fa fa-download”]Datasheet – French[/vcex_button][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-volume-up” add_icon=”true” title=”Tones” tab_id=”1551104971365-72eba65e-8af7″][vc_column_text][table id=142 /][/vc_column_text][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]

Application:

Fire

Certification:

VdS

Current Type:

DC

DB:

100-110dB

Enclosure Colour:

Red, White

IP Rating:

IP 21, IP 65

Material:

Fire Retardent PC/ABS

Maximum Temperature:

+70 °C

Minimum Temperature:

-25 °C

Nominal Supply Voltage:

24v

Number of Tones:

32
