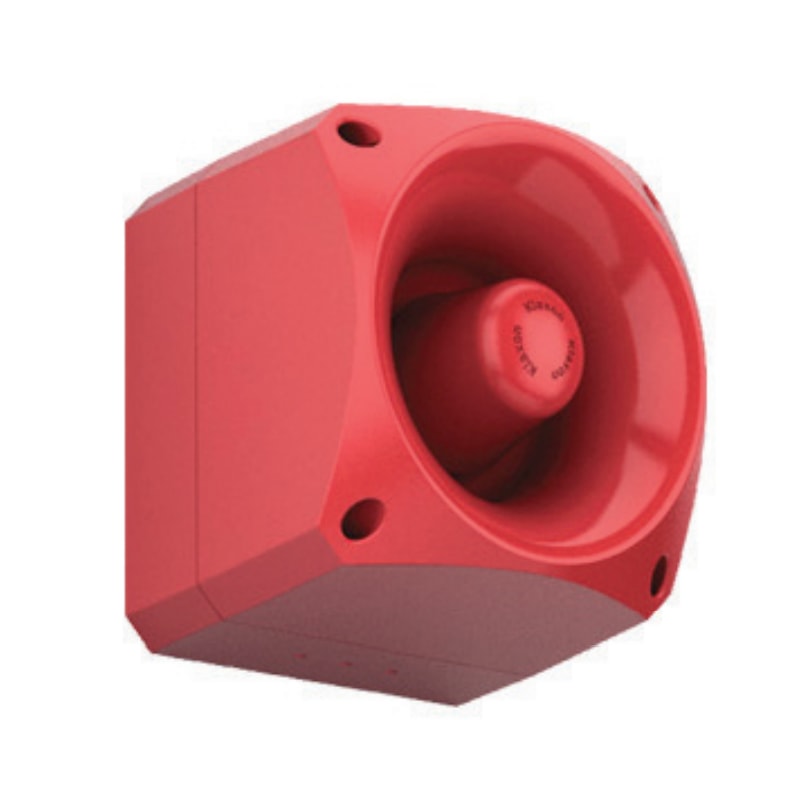

AE105, AE110 & AE120 Nexus Electronic Sounder

Features

  • Continuously rated
  • Suitable for surface, conduit box or wall mounting
  • Wide operating voltage
  • Volume control adjustment (-20dB)
  • Conforms to EN54-3 Type B for Fire Alarm use (Dc Only)
  • Vds & NF approved versions available upon special request only
  • Dustproof and Weatherproof

Material

Flame Retardent ABS

[vc_row][vc_column][vc_column_text]

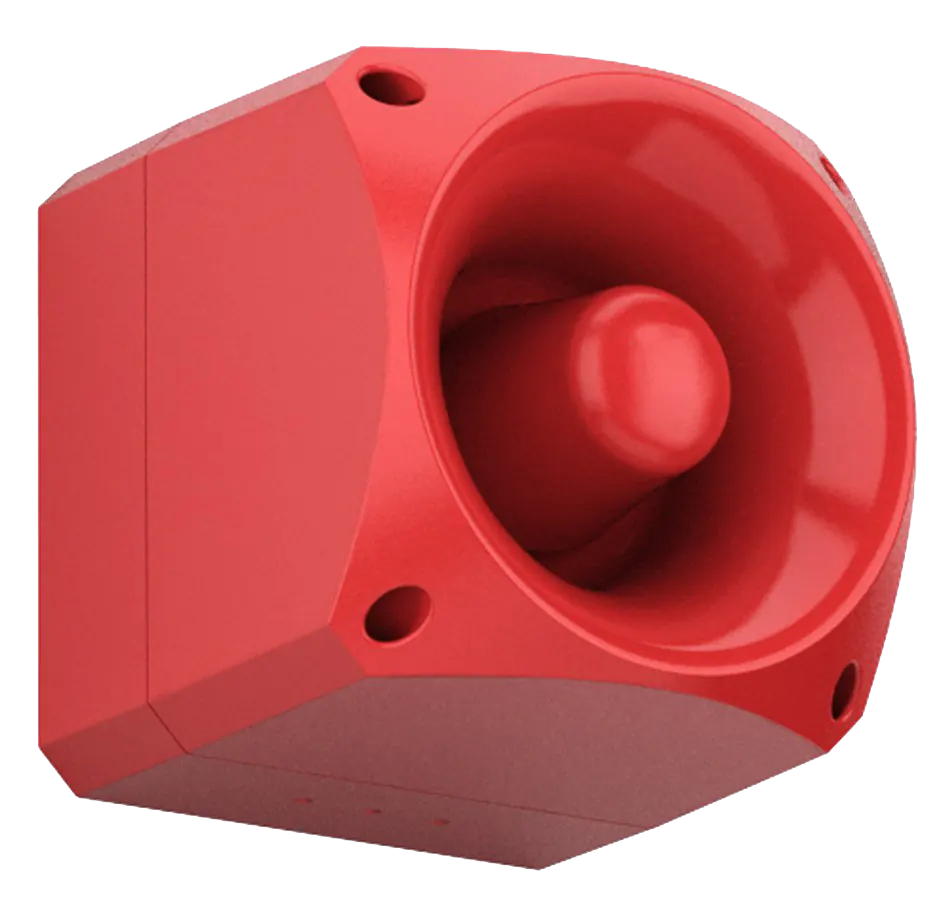

AE105, AE110 & AE120 Nexus / KMALARM 105, 110 & 120

Electronic Sounder

Three Stage Alarm – 64 Selectable Tones

The AE105, 110 & 120 ‘NEXUS’ range of electronic sounders are suitable for a wide range of Fire and Industrial signalling applications where a high degree of signalling versatility is required in the environment.

The 110 & 120 units offer three stage alarm functionality, with all three products having sixty four separate tone options that are automatically synchronised on multi unit installations. These are selectable inside the unit via a six way DIP switch. The range has been designed to allow a ‘first fix’ wiring solution. Connections are made in the base during the initial wiring phase which results in faster and more reliable installations.

The ‘sounder head’ is then fixed into position using four captive quarter turn fasteners, giving accurate seal compression for weatherproofing.

There are five cable entry options allowing for termination inside the enclosure.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_icon_fontawesome=”fa fa-info-circle” add_icon=”true” title=”Info” tab_id=”1531242758878-b723865e-7a5a”][vc_column_text][table id=118 /][/vc_column_text][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text][table id=119 /][/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vcex_spacing][vc_single_image image=”5082″ img_size=”large” css_animation=”fadeIn” onclick=”link_image” img_hover=”shrink”][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-download” add_icon=”true” title=”Downloads” tab_id=”1531242758899-04974853-3751″][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE105-110-120.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Datasheet – English[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/france/AE105-110-120-French.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Datasheet – French[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/Tone-Selection-105-110.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Tone Selection 105-110[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/Tone-Selection-120.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Tone Selection 120[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE105-Sounder-Beacon-AC.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Installation Sheet AE105 Sounder & Beacon AC[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE105-Sounder-Beacon-DC.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Installation Sheet AE105 Sounder & Beacon DC[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE110-Sounder-Beacon-Low-Volt-AC.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Installation Sheet AE110 Sounder & Beacon AC[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE110-Sounder-Beacon-DC.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Installation Sheet AE110 Sounder & Beacon DC[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE120-Sounder-Beacon-AC.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Installation Sheet AE120 Sounder & Beacon AC[/vcex_button][vcex_spacing size=”5px”][vcex_button url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/AE105-AE110-AE120/AE120-Sounder-Beacon-DC.pdf” layout=”block” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Installation Sheet AE120 Sounder & Beacon DC[/vcex_button][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-puzzle-piece” add_icon=”true” title=”Accessories” tab_id=”1531243339825-eb9492ae-e54c”]

[/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-volume-up” add_icon=”true” title=”Tones” tab_id=”1536945378762-a5a15294-6568″][vc_column_text][table id=143 /][/vc_column_text][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]

Enclosure Colour:

Red

IP Rating:

IP 66

Maximum Temperature:

+55 °C, +70 °C

Minimum Temperature:

-25 °C

Application:

Fire, Industrial, Marine

AC Voltage Frequency:

50/60 Hz

DB:

>110dB

Nominal Supply Voltage:

115/230v, 12-48v, 24v, 48v

Material:

Fire Retardent PC/ABS

Current Type:

AC, DC

Number of Tones:

64
