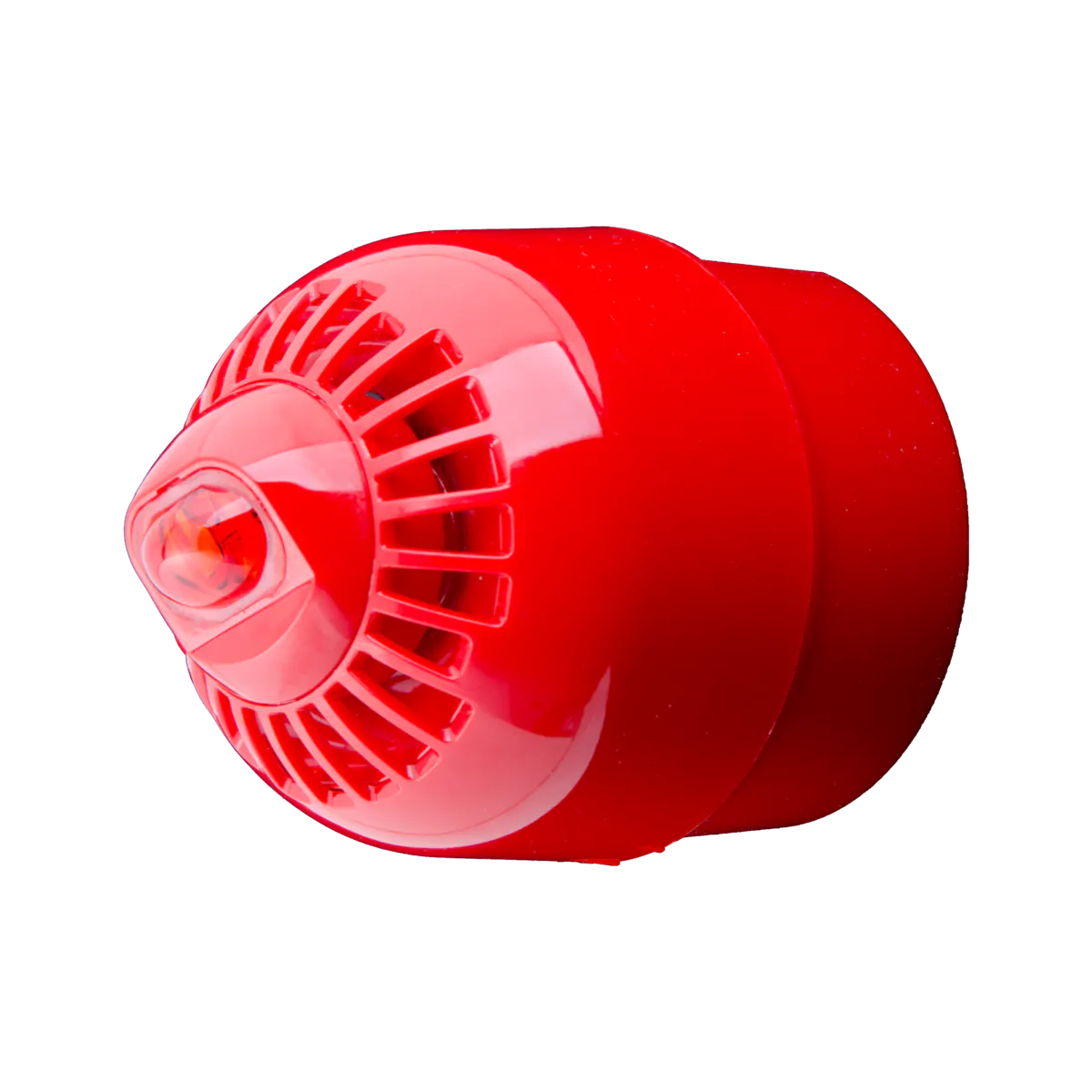

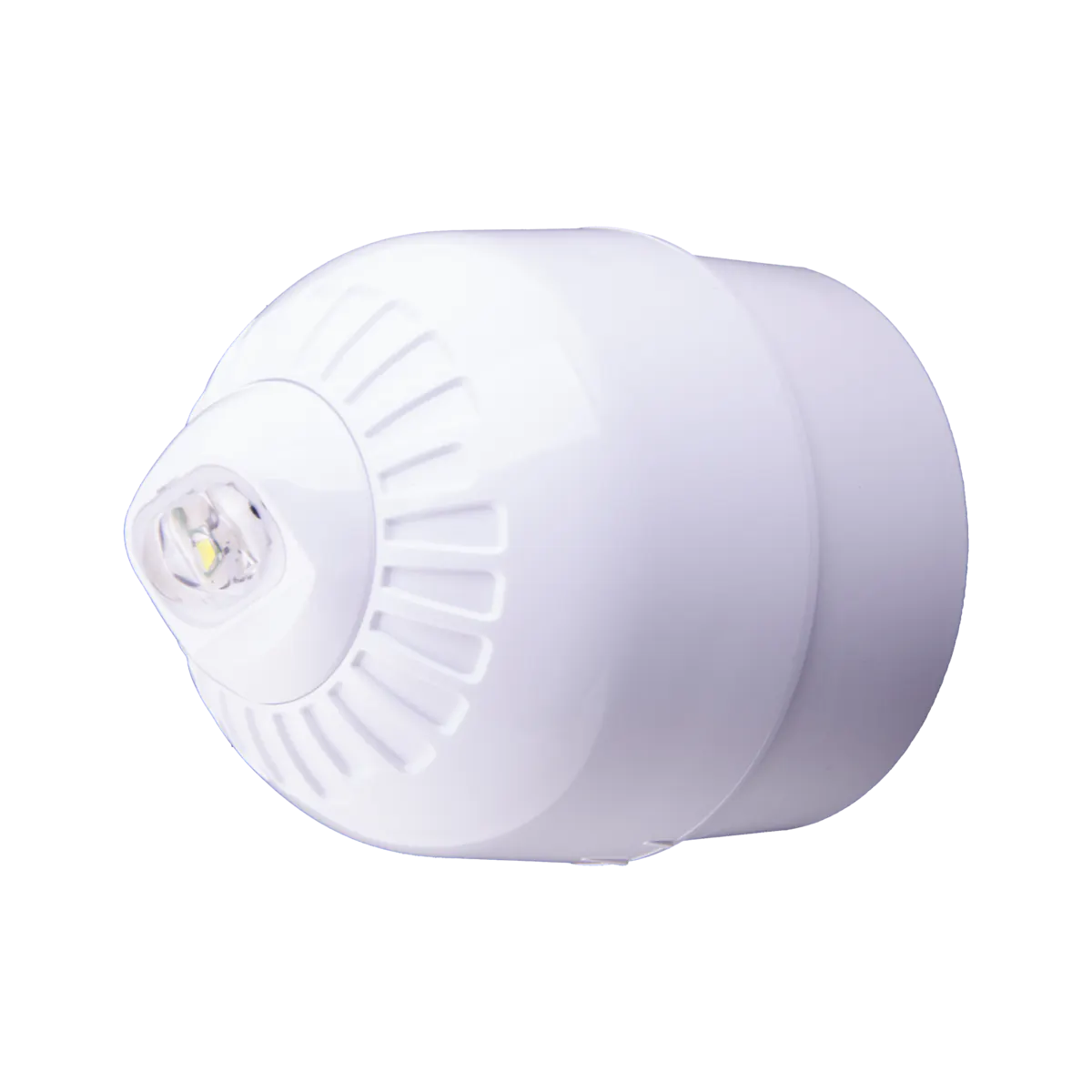

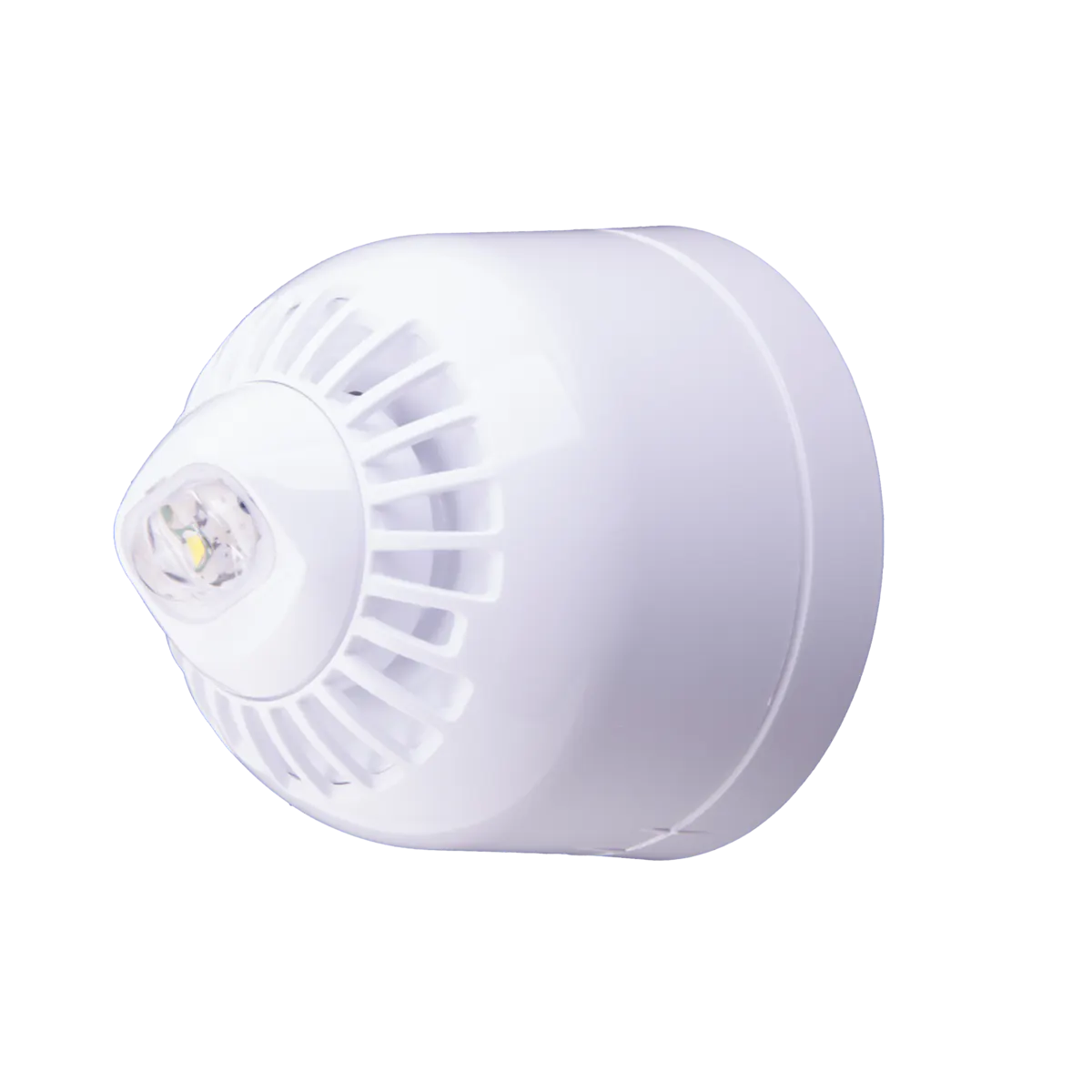

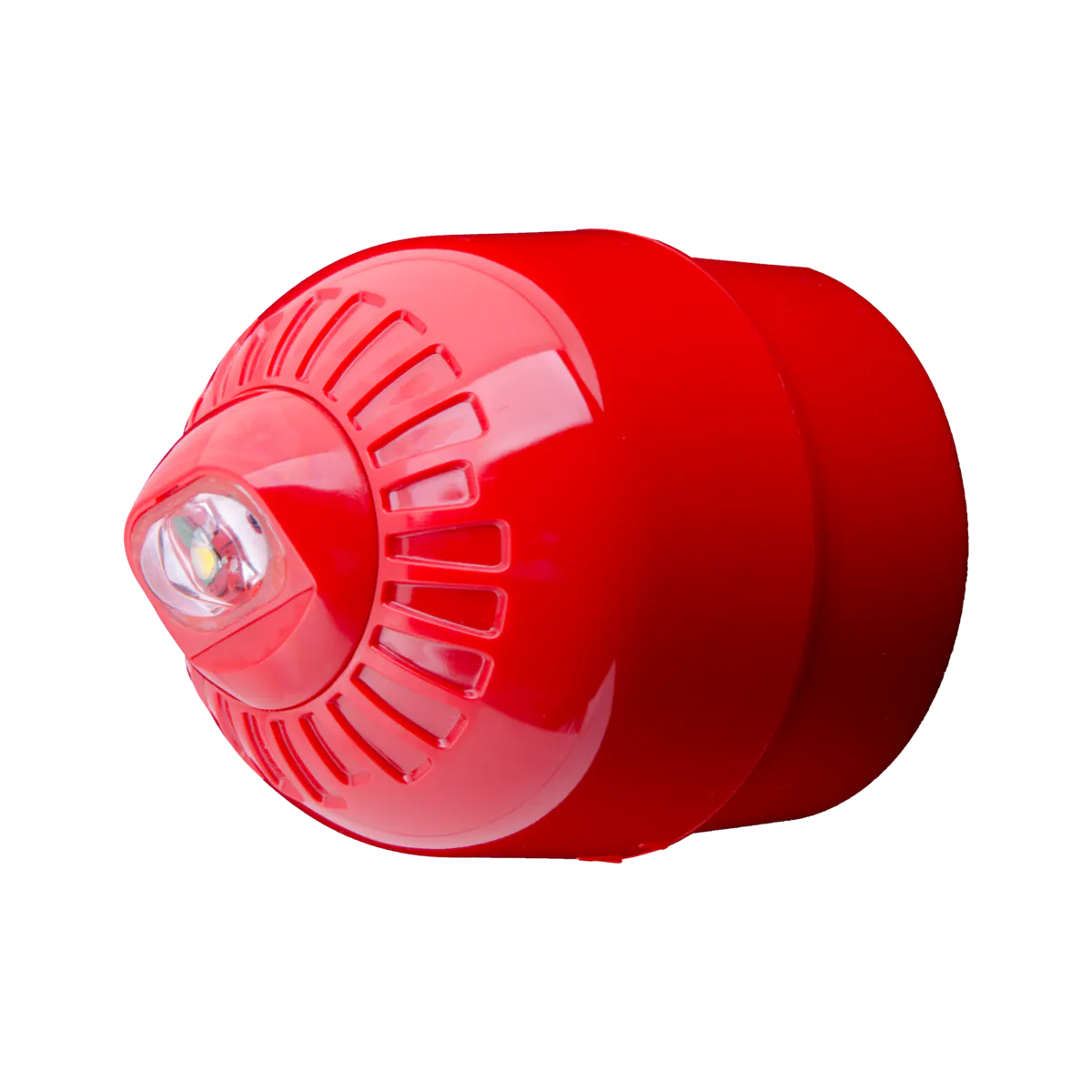

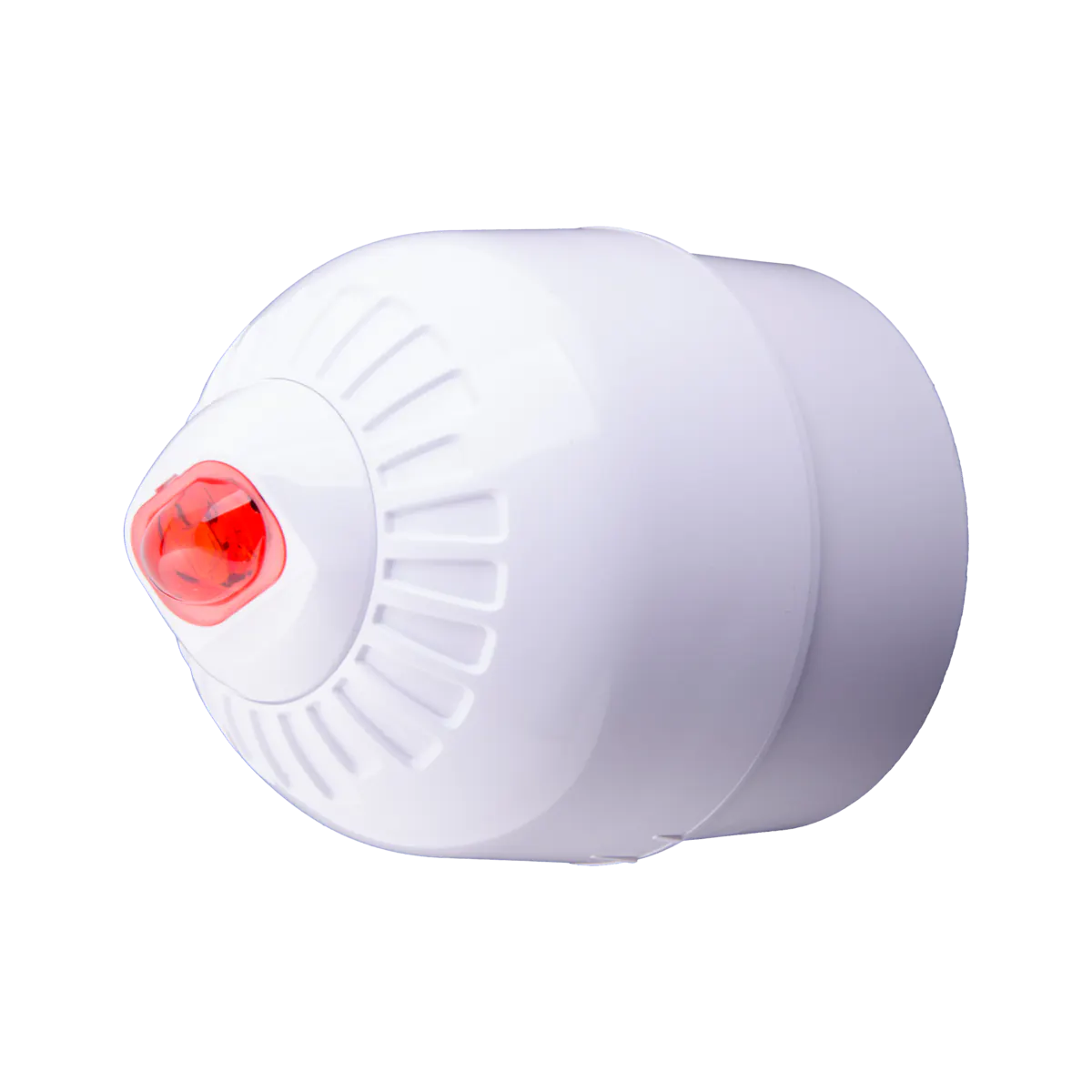

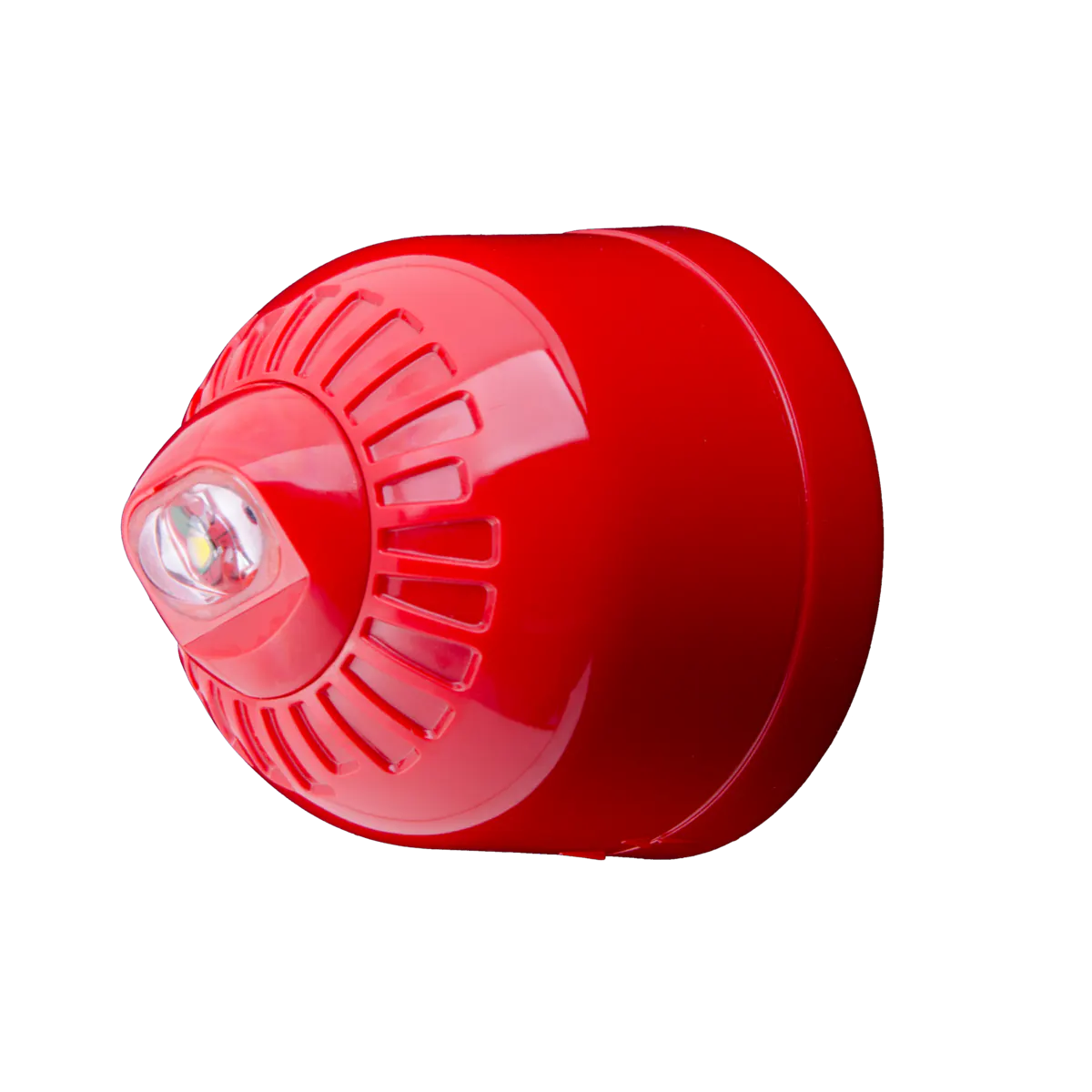

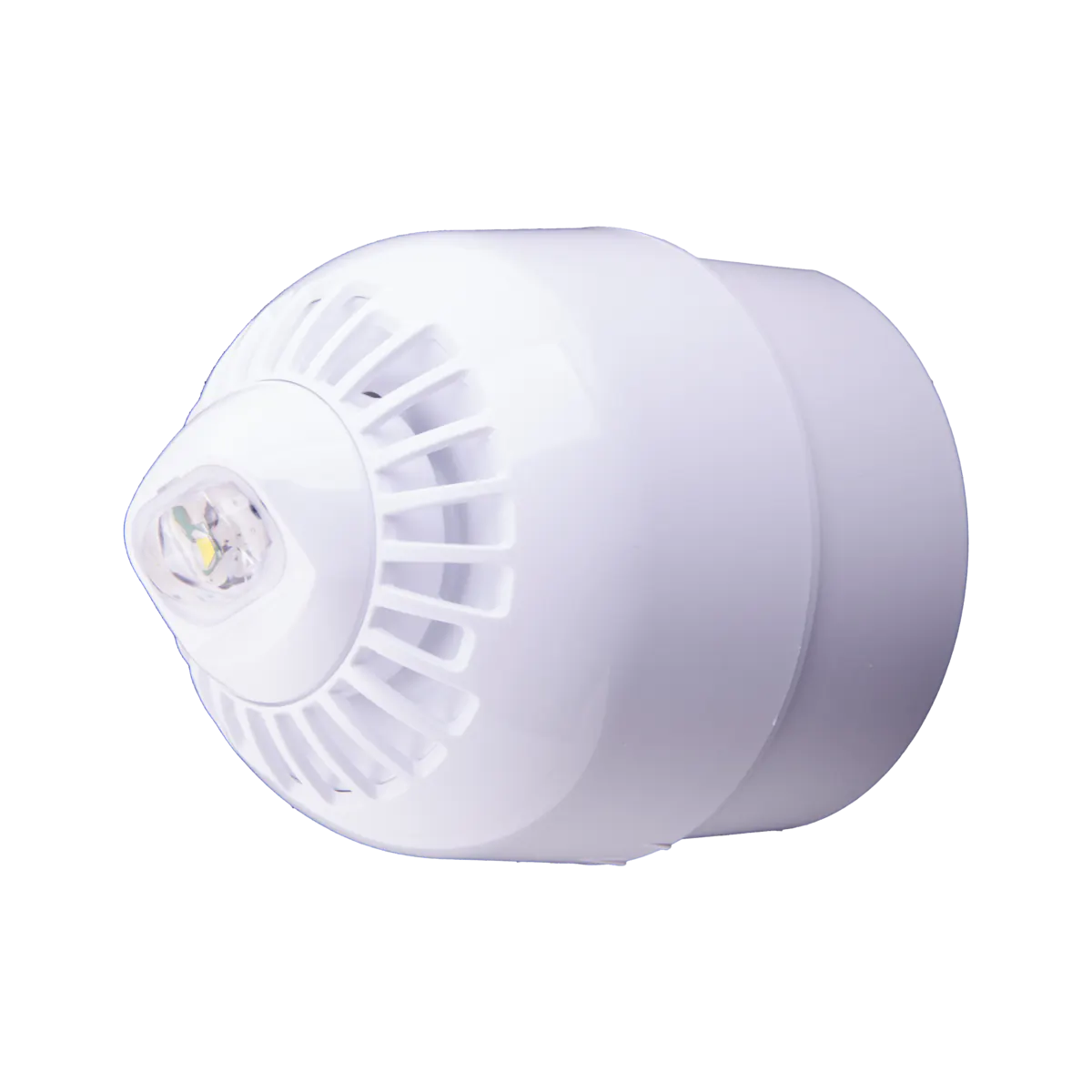

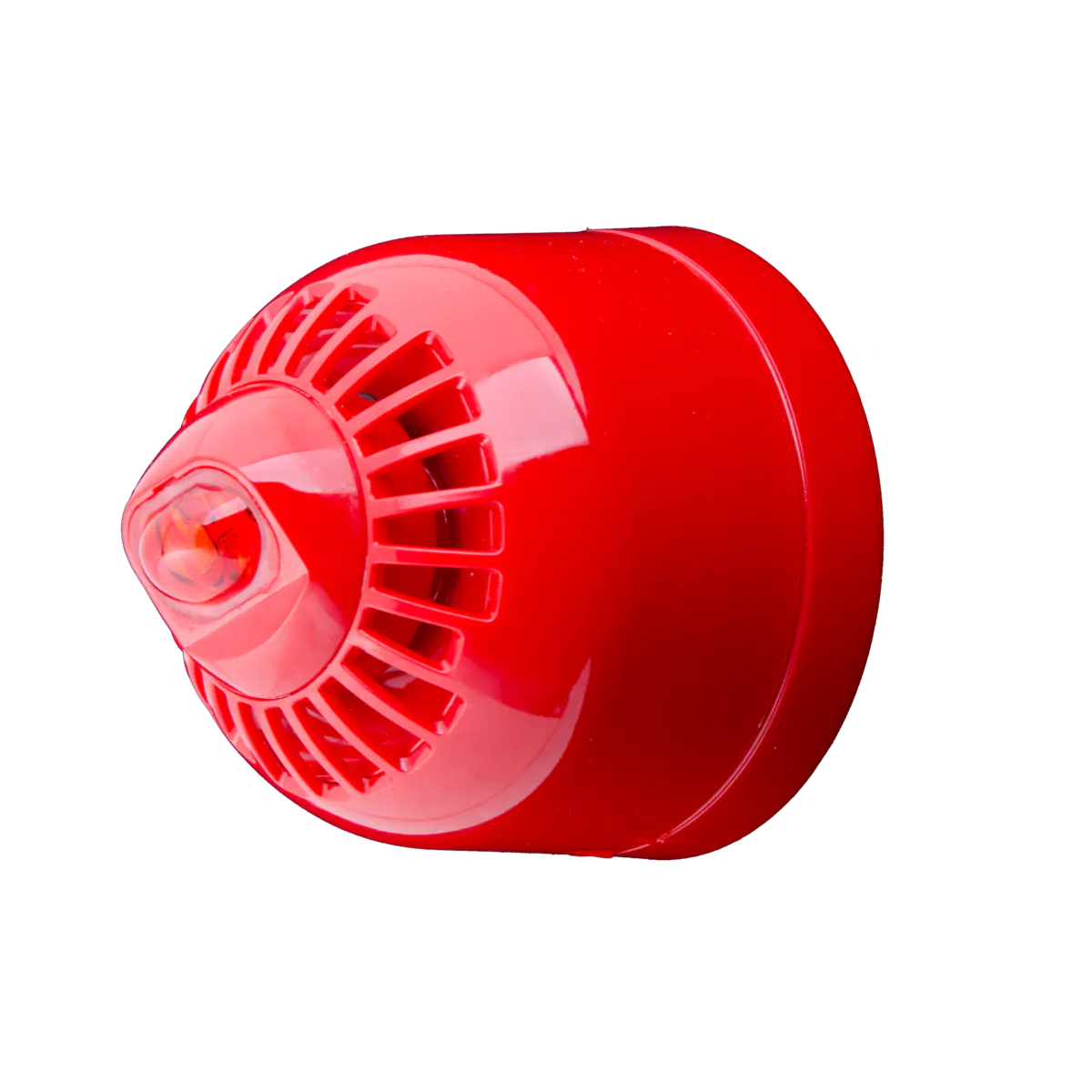

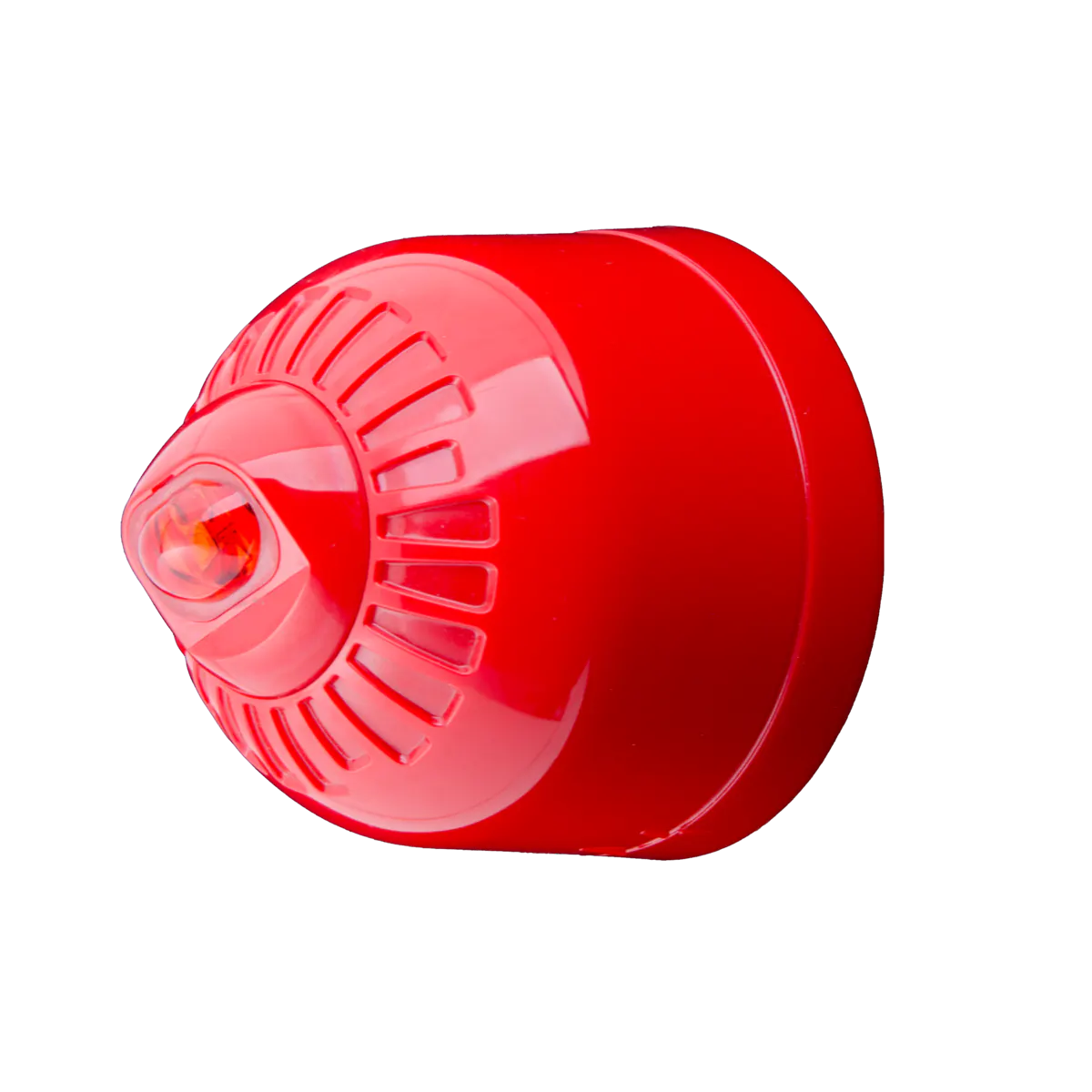

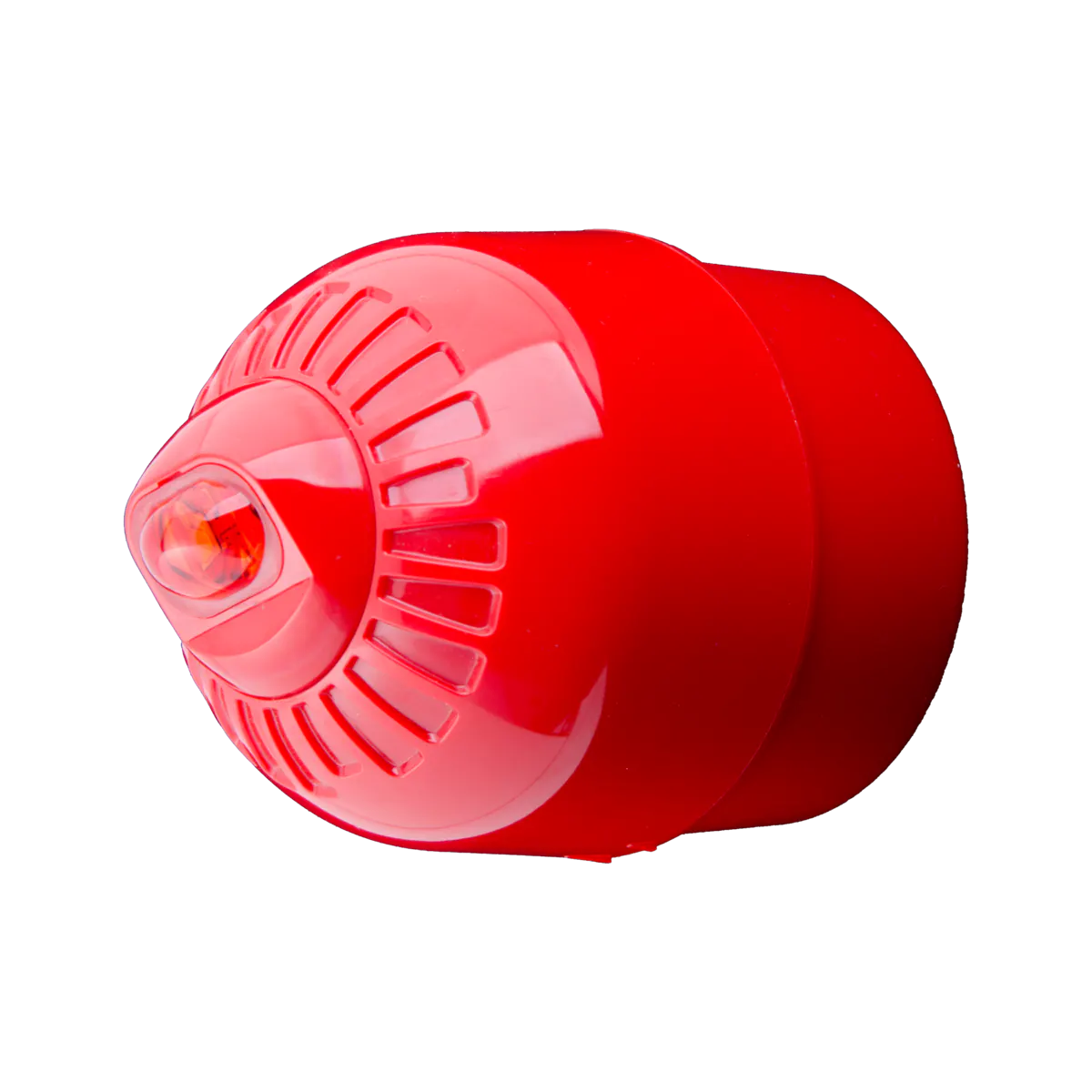

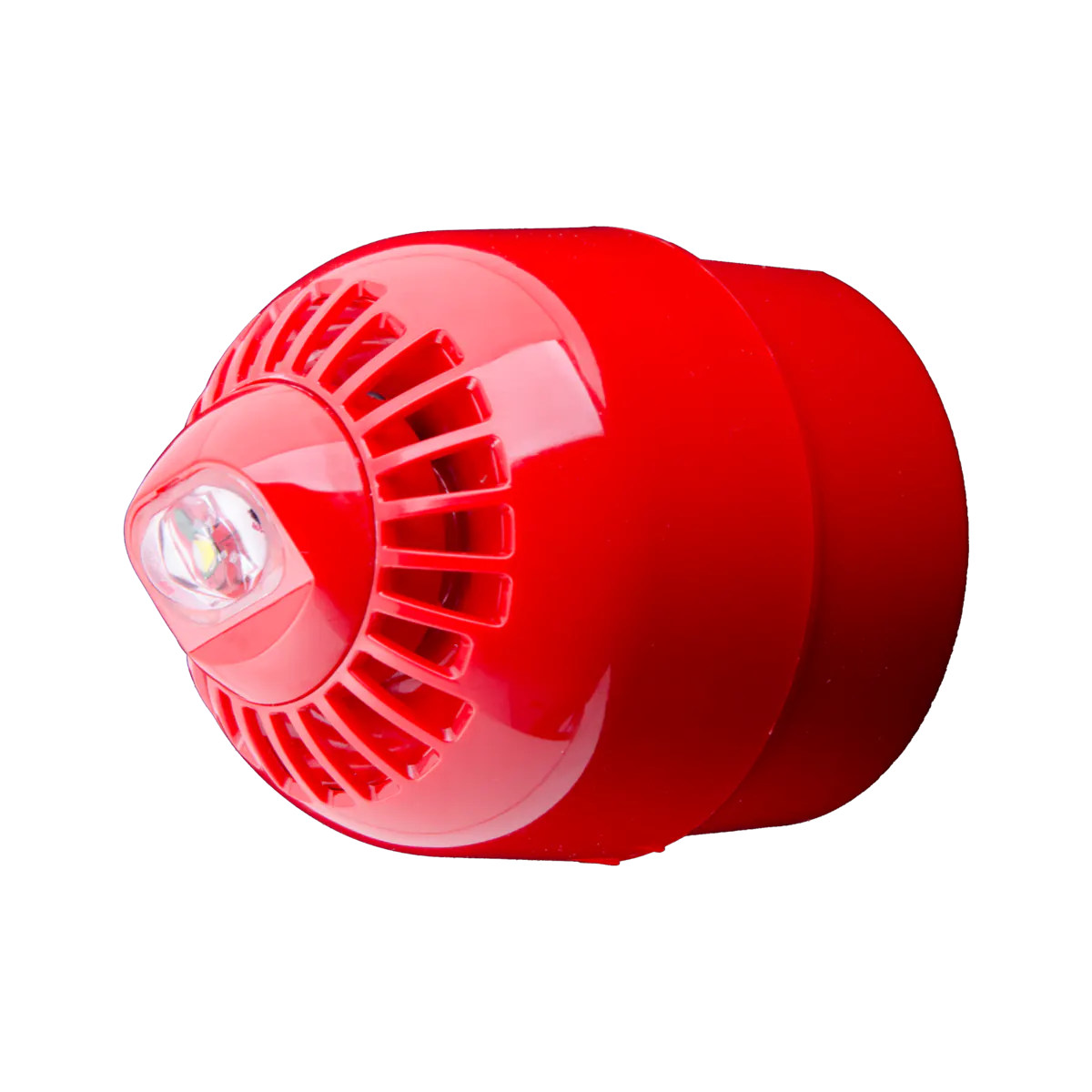

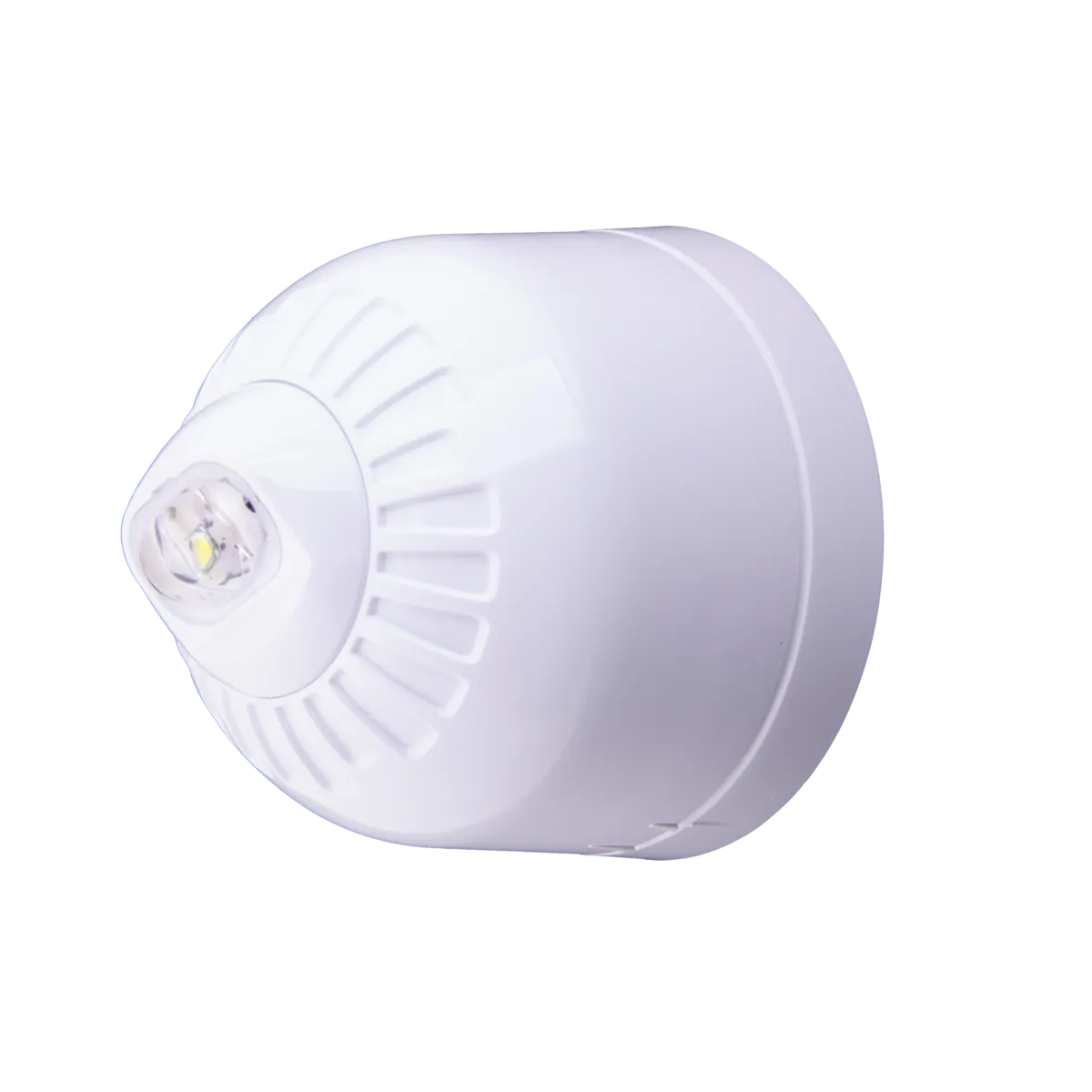

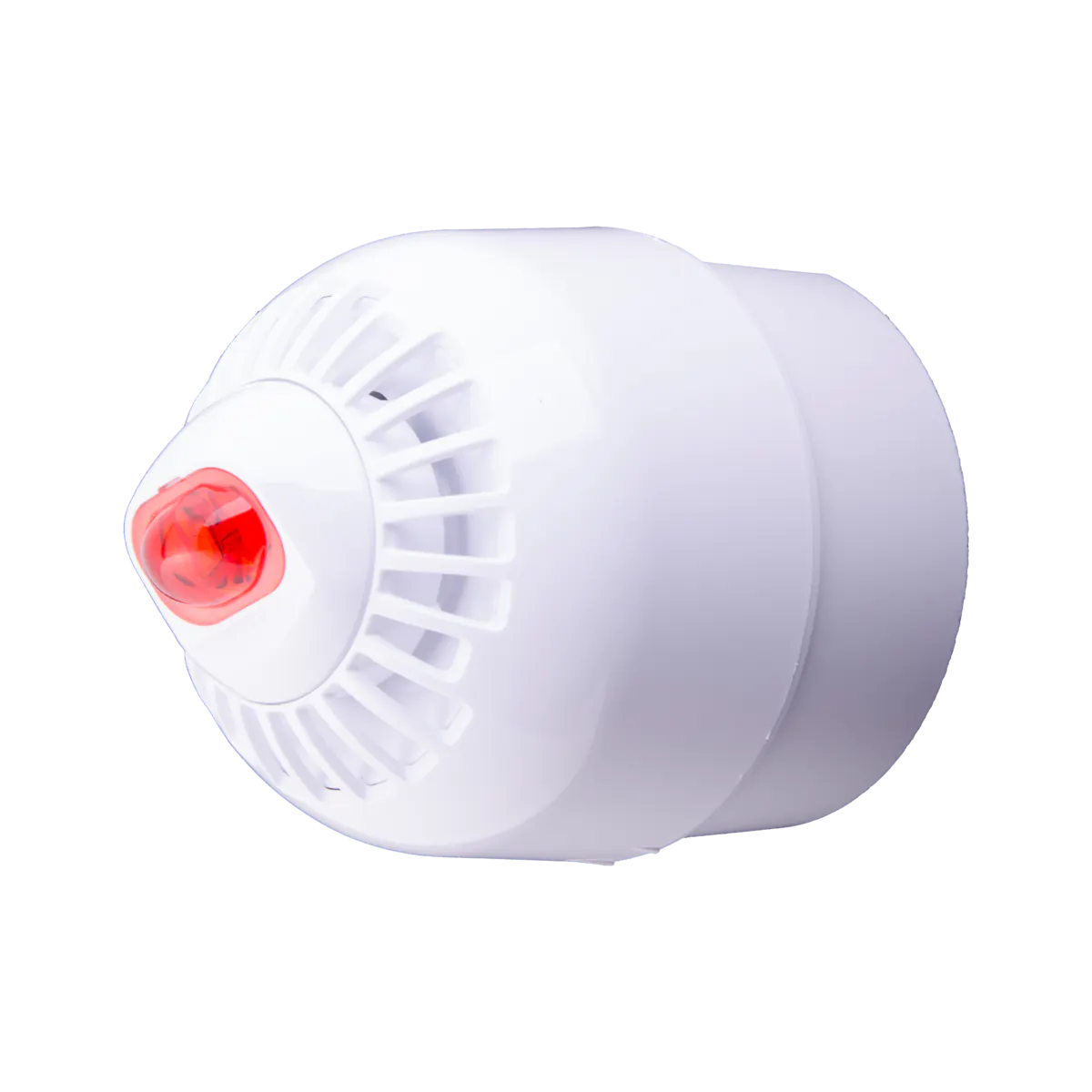

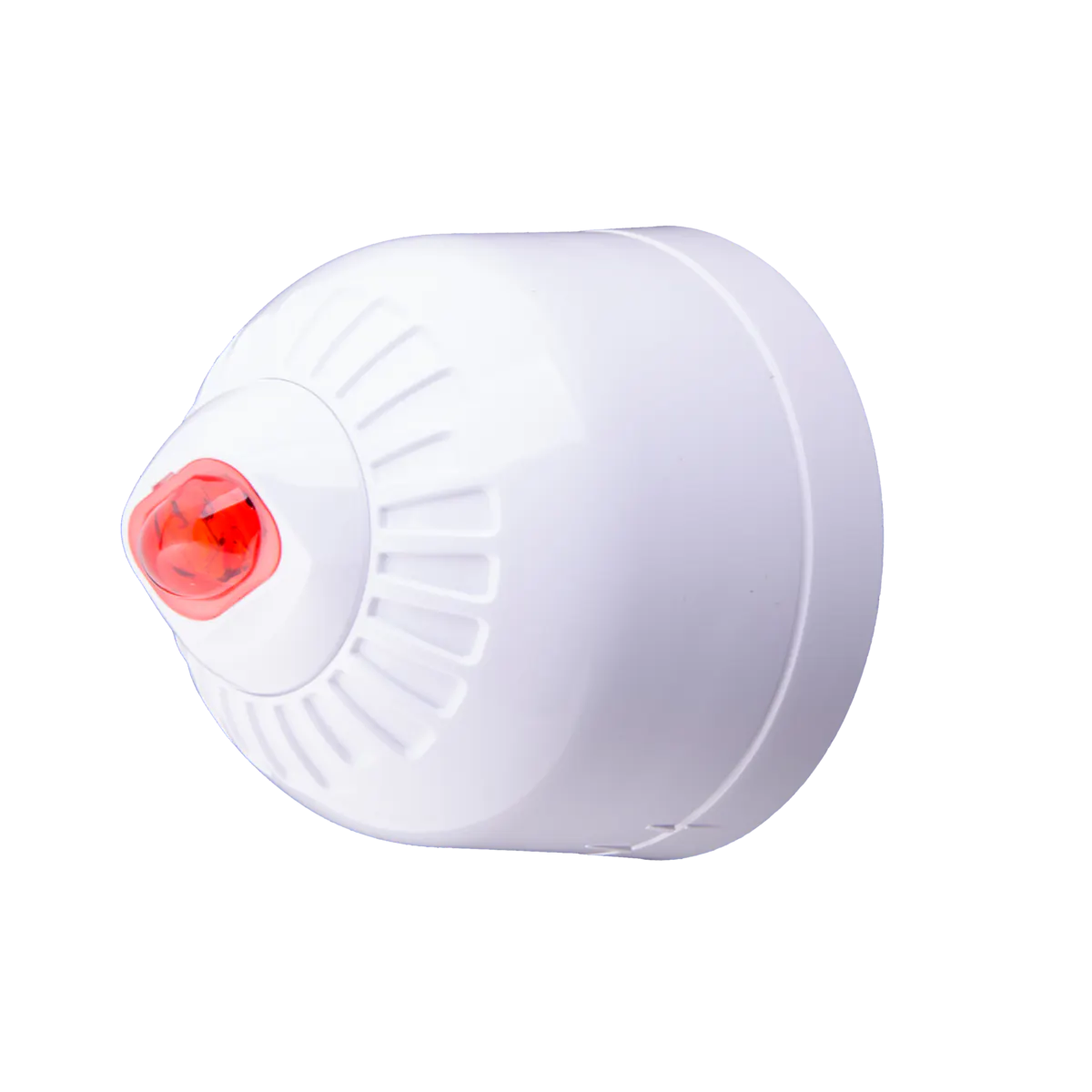

Sonos Pulse Wall — Wall Sounder Beacon

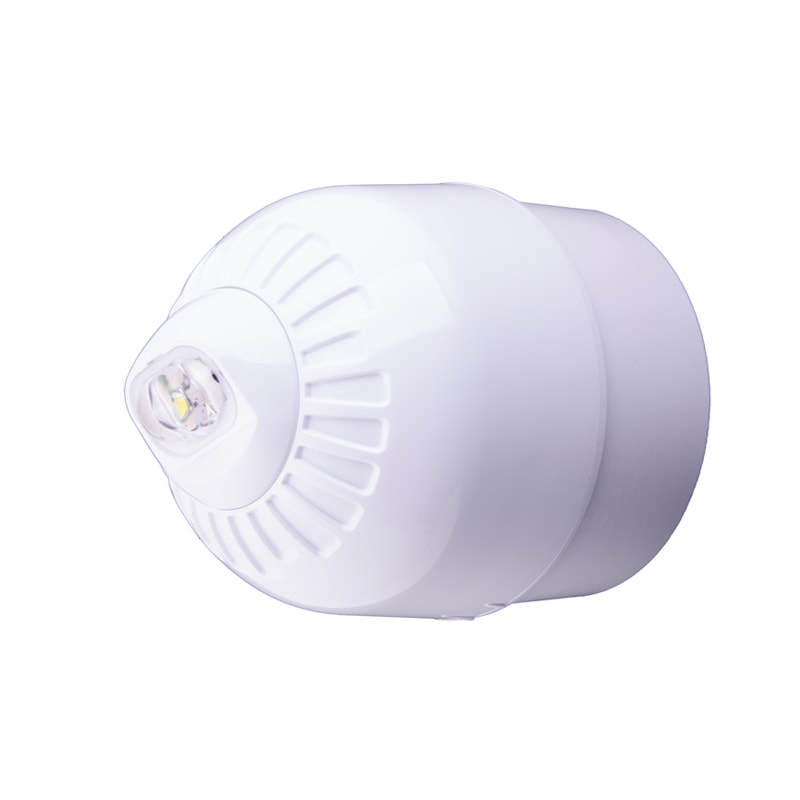

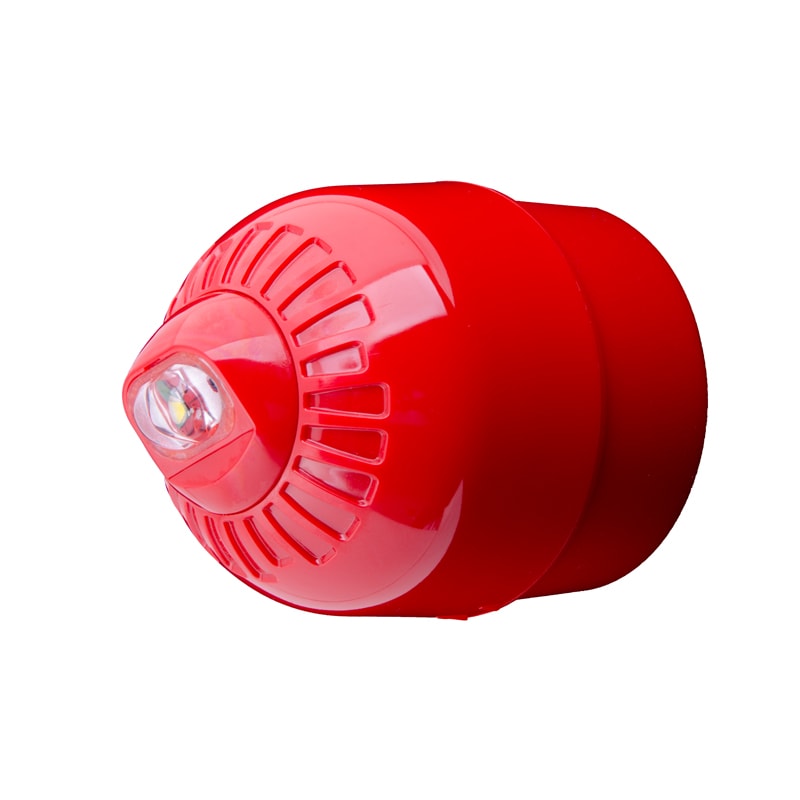

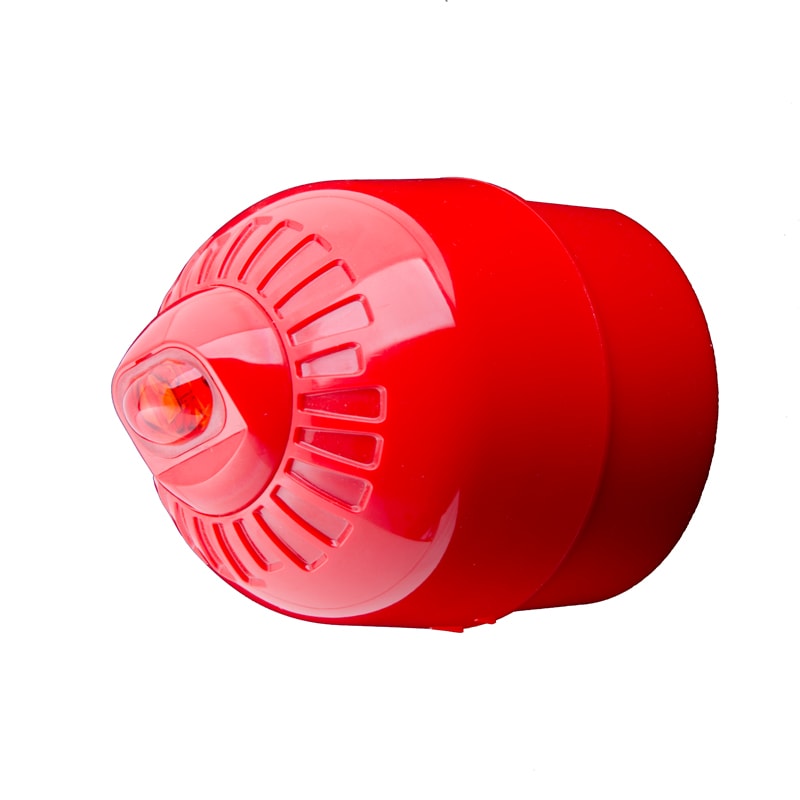

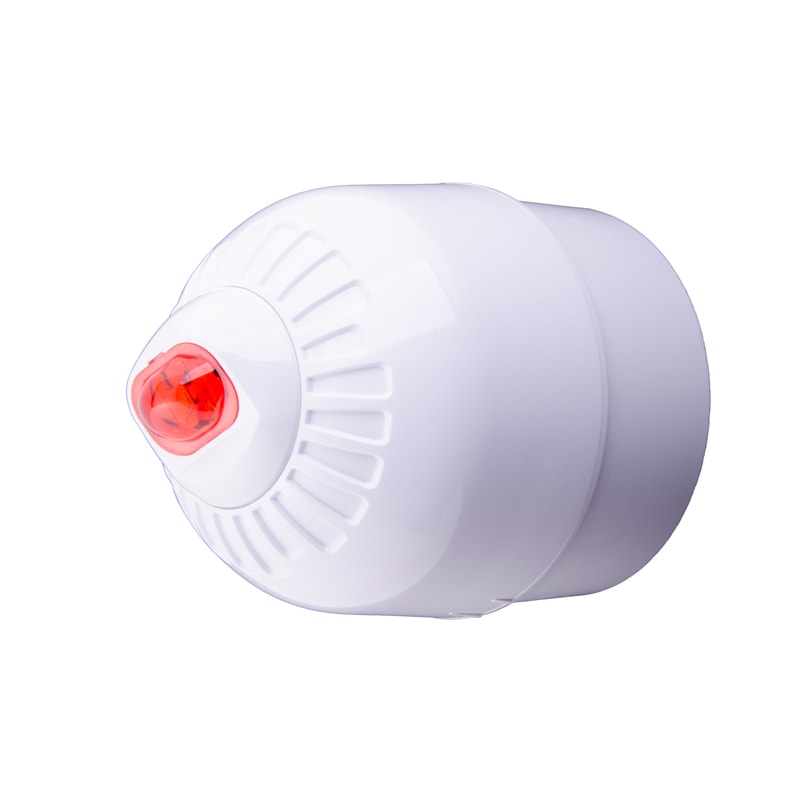

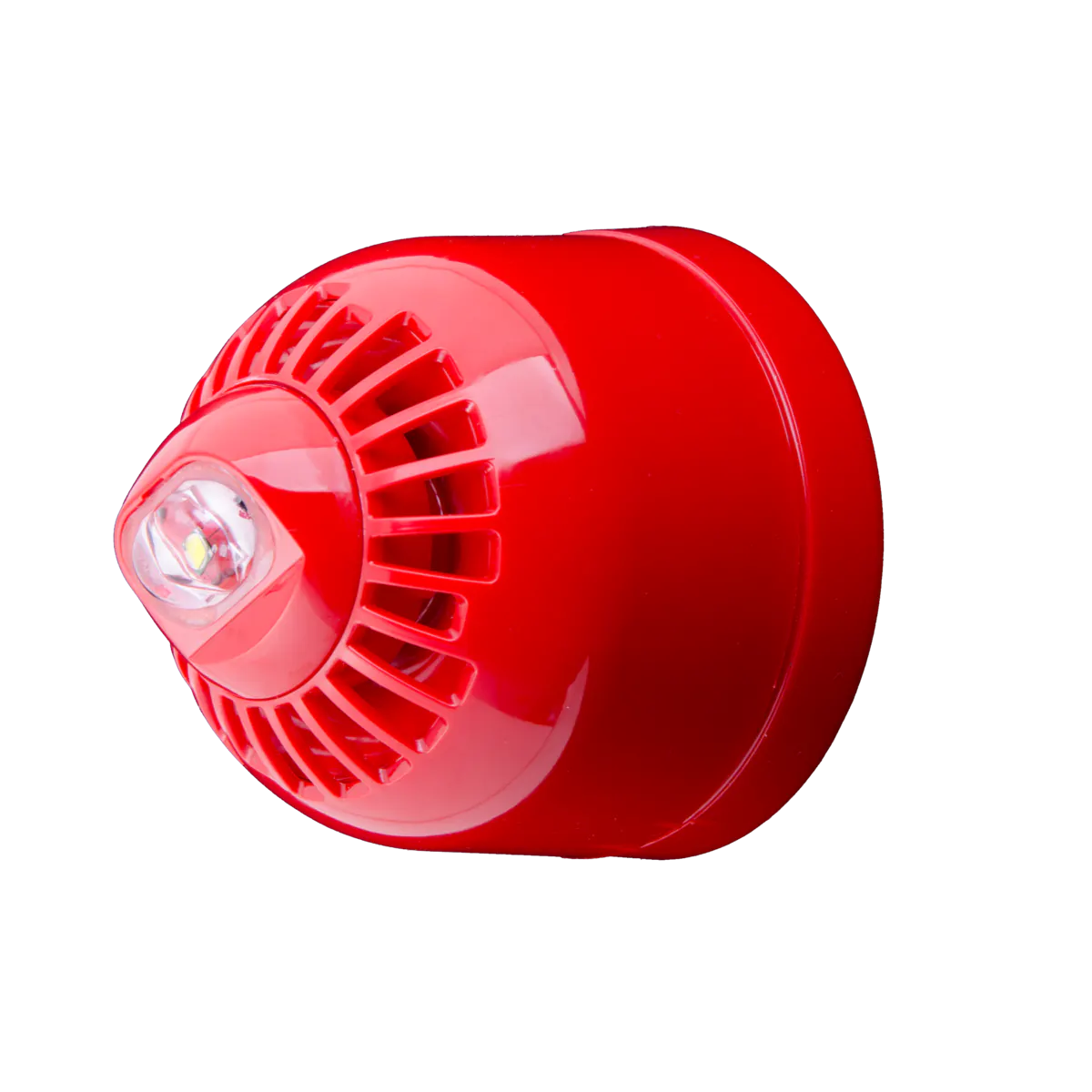

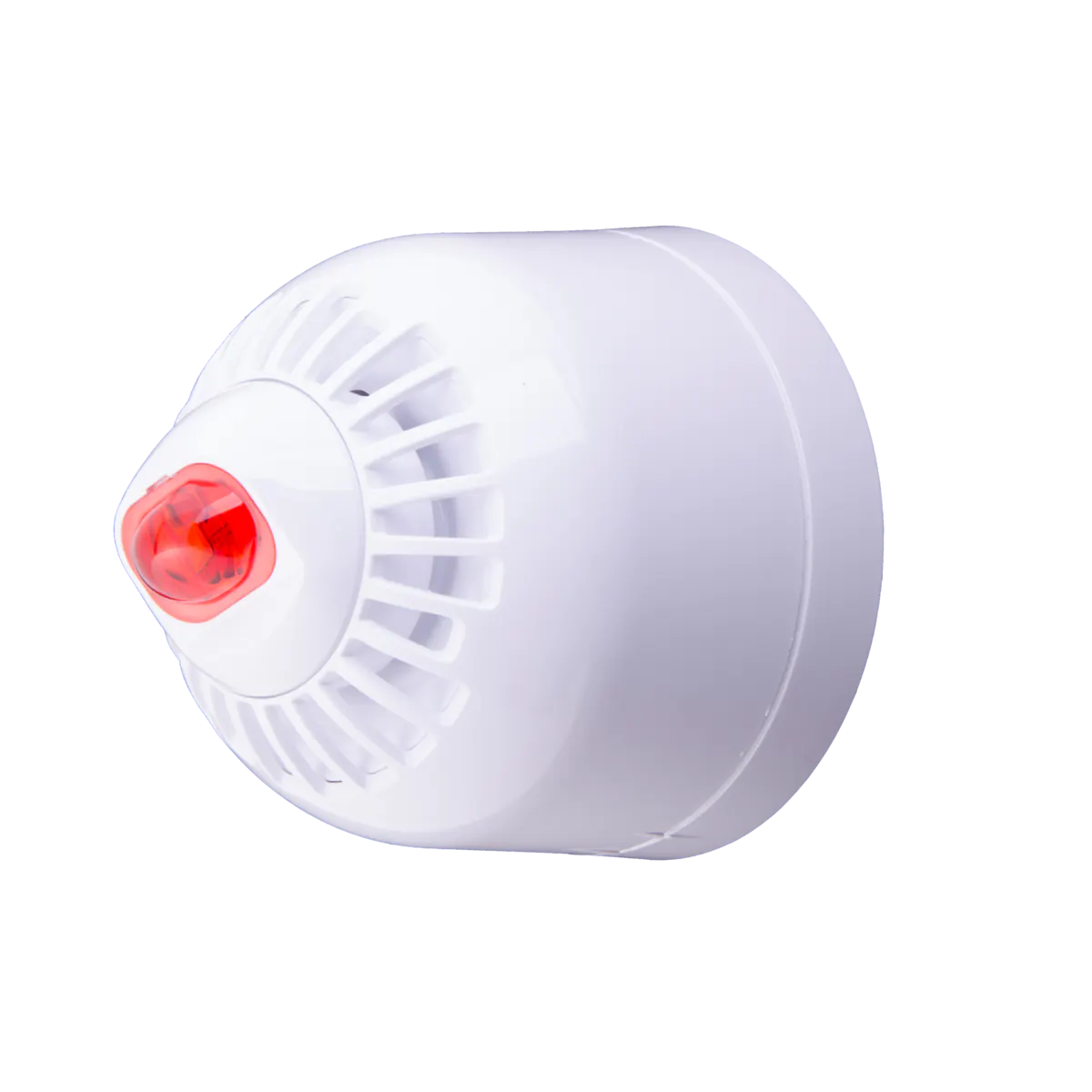

The Sonos Pulse Wall sounder beacon is an EN54-23 visual alarm device with an integrated sounder, designed for wall-mounted fire warning that ensures alarms are both seen and heard. Using Pulse Alert Technology, it offers a White or Red flash (White giving EN54-23 coverage W-3.1-11.3, Red W-2.4-7.5) with a selectable flash rate, plus 32 tones at up to 97dB for combined room coverage.

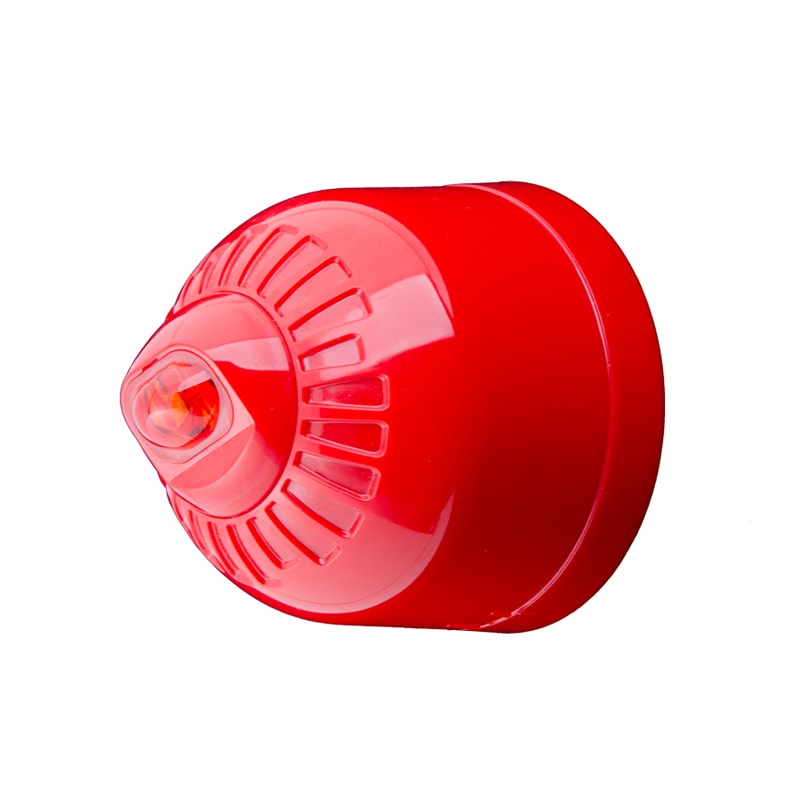

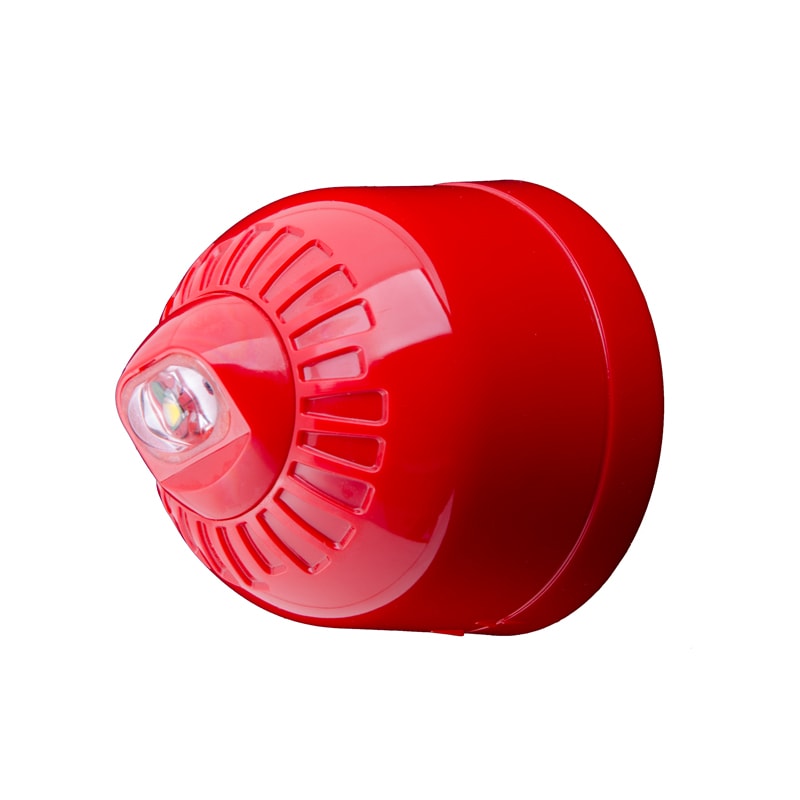

Shallow or Deep Base selection sets the ingress protection, and synchronised flashing with no surge current plus wire-to-base technology deliver a quick, reliable install.
Certified wall coverage with integrated sound, and a faster first fix.
KEY FEATURES
● Up to 97dB at 1 metre
● Flashing
● 32 selectable tones
● No surge current
● Shallow/deep base sets IP
● IP21 or IP33 rated
● Wall mounting
● EN54-3 approved
● 17-60vDC
MATERIALS
● ABS body
Typical applications: fire alarm systems, offices, retail, schools, hotels.
