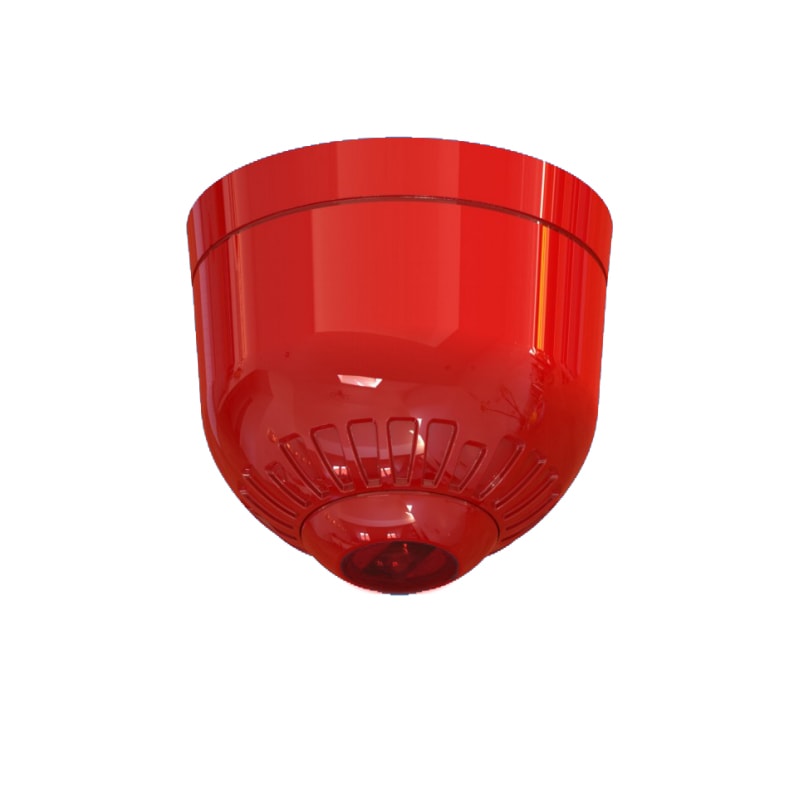

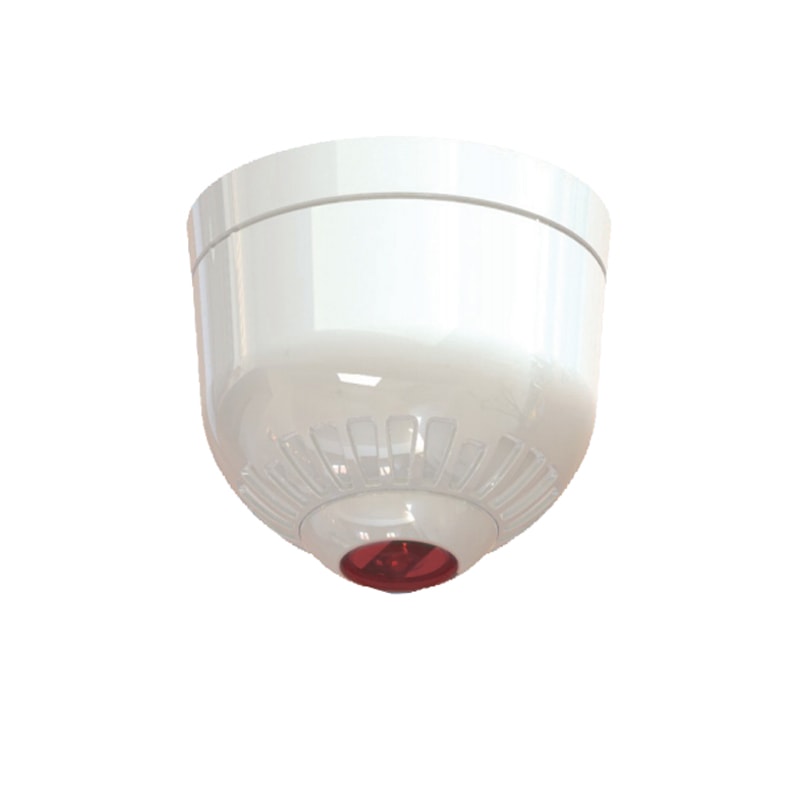

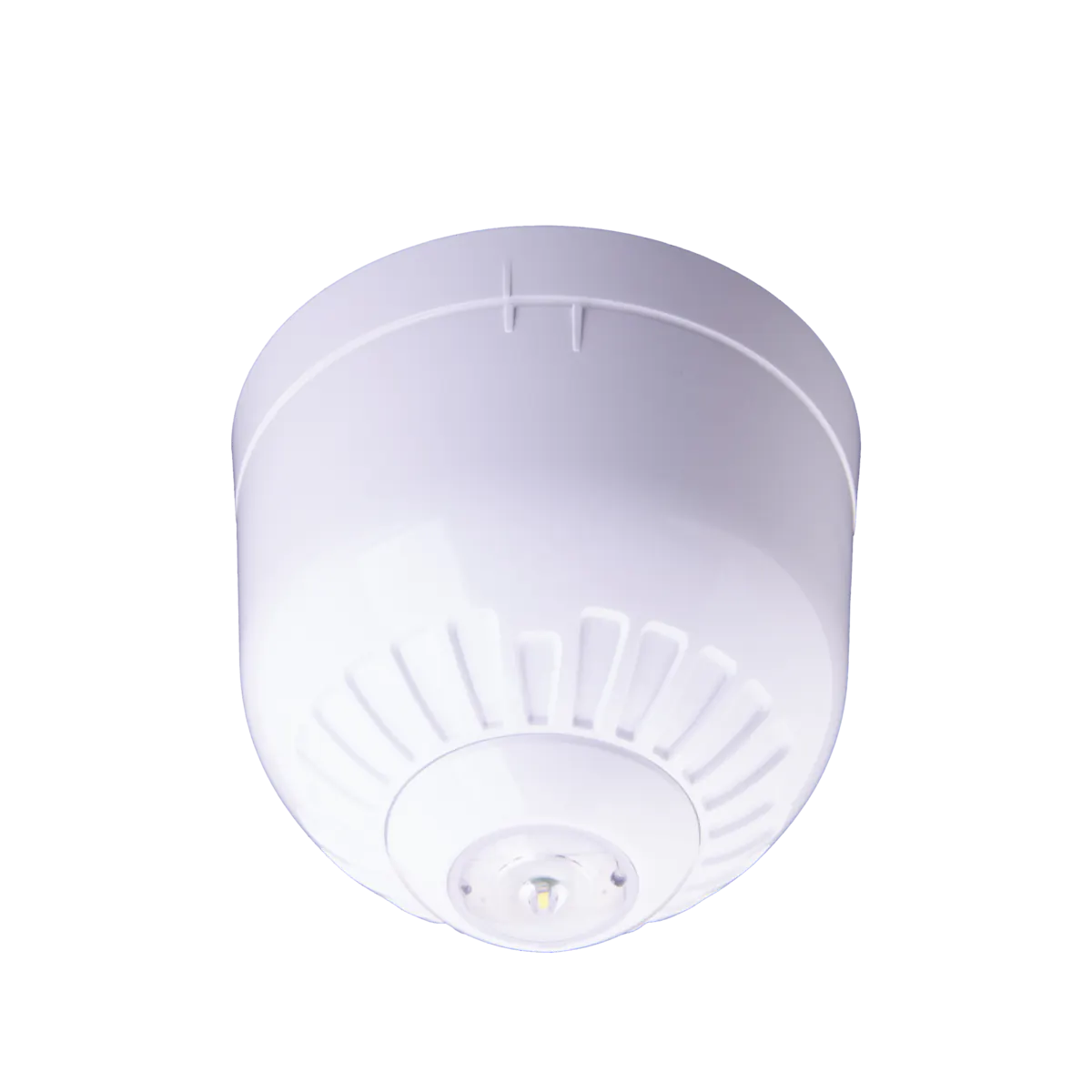

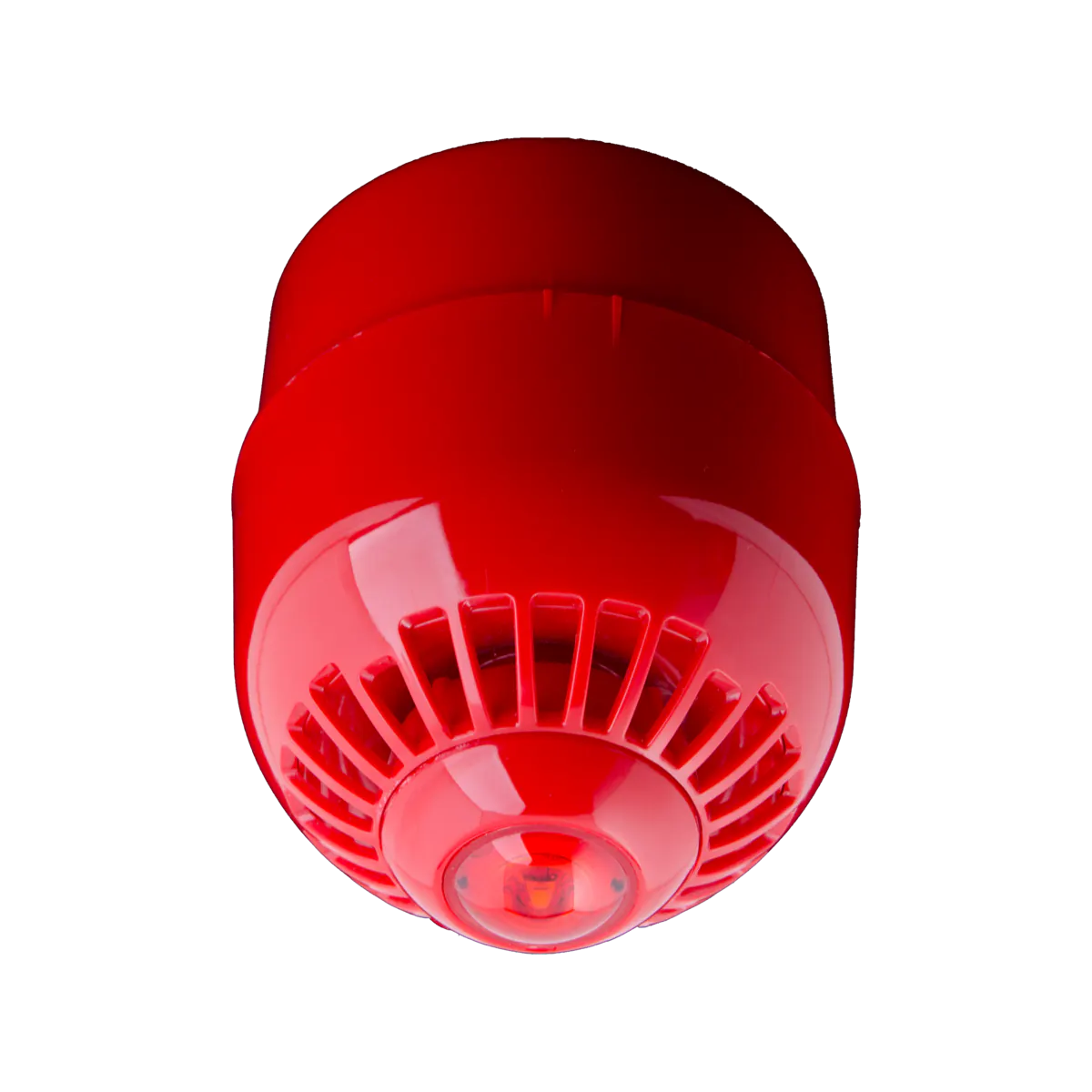

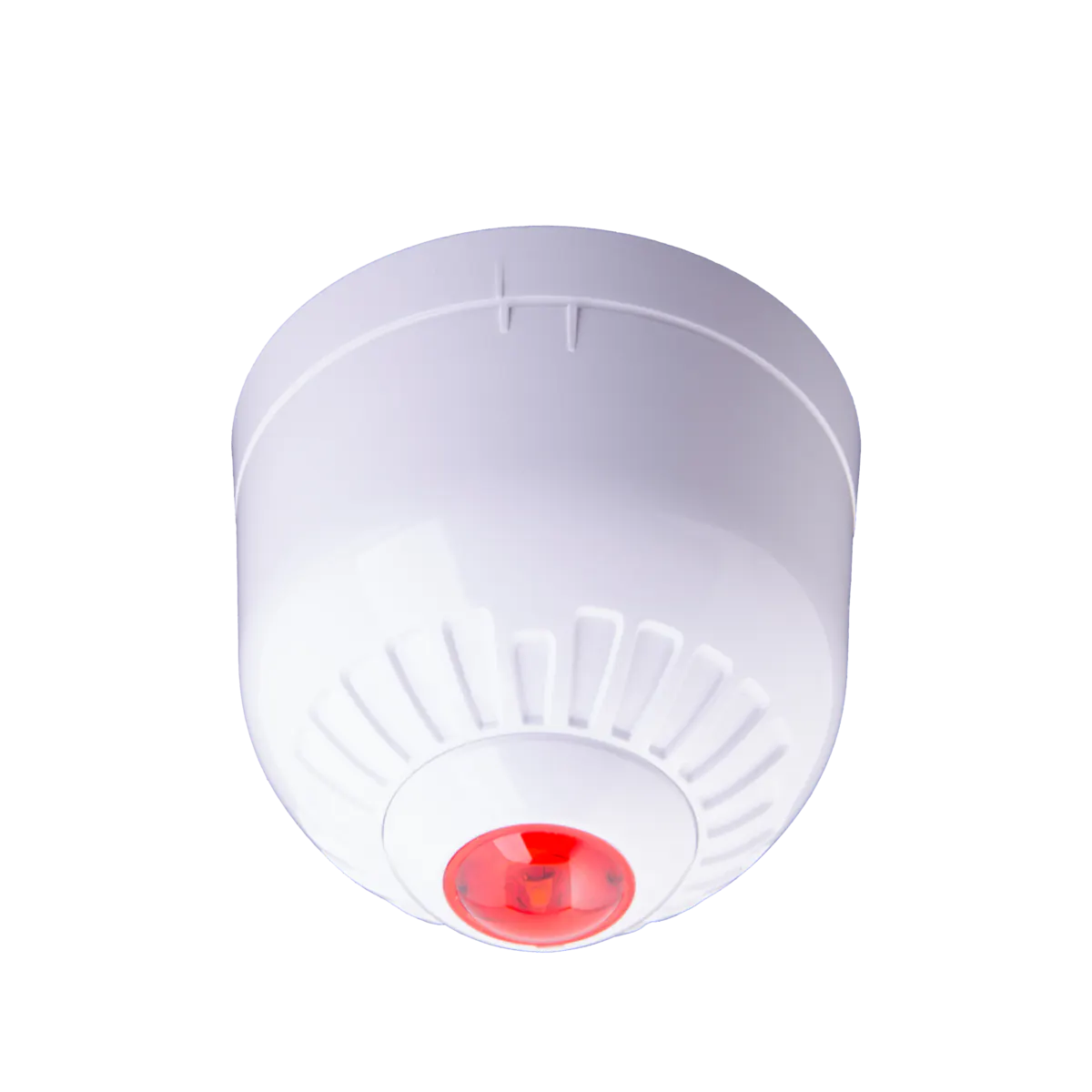

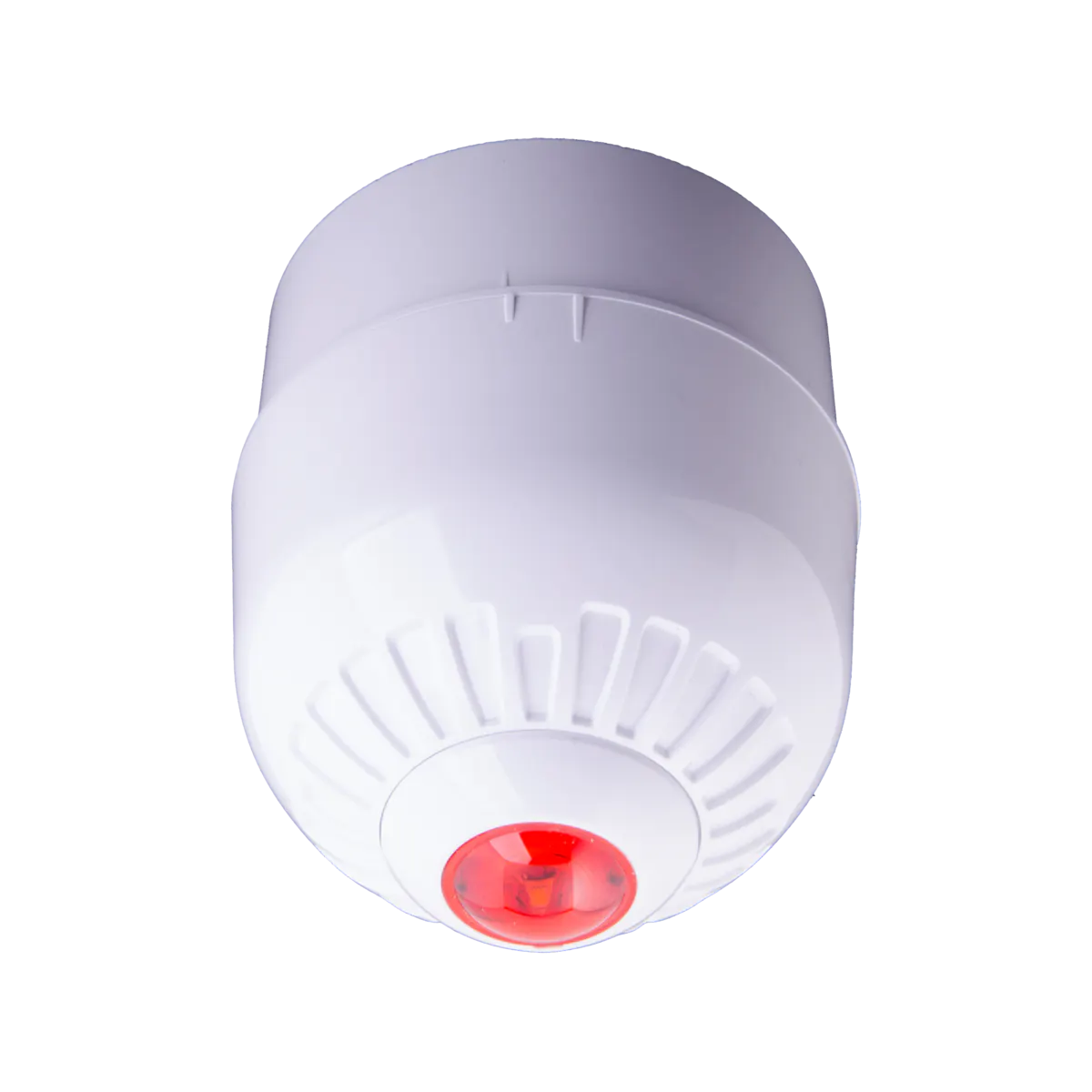

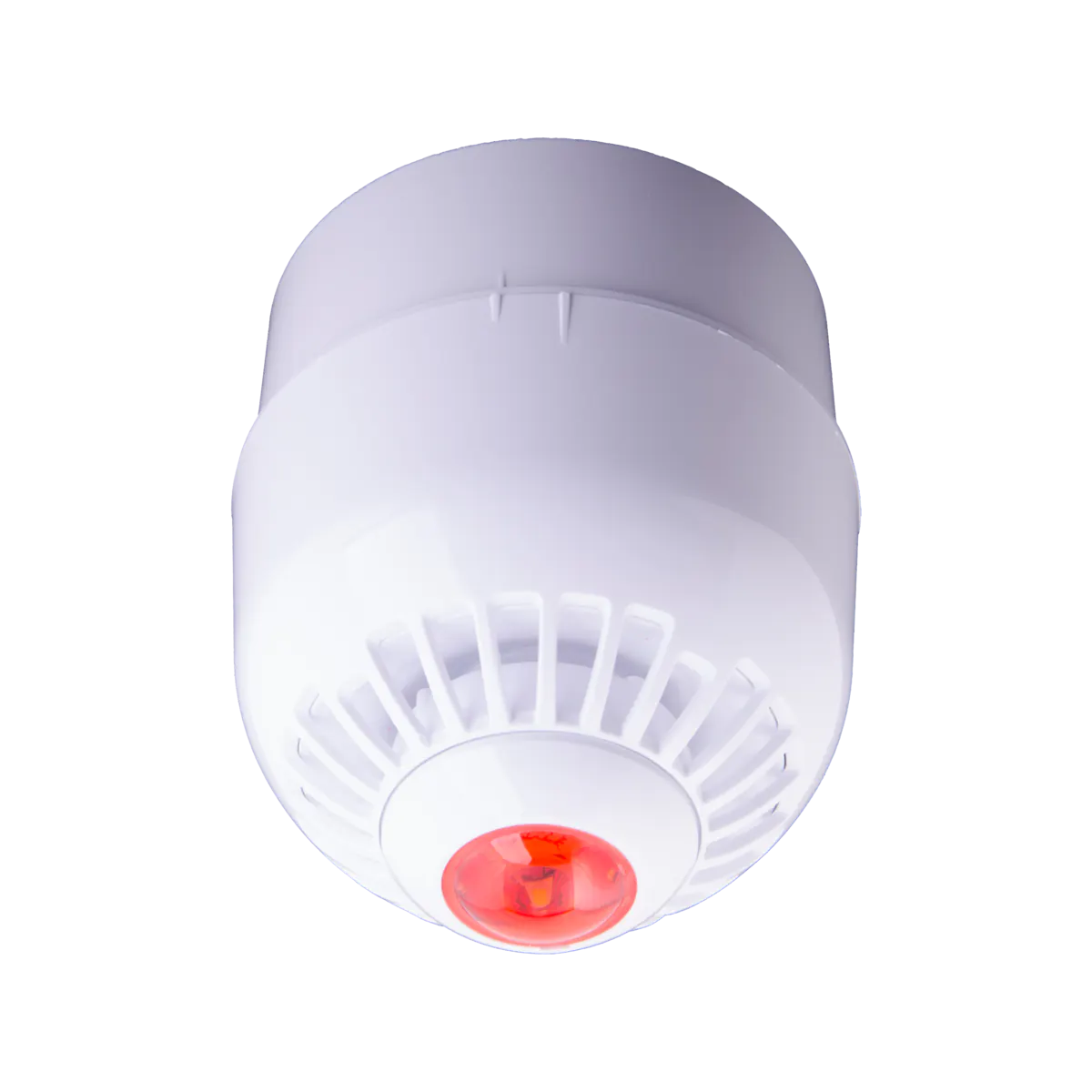

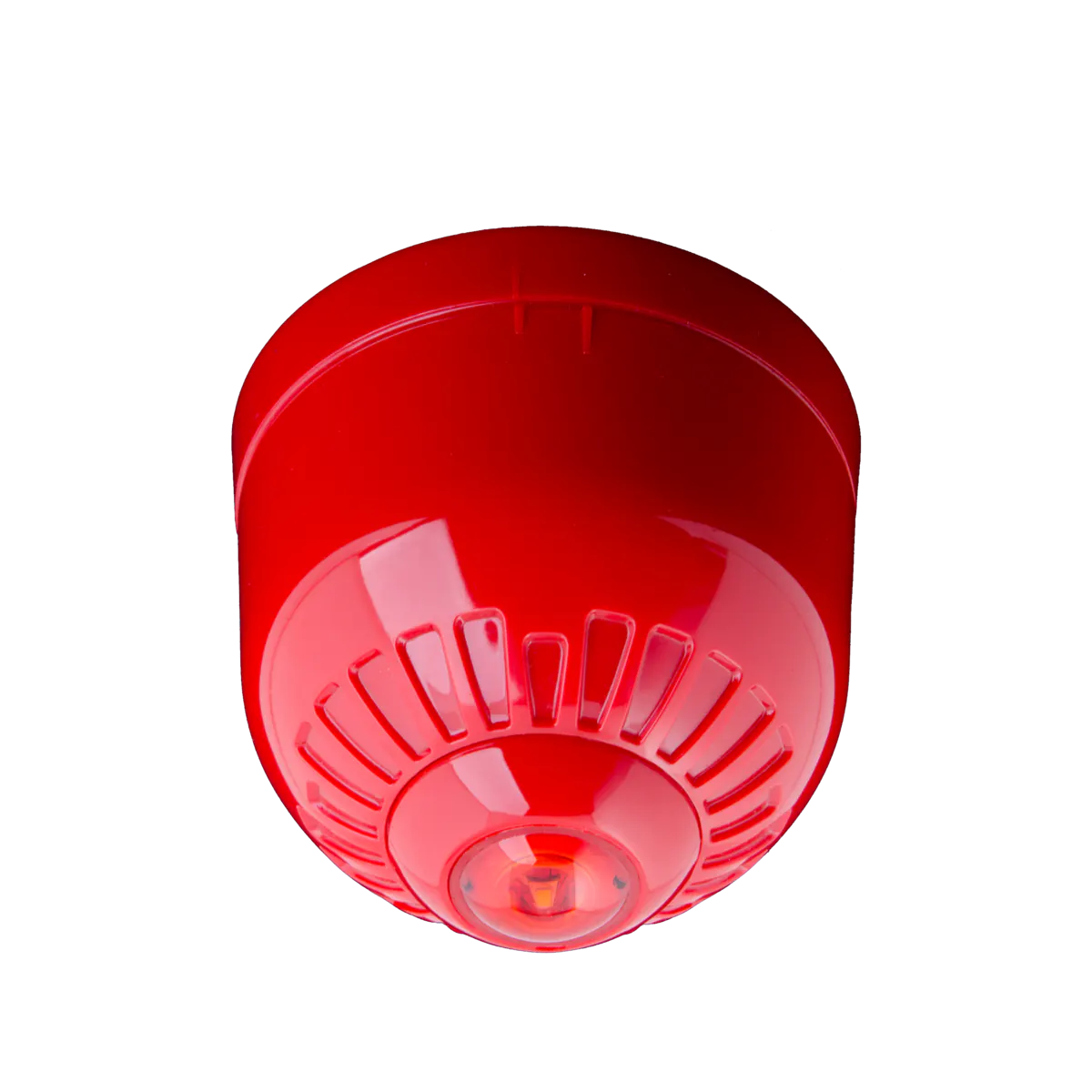

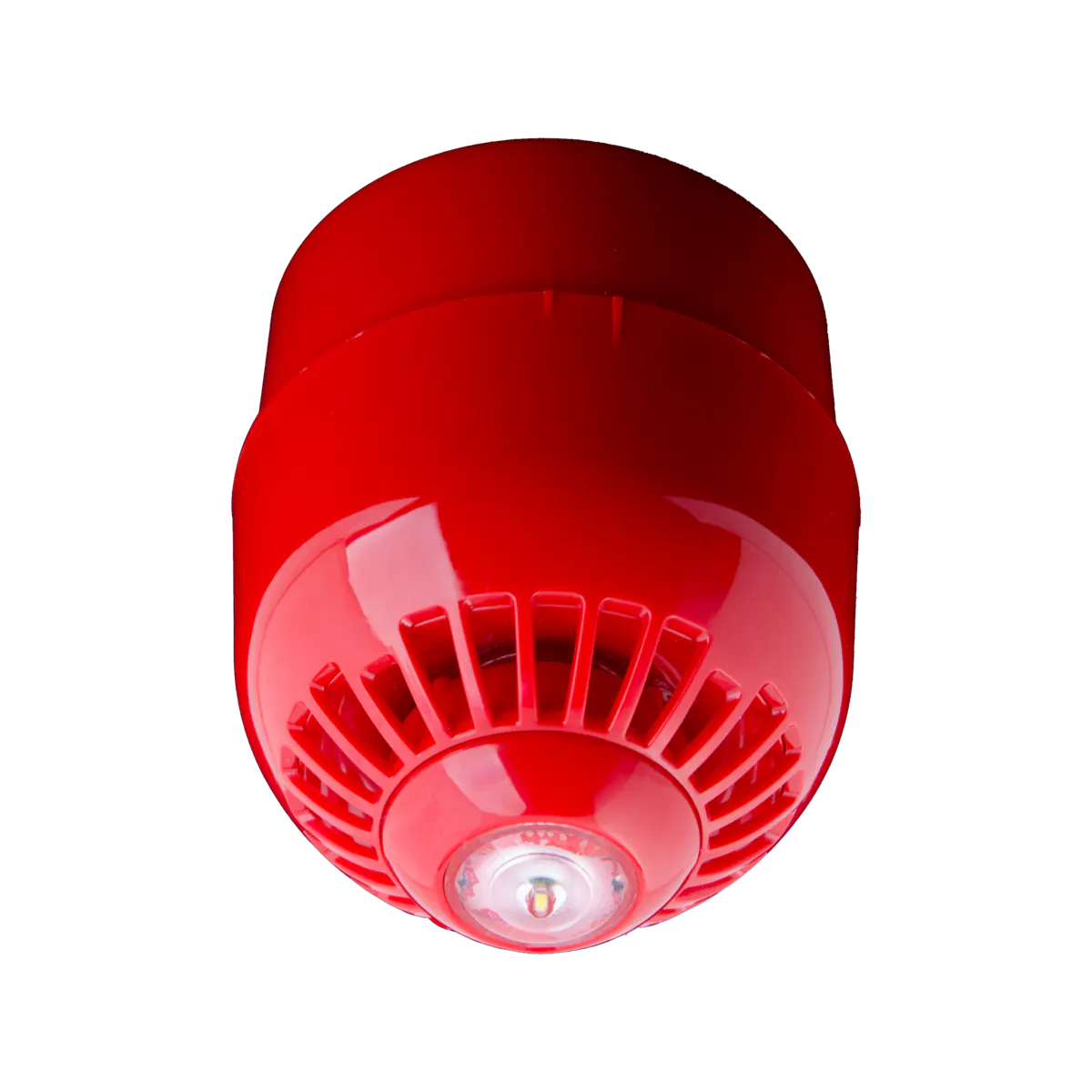

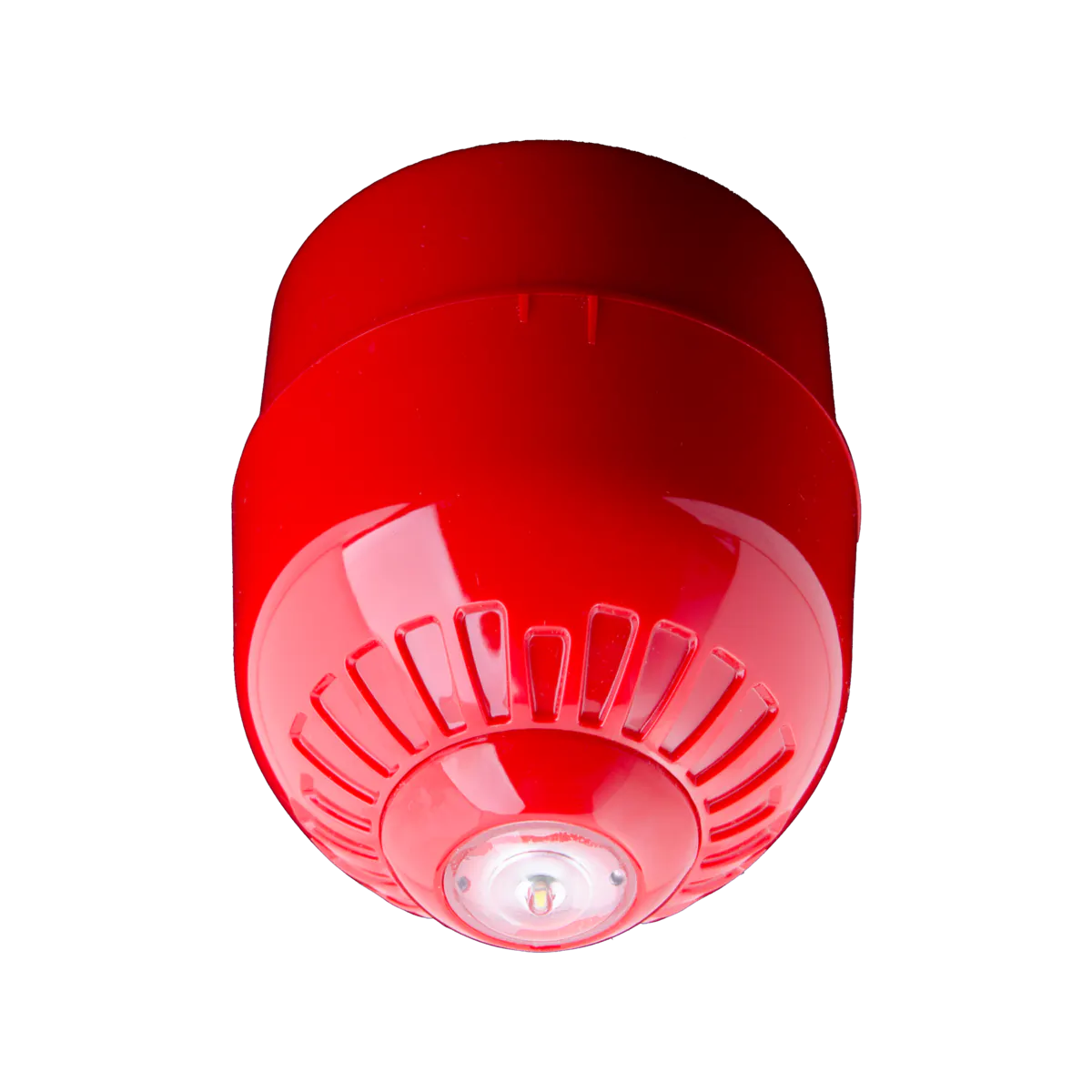

Sonos Pulse Ceiling — Ceiling Sounder Beacon

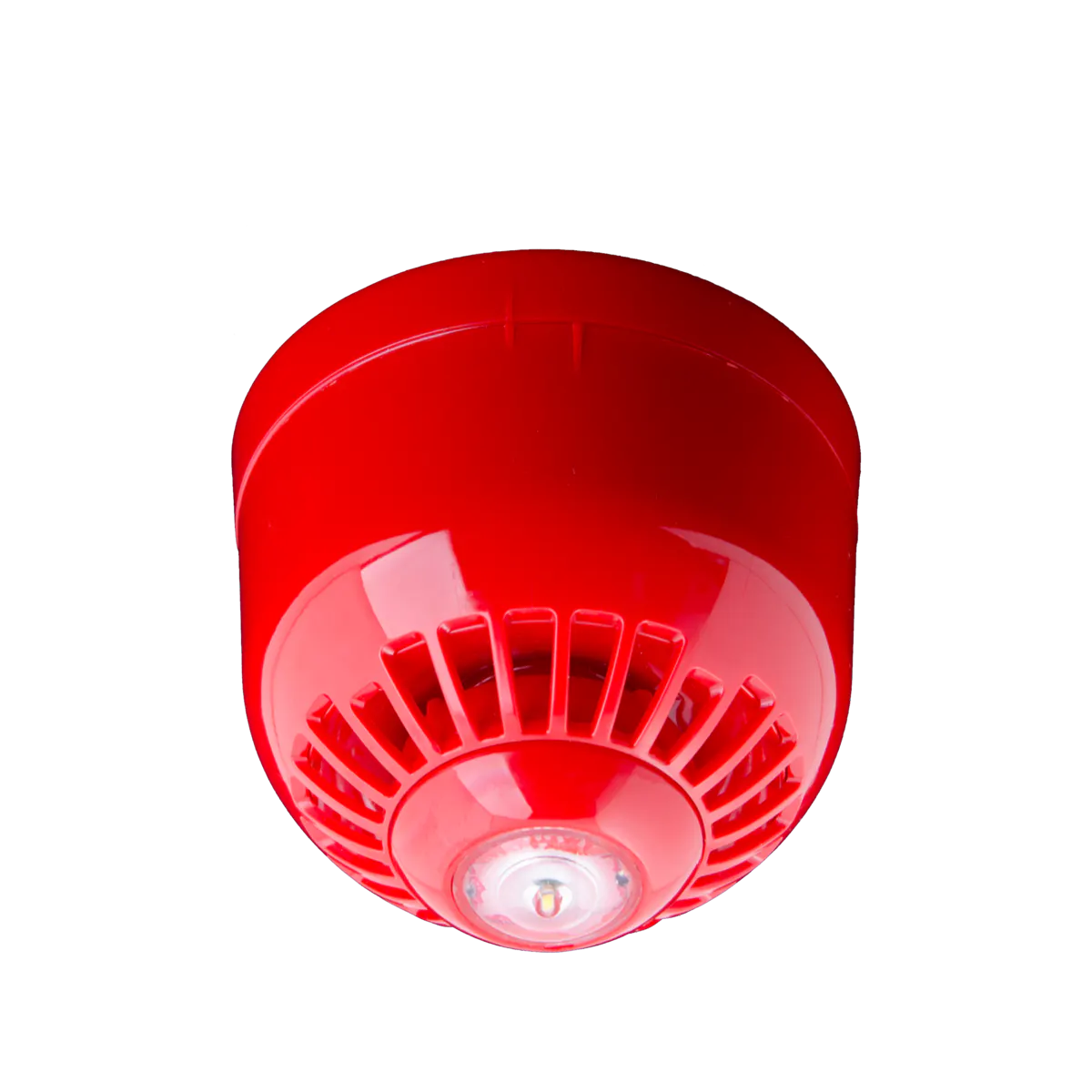

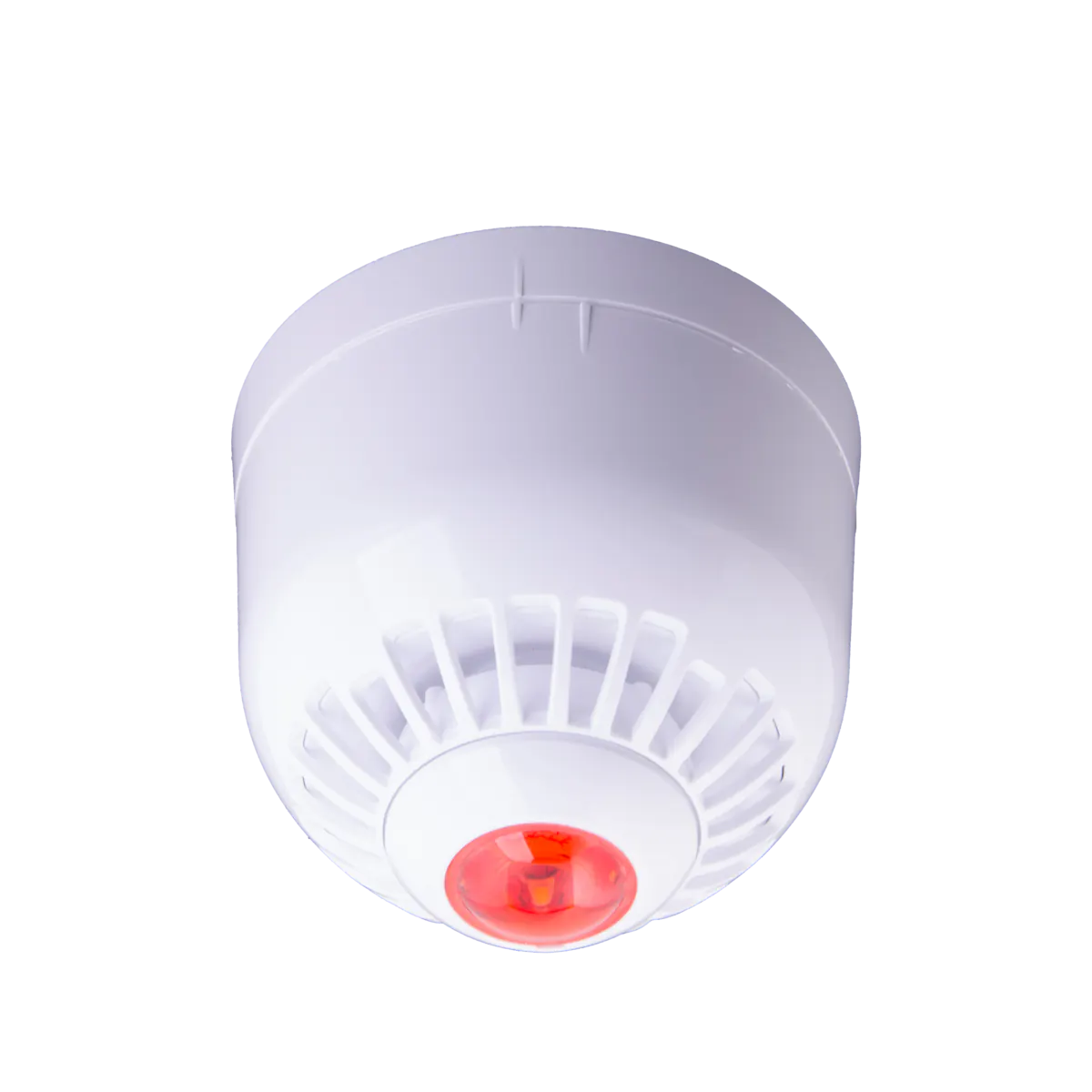

The Sonos Pulse Ceiling sounder beacon is an EN54-23 visual alarm device with an integrated sounder, designed for ceiling-mounted fire warning that delivers both audible and visual alerts from one point. Built on Pulse Alert Technology, it offers a White or Red flash (white giving EN54-23 coverage C-3-15, red C-3-8.9) with a selectable flash rate, plus 32 tones at up to 97dB for combined room or zone coverage.

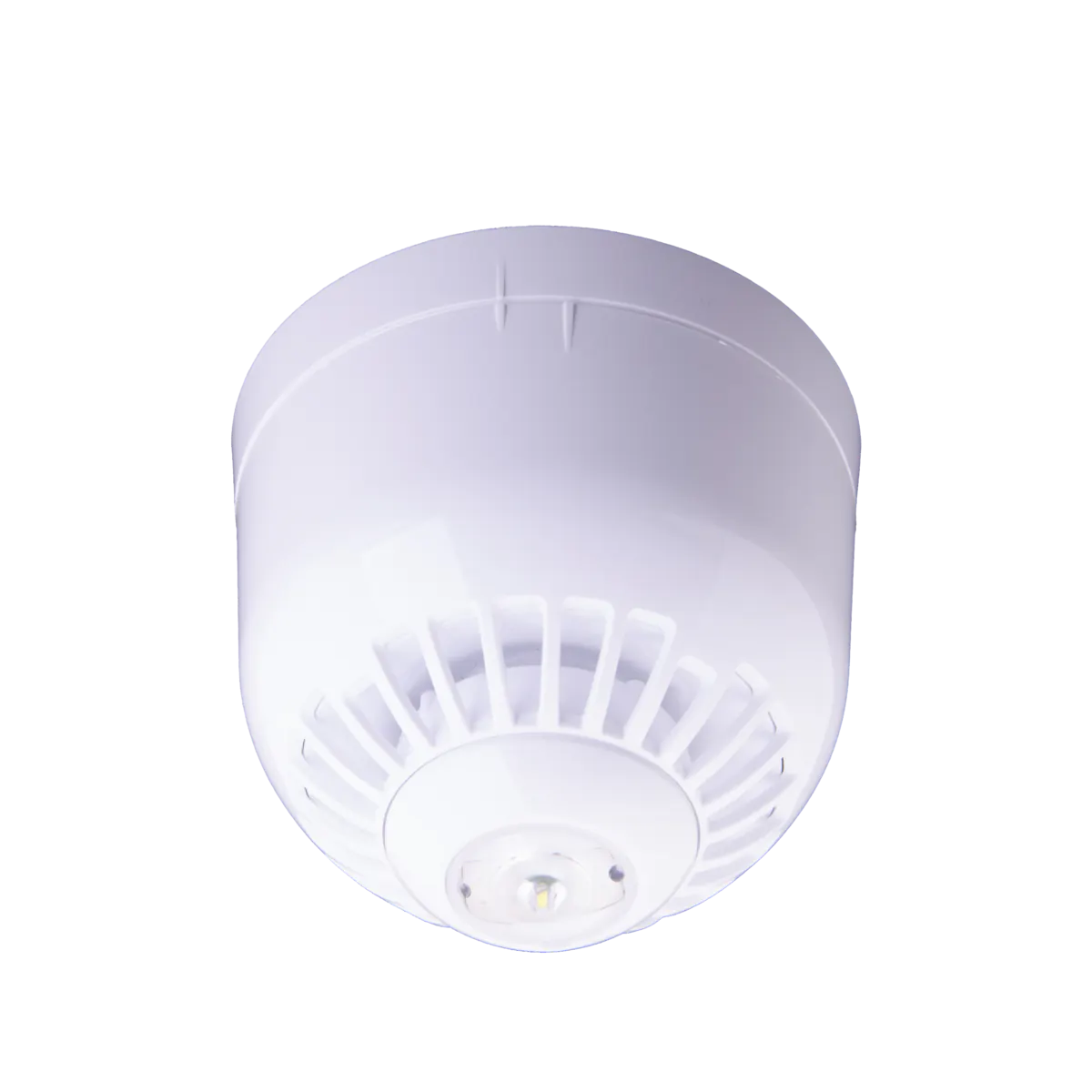

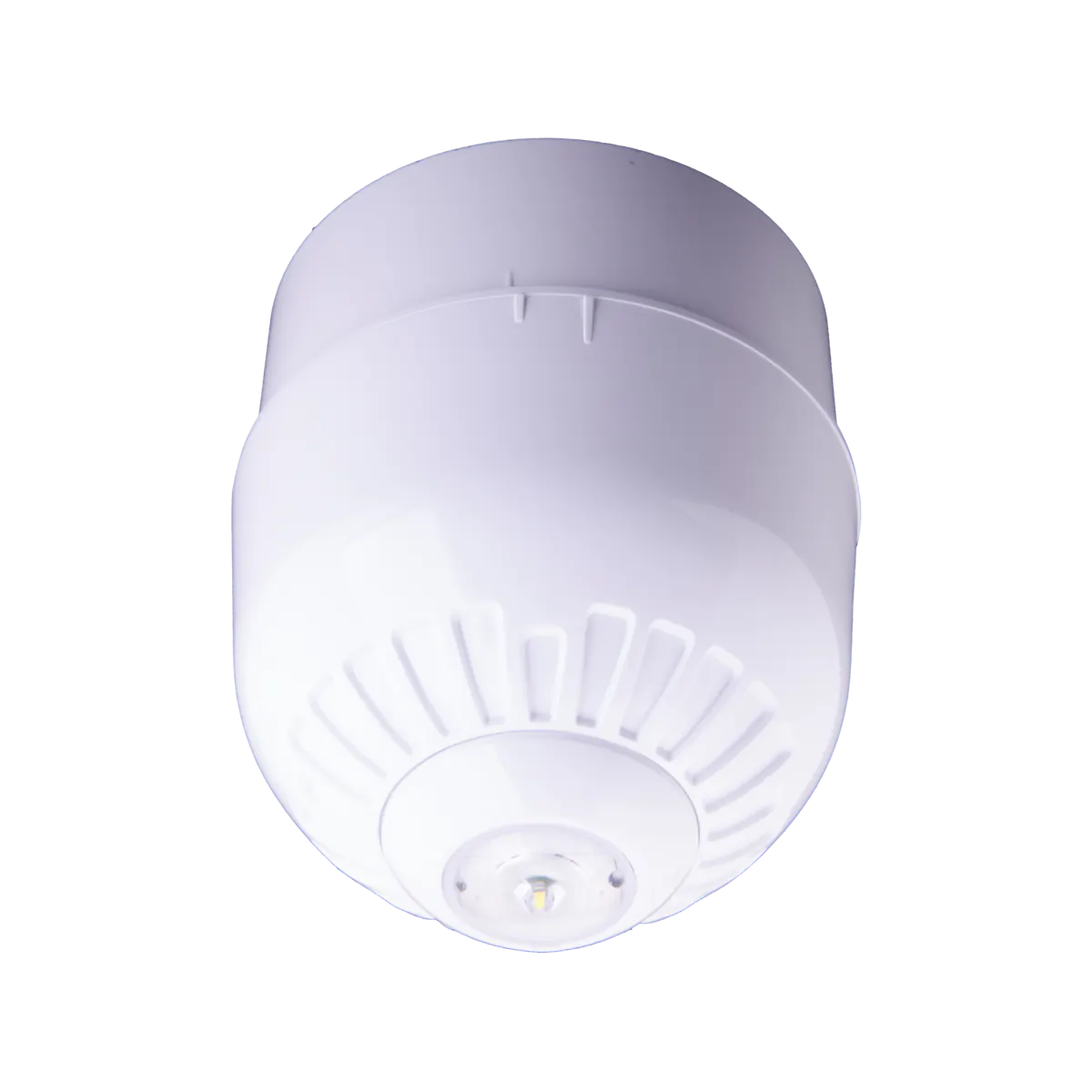

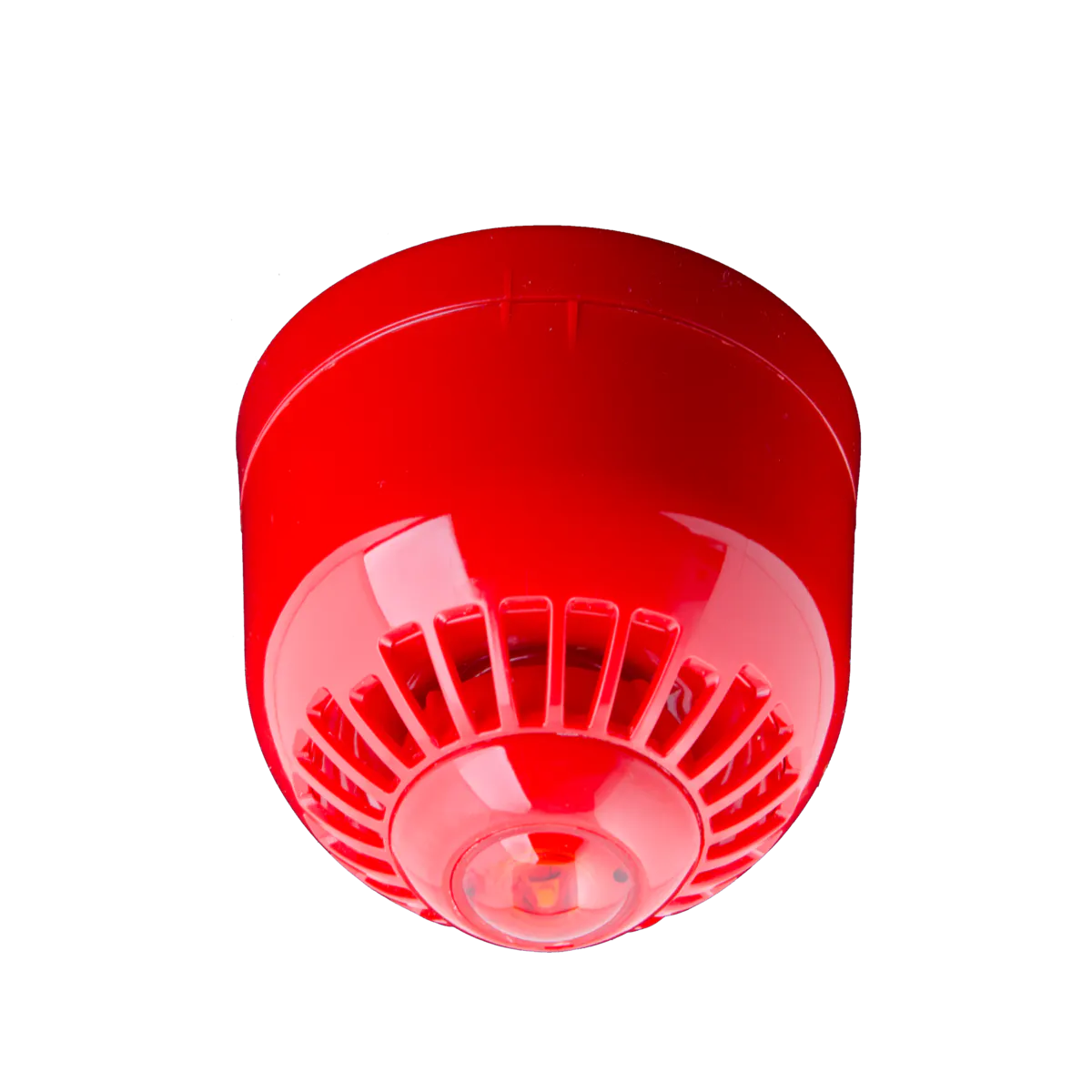

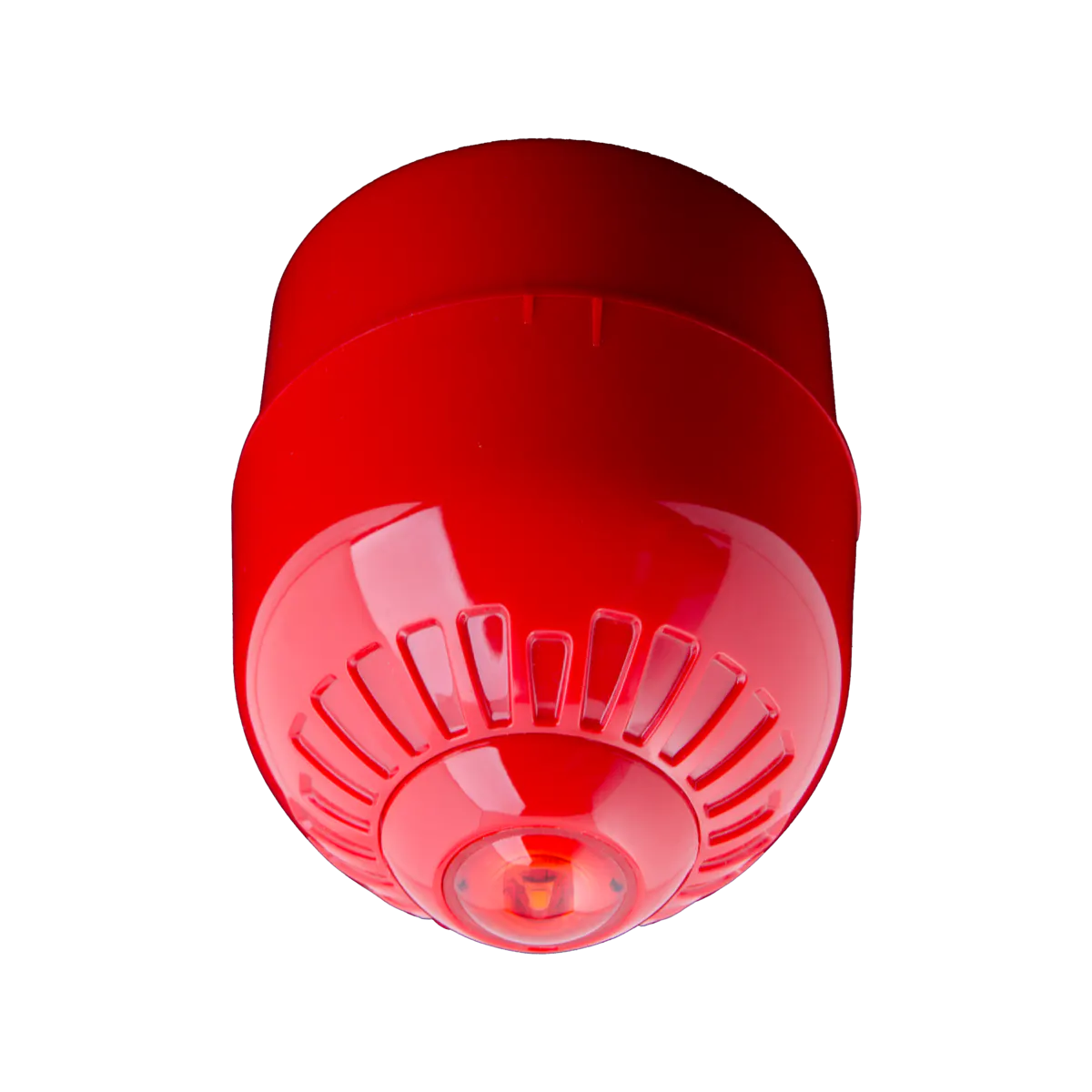

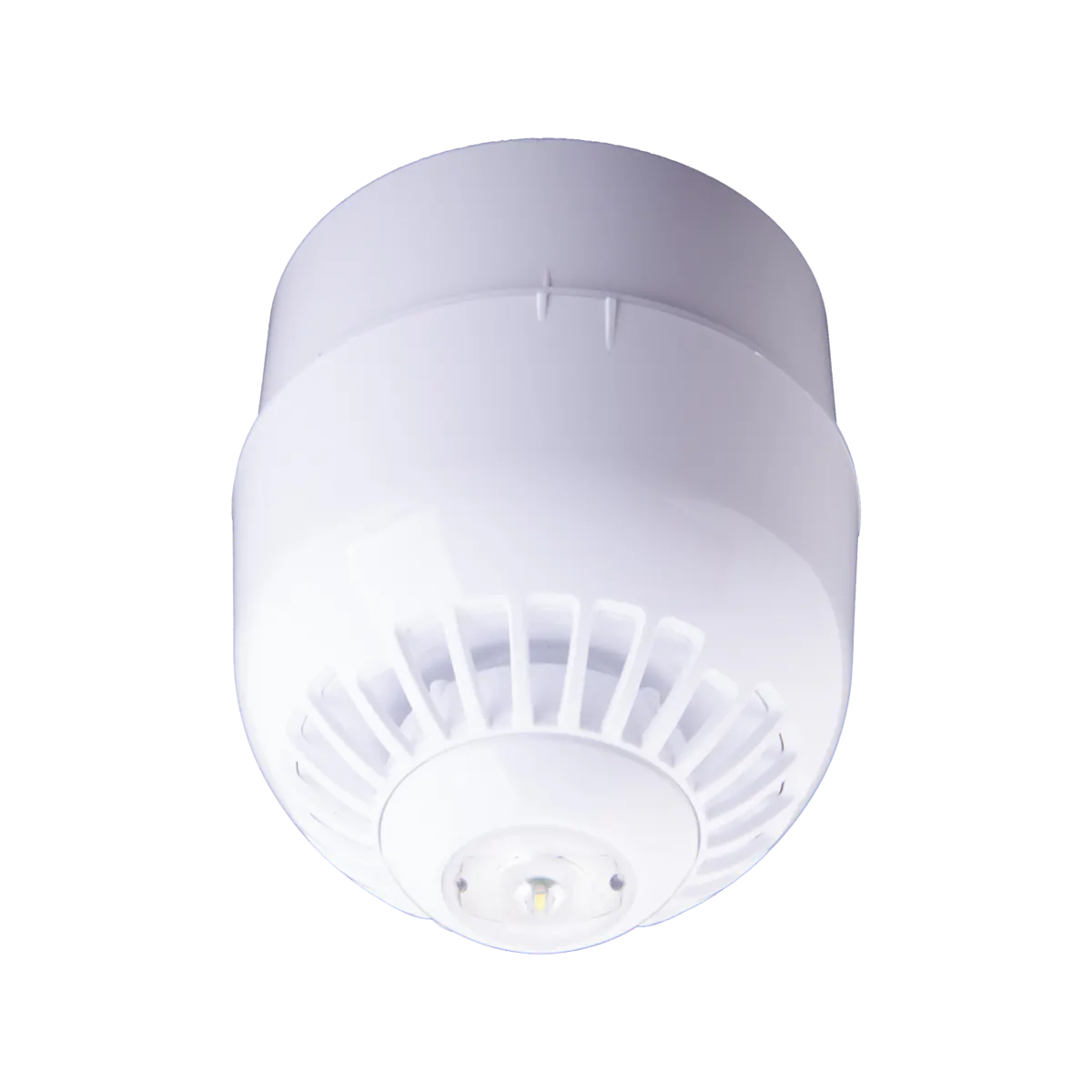

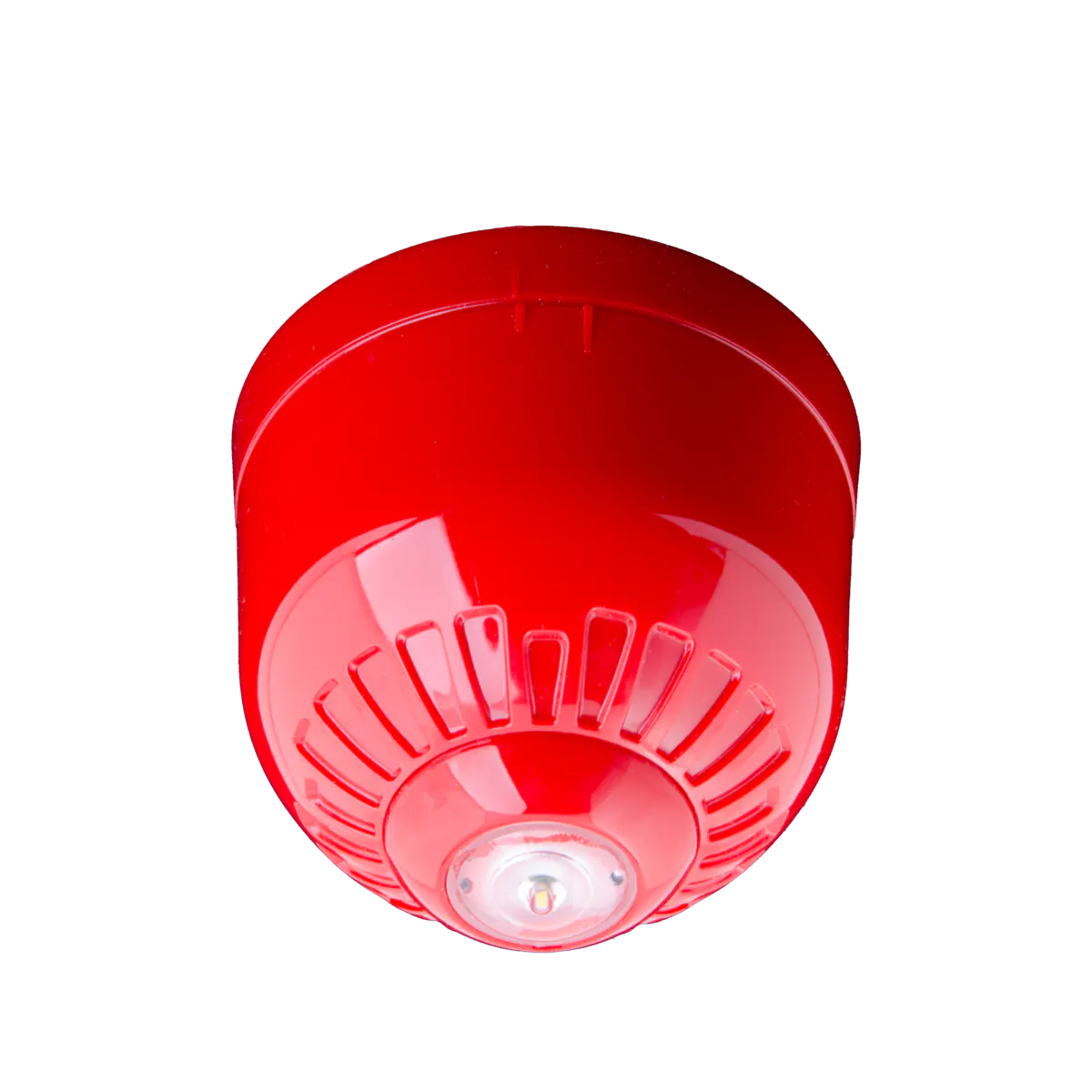

Shallow or Deep Base selection sets ingress protection, and wire-to-base technology with synchronised flash and no surge current keeps installation simple.
Combined EN54-23 visual and audible fire warning from the ceiling.
KEY FEATURES
● Up to 97dB at 1 metre
● Flashing
● 32 selectable tones
● No surge current
● IP21 or IP33 rated
● Ceiling mounting
● EN54-3 approved
● Available colours: Red, White
● 17-60vDC
MATERIALS
● ABS body
Typical applications: fire alarm systems, offices, retail, hotels, public buildings.
