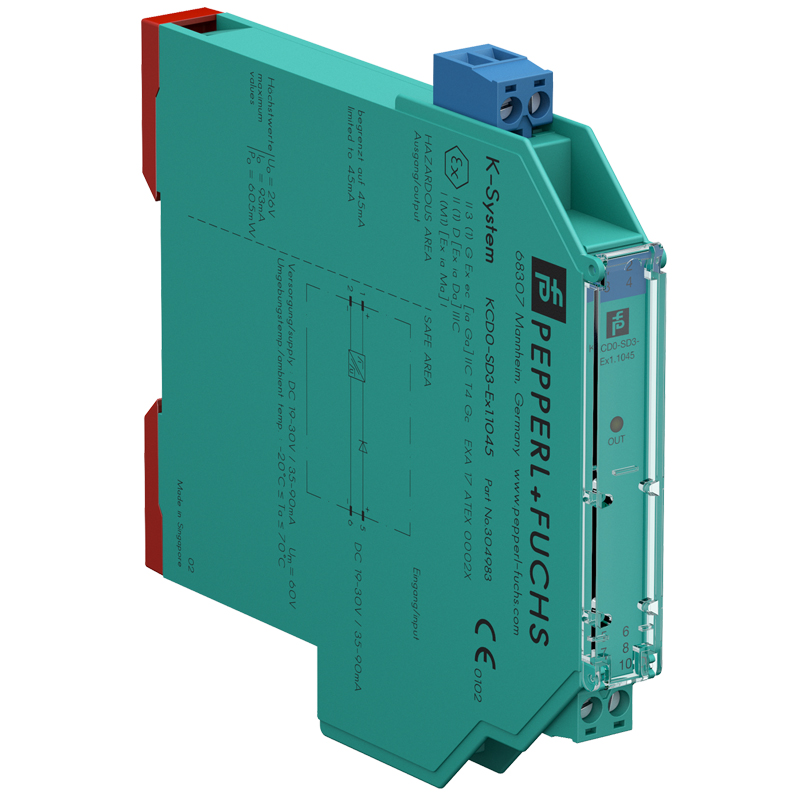

KCD0 — Intrinsically Safe Galvanic Isolator
The KCD0-SD3-Ex1.1045 is a single-channel galvanically isolated solenoid driver that lets a safe-area signal switch an intrinsically safe solenoid valve, alarm or LED located in the hazardous area. Galvanic isolation removes the need for a dedicated intrinsically safe earth.
Loop-powered from the 24 V DC control signal, it provides a current-limited intrinsically safe output with test-pulse immunity, and is rated up to SIL 3 to IEC/EN 61508 in a compact 12.5 mm DIN-rail housing.
KEY FEATURES
● Galvanic isolator required
● Single-channel isolated barrier (solenoid/valve driver)
● Test-pulse immunity
● Up to SIL 3 (IEC/EN 61508)
● IP20 rated
● 35 mm DIN-rail mounting
● Gas 0, 1, 2 | Dust 20, 21, 22
● ATEX & IECEx certified
● 24vDC
SPECIFICATIONS
● [Ex ia] IIC intrinsically safe output
● IP20, 12.5 mm housing width
● 35 mm DIN-rail mounting
● Dimensions 12.5 × 119 × 114 mm
● Moflash part no. 304983
