LED195 Industrial LED Beacons

Features

  • Continuously rated
  • Flashing or Static
  • Low current consumption
  • Suitable for surface or wall mounting
  • 180° light output around the vertical axis
  • WH = White Back Box
  • SB = Shallow Base
  • M20 Cable Gland available to order – Code 50002
  • Available in 12vAC/DC, 24vAC/DC, 48vAC/DC
    and 115/230vAC/DC

Material

UV Stable Polycarbonate Lens
UV Stable ABS Plastic Base

[vc_row][vc_column][vc_column_text css=””]

LED195 Series Industrial LED Beacons / KMLED 105

The LED195 series has been designed for industrial & commercial signalling applications where low maintenance & long life are the pre-requisite requirement. These beacons have two stages of alarm, Flashing (60 or 120FPM) or Continuous (static) mode, selectable via a Jumper Link on the PCB. The product is pre-set to 60FPM when leaving the factory.
The design also allows for a third wire connection, giving the flexibility to switch from a pre-set static mode to a pre-set flashing mode.

The design allows for termination inside the enclosure. Two versions are available:

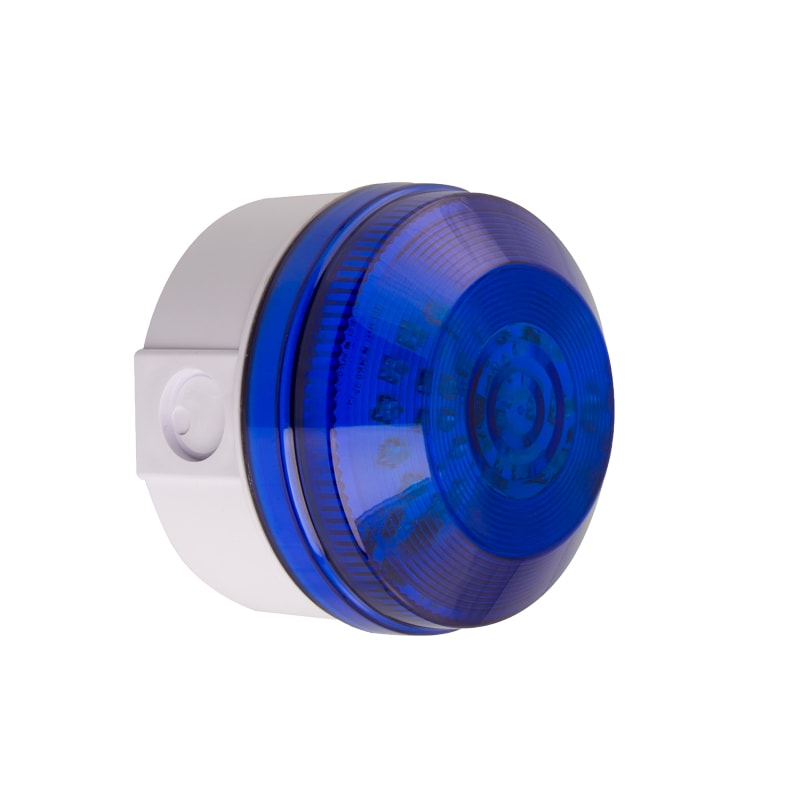

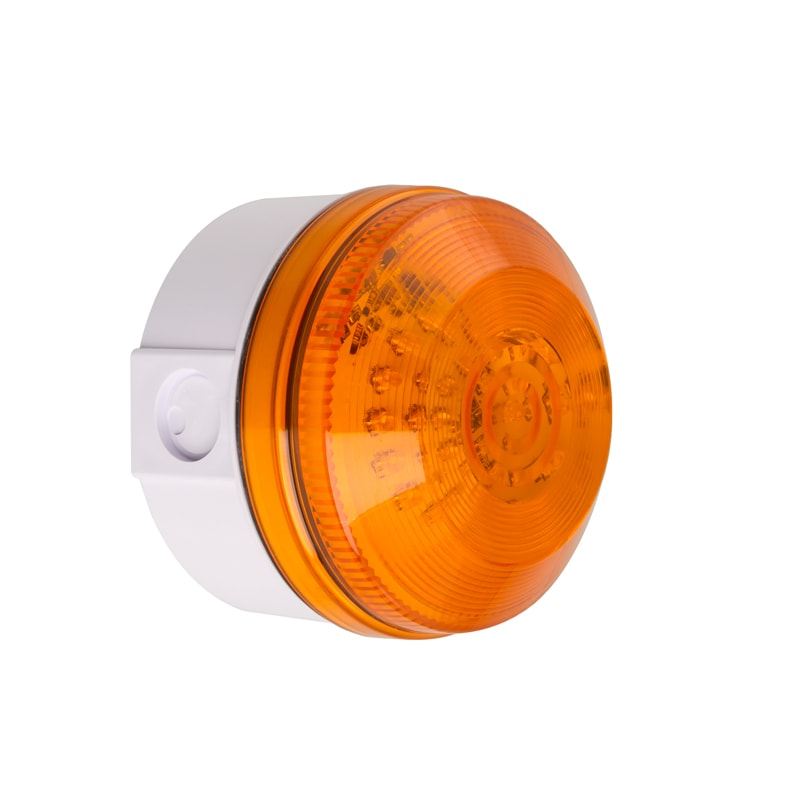

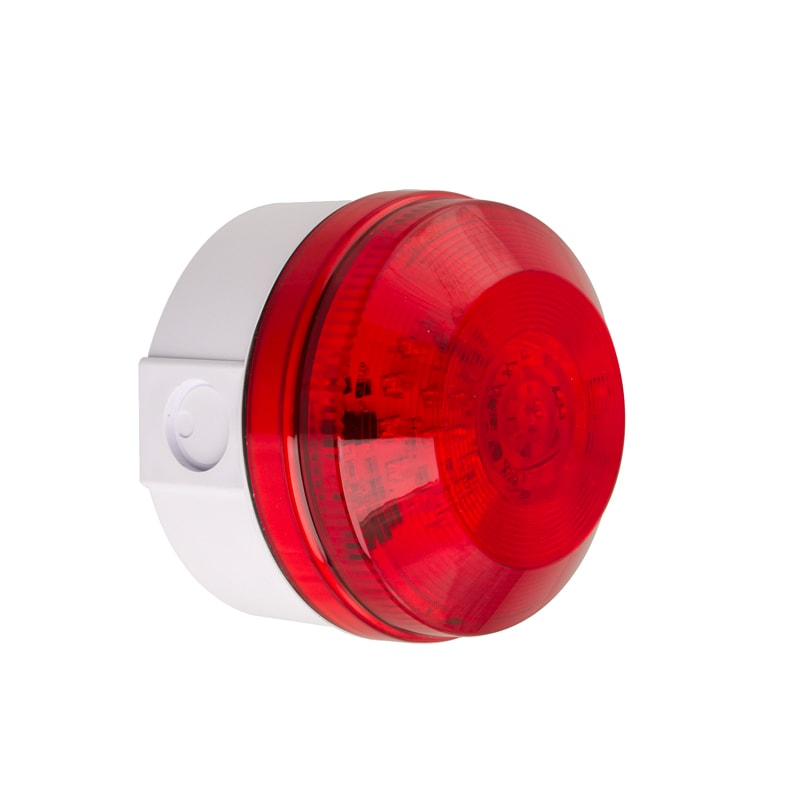

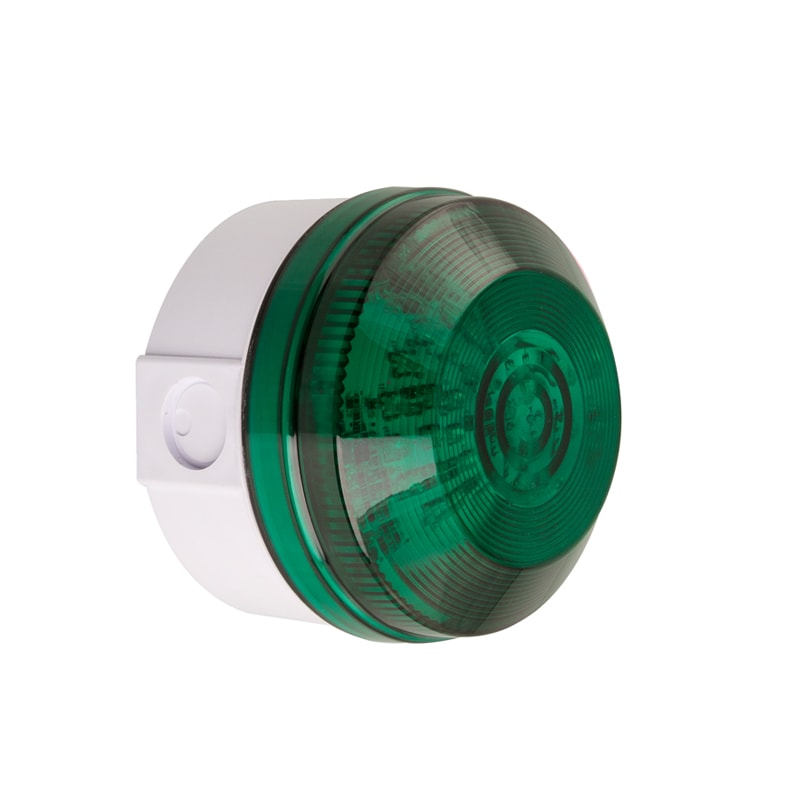

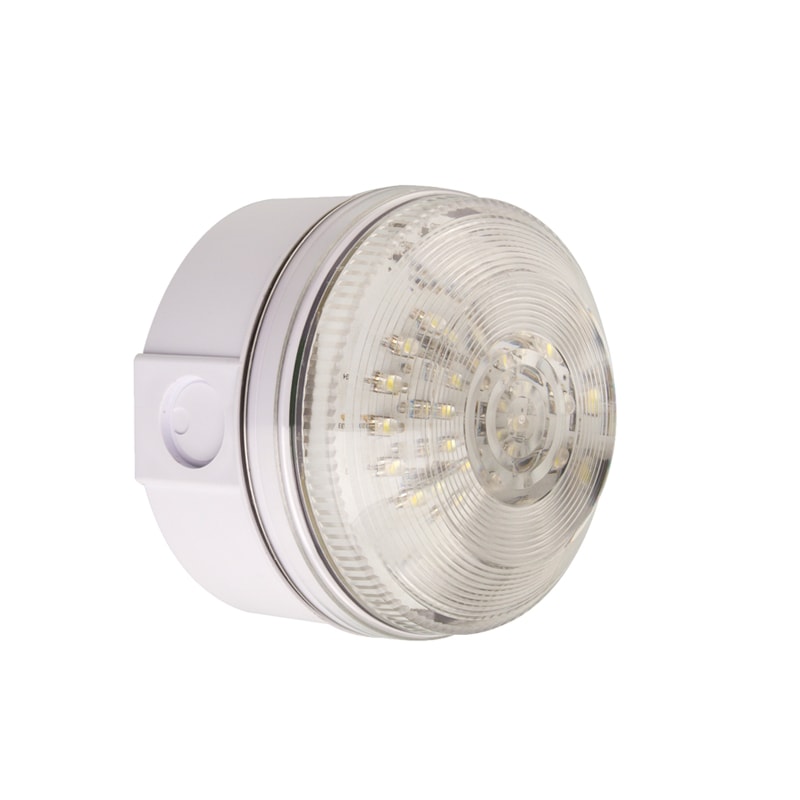

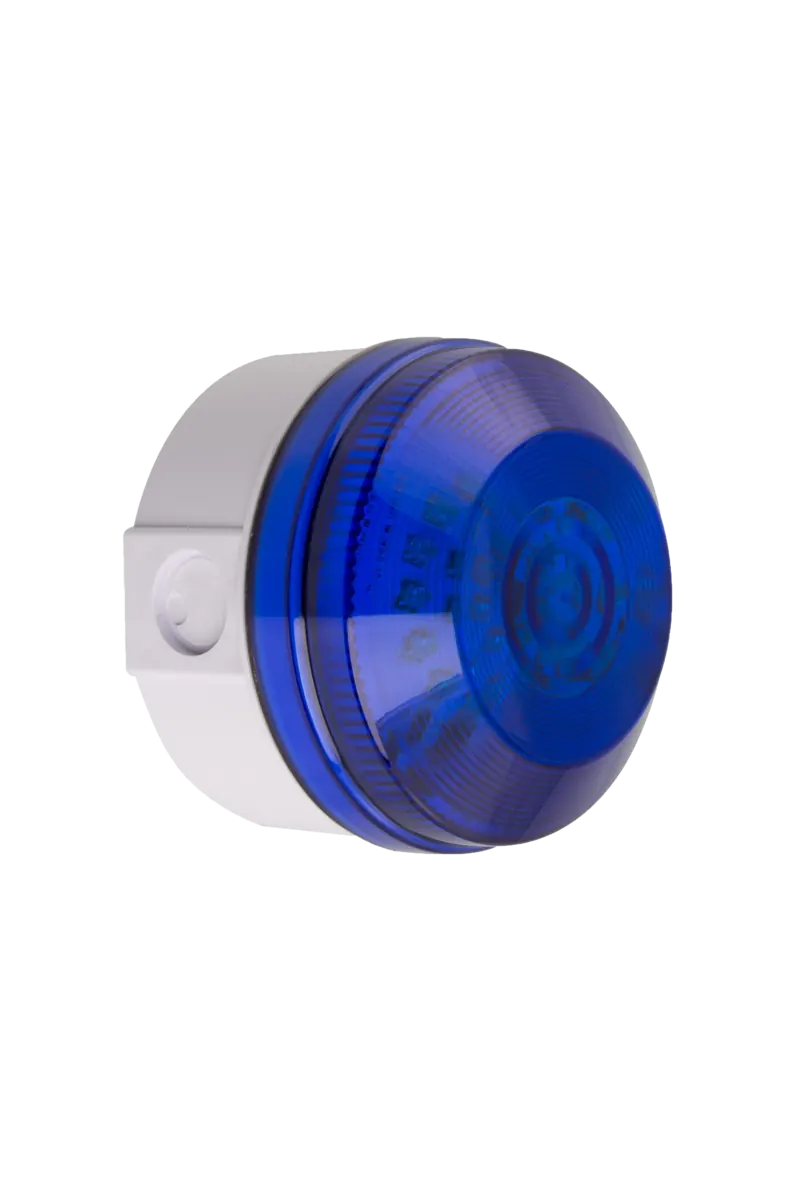

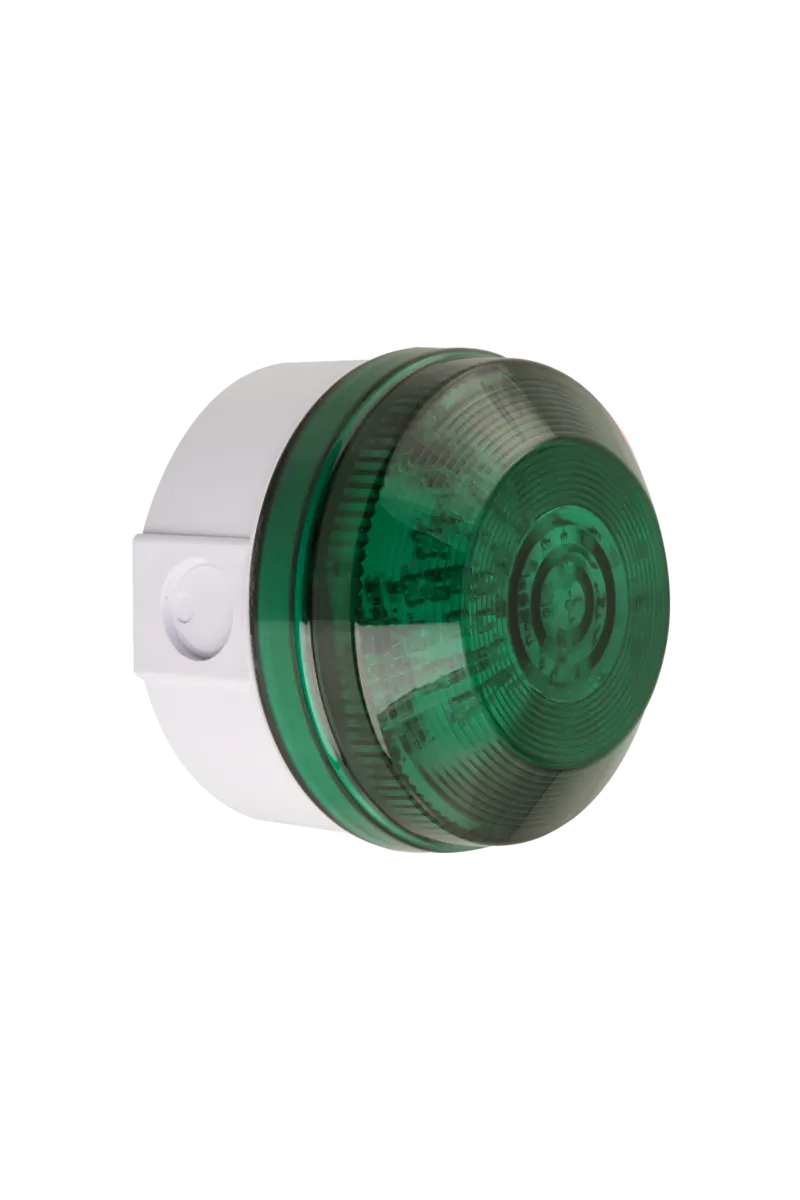

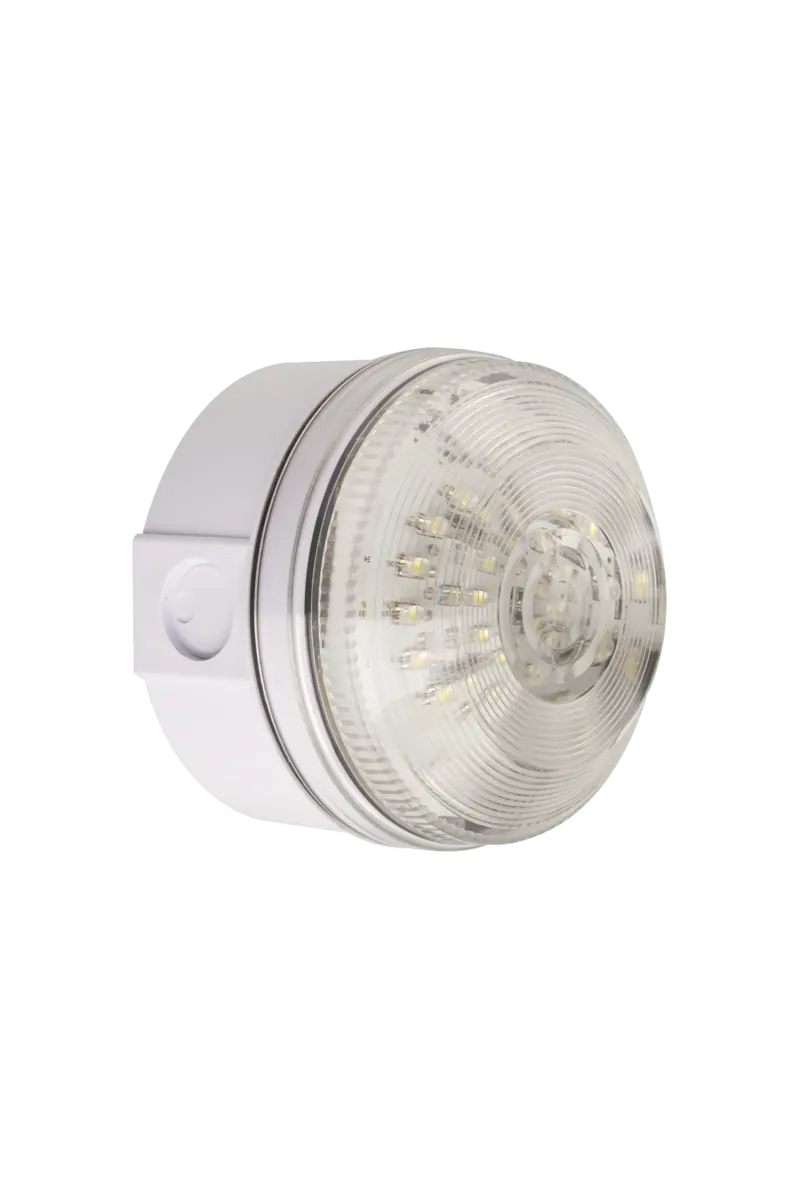

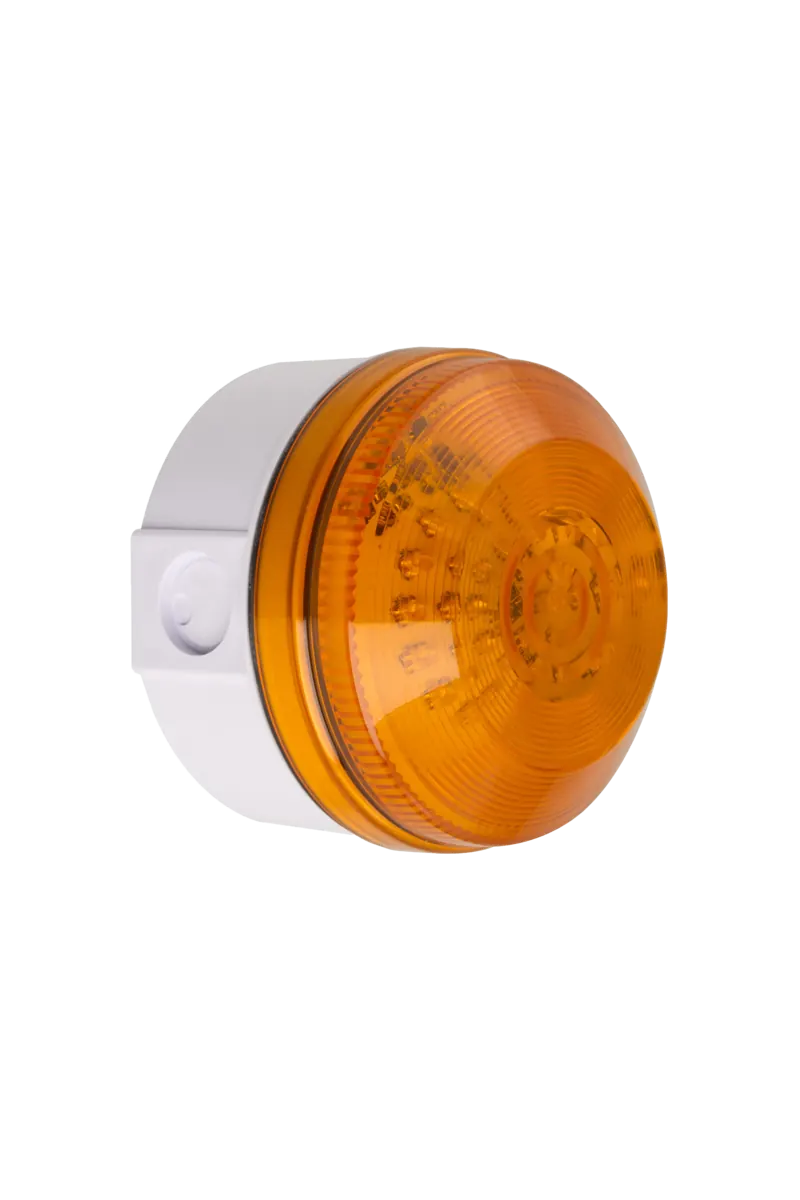

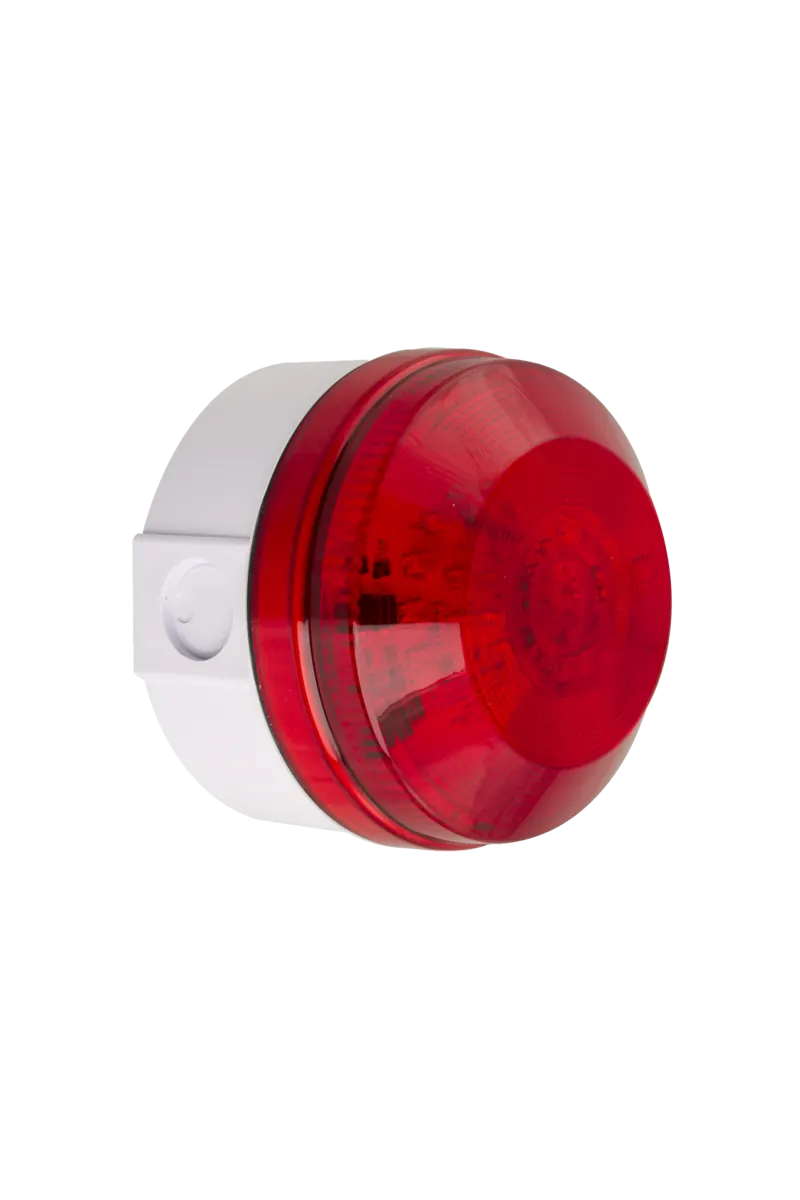

  • Deep Base – Allows for 2 x M20 side entry and 1 x M20 rear entry knockouts.

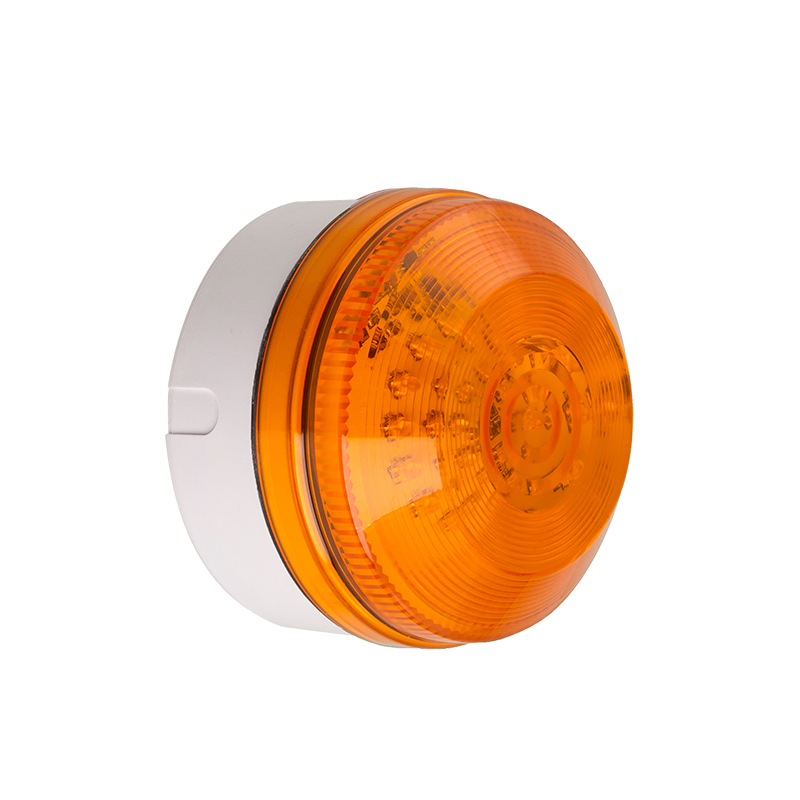

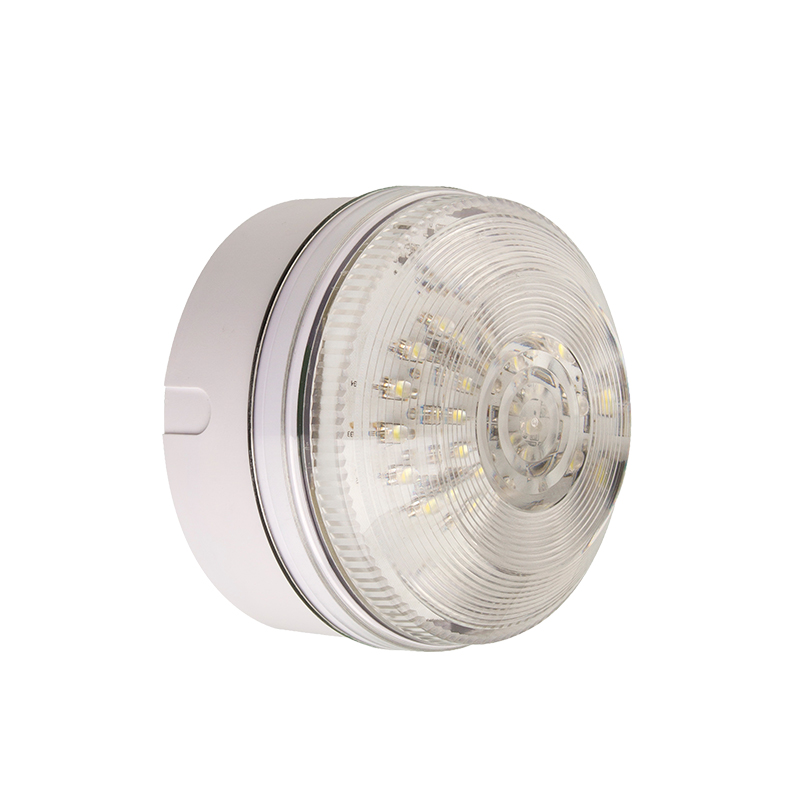

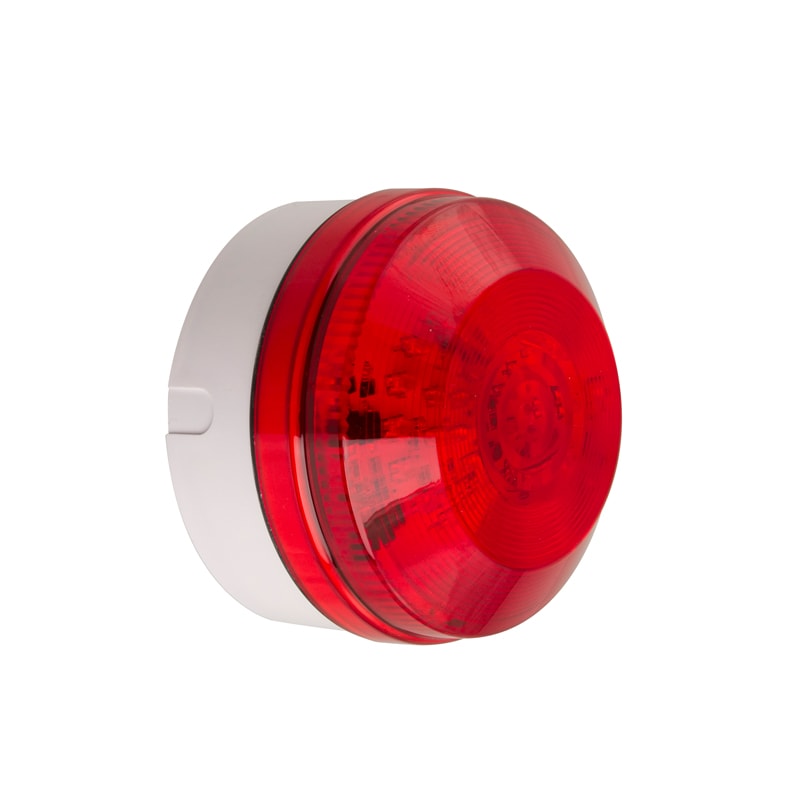

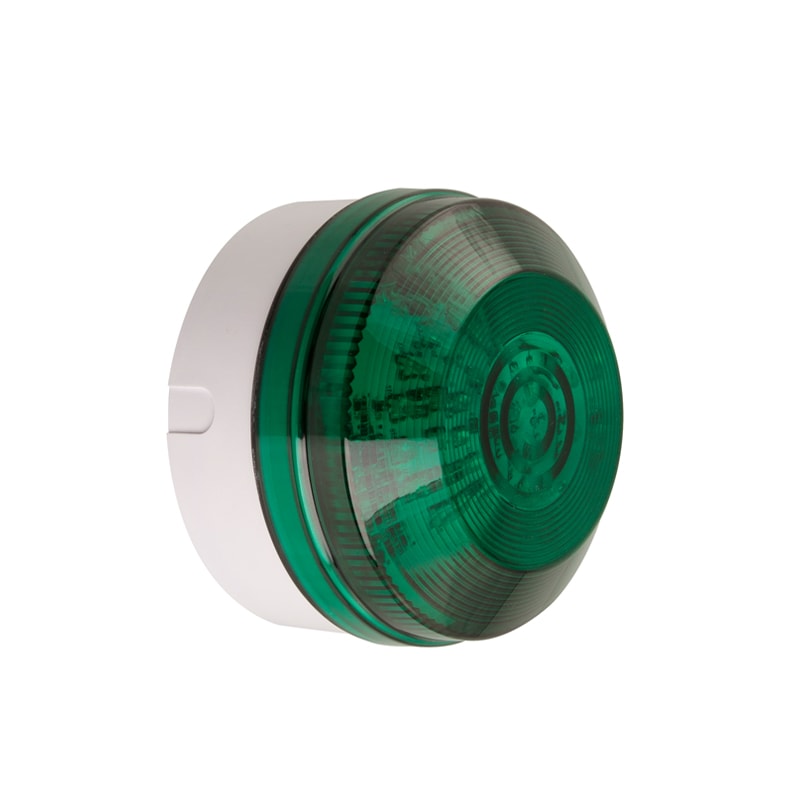

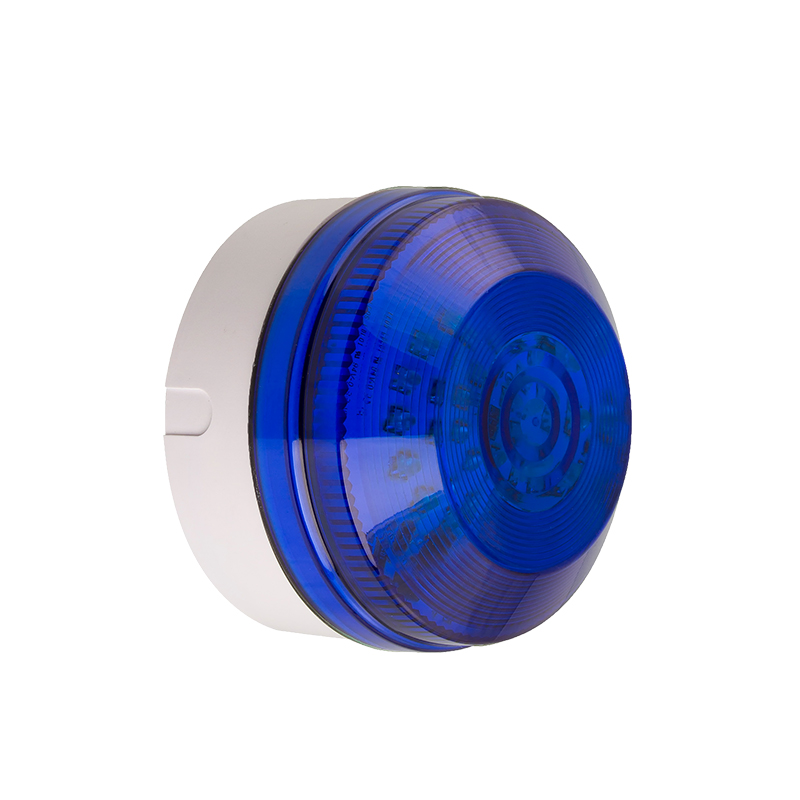

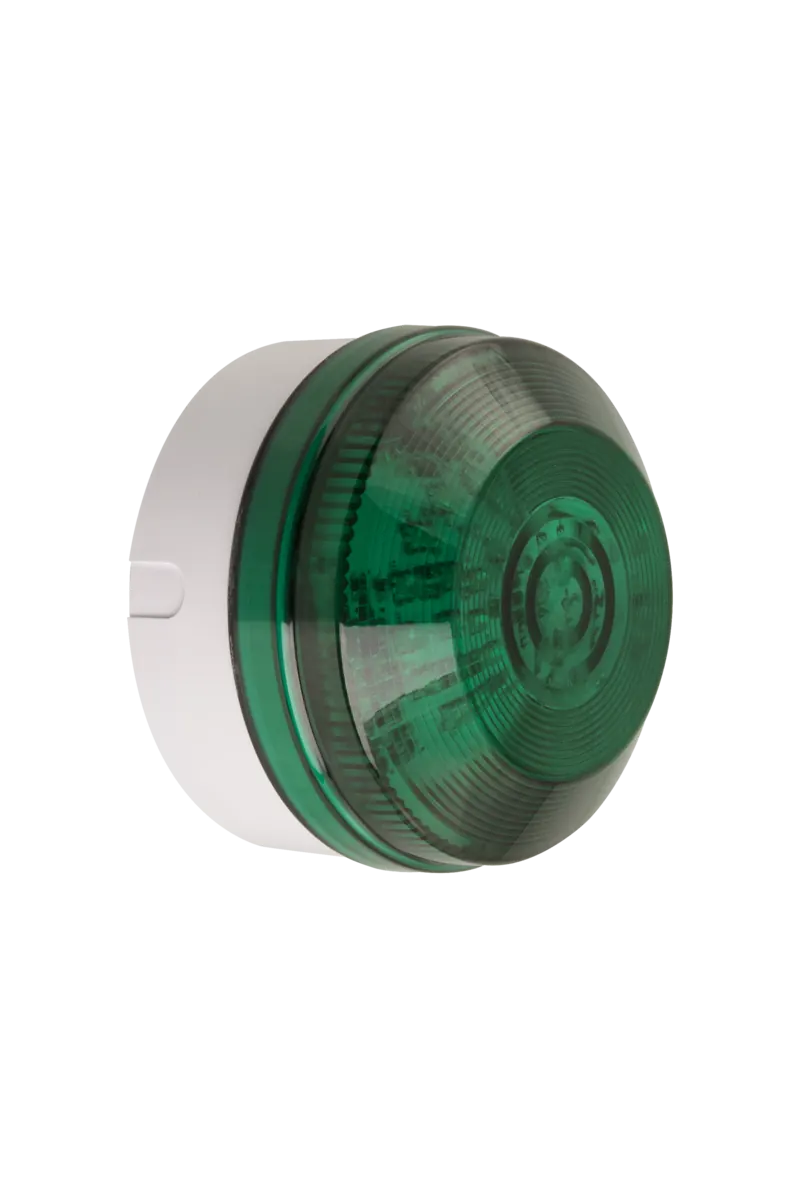

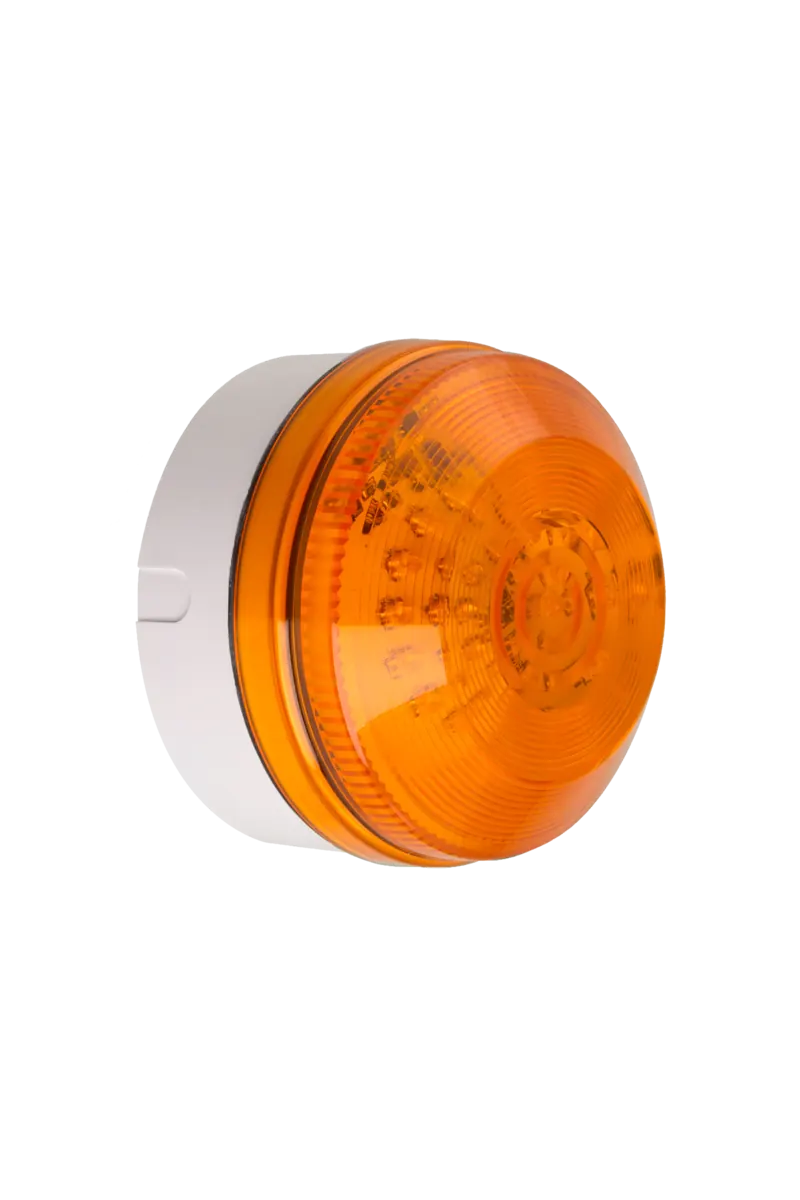

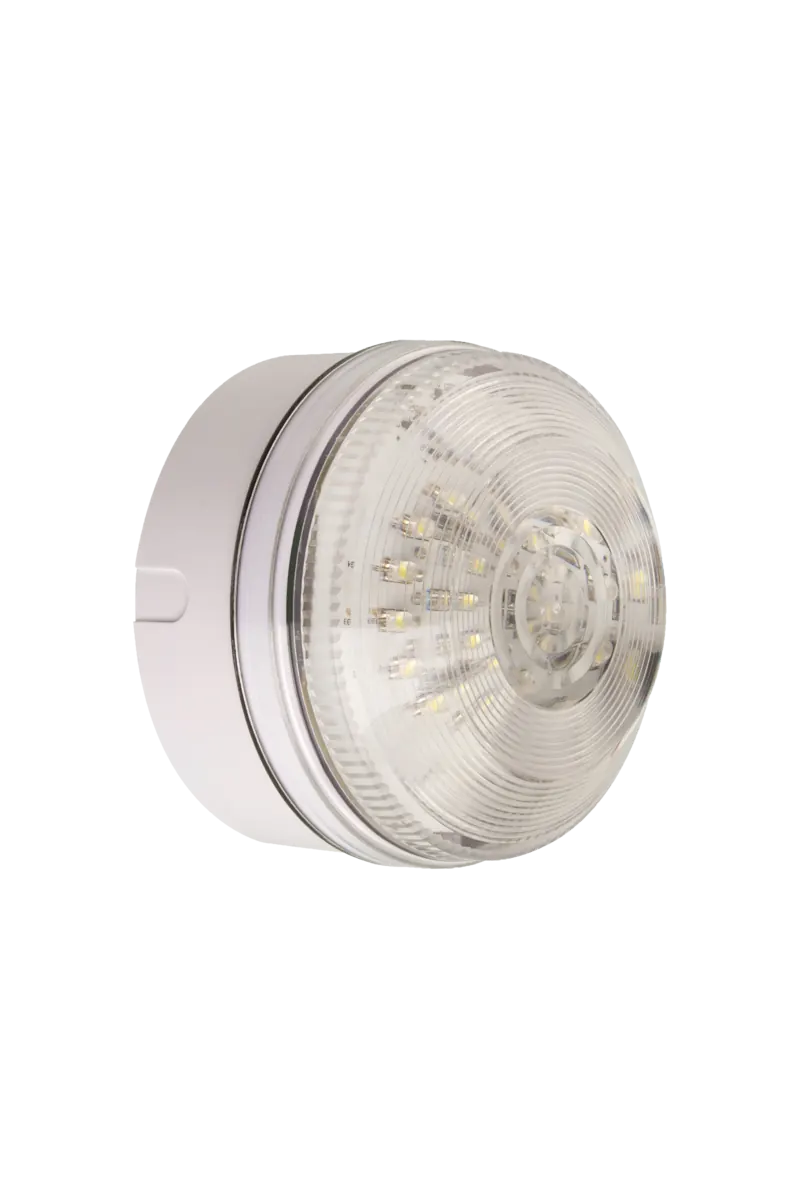

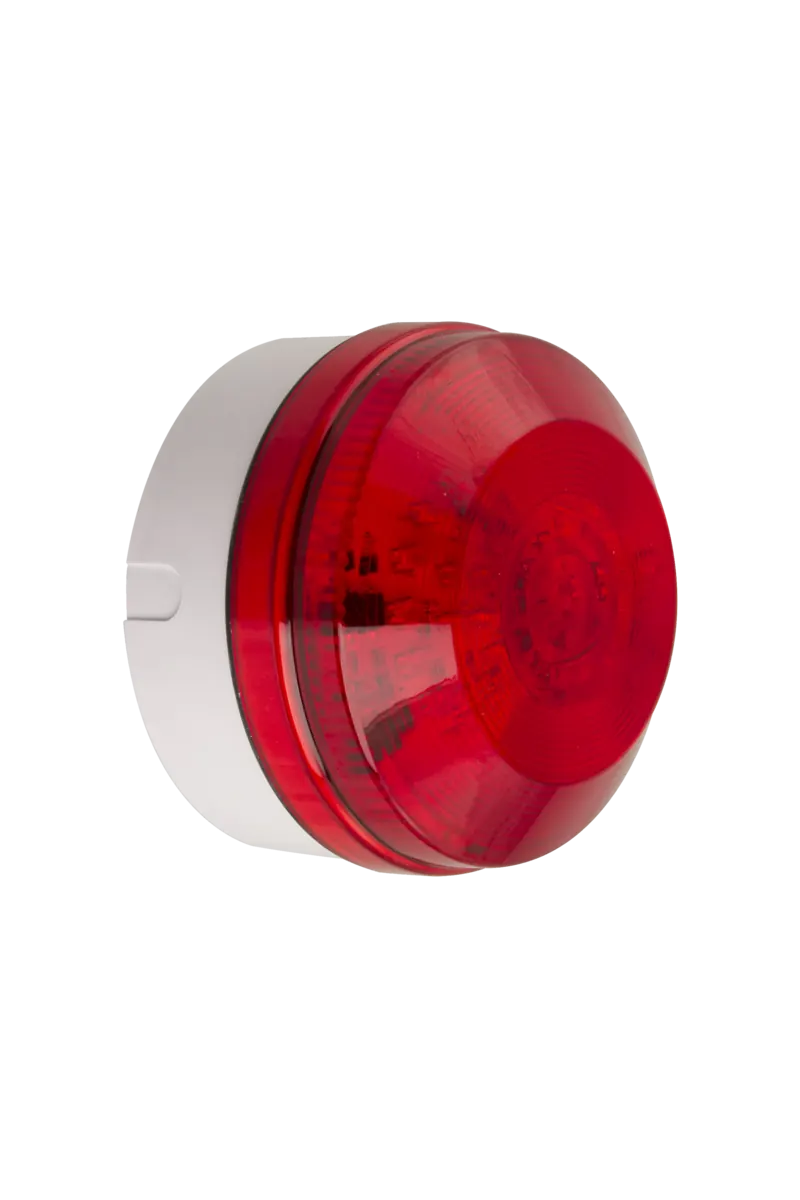

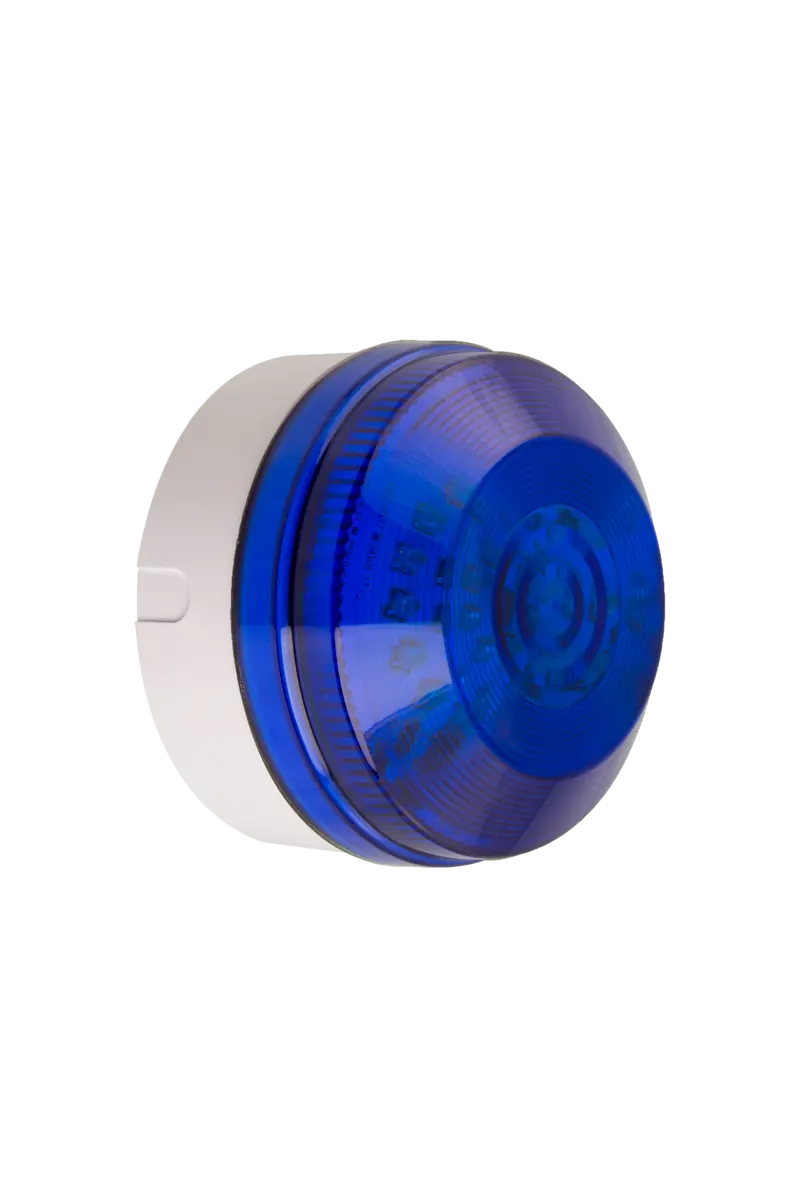

  • Shallow Base (SB – Low profile version) – Allows for 2 x 5mm side entry and 1 x M20 rear entry knockouts.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_position=”right” i_icon_fontawesome=”fa fa-info-circle” add_icon=”true” title=”Info” tab_id=”1529317535592-82775f79-919a”][vc_column_text][table id=8 /][/vc_column_text][/vc_tta_section][vc_tta_section i_position=”right” i_icon_fontawesome=”fa fa-download” add_icon=”true” title=”Downloads” tab_id=”1529317535641-93589db5-4f73″][vc_text_separator title=”Datasheets” i_icon_fontawesome=”fas fa-table” title_align=”separator_align_left” color=”blue” css=”” add_icon=”true”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Datasheet-English.pdf” onclick_target=”blank”]Datasheet – (English) [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Datasheet-French.pdf” onclick_target=”blank”]Fiche technique – Français [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Datasheet-German.pdf” onclick_target=”blank”]Datenblatt – Deutsch [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Datasheet-Spanish.pdf” onclick_target=”blank”]Ficha Técnica – Español [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Datasheet-Italian.pdf” onclick_target=”blank”]Scheda tecnica – Italiano [/vcex_button][vcex_spacing size=”5px”][vcex_spacing size=”5px”][vc_text_separator title=”Installation Sheets” i_icon_fontawesome=”fas fa-wrench” title_align=”separator_align_left” color=”blue” css=”” add_icon=”true”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Installation-Sheet-English.pdf” onclick_target=”blank”]Installation Sheet – English [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Installation-Sheet-French.pdf” onclick_target=”blank”]Fiche d’installation – Français [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Installation-Sheet-German.pdf” onclick_target=”blank”]Installationsblatt – Deutsch [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Installation-Sheet-Spanish.pdf” onclick_target=”blank”]Manual de instalación – Español [/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-Installation-Sheet-Italian.pdf” onclick_target=”blank”]Scheda di installazione – Italiano [/vcex_button][vcex_spacing size=”5px”][vcex_spacing size=”5px”][vc_text_separator title=”CAD File” i_icon_fontawesome=”fas fa-cubes” title_align=”separator_align_left” color=”blue” css=”” add_icon=”true”][vcex_button icon_right=”download” style=”plain-text” color=”red” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/LED195/195-Series-SB.zip” onclick_target=”blank”]CAD File SB[/vcex_button][vcex_spacing size=”5px”][vcex_button icon_right=”download” style=”plain-text” color=”red” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/LED195/195-197-Series-DB.zip” onclick_target=”blank”]CAD File DB[/vcex_button][vcex_spacing size=”5px”][vc_text_separator title=”Certification” i_icon_fontawesome=”fa fa-check-square-o” i_background_style=”rounded-outline” i_background_color=”blue” i_size=”xs” title_align=”separator_align_left” align=”align_left” color=”blue” el_width=”50″ add_icon=”true”][vcex_spacing size=”5px”][vcex_button layout=”block” icon_right=”check-square-o” style=”plain-text” color=”blue” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/LED195/LED195-CE-DoC.pdf” onclick_target=”blank”]CE DoC[/vcex_button][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-cube” add_icon=”true” title=”3D Model SB” tab_id=”1529317613109-1c95ccdd-0da5″][vc_column_text]

[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-cube” add_icon=”true” title=”3D Model DB” tab_id=”1529317654971-209afc99-2842″][vc_column_text]
[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vcex_image_grid image_ids=”9131″ css_animation=”fadeInDown” img_size=”medium” hover_animation=”shrink” img_hover_style=”shrink”][/vc_column][/vc_row]

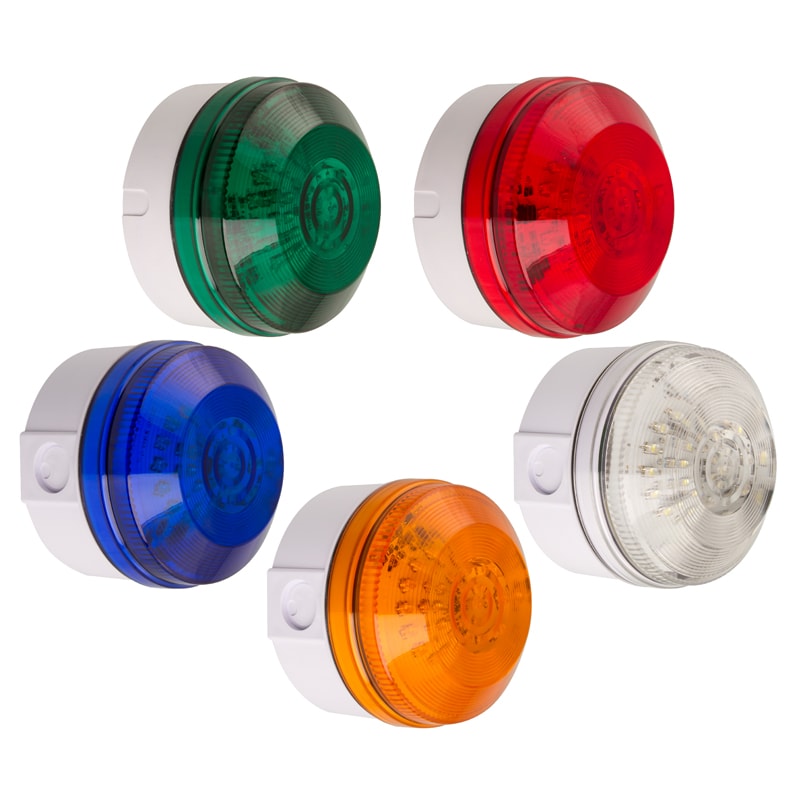

Lens Colour:

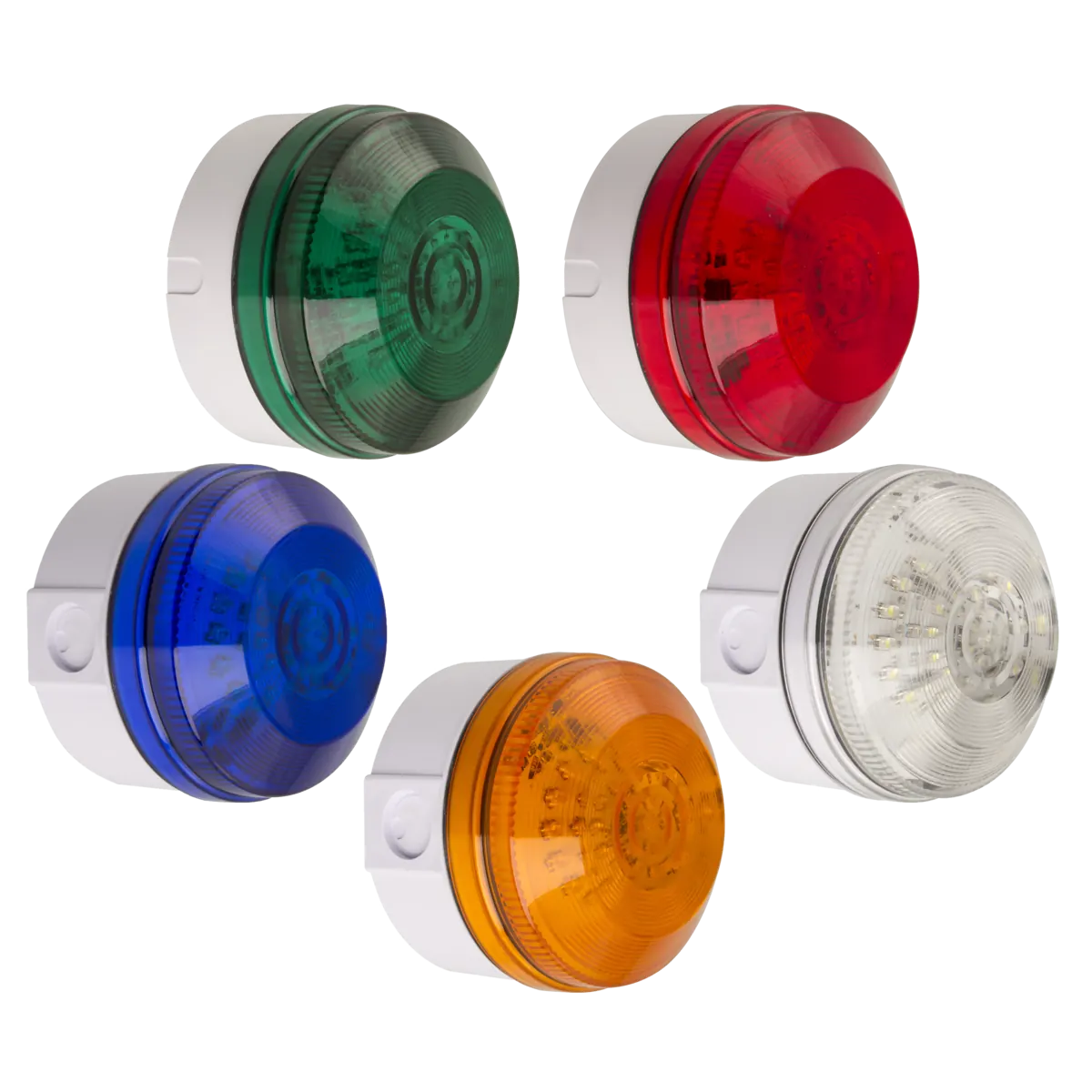

Amber, Blue, Clear, Green, Red

IP Rating:

IP 65

Maximum Temperature:

+55 °C

Minimum Temperature:

-25 °C

Application:

Industrial

FPM:

FPM 60/120

AC Voltage Frequency:

50/60 Hz

Nominal Supply Voltage:

115/230v, 12v, 24v, 48v

Light Source:

LED

Material:

ABS, UV Stable PC

Beacon Output:

Flashing, Static/Steady

Current Type:

AC, AC/DC, DC

Enclosure Colour:

White

Power Rating:

Medium Proximity Signalling
