LED-R401/400 — Rotating LED Beacon

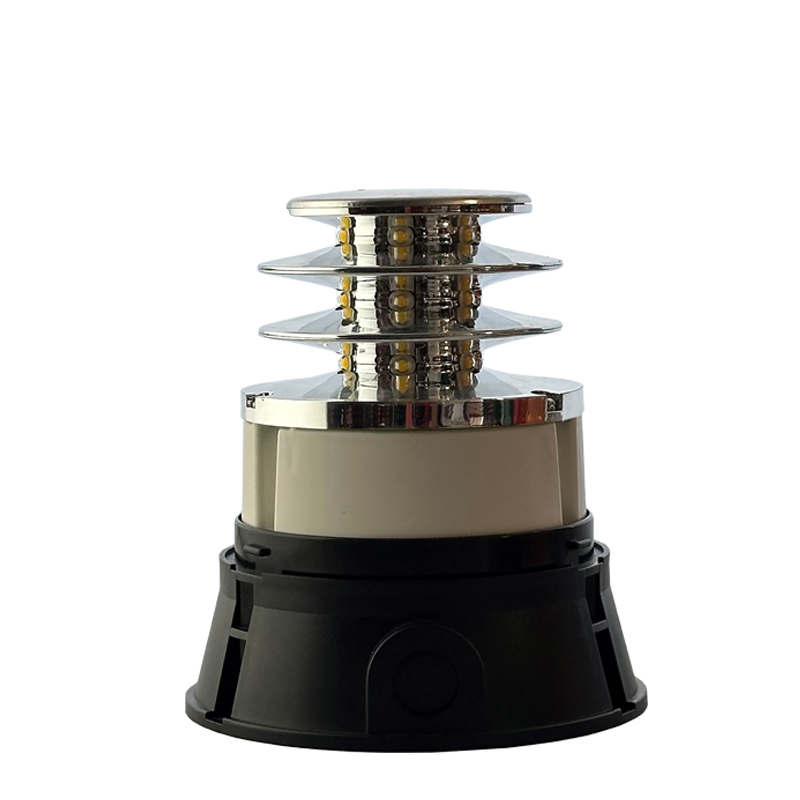

The LED-R401/400 is a rotating LED beacon designed for general and industrial signalling, superseding traditional belt-driven parabolic-reflector Beacons with a far superior operating life. Using an internal reflective mirror with 18 super-bright LEDs, it produces a robust, powerful rotating signal.
Two rotation speeds (80 or 120 RPM) are selectable, and a fixed 24vDC diode-polarised version is available for end of line monitoring. Termination is via the M20 side knockout or a terminal block in the base.
All the presence of a rotating beacon with none of the belt-drive maintenance.
KEY FEATURES
● 18 LEDs
● Rotating
● True rotating signal
● IP65 rated
● Surface, conduit box, wall or bracket mounting

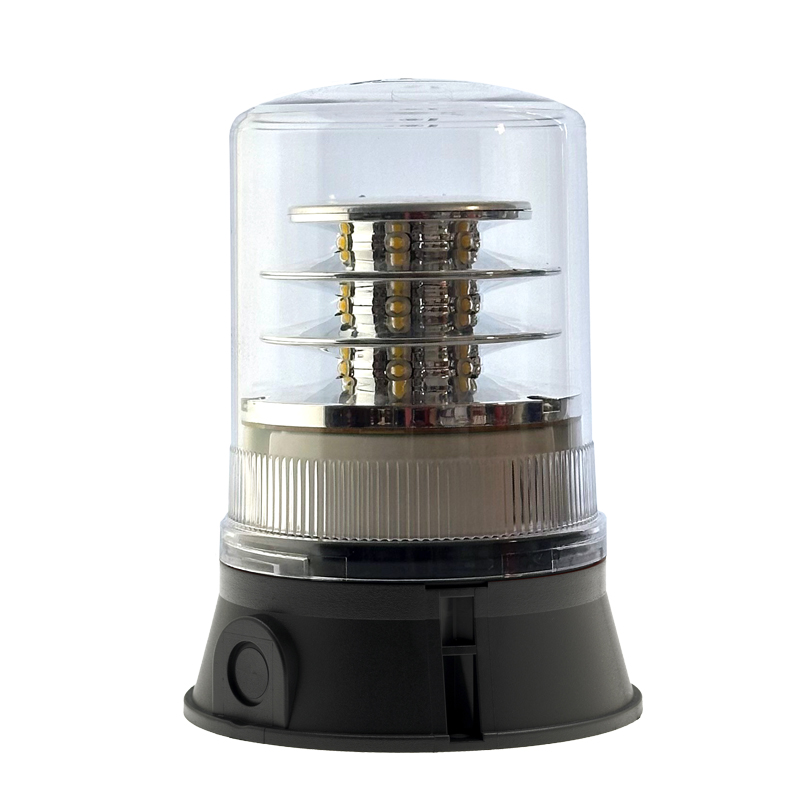

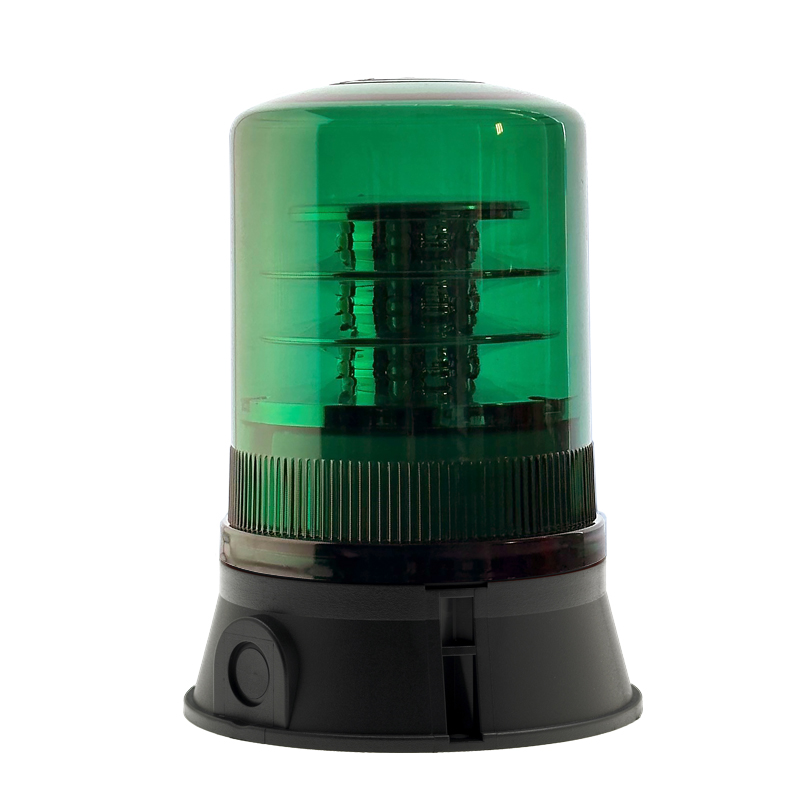

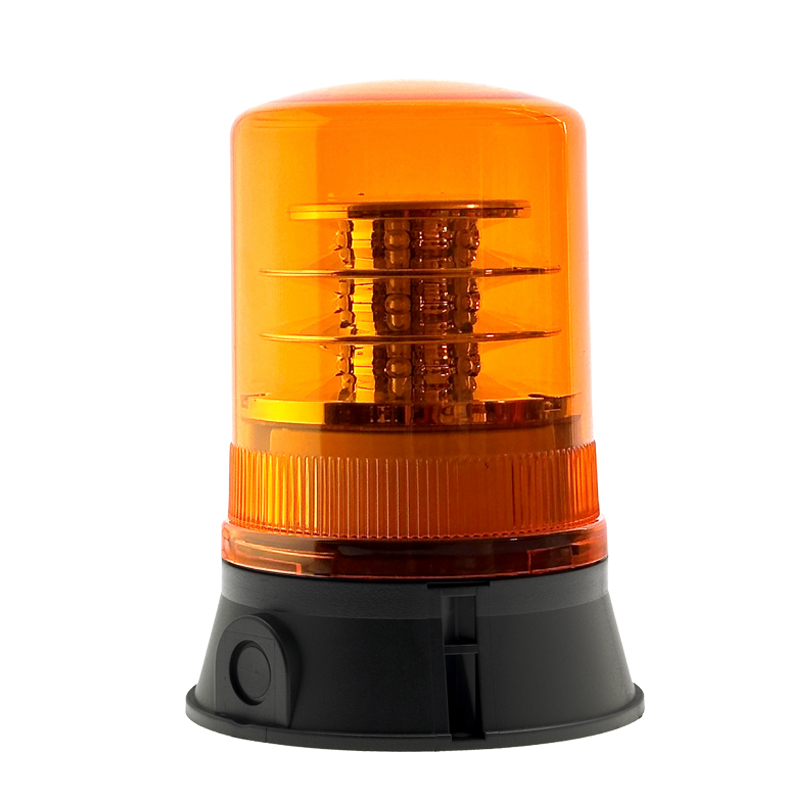

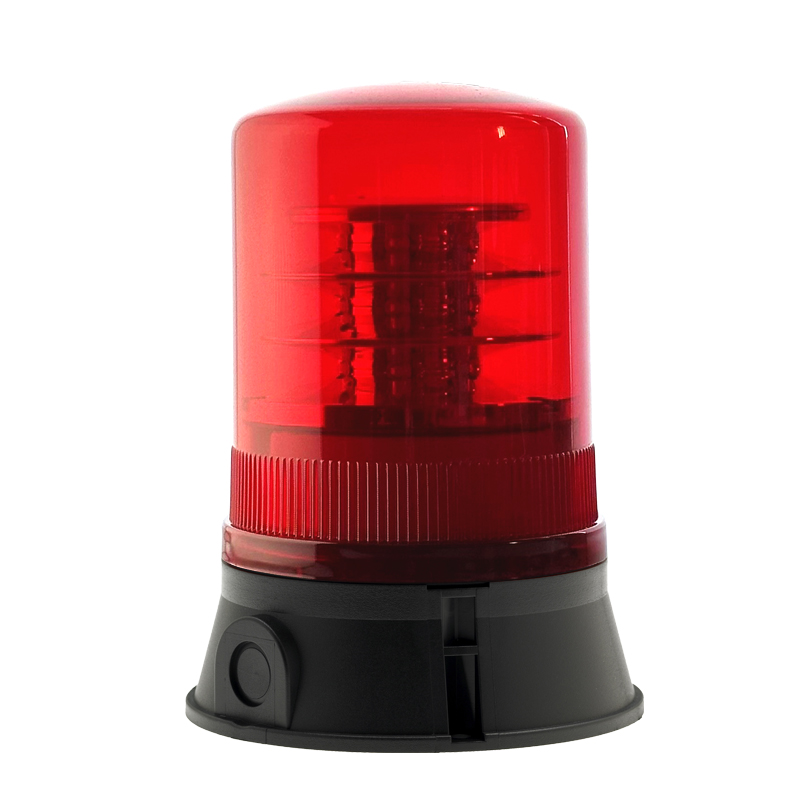

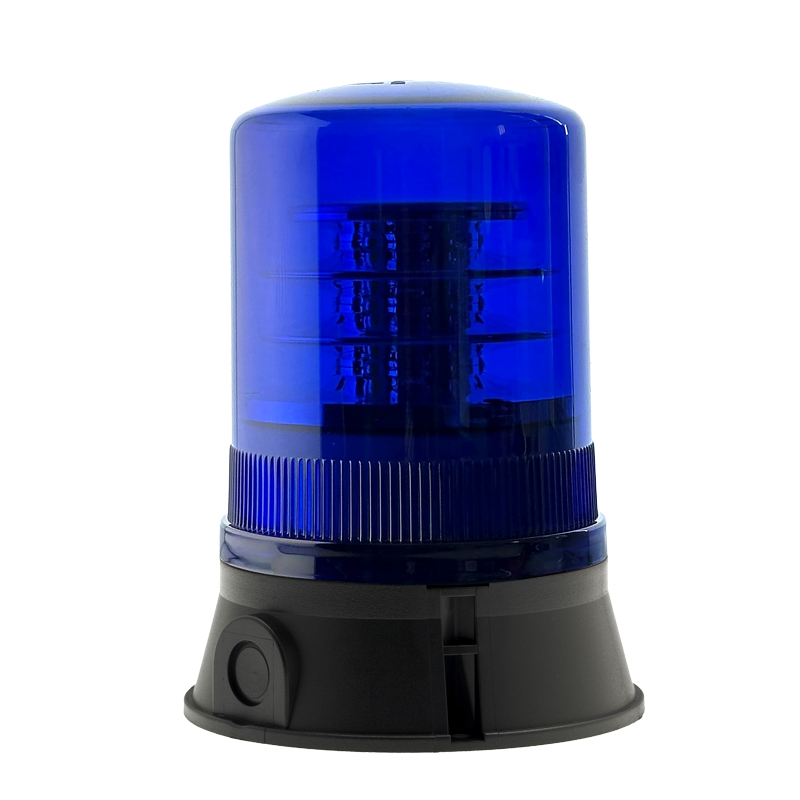

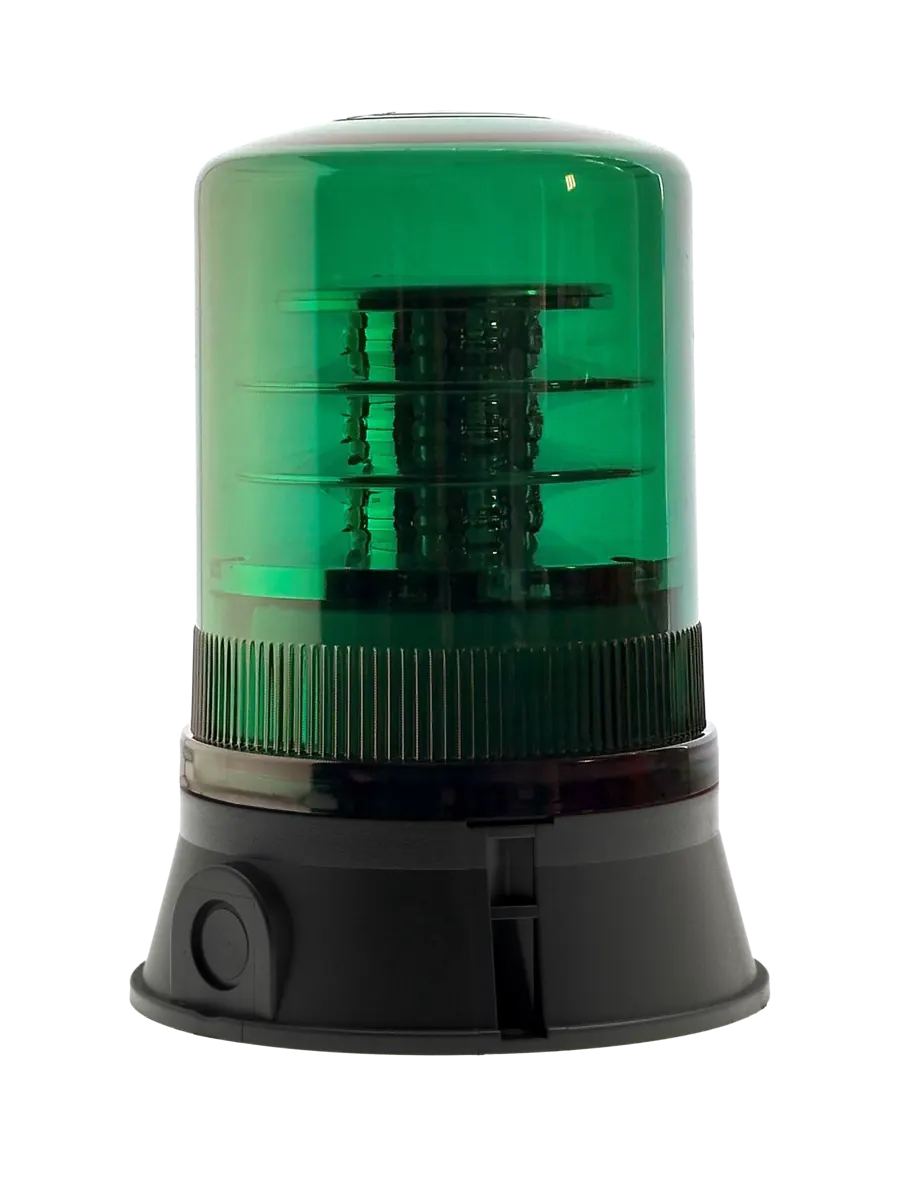

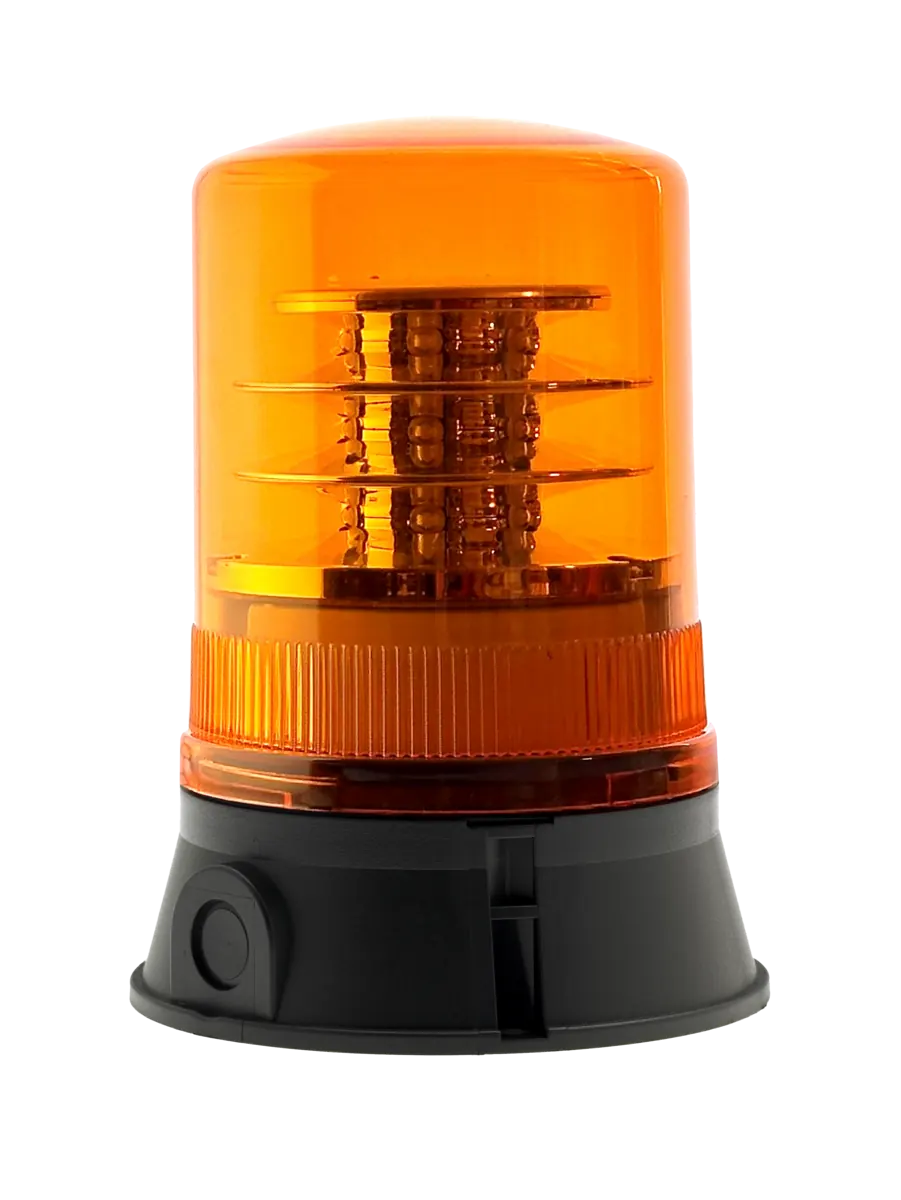

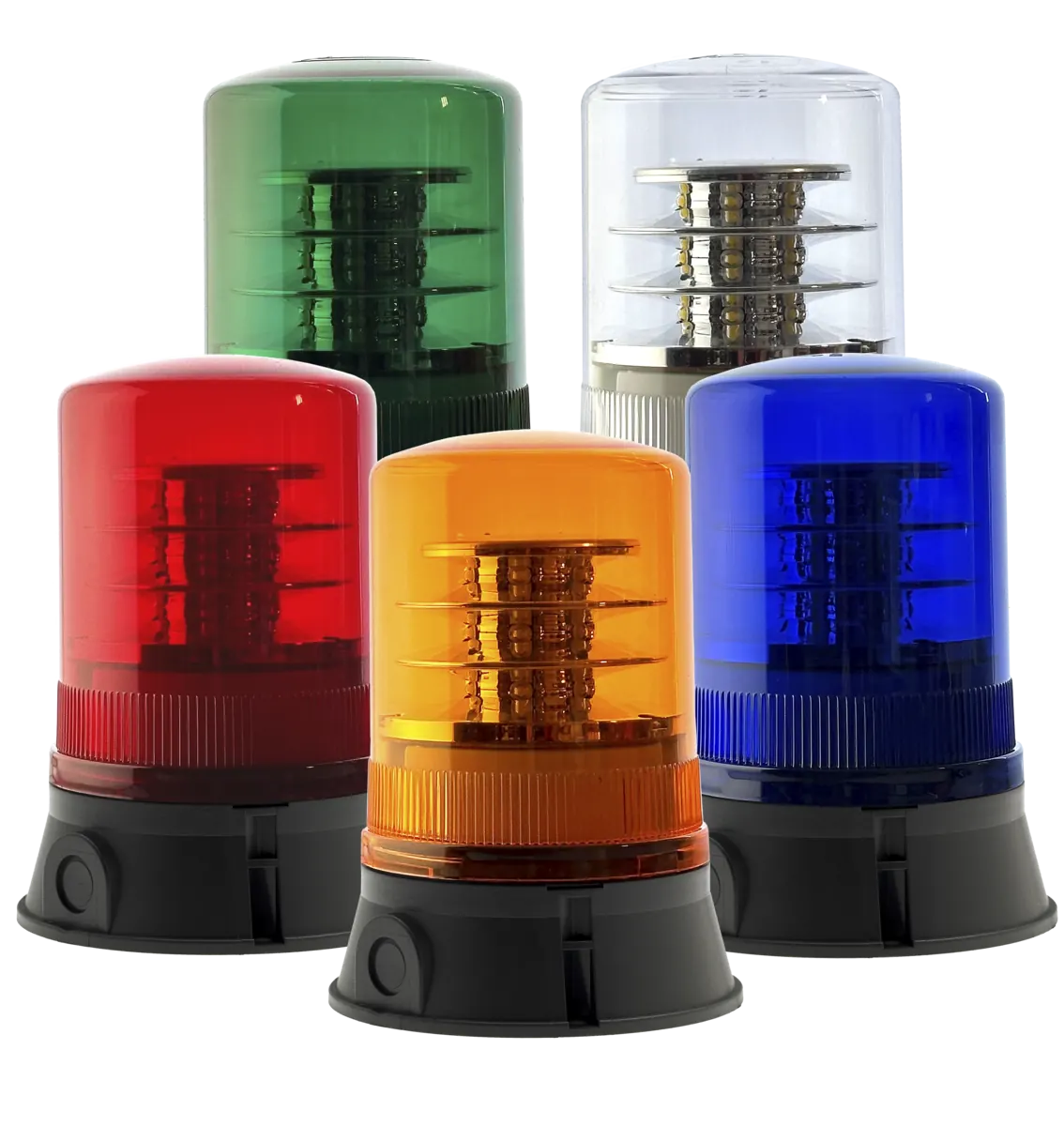

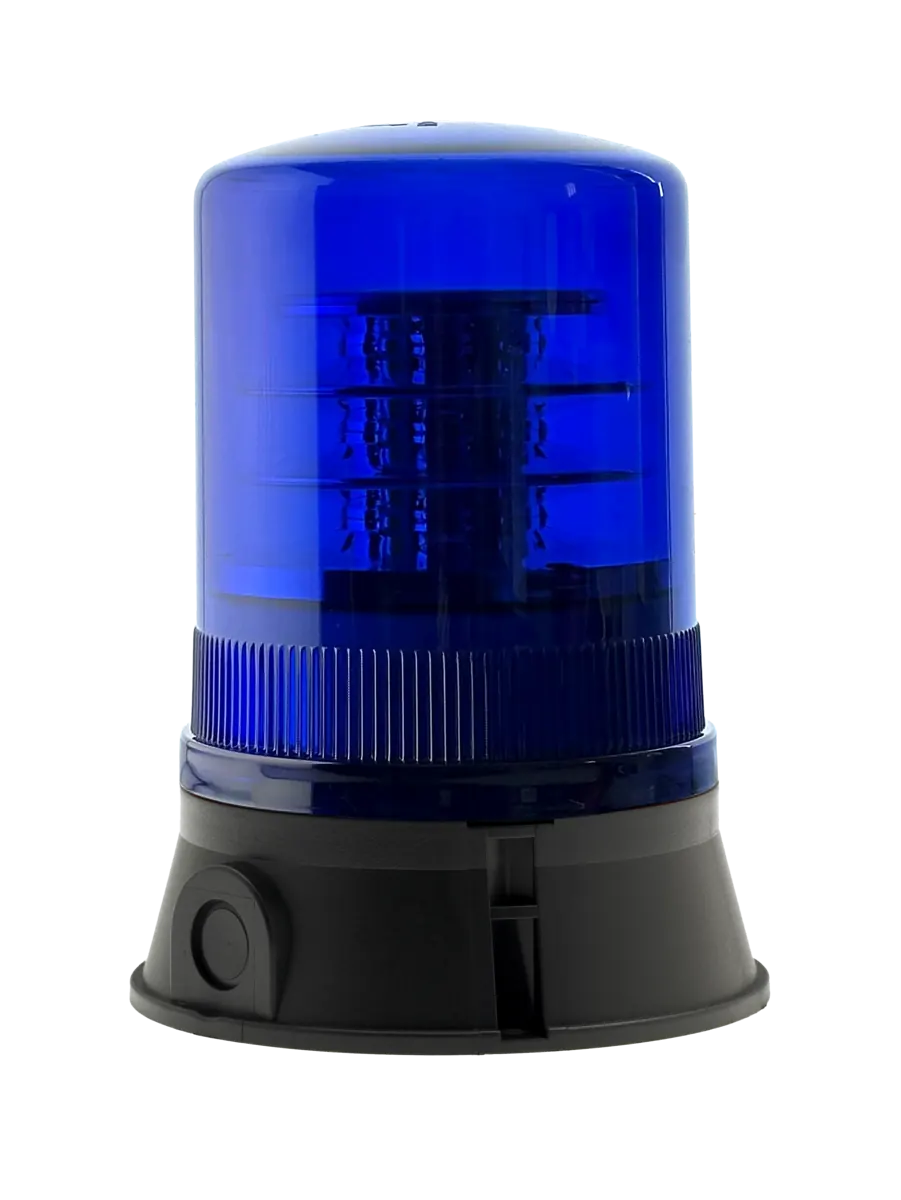

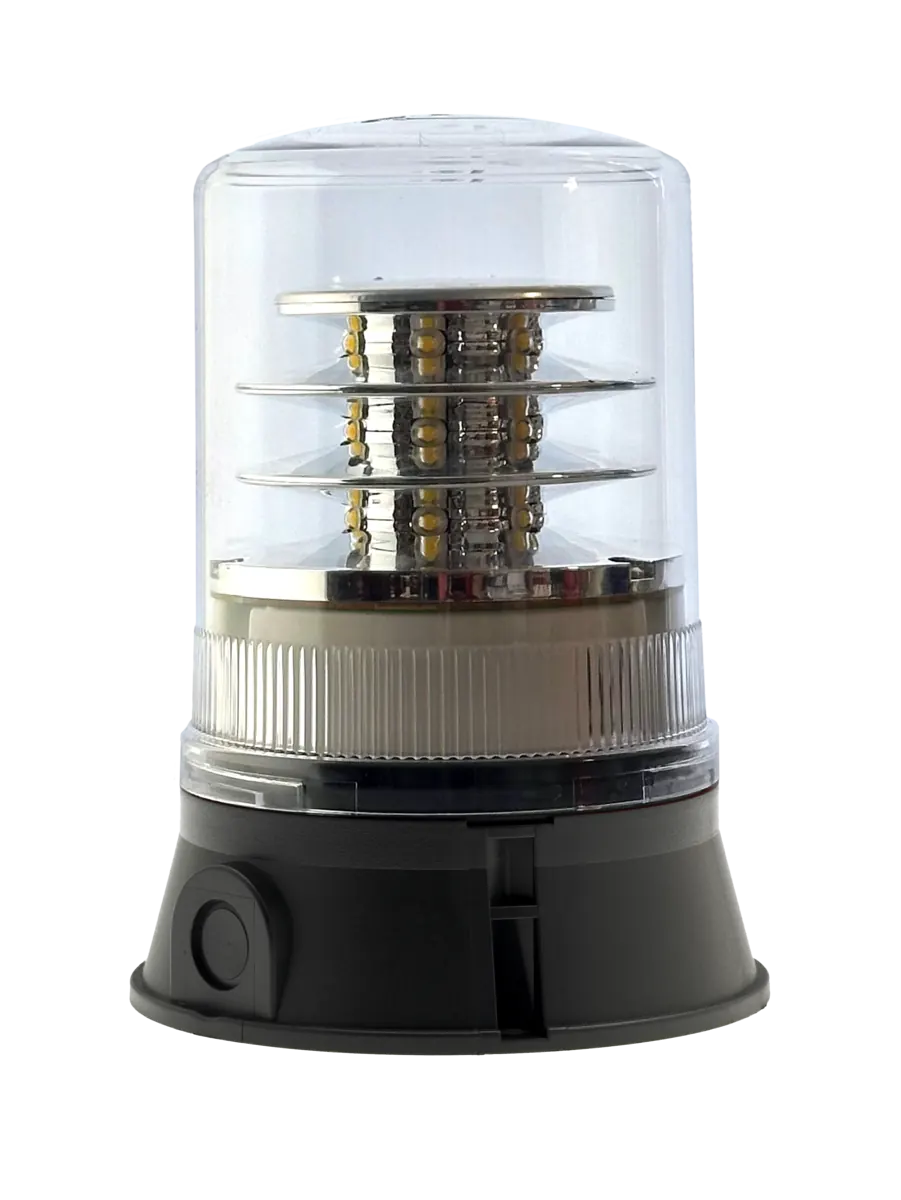

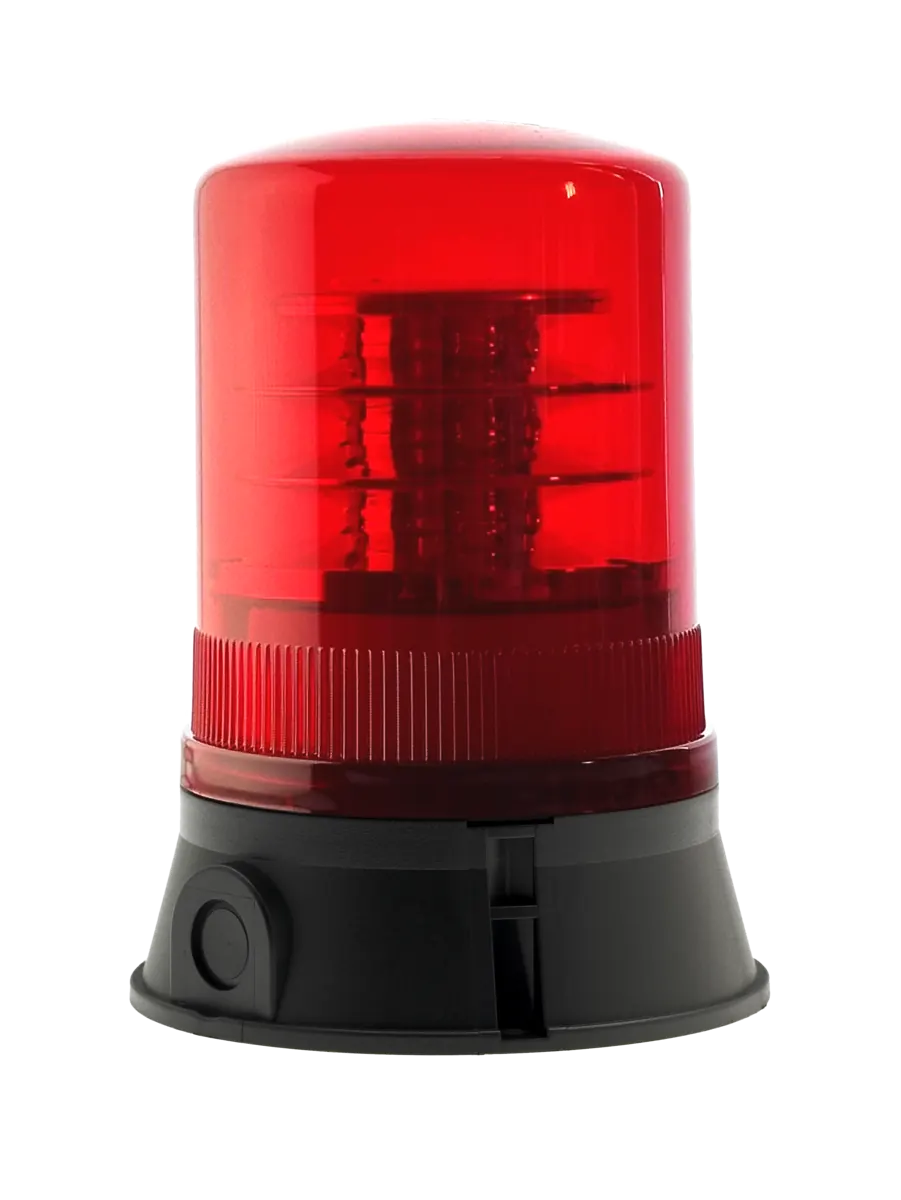

● Available colours: Amber, Red, Blue, Green, Clear
● 10-30vDC or 85-280vAC/DC
MATERIALS
● Polycarbonate lens
● ABS body
● ABS base
Typical applications: machinery, process plant, warehousing, traffic and access control, security.
