A6BM – IP66 Bell 106dB

Functionnality: Bell Tone

Type of fixing: Surface and Wall Mounting

Ingress protection: IP66

Voltage
Enclosure colour

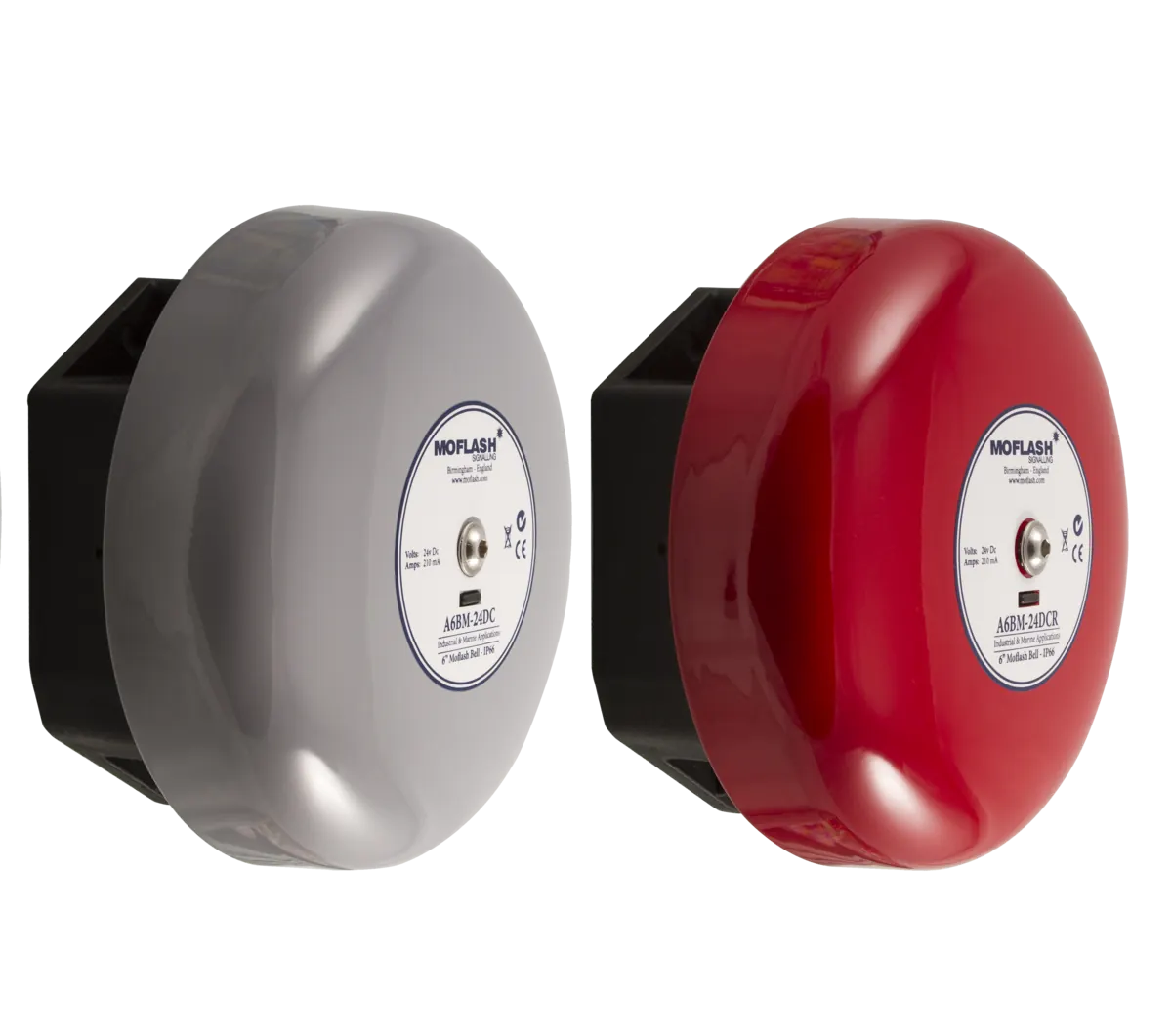

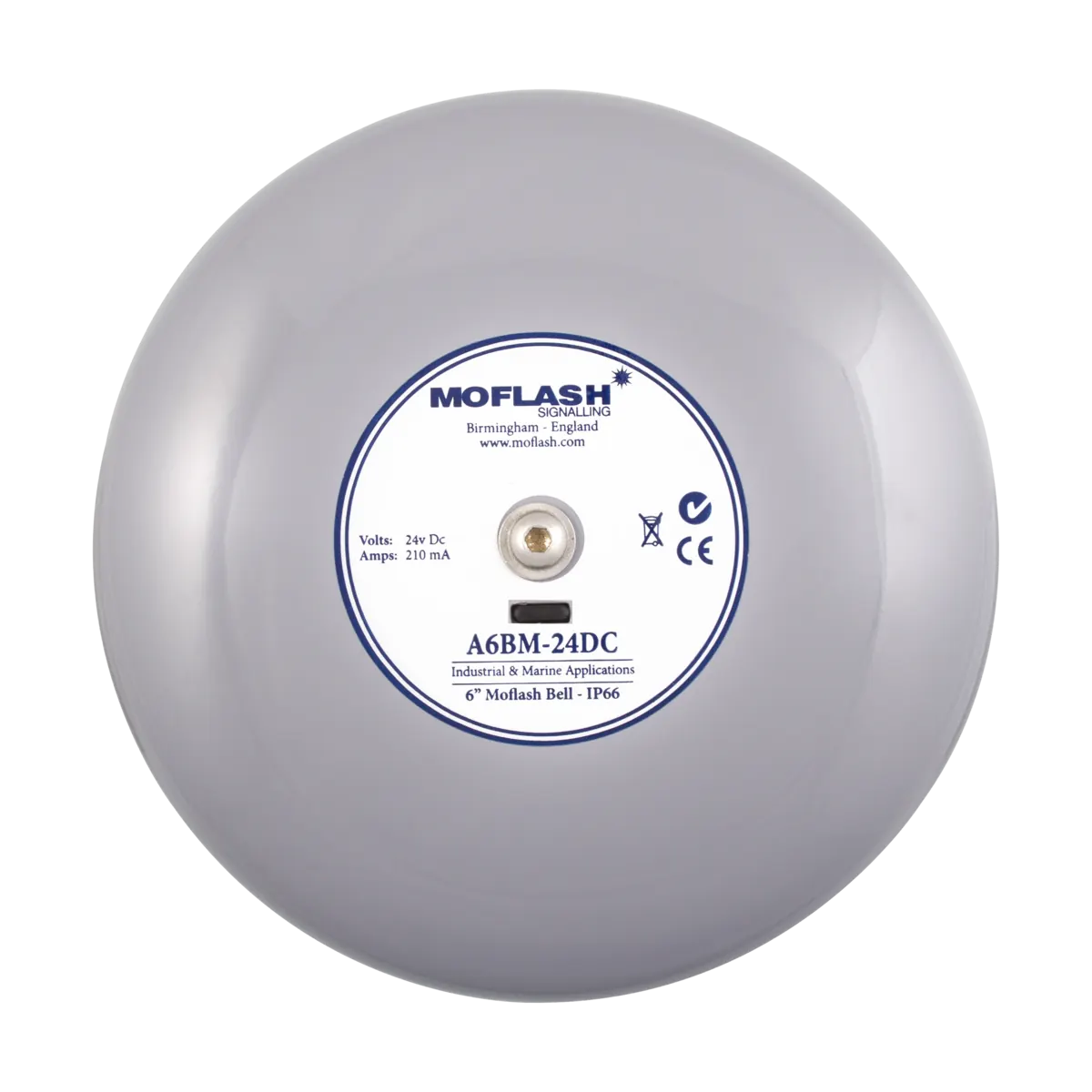

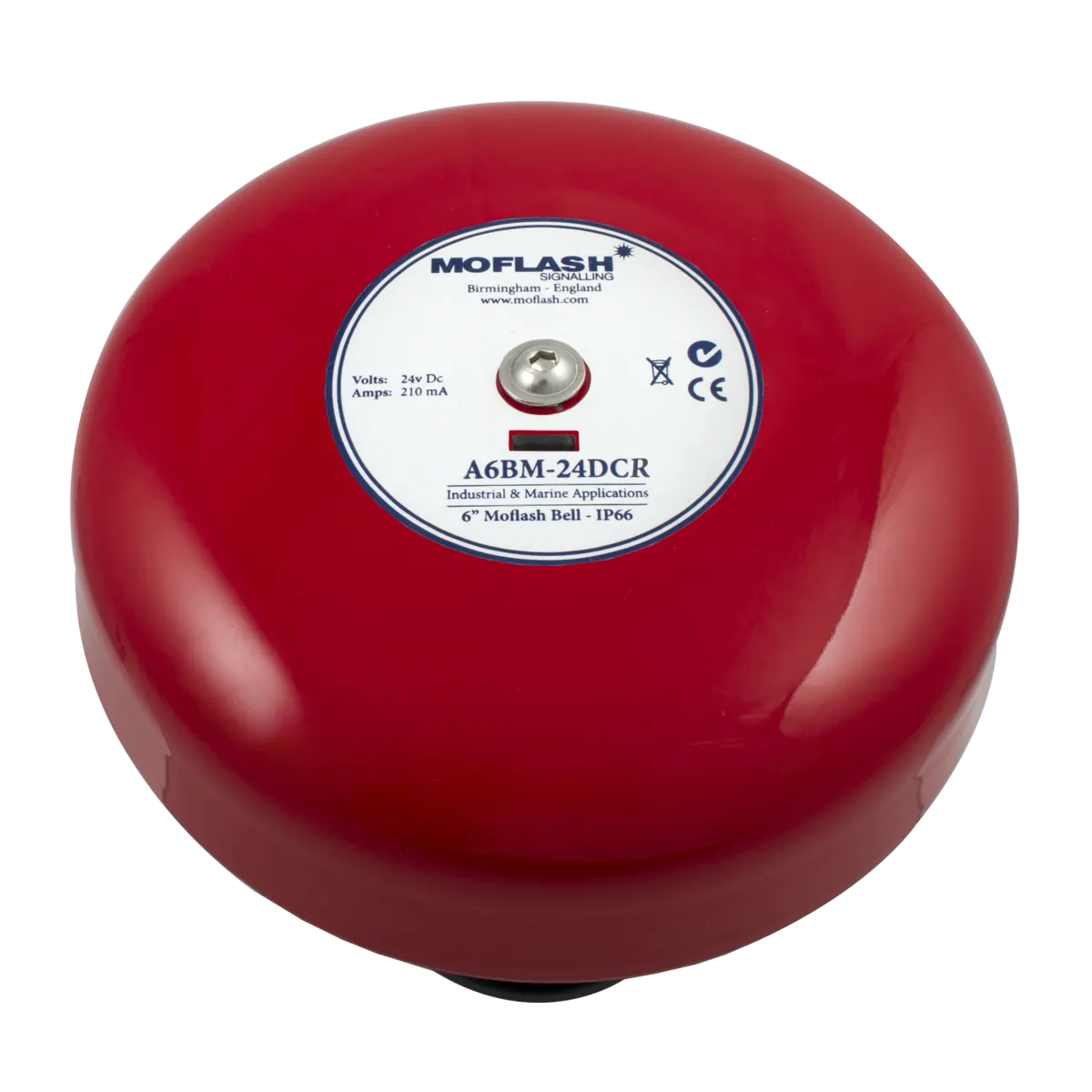

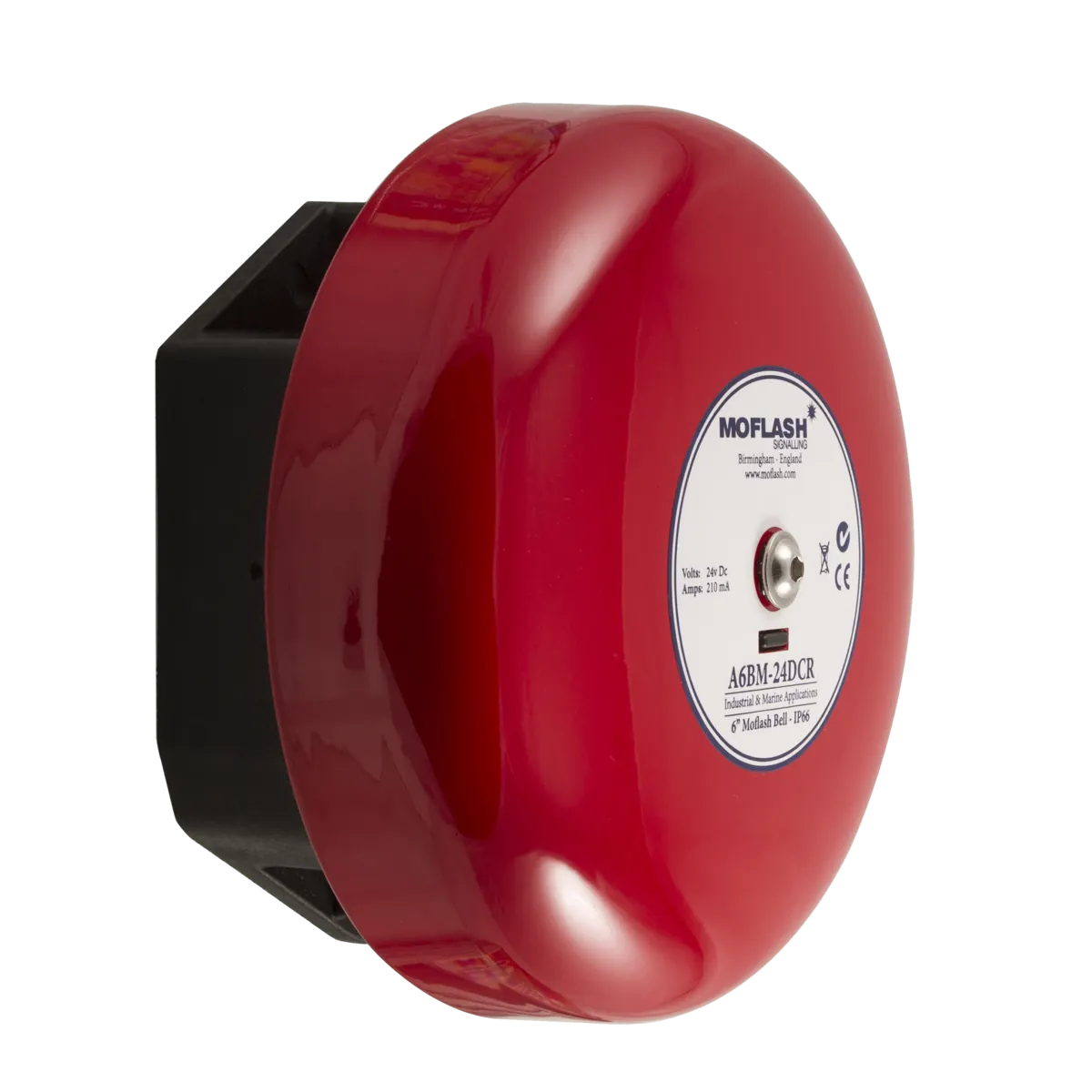

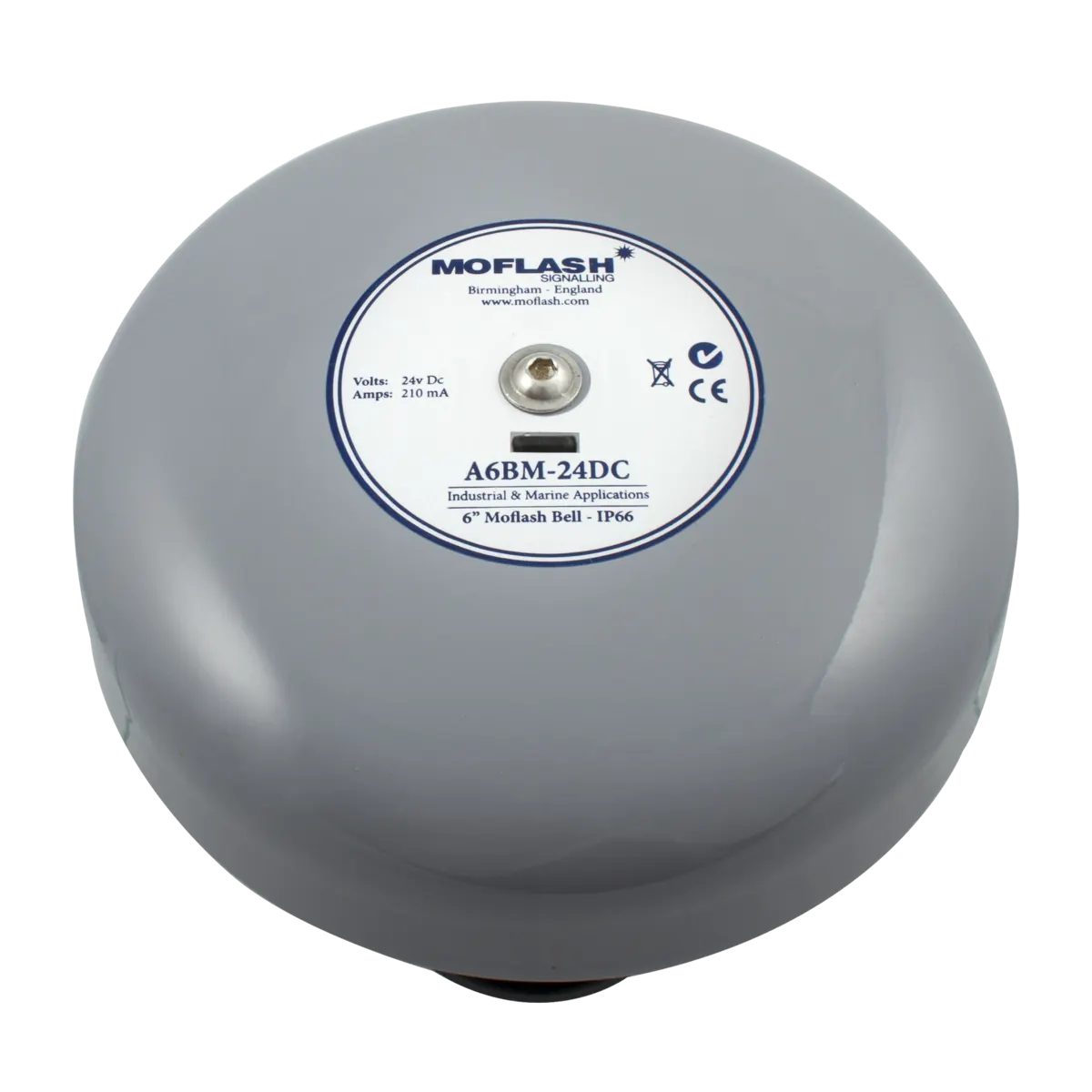

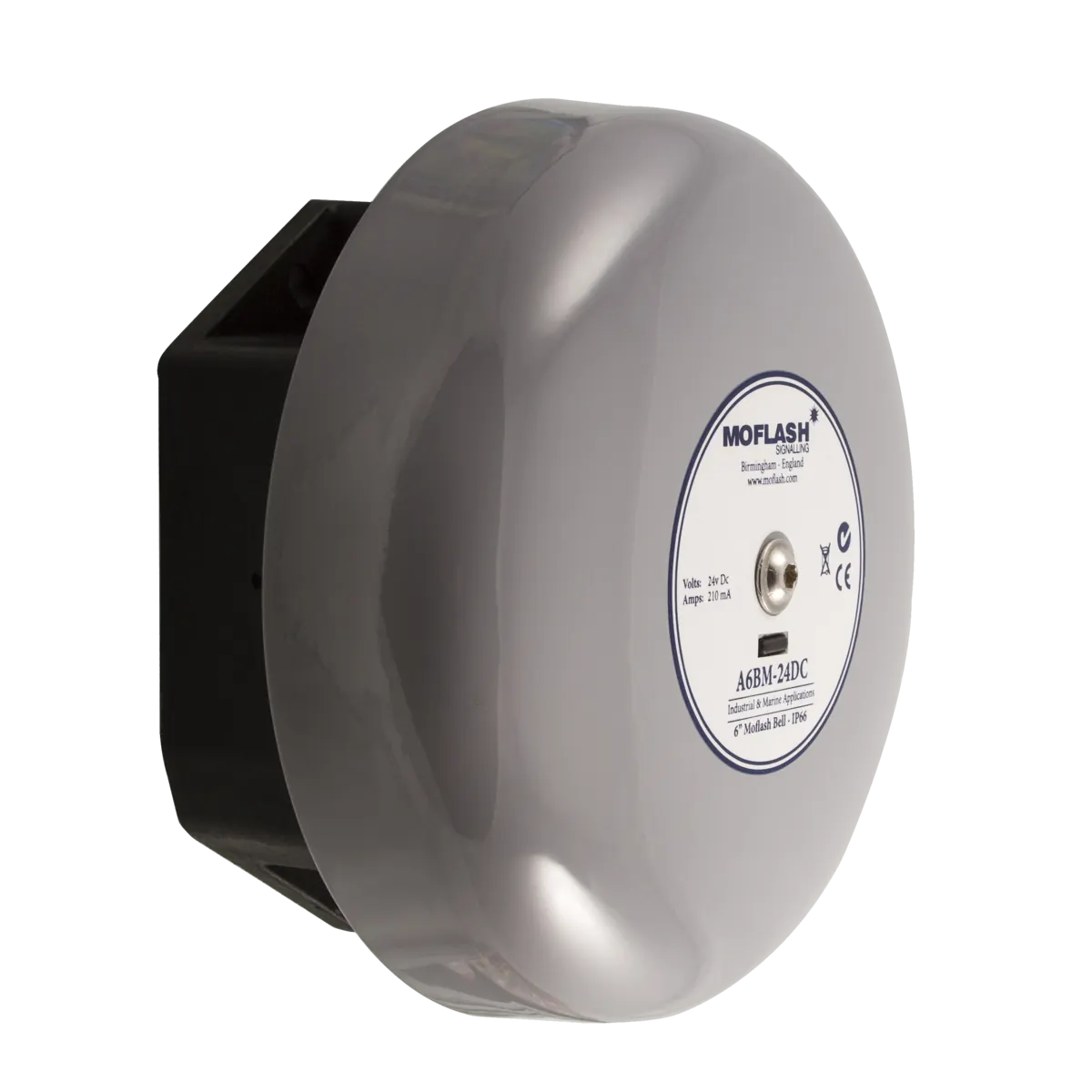

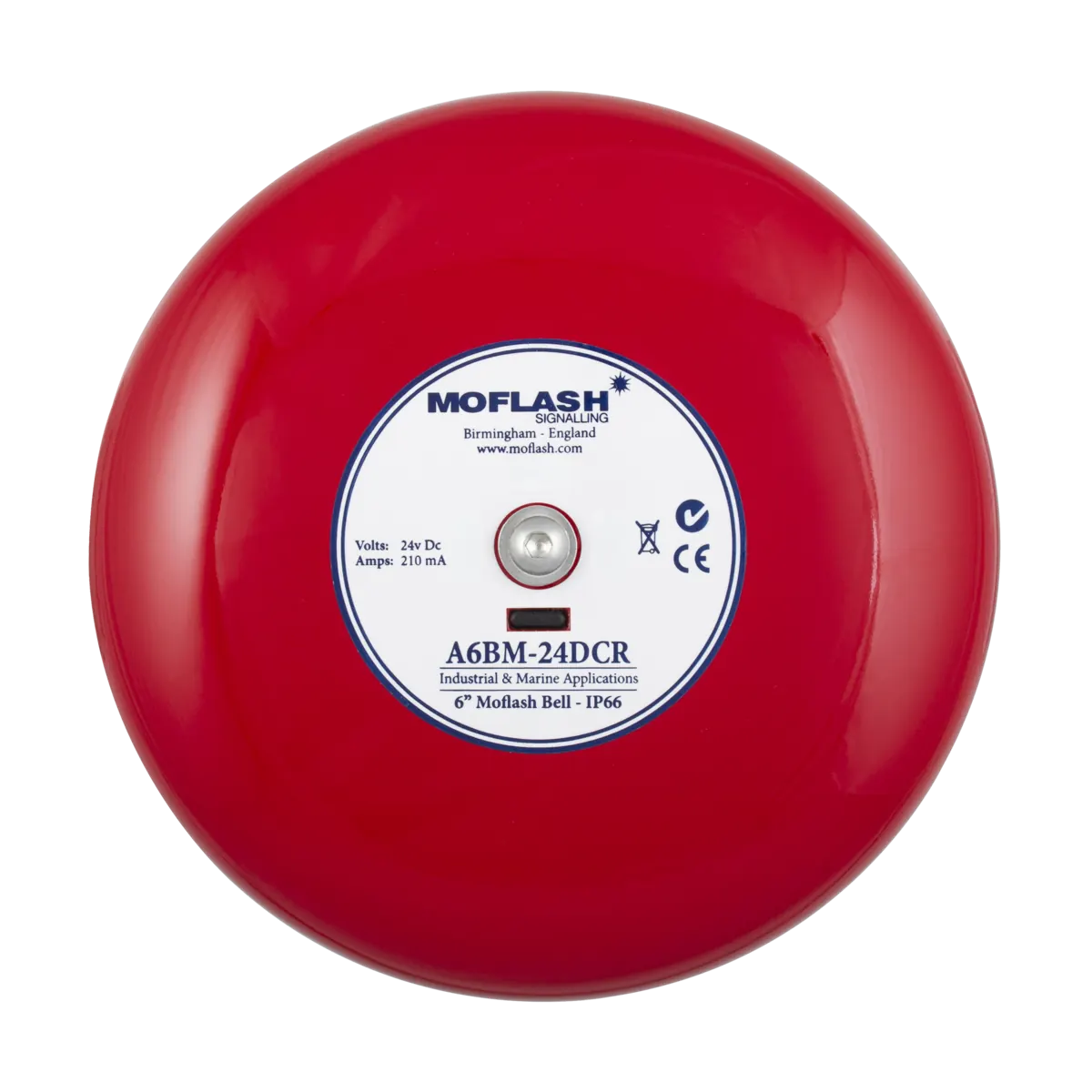

A6BM — Industrial & Marine Alarm Bell

The A6BM is a 6″ solenoid-driven industrial alarm bell designed for heavy-duty industrial and marine applications where rugged construction and a high weatherproof rating are required. It produces a rich, clear traditional ringing tone, free from mechanical clatter, at up to 106dB at 1 metre for reliable room or zone coverage.

Manufactured to withstand harsh environments and rated to IP66, it resists dust and heavy weather. Up to four M20 knockouts allow loop-in/loop-out cabling, and the three-point fixing with adjustment slots makes surface mounting quick and secure. Available in Red or Grey across a wide voltage range.

A dependable, marine-rated industrial bell built for a long service life in the harshest conditions.

KEY FEATURES
  Up to 106dB at 1 metre
  Bell tone
  6″ (150mm) solenoid-driven Bell
  Up to 4× M20 loop-in/loop-out entries
  IP66 rated
  Surface or wall mounting
  EN 50130-4 compliant
  12vDC, 24vDC or 85-280vAC/DC
MATERIALS
  Steel gong
  Die-cast aluminium body
  Red or Grey finish
  Stainless-steel fixings

Typical applications: heavy industry, marine and shipboard, process plants, warehousing.

Technical Information

Weight: N/A
Dimensions: N/A
Functionnality:

Bell Tone

Type of fixing:

Surface and Wall Mounting

Ingress Protection:

IP66

Voltage:

12vDC, 24vDC, 115-230vAC/DC

Enclosure Colour:

Grey, Red

SKU: A6BM Category: Brand:Moflash Signalling

Downloads

Approvals & Conformities

  • C-Tick
  • CE Marking
  • RoHS Directive
  • UKCA Importer

Tones

Description
Tone Number
Frequency
Applications
Traditionnal Bell
1
