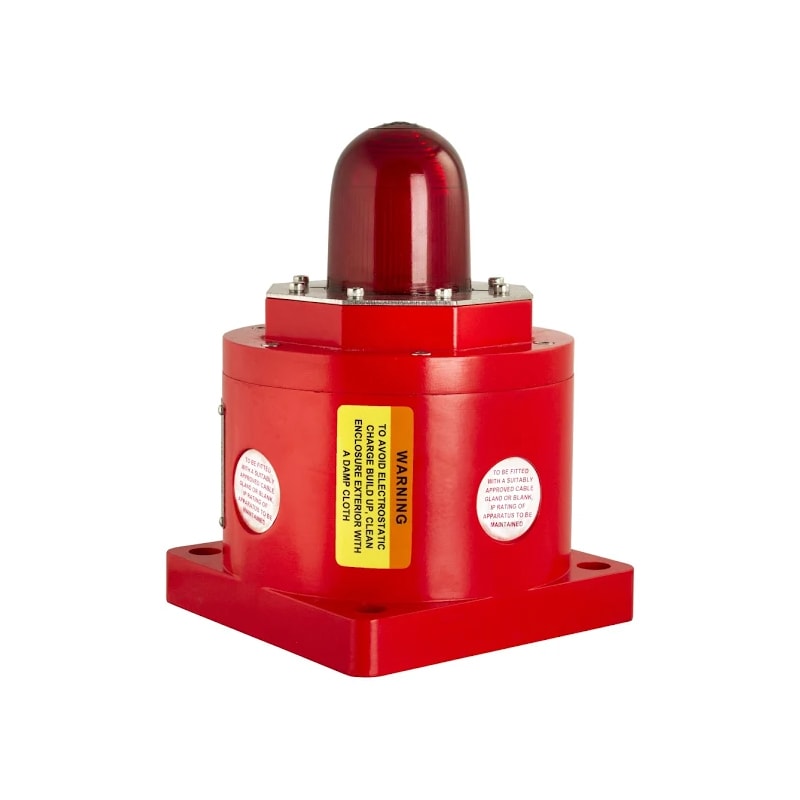

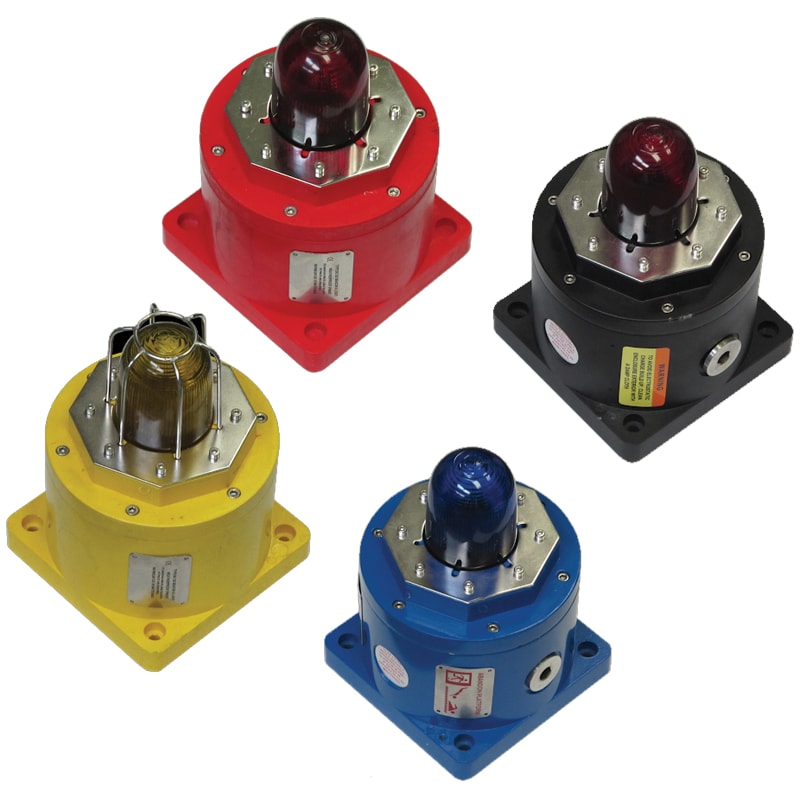

BC150 GRP Explosion Proof Beacon

Features/Certifications

  • Approved by ATEX, IECEx
  • CQST (Available on request only)
  • ATEX: Ex d IIC T4~ T6 Gb, Ex tb IIIC T135°C~T85°C
  • Zones 1, 2, 21 & 22
  • Conforms to: EN 60079-0:2012 (IEC 60079-0:2011), EN-60079-1:2007 (IEC 60079-1:2007), EN 60079-31:2009 (IEC 60079-31:2008)
  • 360° light output around the vertical axis
  • Dustproof & Weatherproof

Material

GRP (Glass Reinforced Plastic)

[vc_row][vc_column][vc_column_text]

BC150 Series (GRP)

Explosion Proof Beacon

GRP: Glass Reinforced Plastic

The BC150 range has been approved for use in potentially explosive atmospheres and very harsh environmental conditions.

Typical applications are Oil and Gas, On-shore and Offshore, Chemical, Petrochemical, Refineries & Marine locations etc.

These beacons have a choice of two types of light source: either Xenon (strobe) with multiple flash rate and power ratings or an LED array with three status type indication options and two power ratings. The design allows fortermination inside the enclosure.

The units also have the ability to be fitted with a telephone initiation function and can be used as the second ring output indicator for telephones when installed in very noisy environments.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs style=”outline” shape=”round” color=”blue” active_section=”1″ no_fill_content_area=”true”][vc_tta_section i_icon_fontawesome=”fa fa-info-circle” add_icon=”true” title=”Info” tab_id=”1529951069830-3002b986-52e6″][vc_column_text][table id=190 /]
[table id=48 /][/vc_column_text][vcex_spacing size=”10px”][vc_column_text][table id=49 /][/vc_column_text][vcex_spacing size=”10px”][vc_column_text][table id=50 /][/vc_column_text][vcex_spacing size=”10px”][vc_column_text][table id=51 /][/vc_column_text][vcex_image_grid image_ids=”4801,4802″ css_animation=”fadeInDown” img_size=”full” hover_animation=”shrink” img_hover_style=”shrink”][/vc_tta_section][vc_tta_section title=”Downloads” tab_id=”1529951069856-2febb19b-531e”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/BC150/Issue-10-BC150-v2.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Datasheet – English[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/BC150/french/BC150-French.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-download”]Datasheet – French[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” style=”plain-text” color=”blue” icon_right=”download” onclick_url=”https://www.moflash.co.uk/wp-content/uploads/Products/BC150/BC150-S00521-Issue-8.pdf” onclick_target=”blank”]Installation Sheet[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Products/BC150/Moflash-BC150-guard.zip” target=”blank” style=”plain-text” color=”red” icon_right=”fa fa-download”]CAD File[/vcex_button][vcex_spacing size=”15px”][vc_text_separator title=”Certification” i_icon_fontawesome=”fa fa-check-square-o” i_background_style=”rounded-outline” i_background_color=”blue” i_size=”xs” title_align=”separator_align_left” align=”align_left” color=”blue” el_width=”50″ add_icon=”true”][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/BC125-BC150/Moflash-ATEX-14-NEMKO-1011X-Certificate.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]ATEX 14 NEMKO 1011x[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/BC125-BC150/Moflash-iecex-certificate-BC125BC150.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]IECEx[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/BC125-BC150/EU-DOC-Master-BC125-BC150-Issue-F.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]Declaration of Conformity[/vcex_button][vcex_spacing size=”5px”][vcex_button layout=”block” url=”https://www.moflash.co.uk/wp-content/uploads/Documents/Certification/BC125-BC150/Address-Change-Statement-for-Moflash.pdf” target=”blank” style=”plain-text” color=”blue” icon_right=”fa fa-check-square-o”]Address Change[/vcex_button][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-cube” add_icon=”true” title=”3D Model” tab_id=”1530008470298-6f02f2cd-9e9c”][vc_column_text]

[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fa fa-puzzle-piece” add_icon=”true” title=”Accessories” tab_id=”1530037968380-96ecc812-1726″][vcex_woocommerce_carousel css_animation=”fadeInDown” price=”false” arrows_position=”center” include_categories=”1207″ arrows_style=”slim” img_hover_style=”shrink”][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row]

Lens Colour:

Amber, Blue, Clear, Green, Red

Enclosure Colour:

Black, Blue, Red, Yellow

IP Rating:

IP 66

Maximum Temperature:

+70 °C

Minimum Temperature:

-40 °C

Application:

Ex Hazardous Area, Industrial, Marine

FPM:

FPM 60-120, FPM 60-180

RPM:

RPM 60-120

Nominal Supply Voltage:

115/230v, 12-48v

Power Rating:

Close Proximity Signalling, Long Distance Signalling, Medium Proximity Signalling

Material:

GRP

Certification:

ATEX, CQST (Available on request only), IECEx

Zones:

Zone 1, Zone 2, Zone 21, Zone 22

Beacon Output:

Flashing, Rotating, Static/Steady

Current Type:

AC, DC

AC Voltage Frequency:

50/60 Hz

Light Source:

LED, Xenon
