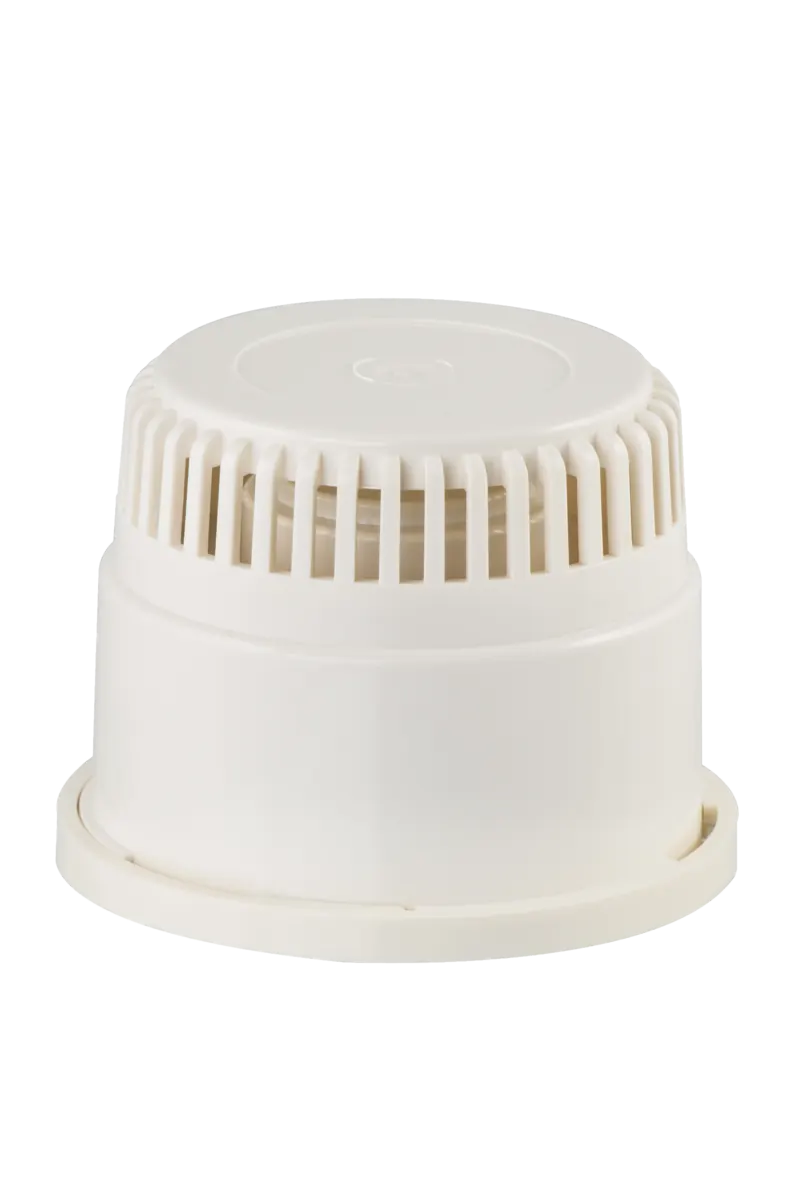

AE36M — Piezo Buzzer
The AE36M is a Piezo buzzer designed for security, process control and industrial signalling where a compact but effective signal is needed. It provides a single-stage alarm with pulsed or continuous tones, selectable via a third wire, at up to 93dB at 1 metre for clear local indication.
A separate mounting plate, into which the main buzzer snap-fits, allows termination inside the enclosure for a neater, protected installation, suiting panel, surface or conduit mounting.
Neat, protected wiring and strong output make the AE36M a clean choice for permanent industrial installation.
KEY FEATURES
● Up to 93dB at 1 metre
● Pulsed or continuous tone
● snap-fit base
● Termination inside the enclosure
● IP30 rated
● Surface or panel mounting
● 12-24vDC
MATERIALS
● ABS body
● ABS housing
Typical applications: process control, security systems, machinery, control panels, industrial plant.
